PCF8566P datasheet, PDF - EEWORLD Datasheet

PCF8566P: DescriptionInterface Circuit, CMOS, PDIP40; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size980KB，34 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric View All

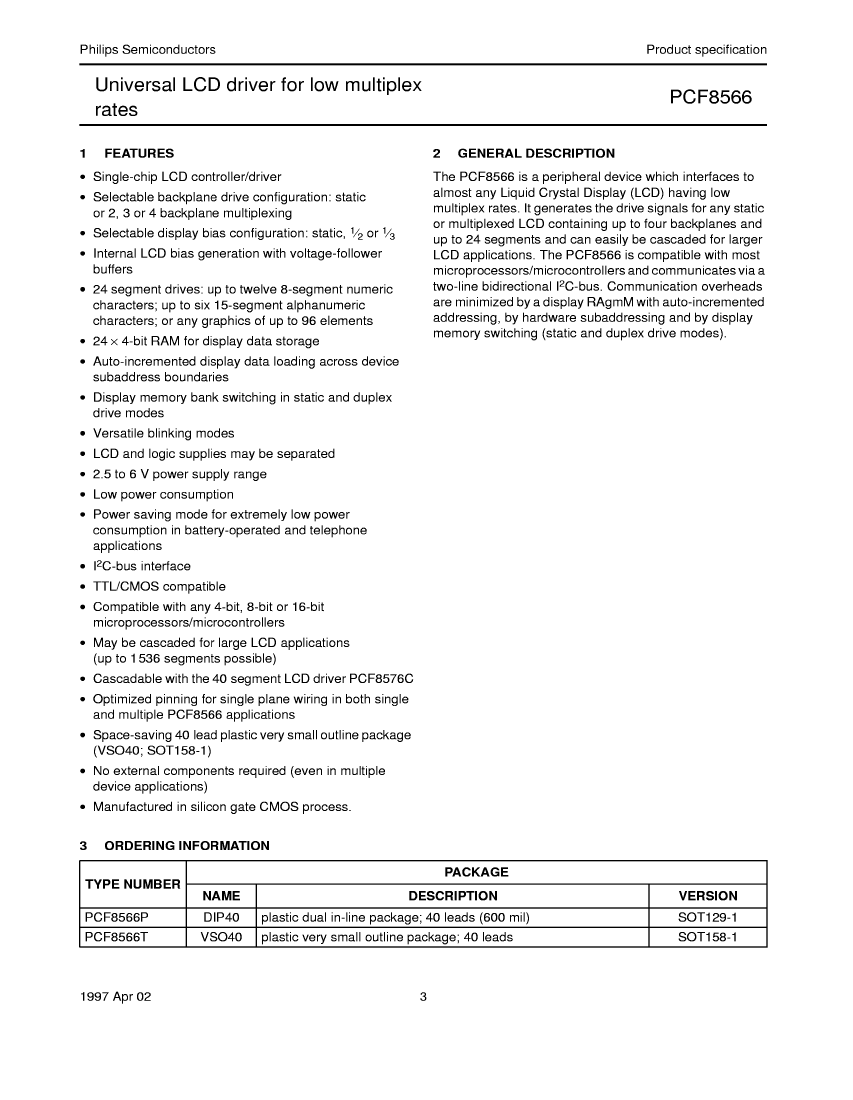

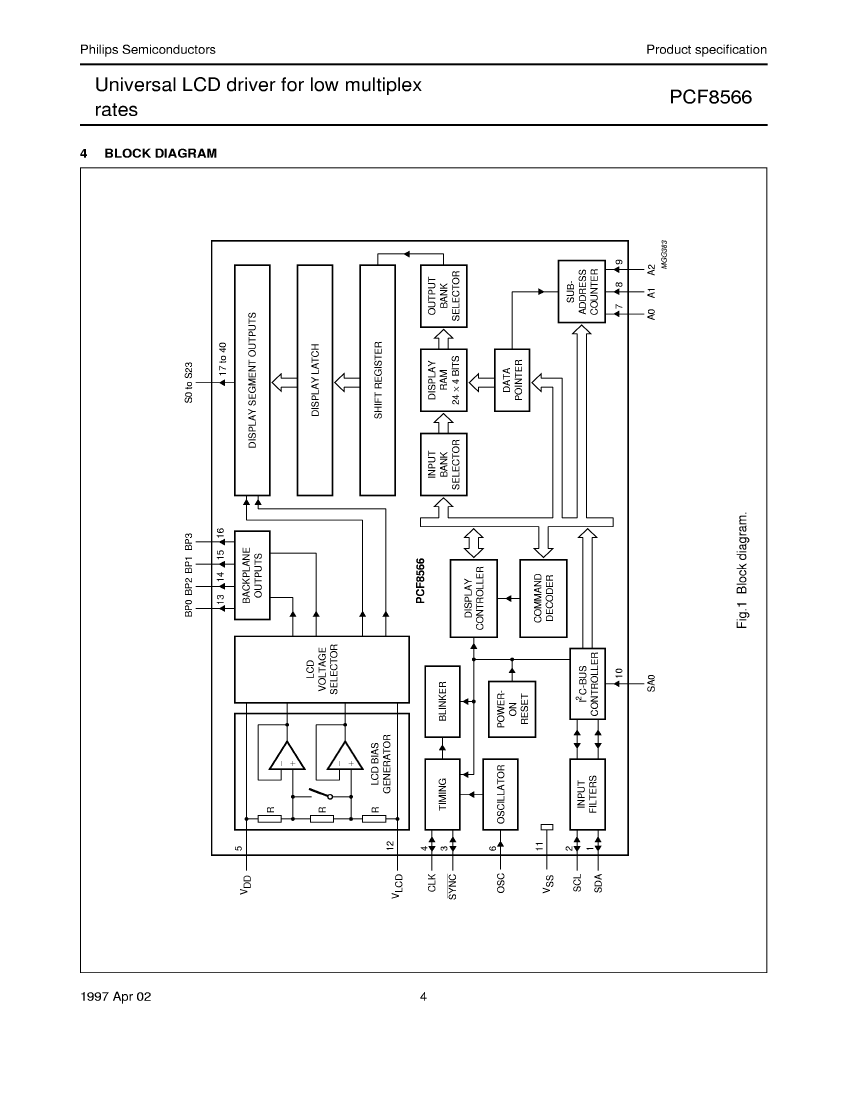

PCF8566P Overview

Interface Circuit, CMOS, PDIP40

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)

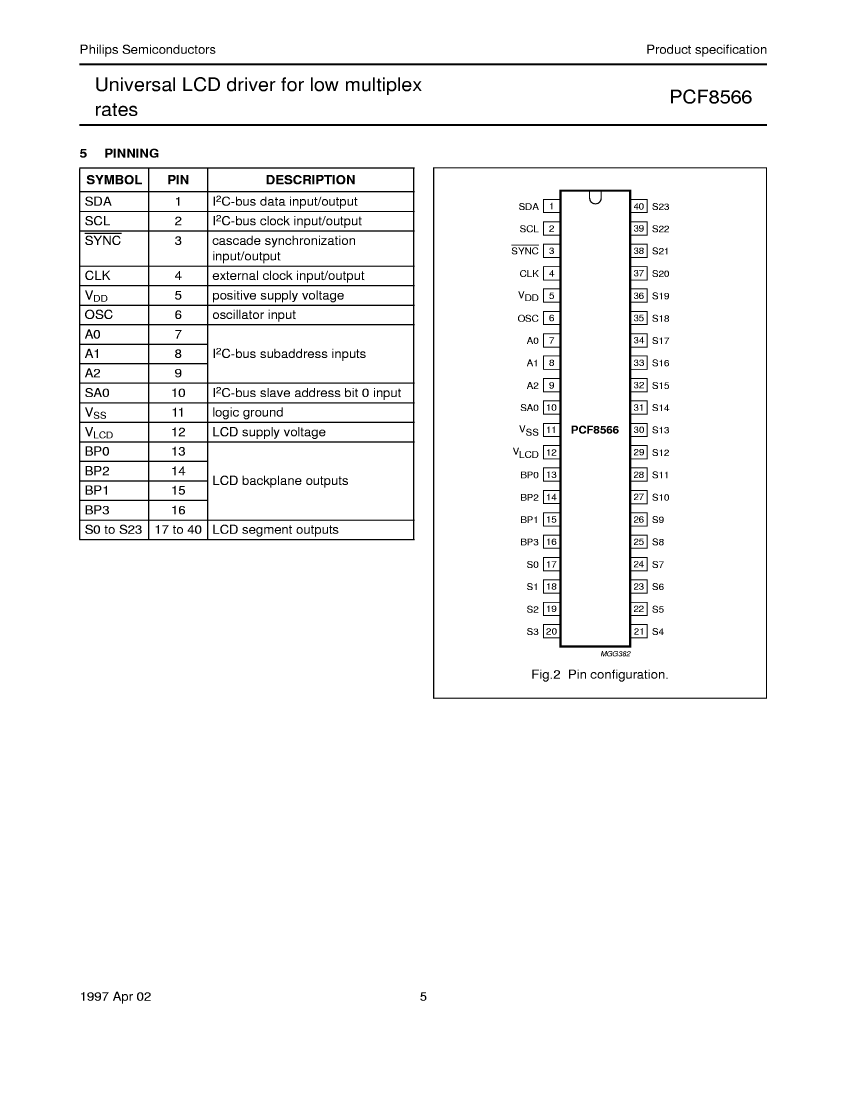

package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown

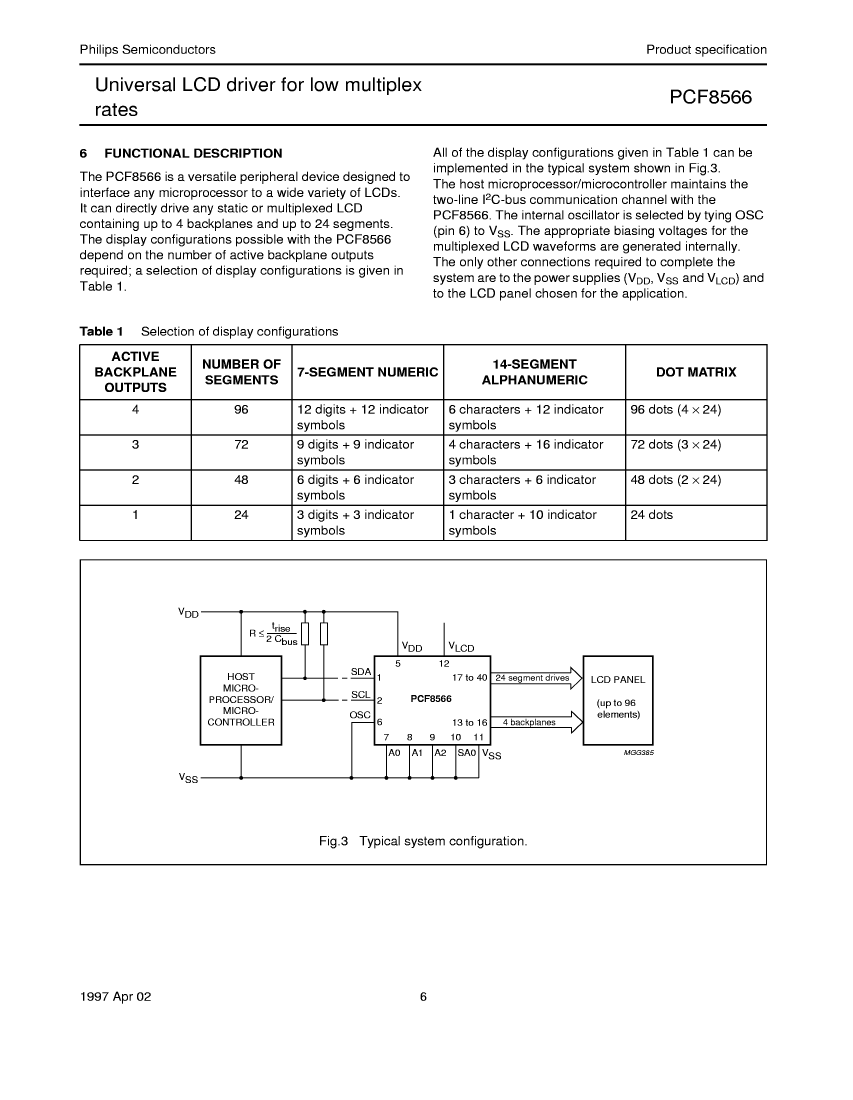

display mode	SEGMENT
JESD-30 code	R-PDIP-T40
Number of base plates	4-BP
Number of segments	24
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/5 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
