CMXT3906

SURFACE MOUNT

DUAL PNP

SILICON TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMXT3906

type is a dual PNP silicon transistor manufactured

by the epitaxial planar process, epoxy molded in a

SUPERmini™ surface mount package, and designed

for small signal general purpose amplifier and switching

applications.

MARKING CODE: X2A

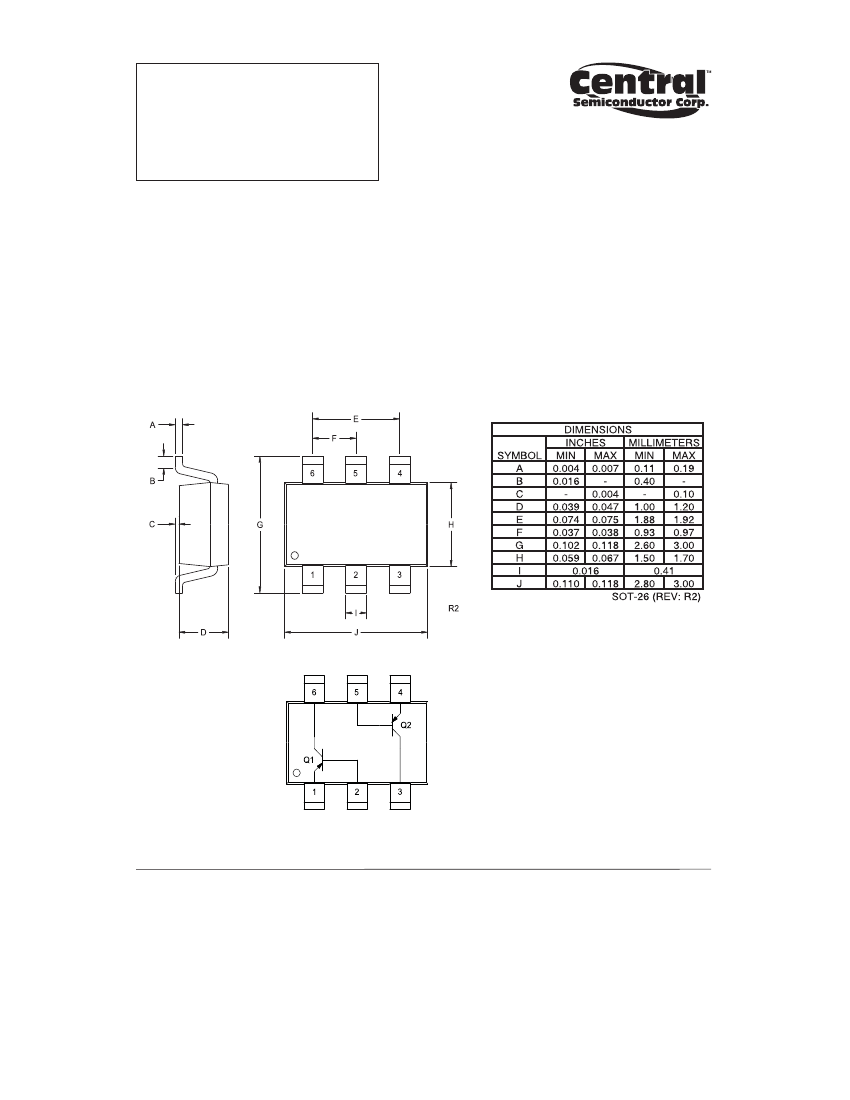

SOT-26 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VCBO

VCEO

VEBO

IC

PD

TJ, Tstg

Θ

JA

40

5.0

200

350

-65 to +150

357

UNITS

V

mA

mW

°C

°C/W

ELECTRICAL CHARACTERISTICS PER TRANSISTOR:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

MAX

ICEV

VCE=30V, VEB=3.0V

50

BVCBO

IC=10μA

40

BVCEO

IC=1.0mA

40

BVEBO

IE=10μA

5.0

VCE(SAT)

IC=10mA, IB=1.0mA

0.25

VCE(SAT)

VBE(SAT)

hFE

fT

Cob

Cib

hie

IC=50mA,

IC=10mA,

IC=50mA,

IB=5.0mA

IB=1.0mA

IB=5.0mA

IC=0.1mA

IC=1.0mA

IC=10mA

0.65

60

80

100

60

30

250

4.5

10

12

0.40

0.85

0.95

UNITS

nA

V

VCE=1.0V,

300

VCE=1.0V, IC=50mA

VCE=1.0V, IC=100mA

VCE=20V, IC=10mA, f=100MHz

VCB=5.0V, IE=0, f=1.0MHz

VBE=0.5V, IC=0, f=1.0MHz

VCE=10V, IC=1.0mA, f=1.0kHz

MHz

pF

kΩ

2.0

R3 (12-February 2010)

CMXT3906TRLEADFREE Related Products

	CMXT3906TRLEADFREE	CMXT3906LEADFREE
Description	Transistor	Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, PNP, Silicon, SUPERMINI-6
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
Maximum collector current (IC)	0.2 A	0.2 A
Minimum DC current gain (hFE)	100	100
Maximum operating temperature	150 °C	150 °C
Polarity/channel type	PNP	PNP
surface mount	YES	YES
Nominal transition frequency (fT)	250 MHz	250 MHz
