SP8690B datasheet, PDF - EEWORLD Datasheet

SP8690B: DescriptionPrescaler, ECL, CDIP16,; Categorylogic logic; File Size259KB，5 Pages; ManufacturerPlessey Semiconductors Ltd.

Download Datasheet Parametric Compare View All

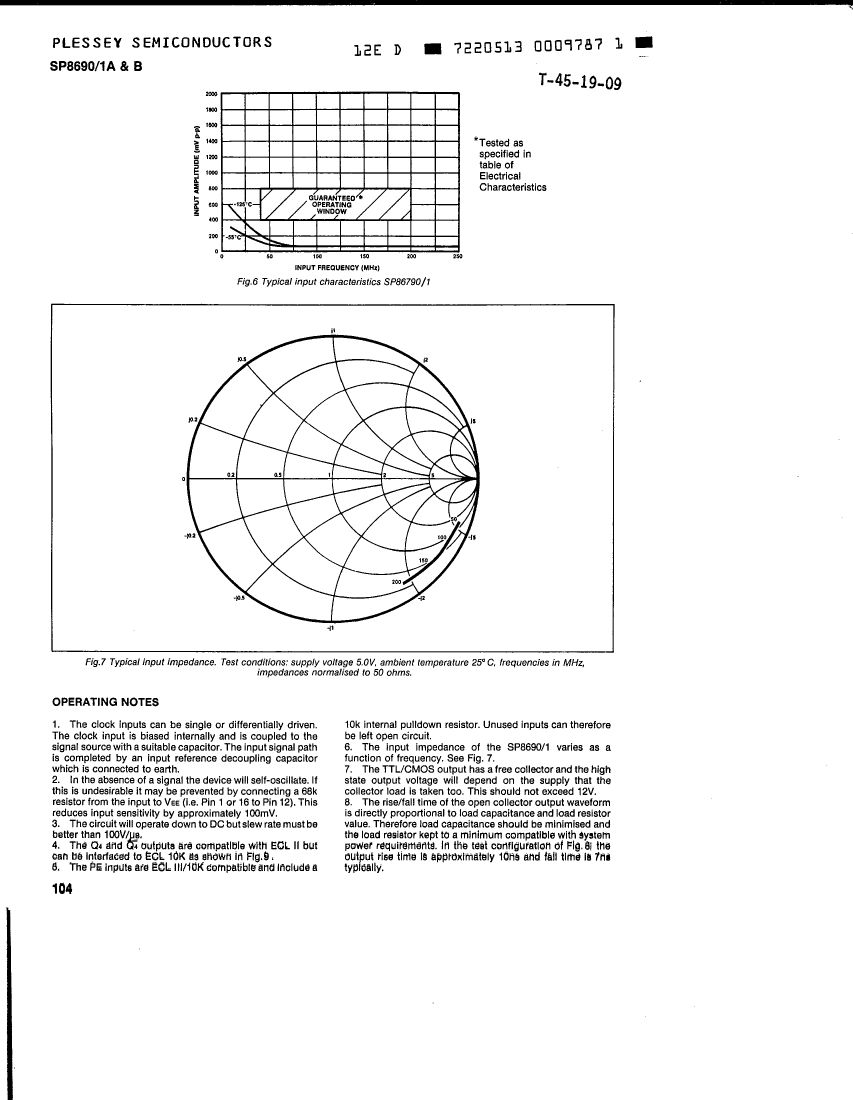

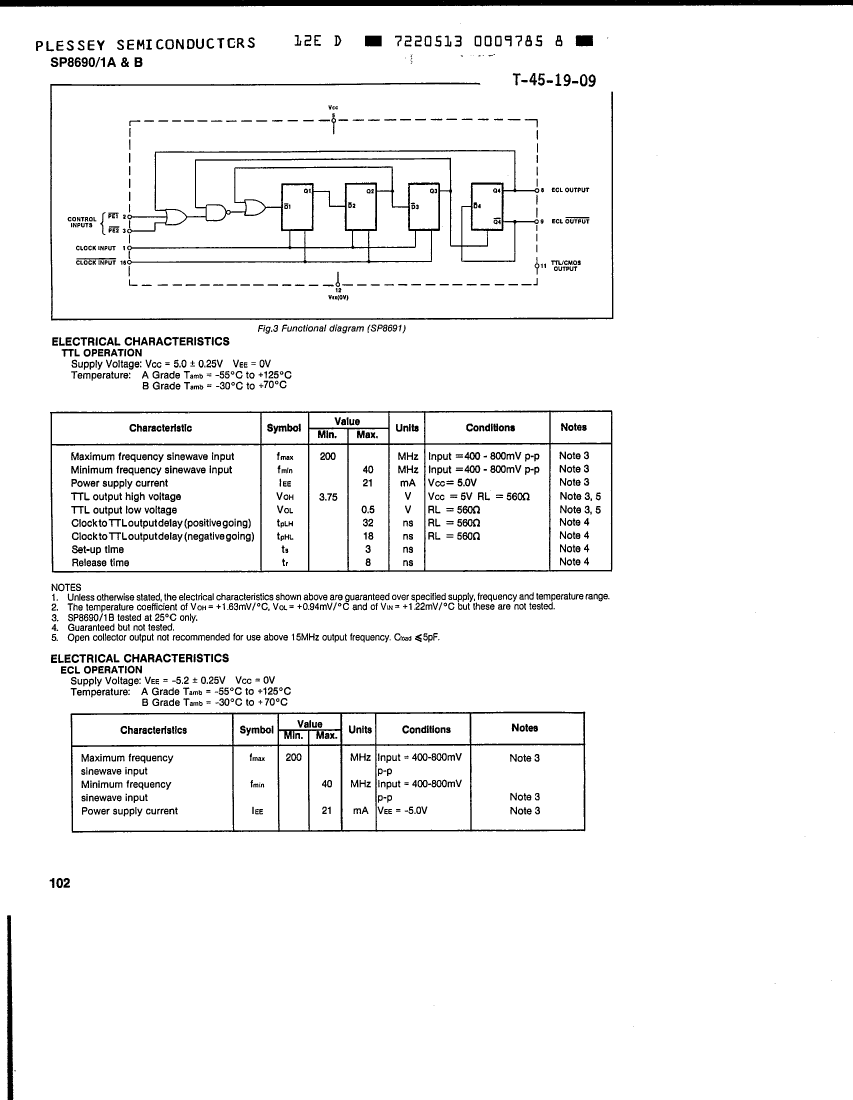

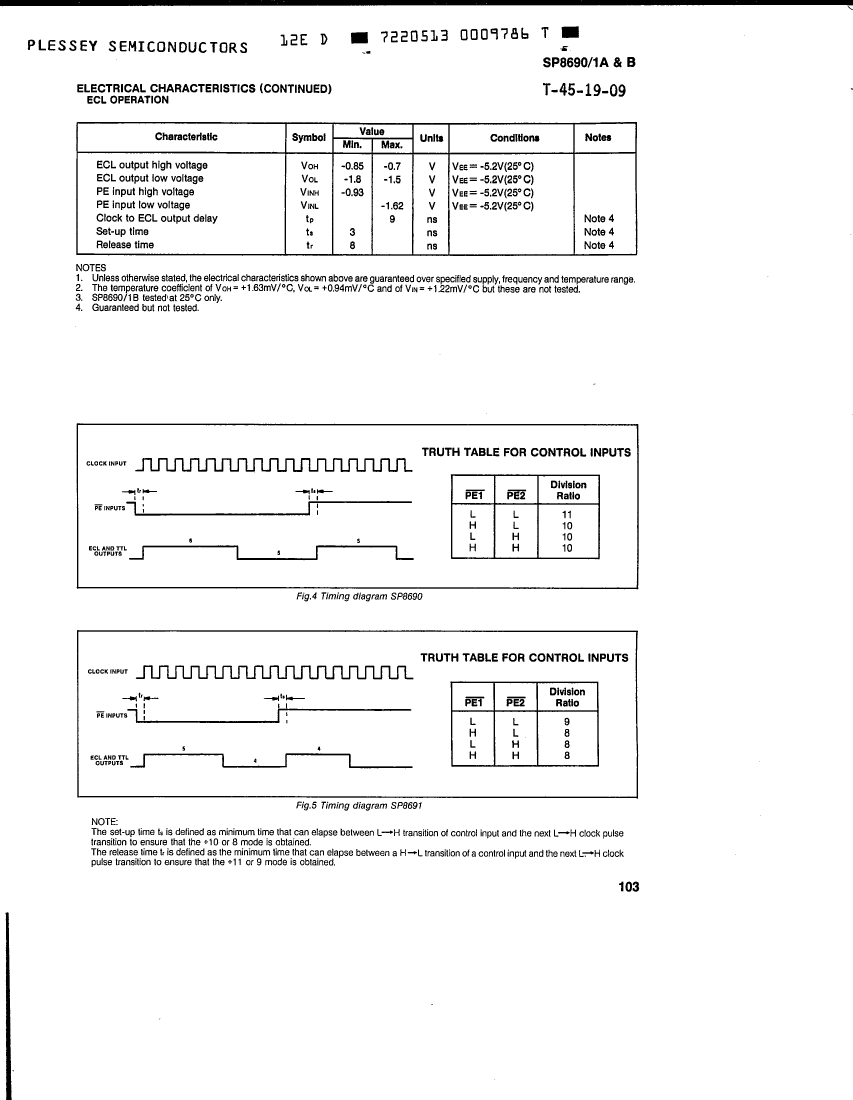

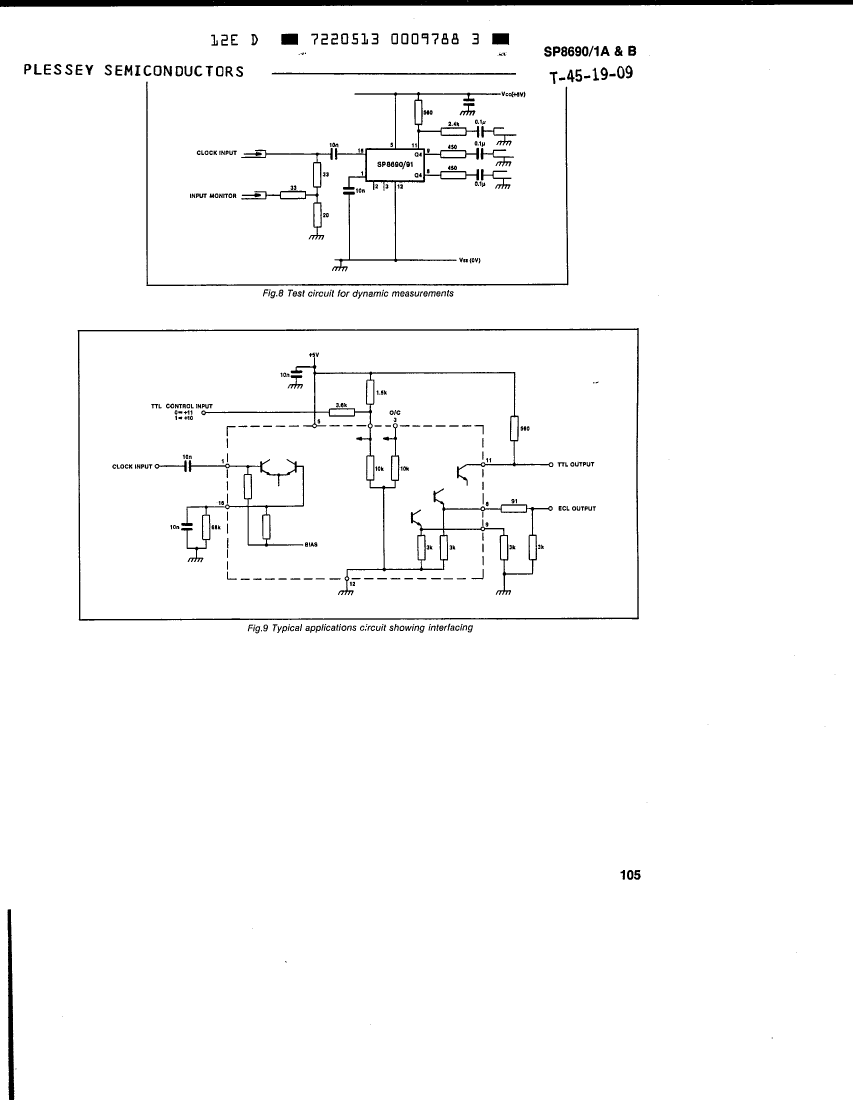

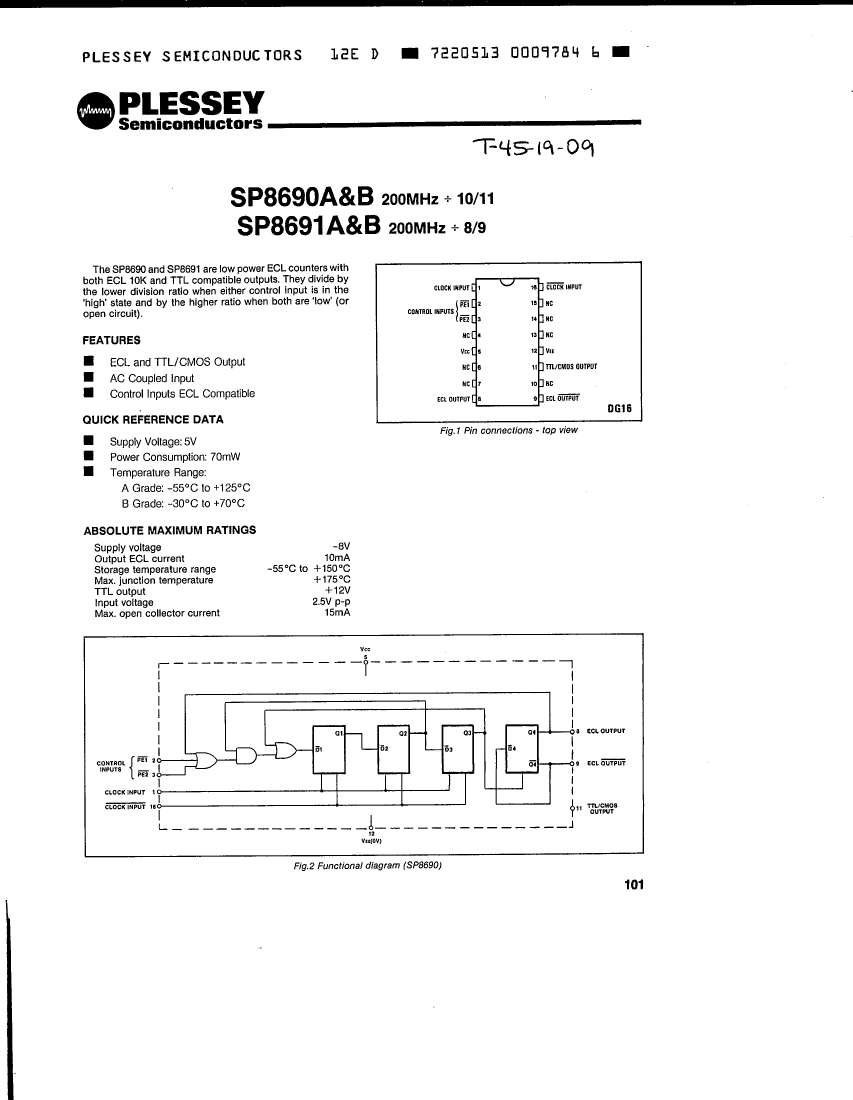

SP8690B Overview

Prescaler, ECL, CDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
Logic integrated circuit type	PRESCALER
Maximum Frequency@Nom-Sup	200000000 Hz
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/-5.2 V
Maximum supply current (ICC)	21 mA
Certification status	Not Qualified
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	SP8690B	SP8691A	SP8691B
Description	Prescaler, ECL, CDIP16,	Prescaler, ECL, CDIP16,	Prescaler, ECL, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
Logic integrated circuit type	PRESCALER	PRESCALER	PRESCALER
Maximum Frequency@Nom-Sup	200000000 Hz	200000000 Hz	200000000 Hz
Number of terminals	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C
Minimum operating temperature	-30 °C	-55 °C	-30 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5/-5.2 V	5/-5.2 V	5/-5.2 V
Maximum supply current (ICC)	21 mA	21 mA	21 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	ECL	ECL	ECL
Temperature level	OTHER	MILITARY	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maker	-	Plessey Semiconductors Ltd.	Plessey Semiconductors Ltd.
