51744-10401204C0 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 51744-10401204C0

51744-10401204C0: DescriptionBoard Connector, 56 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size219KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51744-10401204C0 Overview

Board Connector, 56 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle

51744-10401204C0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51744
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	56
UL Flammability Code	94V-0
Base Number Matches	1

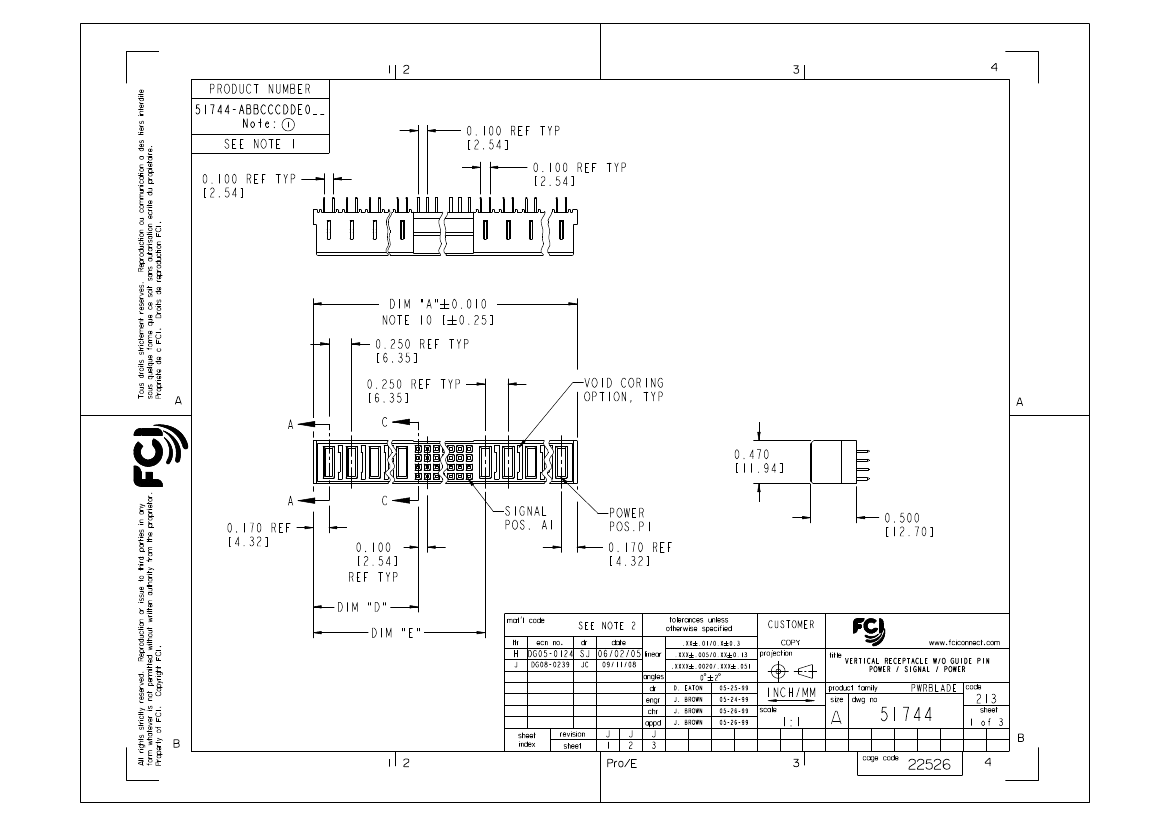

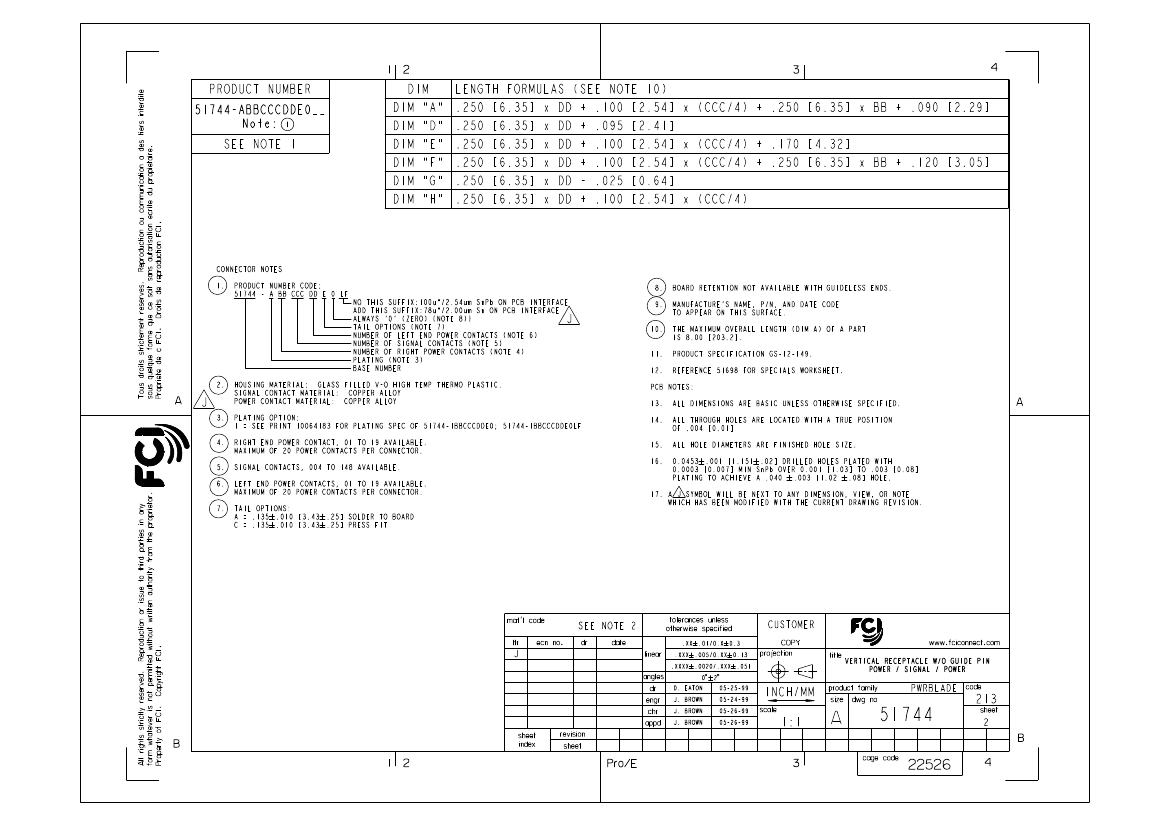

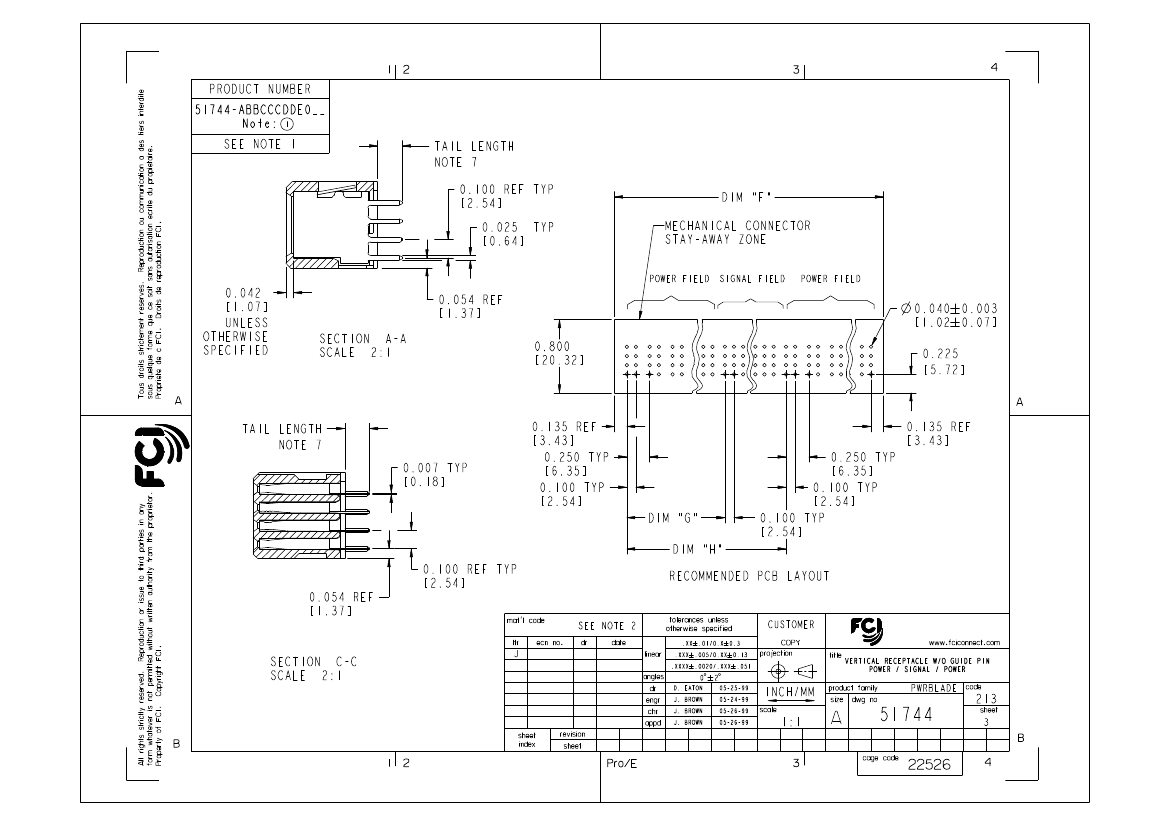

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Dec 20, 2010

51744-10401204C0 Related Products

	51744-10401204C0	51744-10202402A0LF	51744-10200402A0LF	51744-10601606C0LF	51744-10302403C0LF	51744-10302403C0	51744-10102401A0	51744-10601204A0	51744-10402404C0
Description	Board Connector, 56 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle	Board Connector, 100 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 20 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 76 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 102 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle, LEAD FREE	Board Connector, 102 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle	Board Connector, 98 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 22 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 104 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD (30) OVER NICKEL (50)	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD (100)	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)	Tin (Sn)	Tin (Sn) - with Nickel (Ni) barrier	TIN LEAD (100)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100)	TIN LEAD (100)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e3	e3	e3	e3	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	SOLDER	SOLDER	PRESS FIT	PRESS FIT	PRESS FIT	SOLDER	SOLDER	PRESS FIT
Total number of contacts	56	100	20	76	102	102	98	22	104
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free	Lead free	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	incompatible	incompatible	-	incompatible
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Contact material	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY
Manufacturer's serial number	51744	-	-	-	-	51744	51744	51744	51744
