Advance Data Sheet
March 2000

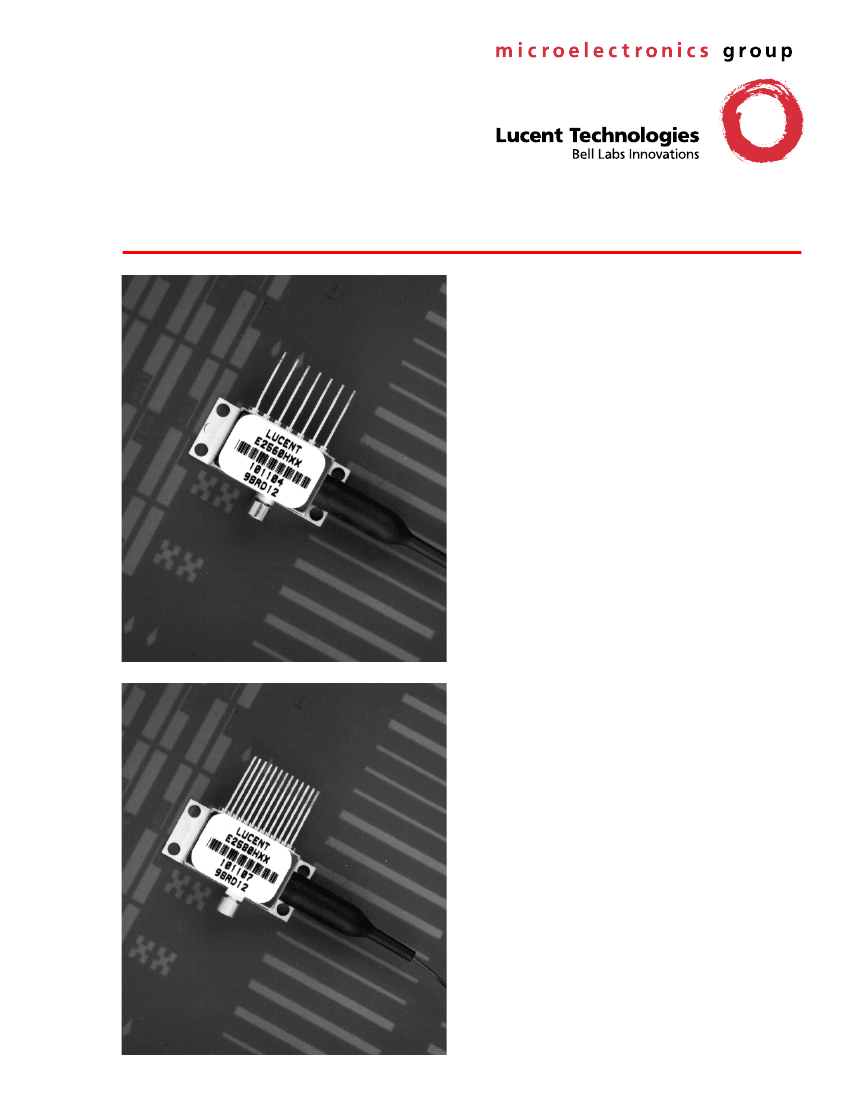

E2560/E2580-Type 10 Gbits/s EML Modules
for 2 km—80 km Transmission
Features
s
s
s
s
s
s
s
s
s
Integrated electroabsorptive modulator
1.5
µ
m wavelength
Characterized for 10 Gbits/s operation
For use up to 80 km at 10 Gbits/s
Low modulation voltage
Temperature stabilized
Available with and without integral driver IC
Wavelength selectable to ITU-T standards
Ultrastable wavelength aging for DWDM
Applications
s
s
s
s
SONET/SDH applications
Ultrahigh capacity WDM system application
High-speed data communication
Digitized video
Description
The E2560-series EML (without integral driver IC)
and E2580-series EML (with integral driver IC) are
designed for 10 Gbits/s DWDM or TDM transmission
applications. They integrate a CW laser with an elec-
troabsorptive modulator in the same semiconductor
chip and are an extension of Lucent Technologies
Microelectronics Group’s existing E2500-series of
devices. These devices can replace external modula-
tors that are often bulkier, more expensive, and
require more drive electronics than the EML. Both
series use a small-profile Gilbert GPO connector to
handle the RF signal. The package also contains a
thermoelectric cooler, thermistor, rear-facet monitor
photodiode, and an optical isolator.
The 2560-series is available for transmission dis-
tances of up to 20 km, 40 km, and 60 km. The 2580-
series operates over distances of 40 km and 80 km.
E2560/E2580-Type 10 Gbits/s EML Modules
for 2 km—80 km Transmission
Advance Data Sheet
March 2000
Description
(continued)
The nominal input impedance of the E2560 version is 50
Ω
. The package is qualified to the
Telcordia
Technologies
* TA-TSY-000468 standard.
The short-haul (2 km—20 km) version of the 2560-series (E2566) is offered as a single-channel device operating
within a wavelength range of 1530 nm—1563 nm. For 40 km and longer applications, both E2560 and E2580 are
available in a range of ITU-T wavelengths for use in DWDM systems operating at 10 Gbits/s per channel.
The devices exhibit excellent wavelength stability, supporting operation at 100 GHz channel spacing over 20 years
(assuming an end-of-life aging condition of <
±
100 pm). Typically, no external wavelength stabilization is required in
systems of this type, using Lucent's E2500-series EMLs. The package also offers excellent stability of wavelength
vs. case temperature, with a maximum coefficient of
±
0.5 pm/
°
C.
*
Telcordia Technologies
is a trademark of Bell Communications Research, Inc.
Module Characteristics
Table 1. Module Characteristics
Parameter
Package Type
Fiber
Connector
RF Input Impedance
Bit Rate
Description
E2560: 7-pin package with GPO connector RF input.
E2580: 13-pin package with GPO connector RF input.
Standard single-mode fiber.
Various connectors available on request.
50
Ω.
10 Gbits/s.
Pin Information
Table 2. Pin Descriptions
E2560 Series
Pin
—
—
—
—
—
—
7
6
5
4
3
2
1
Abbreviation
—
—
—
—
—
—
TEC–
TEC+
BACK DET+
BACK DET–
LASER+
THERM
THERM, LASER–,
CASE
Definition
—
—
—
—
—
—
Themoelectric cooler–
Thermoelectric cooler+
Monitor cathode (+)
Monitor anode (–)
Laser anode
Thermistor
Combined thermistor/
laser cathode/case
Pin
13
12
11
10
9
8
7
6
5
4
3
2
1
E2580 Series
Abbreviation
TEC–
TEC+
V
SS
DCA
OA
NC
NC
VEA
BACK DET+
BACK DET–
LASER+
THERM
THERM, LASER–,
CASE
Definition
Themoelectric cooler–
Thermoelectric cooler+
Voltage supply to the IC
Duty cycle adjust
Optical amplitude adjust
No connect/reserved
No connect/reserved
Modular offset (on-state)
Monitor cathode (+)
Monitor anode (–)
Laser anode
Thermistor
Combined thermistor/
laser cathode/case
Note: For full details of pin functions and required bias levels for the version with the IC, refer to the forthcoming
E2580 EML with Integral Driver
IC: Pin Definitions And Operation
Application Note.
2
Lucent Technologies Inc.
Advance Data Sheet
March 2000
E2560/E2580-Type 10 Gbits/s EML Modules
for 2 km—80 km Transmission
Target Specifications
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso-
lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect device reliability.
Table 3. Absolute Maximum Ratings
Parameter
Laser Diode Reverse Voltage
Laser Diode Forward Current
Optical Output Power
Modulator Reverse Voltage
Modulator Forward Voltage
Monitor Diode Reverse Voltage
Monitor Diode Forward Voltage
Storage Temperature
Operating Temperature
DCA Voltage (pin 10) (E2580 series)
OA Voltage (pin 9) (E2580 series)
EA Bias Voltage (pin 6) (E2580 series)
Supply Voltage V
SS
(pin 11) (E2580 series)
Conditions
CW
CW
CW
—
—
—
—
—
—
—
V
OA
– V
SS
> 1.2 V
V
OA
– V
SS
> 1.2 V
—
Min
—
—
—
—
—
—
—
—
—
–6.5
–6.5
–6.5
–6.5
Max
2
150
10
5
1
10
1
–40 to +85
–10 to +70
0.3
0.3
0.3
0.3
Unit
V
mA
mW
V
V
V
V
°C
°C
V
V
V
V
Characteristics
Table 4. Optical and Electrical Specifications
(Chip operating temp. = 15
°
C to 35
°
C, except where noted.)
Parameter
Threshold Current (BOL)
Forward Voltage
Operating Current
Threshold Power
Fiber Output Power (Peak)
Peak Wavelength
(Wavelength can be specified to
the ITU wavelength
channels. See Table 5.)
Side-mode Suppression Ratio
Dispersion Penalty
BER = 10
–10
Symbol
I
TH
V
F
I
OP
P
TH
P
PK
λ
PK
Conditions
—
I
F
= I
OP
@ T
OP
—
I
F
– I
TH
V
M
= I
OP
V
M
= 0 V
I
F
= I
OP
V
M
= 0 V
T
LASER CHIP
= T
OP
I
F
= I
OP
V
M
= 0 V
I
F
= I
OP,
T
OP
10 Gbits/s*
V
LOW
= –1.5 to –3.0 V,
V
HIGH
= 0 V to –1 V
IF = L
OP
@ T
OP
Min
5
—
50
—
1
1530
Max
35
2.2
100
80
—
1563
Unit
mA
V
mA
µ
W
dBm
nm
SMSR
DP
30
—
—
2.0
dB
dB
* Over 360 ps/nm (20 km version), 720 ps/nm (40 km version), 1080 ps/nm (60 km version), and 1440 ps/nm (80 km version).
Lucent Technologies Inc.
3
E2560/E2580-Type 10 Gbits/s EML Modules
for 2 km—80 km Transmission
Advance Data Sheet
March 2000
Target Specifications
(continued)
Table 4. Optical and Electrical Specifications
(Chip operating temp. = 15
°C
to 35
°C,
except where noted.)
(continued)
Parameter
Modulator/Driver
Extinction Ratio:
40 km—80 km versions
E2566, 20 km version
RF Return Loss (E2560-series)
(0 GHz to 6 GHz)
RF Return Loss (E2560-series)
(6 GHz to 8 GHz)
RF Return Loss (E2560-series)
(8 GHz to 10 GHz)
–3 dB Bandwidth (E2560-series)
RF Return Loss (E2560-series)
(0 GHz to 10 GHz)
Input Voltage (E2580-series)
(Peak to Peak)
(ac coupled input)
Rise/Fall Time
(20%—80%)
Monitor Diode
Monitor Current
Dark Current
Capacitance
Thermistor
Resistance
Thermistor Current
Thermistor B Constant
Thermoelectric Cooler
TEC Current
TEC Voltage
TEC Power
TEC Capacity
Optical Isolation
Optical Isolation
Package
Wavelength vs. Case Temp.
S
11
S
11
S
11
BW
S
11
V
IN
Symbol
ER
RF
V
IN
= 0.5 Vp-p to 1.0 Vp-p
10 Gbits/s (E2580)
V
M
= 0 V to –2.5 V
10 Gbits/s (E2560)
V
M
= –1 V
I
F
= I
OP
V
M
= –1 V
I
F
= I
OP
V
M
= –1 V
I
F
= I
OP
V
M
= –1 V
I
F
= I
OP
V
IN
= 0.5 Vp-p to 1.0 Vp-p
10 Gbits/s
—
10
9
10
7
5
11
10
0.5
—
—
—
—
—
—
—
1.0
dB
dB
dB
dB
dB
GHz
dB
V
Conditions
Min
Max
Unit
t
R
/t
F
—
—
40
ps
I
BD
I
D
C
V
BD
= 5 V
I
F
= I
OP
V
BD
= 5 V
V
BD
= 5 V
F = 1 MHz
T = 25
°C
—
—
—
†
—
†
—
†
—
†
—
†
T
CASE
= –10
°C
to +70
°C
40
—
—
1100
0.1
25
µ
A
µ
A
pF
R
THERM
I
TC
B
I
TEC
V
TEC
P
TEC
∆T
—
dλ/ dT
9.5
10
3700
—
—
—
55
30
–0.5
10.5
100
4100
1.1
2.6
2.9
—
—
0.5
kΩ
µA
—
A
V
W
C
dB
pm/°C
* Over 360 ps/nm (20 km version), 720 ps/nm (40 km version), 1080 ps/nm (60 km version), and 1440 ps/nm (80 km version).
† T
CASE
= 70
°
C, T
laser chip
= 15
°
C to 35
°
C (E2560-series), 20
°
C to 35
°
C (E2580-series).
4
Lucent Technologies Inc.
Advance Data Sheet
March 2000
E2560/E2580-Type 10 Gbits/s EML Modules
for 2 km—80 km Transmission

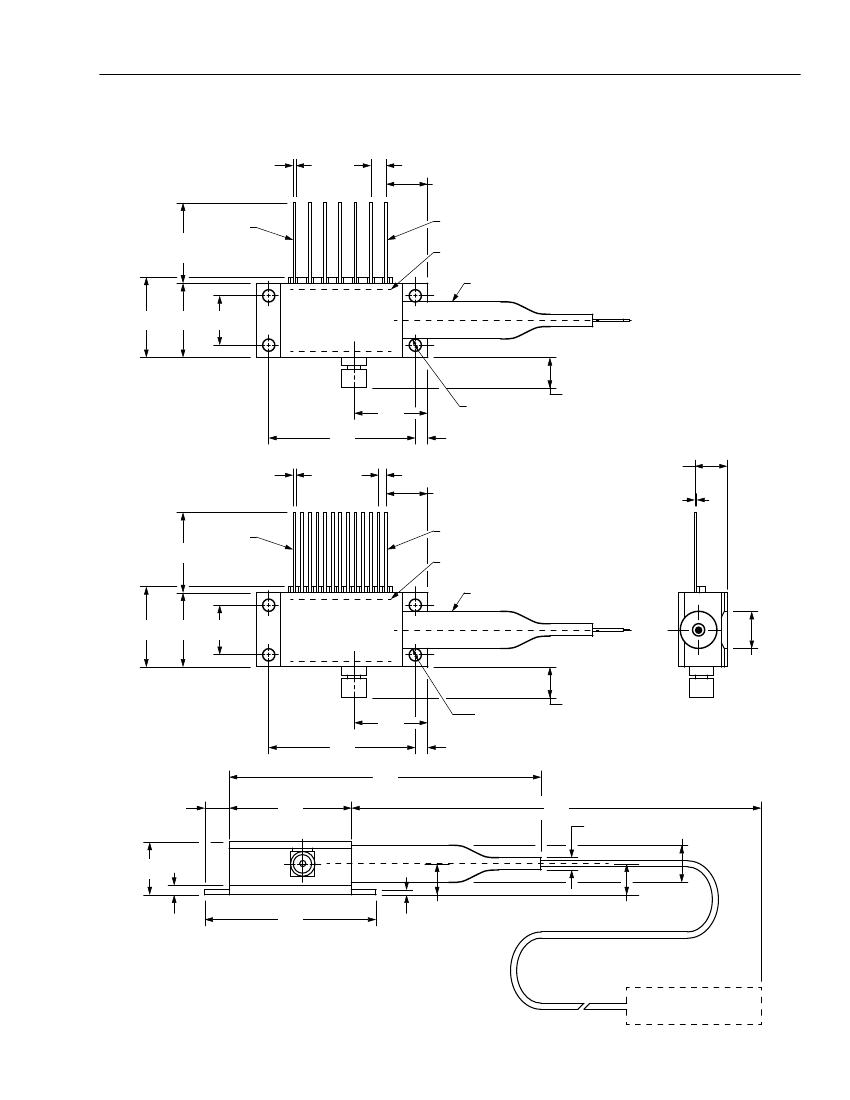

Outline Diagram
E2560-Series
0.020
(0.508)
0.100
(2.54)
0.291
(7.384)
LEAD 7
0.50
(12.7)
MIN
LEAD 1
TRADEMARK CODE LASER SERIAL NUMBER
AND DATE CODE LABEL IN AREA SHOWN
BEND LIMITER
0.551
(13.99)
0.500
(12.7)
0.350
(8.89)
0.498
(12.64)
1.025
(26.04)
∅
0.106
(2.7)
PLACES
0.078
(1.98)
0.190
(4.822)
E2580-Series
0.020
(0.51)
3 PLACES
0.050
(1.27)
12 PLACES
0.291
(7.38)
0.215
(5.45)
0.010
±
0.002
(0.25
±
0.064)
LEAD 13
50
(12.7)
LEAD 1
TRADEMARK CODE LASER SERIAL NUMBER
AND DATE CODE LABEL IN AREA SHOWN
BEND LIMITER
0.551
(13.99)
0.500
(12.7)
0.350
(8.89)
0.200
(5.08)
0.498
(12.64)
1.025
(26.04)
2.032
(51.61)
0.180
(4.56)
0.820
(20.83)
∅
0.106
(2.7)
4 PLACES
0.078
(1.98)
0.190
(4.82)
32.0
(812)
MIN
0.98
(2.5)
0.260
(6.6)
0.365
(9.27)
0.56
(1.42)
1.180
(29.97)
0.030
(0.75)
0.228
(5.78)
0.215
(5.47)
CONNECTOR TYPE
AS SPECIFIED
1-1006(F).r1
Lucent Technologies Inc.
5
