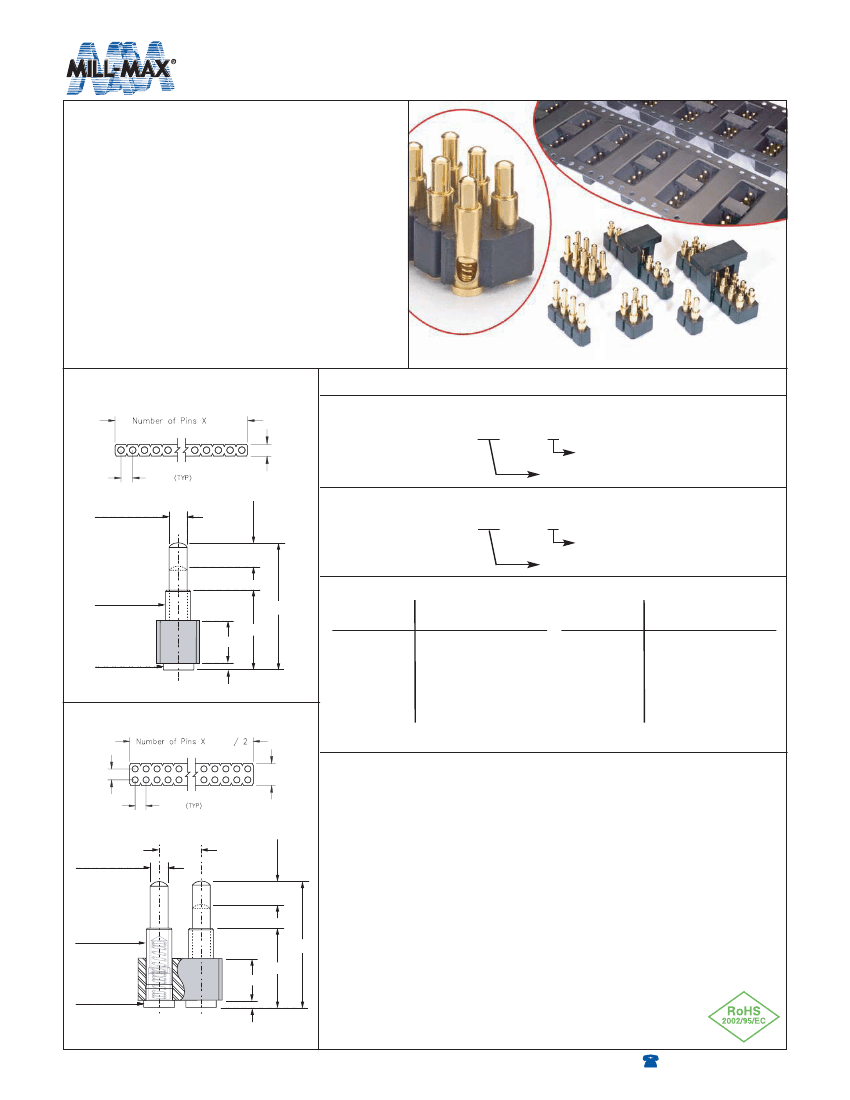

SPRING LOADED CONNECTORS
Surface Mount, High Profile
Single and Double Row Strips
•
Modular contacts for use on 2,54 grid, available in
ten heights from 6,48 to 10,9, supplied in single
and double row contact strips.
•
Precision machined piston / base and gold plated
components assure a 1,000,000 min. cycle life.
•
Pistons have a long stroke relative to the low pro-
file of the assembly.
•
Low resistance, high current contacts are rated at
2 amps continuous, 3 amps peak.
•
High temperature thermoplastic insulators are suit-
able for surface mount processes.
•
Both 812 & 814 series are available on 32mm or
44mm wide carrier tape for automated pick and
place assembly per EIA-481. See page 119 for
strip lengths available and ordering information.
Series 812, 814
SINGLE ROW Series 812
2,54
2,54
2,54
Ordering Information
Single Row Series 812
812-22-0XX-30-00X-101
Specify contact style
0-9
Specify # of contacts
02-64
Double Row Series 814
814-22-0XX-30-00X-101
Specify contact style
0-9
Specify # of contacts
04-72
CONTACT
STYLE
0
1
2
3
4
INITIAL HEIGHT
1,07 DIA.
1,5 DIA.
5,03
3
2,79
1,83 DIA.
0,41
Stroke
1,4
A
A
DOUBLE ROW Series 814
2,54
2,54
2,54
5,08
6,48
6,99
7,49
8,00
8,51
CONTACT
STYLE
5
6
7
8
9
INITIAL HEIGHT
A
8,89
9,4
9,91
10,4
10,9
2,54
1,07 DIA.
1,4
1,5 DIA.
5,03
2,79
1,83 DIA.
0,41
A
Materials:
Contact piston & Base: Machined copper alloy plated 0,51µm gold
over 2,54µm nickel
Spring: Beryllium copper plated 0,25µm gold
Insulator: High temp. thermoplastic rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (.0275): 60 grams
Spring force @ full stroke (.055): 95 grams
Durability: 1,000,000 cycles min.
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20m
Ω
max.
Insulation resistance: 10,000M
Ω
min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
w w w. m i l l - m a x . c o m
Stroke
118
516-922-6000
Quick Find by Description:
Home > Product Search >
Product Details
Enter part number

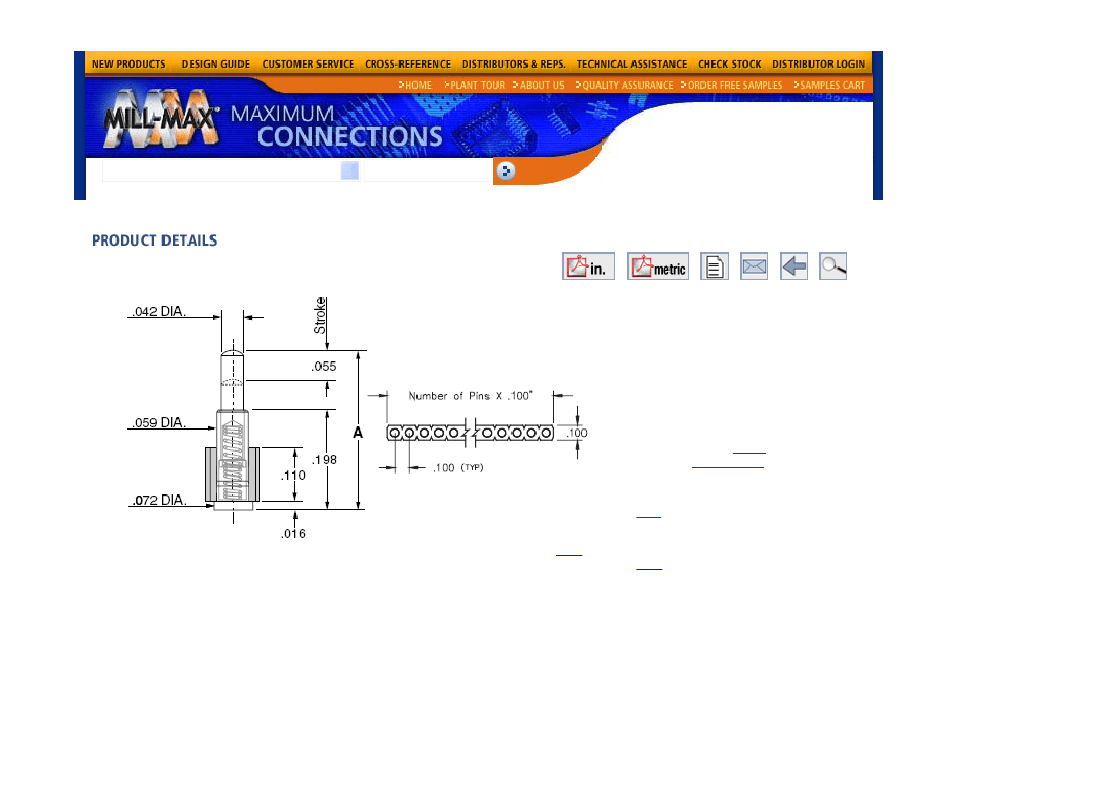

Product Number: 812-XX-XXX-30-004191
DESCRIPTION:
INTERCONNECT Header
Spring-Loaded Header
Initial Height of .335
Single Row
Surface Mount
Tape
LOOSE PIN INFORMATION:
Loose Pin Used=0907
Material=Brass
Alloy
INSULATOR INFORMATION:
High Temperature
PCT
For Additional plating options click
here
All dimensions above are in inches, for metric dimensions click
here.
Want to modify this part? Email Technical Services with your application specific requirement.
Plating Code
22
Shell Plating
20 µ" Gold over 100 µ" Nickel
Inner Contact Plating
N/A
Narrow your search
How many Pin Positions do you require?
show all
Plating Options:
show all
All dimensions in inches unless otherwise noted.
#
Of
Pins
2
A
Qty.
per
Reel
200
Tape
Width
Mill-Max
Part
Number
812-22-002-30-004191
Free
Sample
Cart
N/A
Place
Order with
Distributor
Check Stock and Place Order
RoHS
Compliant
0.335
44mm
3
0.335
200
44mm
812-22-003-30-004191
N/A
Check Stock and Place Order
4
0.335
200
44mm
812-22-004-30-004191
N/A
Check Stock and Place Order
5
0.335
200
44mm
812-22-005-30-004191
N/A
Check Stock and Place Order
6
0.335
200
44mm
812-22-006-30-004191
N/A
Check Stock and Place Order
7
0.335
200
44mm
812-22-007-30-004191
N/A
Check Stock and Place Order
8
0.335
200
44mm
812-22-008-30-004191
N/A
Check Stock and Place Order
9
0.335
200
44mm
812-22-009-30-004191
N/A
Check Stock and Place Order
10
0.335
200
44mm
812-22-010-30-004191
N/A
Check Stock and Place Order
11
0.335
200
44mm
812-22-011-30-004191
N/A
Check Stock and Place Order
12
0.335
200
44mm
812-22-012-30-004191
N/A
Check Stock and Place Order
Quick Find by Description:
Home > Product Search >
Product Details
Enter part number
Product Number: 812-XX-XXX-30-008191
DESCRIPTION:
INTERCONNECT Header
Spring-Loaded Header
Initial Height of .410
Single Row
Surface Mount
Tape
LOOSE PIN INFORMATION:
Loose Pin Used=0907
Material=Brass
Alloy
INSULATOR INFORMATION:
High Temperature
PCT
For Additional plating options click
here
All dimensions above are in inches, for metric dimensions click
here.
Want to modify this part? Email Technical Services with your application specific requirement.
Plating Code
22
Shell Plating
20 µ" Gold over 100 µ" Nickel
Inner Contact Plating
N/A
Narrow your search
