K66X-A26P-NJM15: DescriptionD Subminiature Connector, 26 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size433KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K66X-A26P-NJM15 Overview

D Subminiature Connector, 26 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT

K66X-A26P-NJM15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	GOLD (15)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K66X
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Housing size	2/A
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

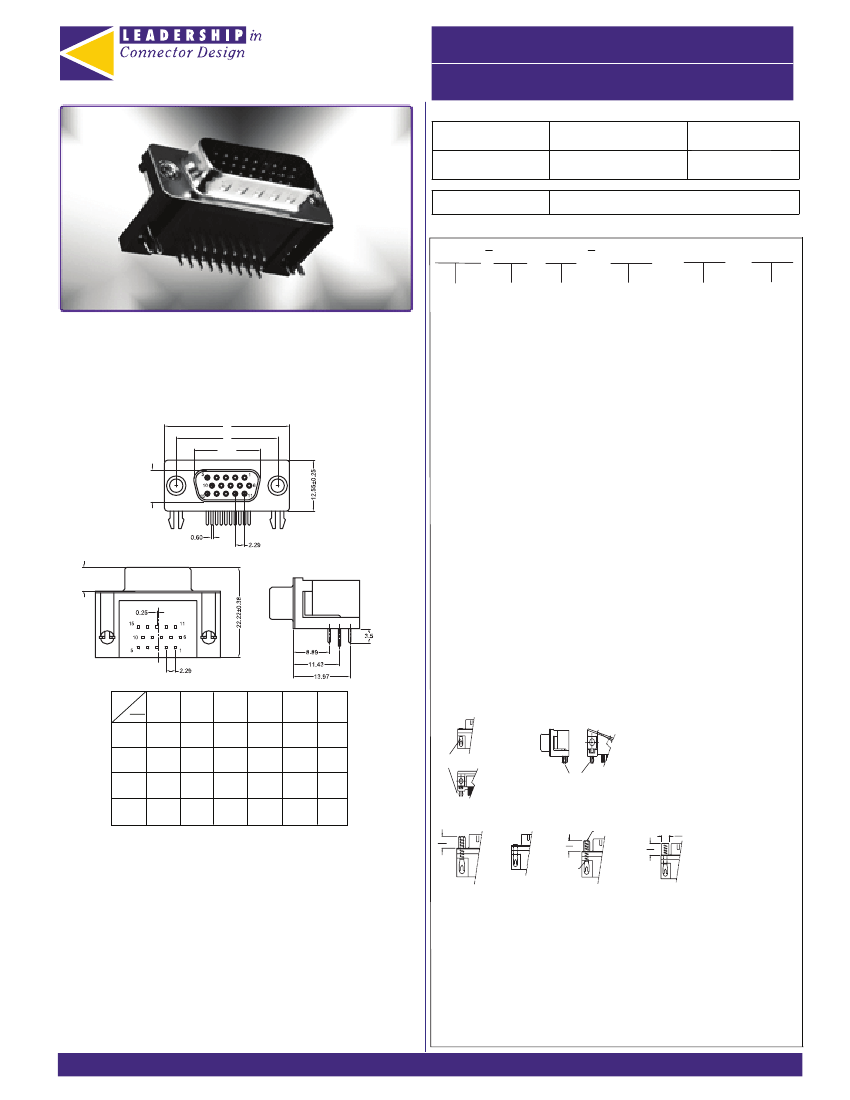

D-SUBMINIATURE CONNECTORS

KYCON

RoHS

K66X Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Email

Kycon Part #

K66X-E15P-N

Part Number Builder

K66X

Series

E15

Shell

Size

P

Contact

Type

N

PC Board

Mounting

Option

Front Panel

Mounting

Option

Plating

Option

K66X Series High Density

Right Angle PCB Mount

K66X Series Dimensions

Pictured with Board Lock Option, Dimensions in mm

A

B

C, C1

Series

K66X - High Density D-Subminiature Connector,

K66X

Right Angle PCB Termination, .350” Footprint

Shell Size-Contact Option

E - 15 Contacts

E

A

- 26 Contacts

B - 44 Contacts

B

C - 62 Contacts

C

Contact Type

P - Pin Contact (Plug)

P

S

- Socket Contact (Receptacle)

8.36 Plug Interior

7.90 Socket Exterior

PC Board and Front Panel Mounting Option

6.1 Plug

5.8 Socket

N

-

(4-40)RivetedThreaded Insert

NJ

-

(4-40)Riveted Threaded Insert with 4-40 Hex.Jack Screws

NR

-

(4-40) Round Jack Screws Riveted to Connector

NT

-

(4-40)Riveted Riveted Non-ThreadedInsert 3.18/.125" Dia.

NJM

-

(4-40)Riveted ThreadedInsert with M3/4-40 Hex.Jack Screws

NV

-

(4-40) Riveted Threaded Insert Grounding Bracket

NVJ

-

(4-40)Riveted Threaded Insert with 4-40 Hex.Jack Screws Grounding Bracket

NVR

-

(4-40) Round Jack Screws Riveted to Connector Grounding Bracket

B

±

.005

±

0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

C

±

.010

±

.0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

C1

±

.010

±

0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

D

±

.005

±

0.13

.090

2.29

.090

2.29

.090

2.29

.095

2.41

E

±

.005

±

0.13

.010

0.25

.020

0.51

.020

0.51

.023

0.58

Shell

Size

A

In

±

.015

mm

±

0.38

15

1.213

30.81

(E)

1.541

39.14

2.088

53.04

2.729

69.32

N Option

NV Option

26

(A)

44

(B)

62

(C)

Grounding

Bracket

4 Prong

Grounding Bracket

J Option

5.00

.197

T Option

JM Option

M3

5.00

.197

R Option

Ø5.0

.197

6.00

.236

C = Exterior of Female Shell (S) C1 = Interior of Male Shell (P)

4-40

Electrical Characteristics

Rated Current:

1.5A

Rated Voltage:

29Vac

Plating Option

Blank

- Gold Flash

Blank

15 - 15

µ

” Gold

15

30

- 30

µ

” Gold

Click here for Performance Specification

Contact Kycon for VESA and other options

2013
