CMKBR-6FLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMKBR-6FLEADFREE

CMKBR-6FLEADFREE: DescriptionBridge Rectifier Diode, Schottky, 1 Phase, 0.14A, 60V V(RRM), Silicon, SOT-363, 6 PIN; CategoryDiscrete semiconductor diode; File Size490KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMKBR-6FLEADFREE Overview

Bridge Rectifier Diode, Schottky, 1 Phase, 0.14A, 60V V(RRM), Silicon, SOT-363, 6 PIN

CMKBR-6FLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOT-363
package instruction	R-PDSO-G6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Minimum breakdown voltage	60 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PDSO-G6
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	4
Phase	1
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.14 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN (315)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

CMKBR-6F

SURFACE MOUNT

SILICON BRIDGE RECTIFIER

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMKBR-6F is

a monolithic silicon full wave bridge rectifier, epoxy

molded in a SOT-363 surface mount package.

This device has been designed for use in computers

and peripheral equipment requiring high speed

switching, small size, and closely matched VF.

MARKING CODE: CBR3

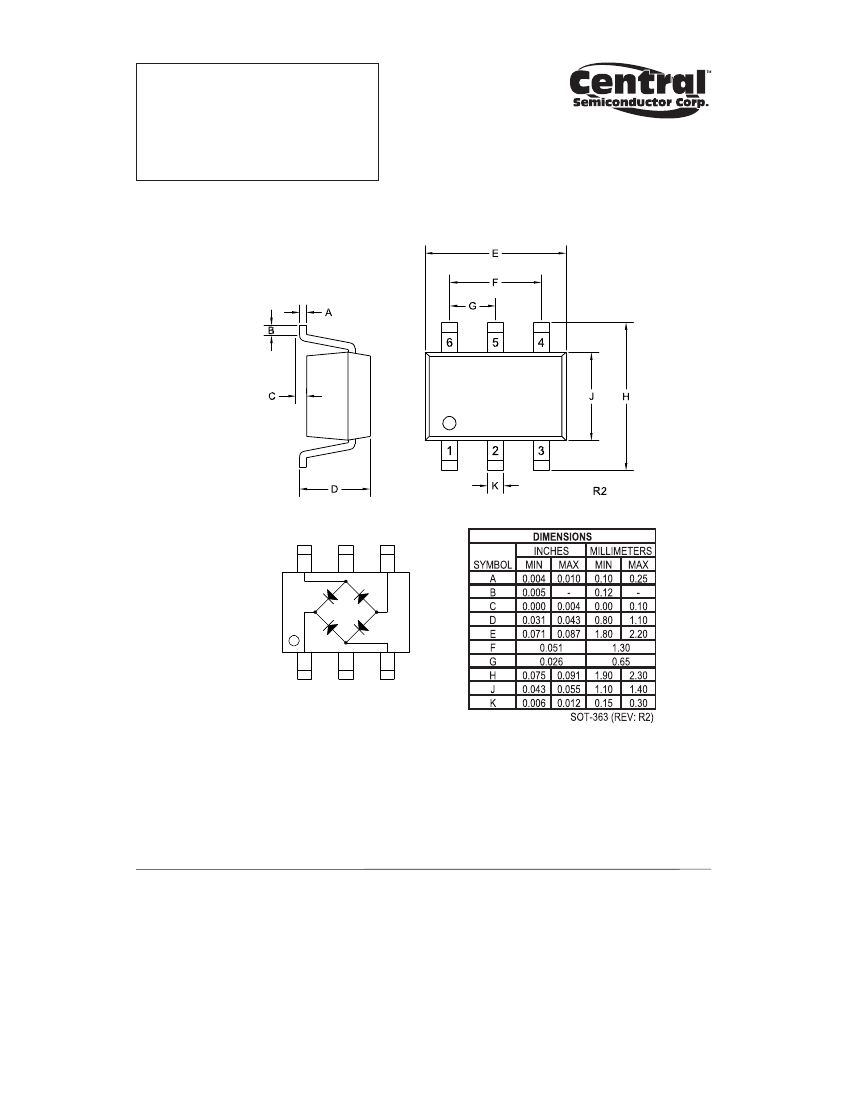

SOT-363 CASE

FEATURES:

• Monolithic construction

• All diodes share closely matched

electrical characteristics

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

• Fast switching

• Very small size

SYMBOL

VRRM

TJ, Tstg

140

350

-65 to +150

357

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

TYP

MAX

BVR

trr

VR=50V

IR=100µA

IF=20mA

VR=0, f=1.0MHz

IF=IR=10mA, Irr=1.0mA

5.0

1000

1.0

UNITS

R4 (13-August 2010)

CMKBR-6FLEADFREE Related Products

	CMKBR-6FLEADFREE	CMKBR-6FTRLEADFREE	CMKBR-6FTR	CMKBR-6FBK
Description	Bridge Rectifier Diode, Schottky, 1 Phase, 0.14A, 60V V(RRM), Silicon, SOT-363, 6 PIN	Bridge Rectifier Diode, 0.14A, 60V V(RRM),	Bridge Rectifier Diode, Schottky, 1 Phase, 0.14A, 60V V(RRM), Silicon, SOT-363, 6 PIN	Bridge Rectifier Diode, Schottky, 1 Phase, 0.14A, 60V V(RRM), Silicon, SOT-363, 6 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Number of components	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.14 A	0.14 A	0.14 A	0.14 A
Maximum repetitive peak reverse voltage	60 V	60 V	60 V	60 V
surface mount	YES	YES	YES	YES
Parts packaging code	SOT-363	-	SOT-363	SOT-363
package instruction	R-PDSO-G6	-	R-PDSO-G6	R-PDSO-G6
Contacts	6	-	6	6
Minimum breakdown voltage	60 V	-	60 V	60 V
Diode component materials	SILICON	-	SILICON	SILICON
JESD-30 code	R-PDSO-G6	-	R-PDSO-G6	R-PDSO-G6
JESD-609 code	e3	-	e0	e0
Phase	1	-	1	1
Number of terminals	6	-	6	6
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.35 W	-	0.35 W	0.35 W
Certification status	Not Qualified	-	Not Qualified	Not Qualified
technology	SCHOTTKY	-	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN (315)	-	TIN LEAD	TIN LEAD
Terminal form	GULL WING	-	GULL WING	GULL WING
Terminal location	DUAL	-	DUAL	DUAL
Base Number Matches	1	1	1	-
Maximum forward voltage (VF)	-	1 V	1 V	1 V
