PRODUCT DATA SHEET
LINE MATCHING TRANSFORMER
Features
∗
∗
∗
∗
∗
∗
Lead-free (Pb-free)
RoHS compliant
11mm (0.43") seated height
Industry Standard Pinout
IEC 60950 and UL 60950 Certified
High thermal stability
P5100
Applications
∗
∗
∗
∗
∗
∗
Set Top Boxes
V.32bis and V.22bis modems
Fax
Line Matching
Voice
DESCRIPTION
P5100 is intended for low-cost, medium-speed data
and voice applications. It is a direct substitute for
industry standard P1200, being mechanically
compatible and having identical signal/distortion
and matching characteristics, and suitable for
supplementary insulation, 250V working.
P5100 uses patented design and construction
methods to achieve excellent signal performance
and safety isolation to international standards.
P5100 is certified to IEC 60950 and UL 60950.
P5100 is a UL Recognized Component and is
supported by an IEC CB certificate. The part is
completely lead-free, compliant with RoHS
Directive 2002/95/EC, and suitable for lead-free
and conventional processing.
Patented
ETALDOC 781/4
Page 1 of 4
June 2005
P5100
SPECIFICATIONS
Electrical
At T = 25ºC and as circuit fig. 2 unless otherwise stated.
Parameter
Insertion Loss
Frequency response
Return Loss
Third Harmonic
Distortion
(1)
Voltage
isolation
(2)
Operating range:
Functional
Storage
Conditions
f = 2kHz, R
L
= 560Ω
200Hz - 4kHz
200Hz - 4kHz
450Hz 0dBm
Min
-
-
18
-
Typ
-
-
-
-72
Max
1.5
±0.2
-
-60
Units
dB
dB
dB
dBm
50Hz
DC
Ambient temperature
2.12
3.0
-
-
-
-
kVrms
kV
0
-40
-
-
+70
+85
ºC
ºC
Lumped equivalent circuit parameters as Fig. 1
DC resistance, R
DC (3)
Leakage inductance
ΔL
Shunt inductance Lp
(4)
Shunt loss Rp
(4)
Notes
10mV 200Hz
10mV 200Hz
Sum of windings
120
14.5
2.8
5
-
-
-
-
148
18
-
-
Ω
mH
H
kΩ
Equivalent Circuit
1. Third harmonic typically exceeds other
harmonics by 20dB.
2. Components are 100% tested at 3.25kV DC.
3. Caution: do not pass DC through windings.
Telephone line current, etc. must be diverted
using choke or semiconductor line hold
circuit.
4. At signal levels greater than 100mV, Lp will
increase and Rp will decrease slightly but the
effect is usually favourable to the return loss
characteristic.
Fig. 1
½ L ½R
½R
½ L
IDEAL
1:1
Patented
ETALDOC 781/4
Page 2 of 4
June 2005
P5100

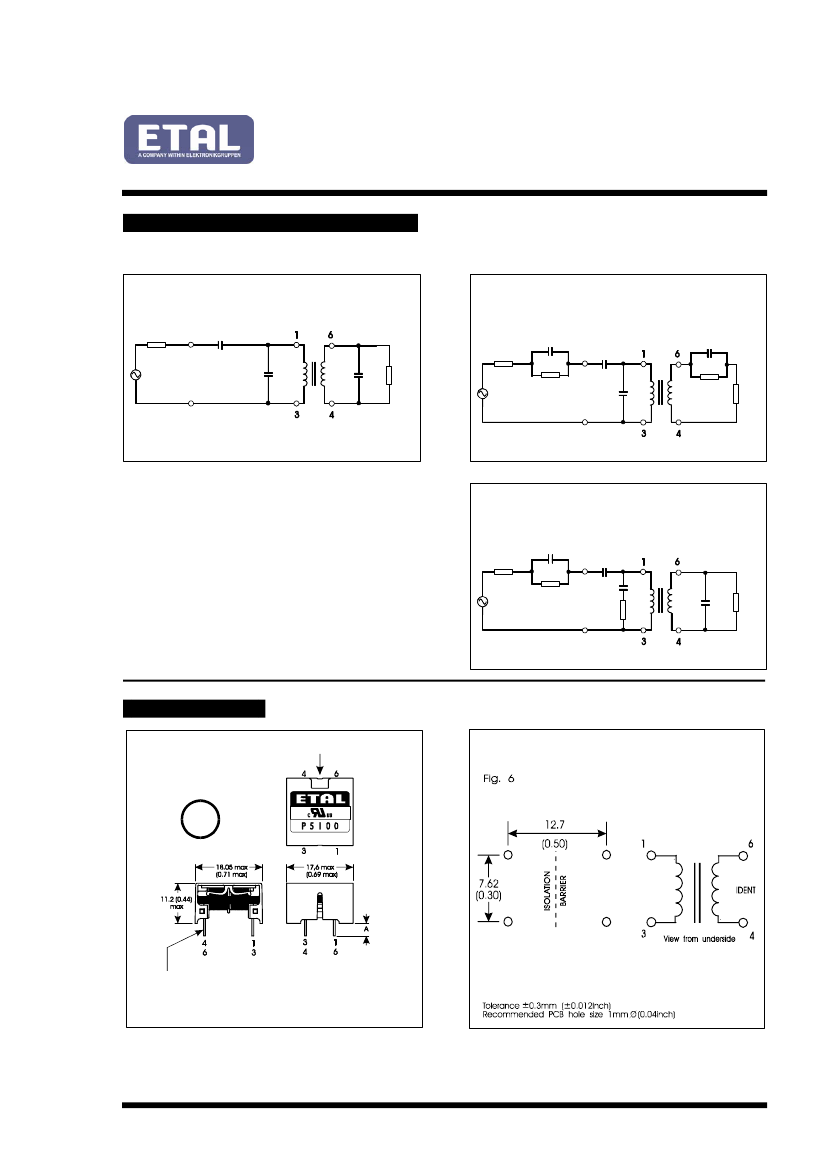

MATCHING RECOMMENDATIONS
600
Ω
MATCH
Recommended Circ uit
F 2
ig.
600
+ 50%
6.8
μ
F _ 20% *
270
LINE
27nF
+ 5%
_
33nF
+ 5%
_
560
+ 2%
_
LINE
* If return loss > 16dB, 300Hz - 4kHz is ac ceptable, bloc king
capacitor may be relaxed to 4.7
μ
F
+ 50%
_
20%
EUROPEAN CTR21 COMPLEX MATCH
Recommended Circ uit
F 3
ig.
(150nF)
100nF
150nF
2.2
μ
F
750
56nF
750
(680)
150
(220)
Figure 3 gives flat RX and TX responses against the
CTR21 complex reference impedance (typically
around ±0.5dB 300Hz - 3.4kHz). Return loss is
typically better than 20dB. The circuit values in
parentheses give optimum flatness at a small
sacrifice in return loss.
For circuits with existing board drillings, figure 4
gives good return loss (>20dB) and RX flatness
against the CTR21 complex reference impedance,
but TX flatness is degraded by the use of this
topology.
F 4
ig.
150nF
270
2.2
μ
F
750
LINE
68nF
330
27nF
820
CONSTRUCTION
Dimensions
Fig 5
IDENT
Connections
e
2
Pin Ø
0.70mm (0.028) max
Finish: S
nAg over Ni barrier. JES
D97 category = e2.
NOT S:
E
Dimension “A” : 3.0 to 3.5mm (0.118 - 0.138)
Dimensions shown are in millimetres (inches).
Geometric centres of outline and pin grid coincide within a tolerance circle of 0.6mm
Windings may be used interchangeably as primary or secondary.
ETALDOC 781/4
Page 3 of 4
June 2005
P5100
SAFETY
Constructed in accordance with IEC 60950-1,
EN 60950-1 and UL 60950-1, supplementary
insulation, 250Vrms maximum working voltage,
flammability class V-0.
ABSOLUTE MAXIMUM RATINGS
(Ratings of components independent of circuit).
Short term isolation voltage (1s)
DC current
Storage temperature
2.12kVrms
3.0kVDC
100μA
-40ºC to
+85ºC
260ºC
Lead temperature, 10s
CERTIFICATION
Certified under the IEC CB scheme (Certificate
GB605W) to IEC 60950 Third Edition 1999 sub-
clauses 1.5, 1.5.1, 1.5.2, 2.9, 2.9.1, 2.9.2, 2.9.3,
2.9.4, 2.9.5, 2.10, 2.10.1, 2.10.2, 2.10.3, 2.10.3.1,
2.10.3.2, 2.10.4, 2.10.5, 2.10.5.1, 2.10.5.4, 4.7,
4.7.3, 4.7.3.1, 4.7.3.4, (Flammability Class V-0)
,5.2, 5.2.1, and 5.2.2 for a maximum working
voltage of 250Vrms, nominal mains supply
voltage not exceeding 300Vrms and a maximum
operating temperature of +85ºC in Pollution
Degree 2 environment, supplementary insulation
for a primary circuit.
Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian
requirements
CAN/CSA
C22.2
No. 60950-1-03/UL60950-1, First Edition, based on
IEC 60950-1, First Edition, maximum working voltage
250Vrms, Pollution Degree 2, supplementary
insulation.
UL File number E203175.
Additionally, Profec Technologies certifies all
transformers as providing voltage isolation of
2.12kVrms, 3kV DC minimum. All shipments are
supported by a certificate of conformity to current
applicable safety standards.
INTELLECTUAL PROPERTY RIGHTS
ETAL, P1200, and P5100 are Trade Marks of
Profec Technologies Ltd.
The Trade Mark ETAL is registered at the UK Trade
Marks Registry.
Profec Technologies Ltd. is the owner of the design
right under the Copyright Designs and Patents Act
1988 and no rights or licences are hereby granted
or implied to any third party.
P5100 design and construction are protected by
patents.
USA Patent No. 6,690,254.
Other patents pending.
© 1998 – 2005 Profec Technologies Ltd.
Reproduction prohibited.
E203175
ISO 9001
FM 25326
ETAL Group Oy, Kuormatie 14, FIN-03101, Nummela
Telephone: +358 (0)20 7500 330
Fax: +358 (0)20 7500 333
Website: www.etalgroup.com
Email: etalgroup@egruppen.com
ETALDOC 781/4
Page 4 of 4
June 2005
