ADOP07DH/+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> ADOP07DH/+

ADOP07DH/+: DescriptionIC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size741KB，10 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

ADOP07DH/+ Overview

IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier

ADOP07DH/+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	TO-99
package instruction	, CAN8,.2
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.012 µA
frequency compensation	YES
Maximum input offset voltage	250 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Maximum slew rate	5 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	300000

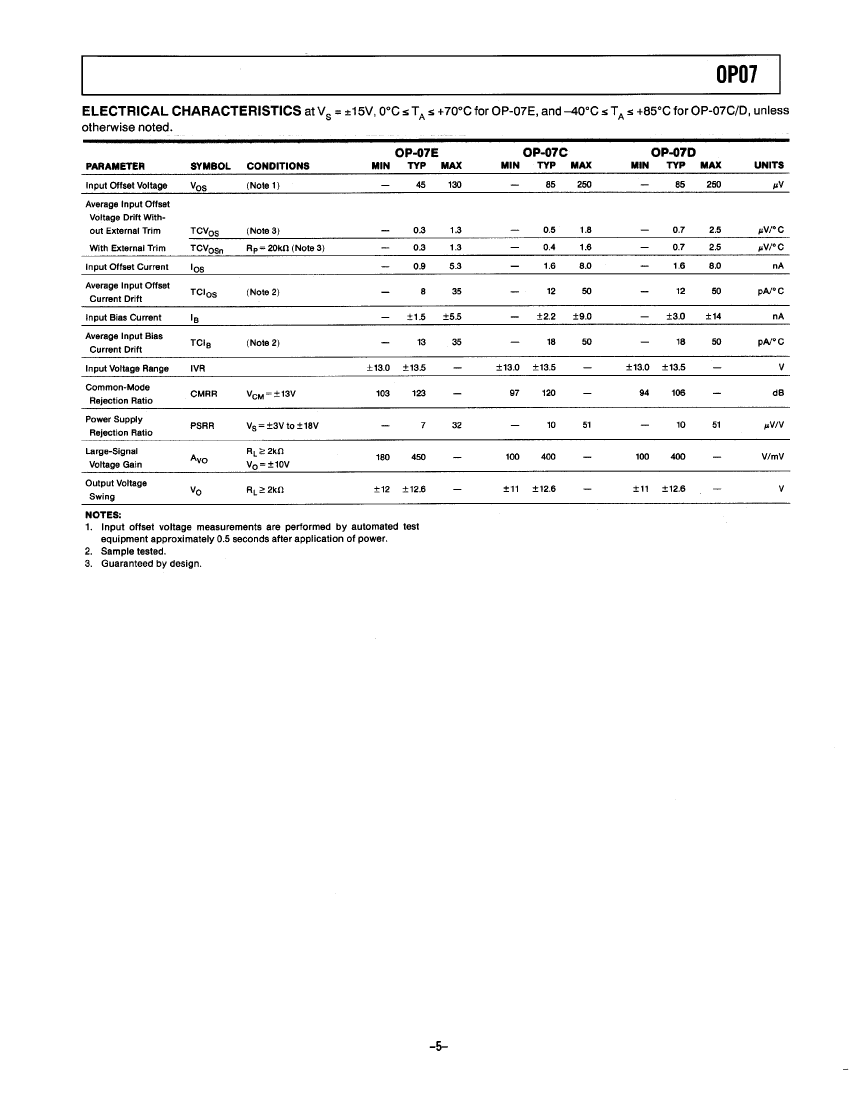

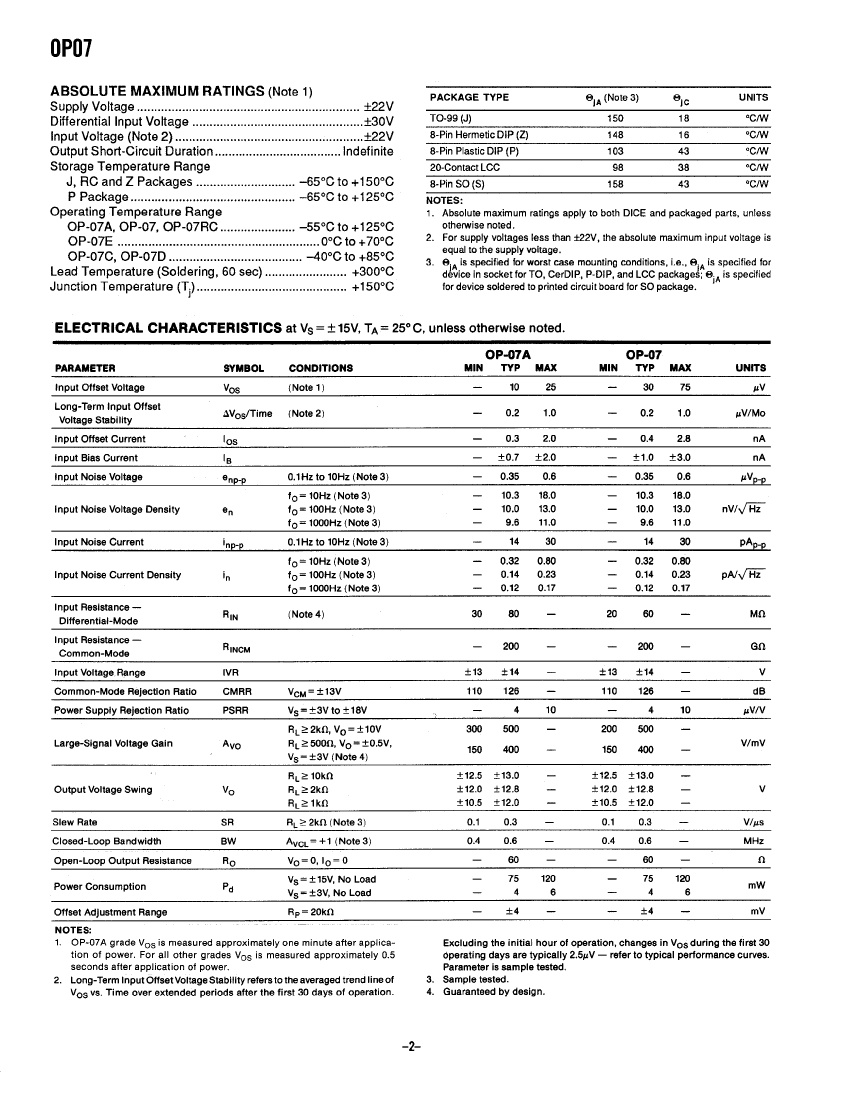

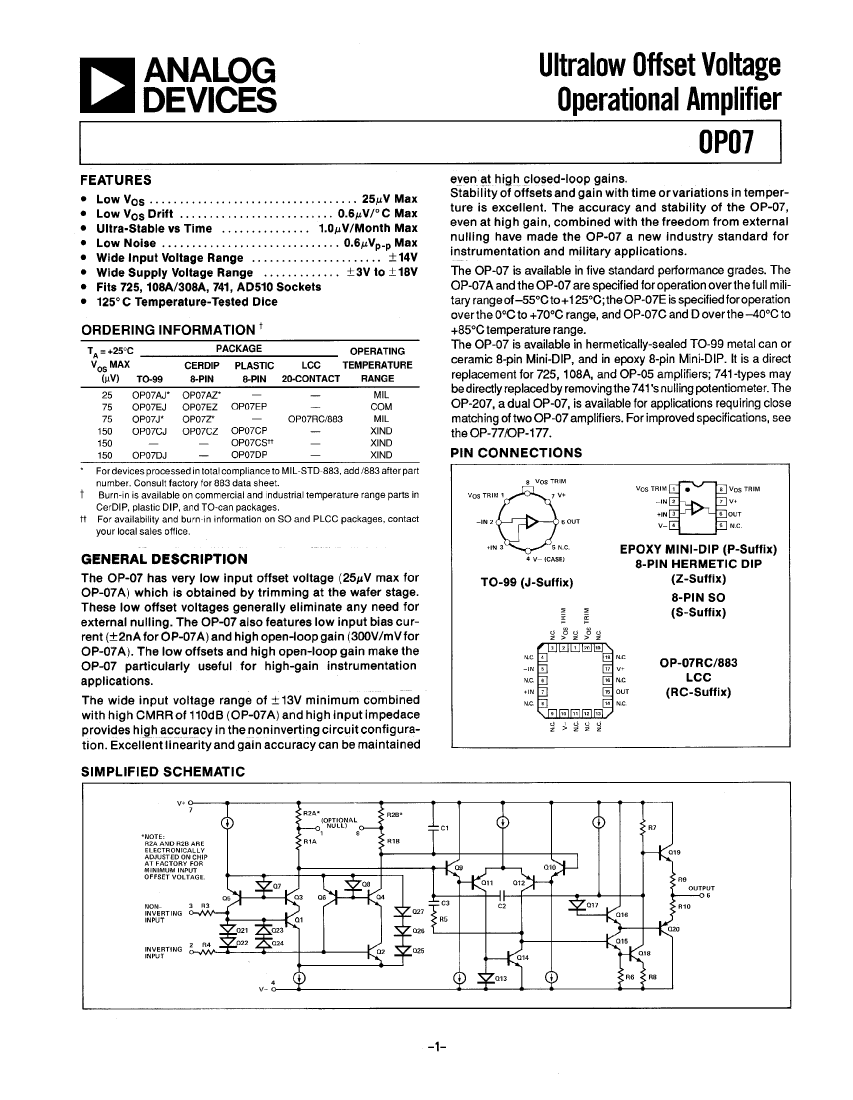

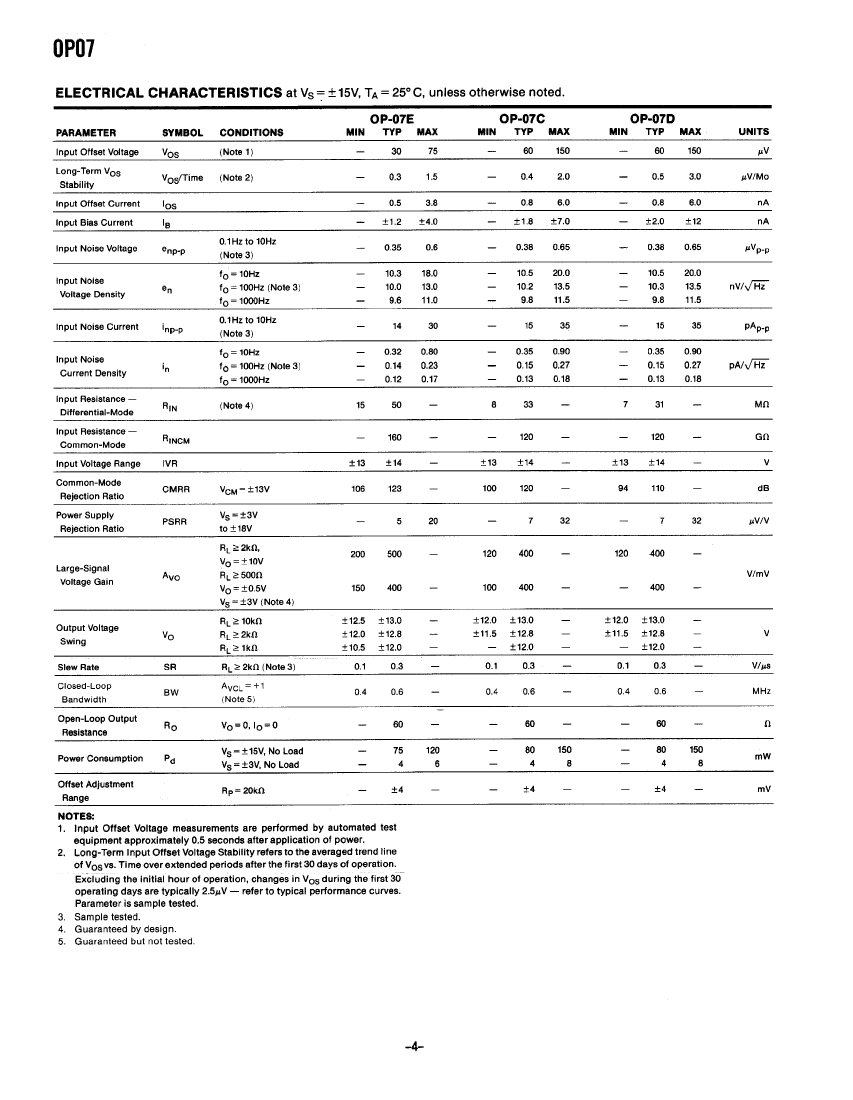

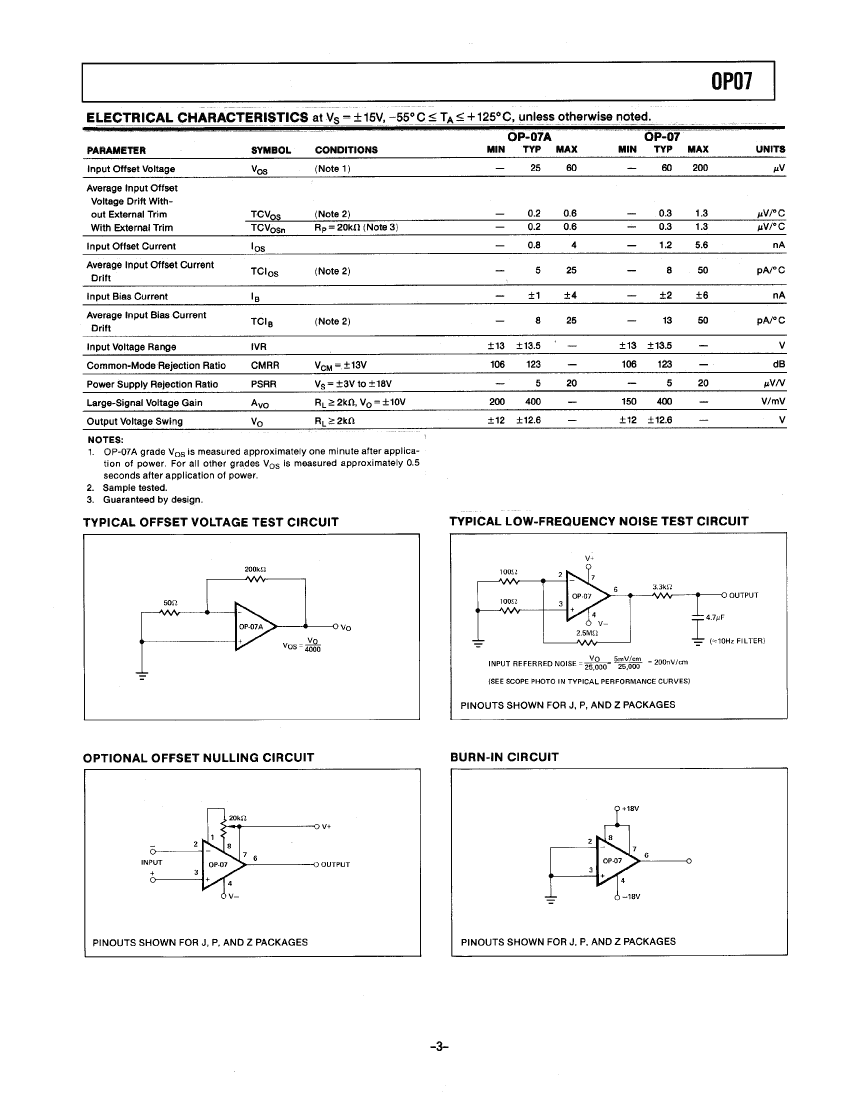

Preview

Download Datasheet

View All

ADOP07DH/+ Related Products

	ADOP07DH/+	ADOP07CH/+	ADOP07CN/+	ADOP07CQ/+	ADOP07DN/+	ADOP07DQ/+	ADOP07EH/+	ADOP07EN/+
Description	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC, Operational Amplifier
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Parts packaging code	TO-99	TO-99	DIP	DIP	DIP	DIP	TO-99	DIP
package instruction	, CAN8,.2	, CAN8,.2	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.012 µA	0.007 µA	0.007 µA	0.007 µA	0.012 µA	0.012 µA	0.004 µA	0.004 µA
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	250 µV	250 µV	250 µV	250 µV	250 µV	250 µV	130 µV	130 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	R-PDIP-T8	R-XDIP-T8	R-PDIP-T8	R-XDIP-T8	O-MBCY-W8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	METAL	METAL	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	METAL	PLASTIC/EPOXY
Encapsulate equivalent code	CAN8,.2	CAN8,.2	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	CAN8,.2	DIP8,.3
Package shape	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Maximum slew rate	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	4 mA	4 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	DUAL	DUAL	DUAL	DUAL	BOTTOM	DUAL
Minimum voltage gain	300000	300000	300000	300000	300000	300000	300000	300000
encapsulated code	-	-	DIP	DIP	DIP	DIP	-	DIP
surface mount	-	-	NO	NO	NO	NO	-	NO
Terminal pitch	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
