specifications
Small form factor fiber optic modules shall be
compliant with the TIA FOCIS-6 Fiber Jack (FJ)
interface specification. RJ-45 style module shall
be field terminable in one module space with no
adapter. The module shall contain a factory
terminated pre-polished multimode fiber, requiring
no field polishing and no adhesive. The fibers
shall terminate in 2.5mm ferrules with a non-
optical disconnect and typical insertion loss of
0.35dB per connector.
TM
NETWORK CONNECTIVITY GROUP
SPEC SHEET
M
INI
-C
OM
®
O
PTI
-C
RIMP
™
FJ Fiber Optic Module — Pre-polished Crimp
technical information
Fiber compatibility:
Ferrule type:
Insertion loss:
Return loss:
3.0mm jacketed or 900µm buffered, 62.5/125µm and
50/125µm multimode
Ceramic (Zirconia) with a pre-polished fiber stub
0.35dB typical
Greater than 20dB
O
PTI
-C
RIMP
Multimode Module
62.5/125µm:
50/125µm:
Multimode:
FJJSMM5C**
FJJSMM50C**
FJEPGM5C**
FJGCCEI
O
PTI
-P
LUG
™
Fiber Optic Connector
Plug to Plug Coupler
Plug to plug coupler:
(primarily used in testing)
key features and ...benefits
Pre-polished fiber stub
Mechanical crimp cable
retention
Small form factor
connector
Proven 2.5mm ferrules
Robust design
Non-optical disconnect
RJ-45 form factor
Field terminable module
and connector
Adapterless
Flush mount
TIA standardization
Keyed solution available
Eliminates polishing steps, speeding installation
Consistently provides higher than industry standard cable
retention; requires no adhesive, speeding installation
Double the port density in one module space
at the outlet and in the telecommunications closet
Uses standard termination tools and procedures
Protects fibers from mechanical and environmental stress
Maintains data transmission under tensile load
Familiar to end-users, snaps into all
M
INI
-C
OM
outlets and modular patch panels
Allows flexibility to assemble special length patch
cords on site
Fewer components to order and inventory
Unused ports do not protrude from the wall; can be
used with shuttered faceplates
FOCIS-6 interface approved for the TIA, required for
TIA/EIA-568-B.3
Provides network security; limits access to highly sensitive,
classified and segregated networks
Pre-polished Termination Tooling
Pre-polished crimp
termination kit:
FJMKIT
To upgrade from FJKITG, purchase FJQCVR
fiber cleaver tool
O
PTI
-C
RIMP
Multimode Module
Pre-polished Replacement Ferrules
62.5/125µm:
50/125µm:
O
PTI
-P
LUG
connector
to O
PTI
-P
LUG
connector:
O
PTI
-P
LUG
connector
to O
PTI
-J
ACK
module:
O
PTI
-P
LUG
connector
to SC:
O
PTI
-P
LUG
connector
to ST:
O
PTI
-P
LUG
connector
to FC:
O
PTI
-P
LUG
connector
(Keyed W) to SC:
O
PTI
-P
LUG
connector
(Keyed W) to ST:
FJJSMFRL-X
FJJSM50FRL-X
Multimode Duplex Patch Cords
F^D6P-6PM‡
F^D6P-6JM‡
F^D6P-3M‡
F^D6P-2M‡
F^D6P-4M‡
F^D6PW-3M‡
F^D6PW-2M‡
All key type (W, X, Y, Z) patch cords available
^Available in 62.5/125µm (6) and 50/125µm (5)
‡Available in standard (1, 2, 3 and 10 meters)
and custom lengths
applications
Fiber-to-the-desk:
The pre-polished
mechanical crimp version ofO
PTI
-J
ACK
™
(FJ)
fiber optic module is the ultimate desktop fiber
connector. The 2.5mm ferrule provides
robustness required for this demanding
environment. The FJ interface module and
connector design is familiar to the end user
and is polarized to prevent mismatch of
transmit and receive cables. Because there is
no adapter, unused ports remain flush with
the wall and away from damage. Shuttered
faceplates can be used for further protection
of the unused ports. The modularity with
copper connectors allows for the complete
data-communications solution to every
workstation in one outlet.
Keyed network security:
Four color-coded,
keyed configurations of the module and
connector are available to provide mechanical
and visual differentiation to prevent
unintentional insertion into adjacent ports.
Provides network security for military,
government, financial and educational
applications. Universal keyed connector
available for testing purposes.
Telecommunications closet:
The high port
density of the
O
PTI
-C
RIMP
module reduces the
space requirements for fiber terminations in
the closet. This allows the end user to use
less rack space and purchase fewer fiber
enclosures. The multiple color options allow
color coding of different networks or areas of
the building for easier troubleshooting.
**Substitute for
Colors:
EI = Electric Ivory
BL = Black
BU = Blue
IW = Off White
OR = Orange
WH = White
Keyed Colors:
WBL = Keyed W in Black
XRD = Keyed X in Red
YOR = Keyed Y in Orange
ZYL = Keyed Z in Yellow
“X” = Bag of 10 ferrules and crimp sleeves
installer tip
Reduces
installation time
over standard
O
PTI
-J
ACK
modules
by 70%.
V i s i t o u r w e b s i t e a t : w w w. p a n d u i t . c o m / n c g
M
INI
-C
OM
®
O
PTI
-C
RIMP
™

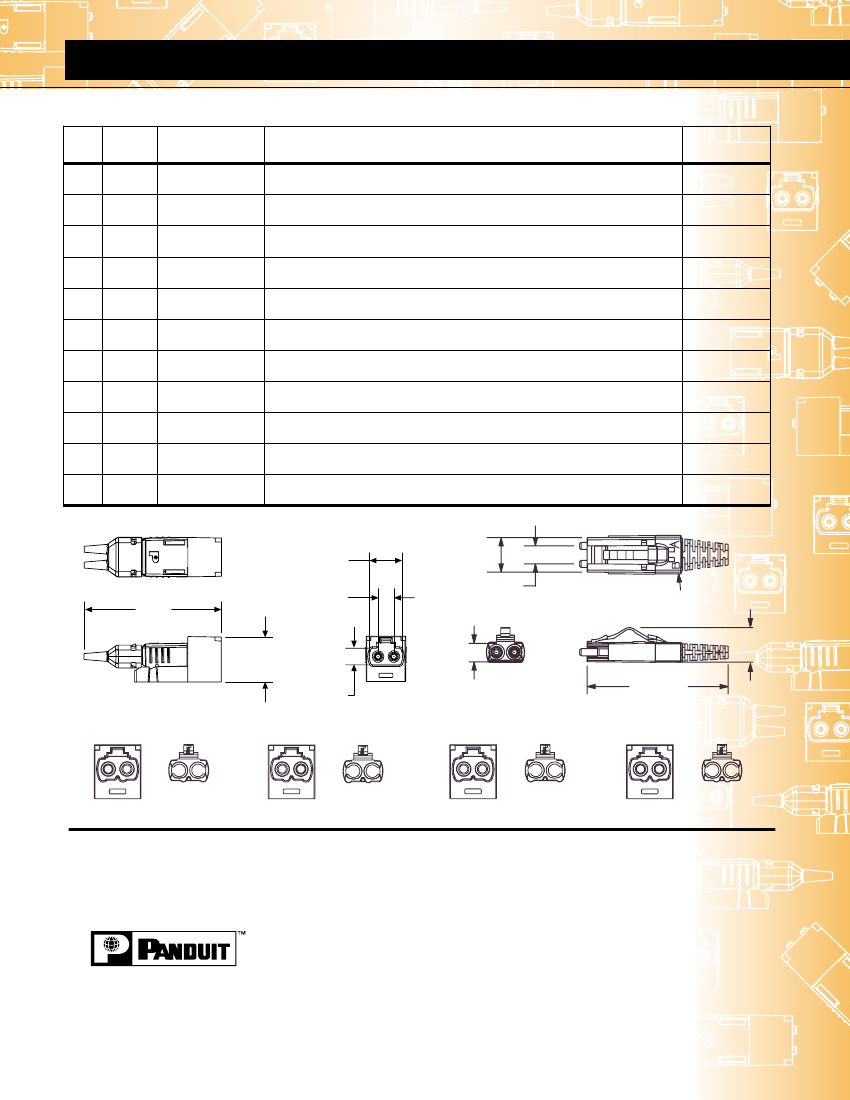

FJ Fiber Optic Module — Pre-polished Crimp
Standards Compliant Connector Performance
TIA
455
1
2
4
5
6
21
34
36
107
185
188
ISO/IEC
874-1
--
4.5.11
4.5.18
4.4.19
4.5.4
4.5.32
4.4.7
4.5.5
--
4.5.6
4.5.17
Description
Flex
Impact
High Temperature
Humidity
Cable Retention
Durability
Insertion Loss
Twist
Return Loss
Coupling Strength
Low Temperature
Test Procedure and
TIA/EIA-568-B.3 Required Performance
100 cycles; -180 to 180 degrees;
max. insertion loss 0.75dB, min. return loss 20dB
8 drops from 1.8m;
max. insertion loss 0.75dB, min. return loss 20dB
4 days at 60°C followed by post-conditioning FOTP-6;
max. insertion loss 0.75dB, min. return loss 20dB
4 days at 90-95% RH and 40°C;
max. insertion loss 0.75dB, min. return loss 20dB max. change during test 0.4dB
11.24 lbs. at 0 degrees, 4.4 lbs. at 90 degrees;
max. insertion loss 0.75dB, min. return loss 20dB max. change during test 0.5dB
500 mate/unmate cycles;
max. insertion loss 0.75dB, min. return loss 20dB
max. insertion loss 0.75dB, min. return loss 20dB
10 cycles; 2.5 cw, 5 ccw, 2.5 cw;
max. insertion loss 0.75dB, min. return loss 20dB
20dB minimum return loss
7.4 lbs. at 0 degrees;
max. insertion loss 0.75dB, min. return loss 20dB
4 days at 0°C;
max. insertion loss 0.75dB, min. return loss 20dB max. change during test 0.3dB
Performance
After Test
<0.2dB
additional loss
<0.1dB
additional loss
<0.2dB
additional loss
<0.1dB
additional loss
<0.2dB
additional loss
<0.1dB
additional loss
0.35dB
typical
<0.1dB
additional loss
>20dB
<0.1dB
additional loss
<0.1dB
additional loss
NOTE: Above tests performed at 850 and 1300nm on 3.0mm jacketed fiber cable.
.48
[12.1]
.25
[6.4]
.53
[13.4]
.25
[6.4]
2.17
[55.0]
“A” & “B” DESIGNATION
UNDER BOOT AFTER ASSEMBLY
.48
[12.2]
.71
[18.0]
.26
[6.7]
.26
[6.6]
1.96 [49.7]
Keyed W - Black
Keyed X - Red
Keyed Y - Orange
Keyed Z - Yellow
Dimensions are in inches (Dimensions in parentheses are in millimeters)
Our products are warranted to be free from defects in material and workmanship at the time of sale but our
obligation under this warranty is limited to the replacement of any product proved to be defective within 6
months (for product) or 90 days (for tools) from the date of delivery. Tool warranty is void if Panduit tools
are modified, altered or misused in any way. Use of Panduit tooling with any product other than the specified
Panduit products for which the tool was designed, constitutes misuse. Before using, user shall determine
the suitability of the product for his intended use and user assumes all risk and liability whatsoever in
connection therewith.
This warranty is made in lieu of and excludes all other warranties, expressed or implied. THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE ARE SPECIFICALLY
EXCLUDED. Neither seller nor manufacturer shall be liable for any other injury, loss or damage whether direct
or consequential, arising out of the use of, or the inability to use, the product.
The information contained in this literature is based on our experience to date and is believed to be reliable.
It is intended as a guide for use by persons having technical skill at their own discretion and risk. We do not
guarantee favorable results or assume any liability in connection with its use. Dimensions contained herein
are for reference purposes only. For specific dimensional requirements consult the factory. This publication is
not to be taken as a license to operate under, or a recommendation to infringe any existing patents. This
supersedes and voids all previous literature, etc.
NETWORK CONNECTIVITY GROUP
PANDUIT CANADA
Div. of
PANDUIT CORP.
Markham, Ontario
Phone: 905-475-6922
EUROPEAN HEADQUARTERS
PANDUIT EUROPE LTD.
London, UK
Phone: 44(0) 208-601-7200
WORLD HEADQUARTERS
PANDUIT CORP.
Tinley Park, Illinois, USA
Phone: 888-506-5400, ext. 6914
708-532-1800, ext. 6914
Fax: 708-460-2897
Email: info@panduit.com
Internet: www.panduit.com/ncg
ASIAN HEADQUARTERS
PANDUIT SINGAPORE PTE. LTD.
Republic of Singapore
Phone: (65) 379 6700
For Pricing and Further Information —
Contact your local authorized
PANDUIT P
AN
-N
ET
™
Distributor or Sales Office
PANDUIT CORP.
Japan Branch
Phone (81) (3) 3767-7011
PANDUIT MEXICO/LATIN AMERICA
& CARIBBEAN
Phone: (52) 3 666-2501
PANDUIT (AUST.) PTY. LTD.
Phone: (61) 3-9794 9020
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
©
PANDUIT
Corp. 2001
ALL RIGHTS RESERVED
SA-NC09SP01A
Printed in U.S.A.
