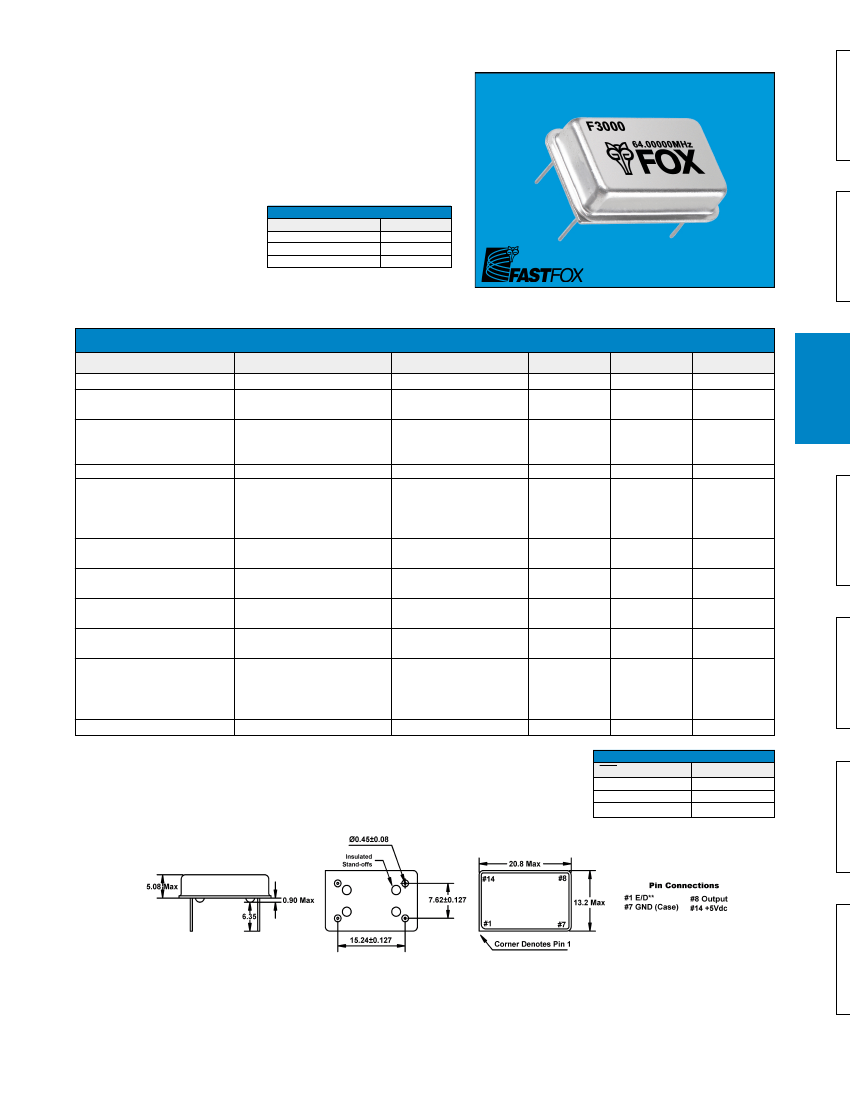

HCMOS/TTL HEAVY LOAD OSCILLATOR

F3000

The F3000 Clock Oscillator is capable of driving heavy HCMOS

loads. This oscillator has a tri-state enable/disable function on pin

1 to facilitate testing with ATE. The package is all metal with pin 7

as case ground which provides shielding to help minimize EMI

radiation.

FEATURES

50pF HCMOS Load to 80 MHz

10TTL Fanout

Tri-State Enable/Disable

MODEL NUMBER SELECTION

Model Number

Frequency Stability

F3000

±100PPM

F3005

±50PPM (up to 90MHz)

F3006

±25PPM (up to 50MHz)

Note: -40ºC ~ +85ºC "R" version available

(ex: F3000R) to 90 MHz

ELECTRICAL CHARACTERISTICS (V

DD

= 5.0V, C

L

= 50pF)

PARAMETERS

Frequency Range (Fo)

Frequency Stability

Temperature Range

Operating

Storage

Supply Voltage

Input Current

(T

OPR

)

(T

STG

)

(V

DD

)

(I

DD

)

OSCILLATORS

FREQUENCY RANGE

1.544 ~ 100.000

100.000+ ~ 120.000

1.544 ~ 120.000

1.544

25.000+

50.000+

80.000+

1.544

80.000+

1.544

80.000+

100.000+

1.544

~

120.000

25.000

50.000

80.000

120.000

80.000

120.000

CONDITIONS

All Conditions*

1.544

-100

-200

-10

-55

+4.5

MIN

120.000

+100

+200

+70

+125

+5.5

25

40

77

82

55

60

5

0.5

16

- 16

10

50

30

15

10

INH (Pin 1)

OPEN ***

'1' Level V

IH

³

2.2 V

'0' Level V

IL

£

0.8 V

MAX

UNITS

MHz

PPM

ºC

V

mA

Output Symmetry

Rise Time

Fall Time

Output Voltage

Output Current

Output Load

(T

R

)

(T

F

)

(V

OL

)

(V

OH

)

(I

OL

)

(I

OH

)

2.5V

0.5V ~ 4.5V

4.5V ~ 0.5V

I

OL

= 16 mA

I

OH

= -16 mA

V

OL

= 0.5 V

V

OH

= 4.5 V

TTL

HCMOS

45

40

%

nS

V

mA

TTL

pF

mS

OUTPUT (Pin 8)

ACTIVE

High Z

4.5

~ 120.000

~

120.000

80.000

100.000

120.000

Start-up Time

(T

S

)

* Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging, shock, and vibration.

***An internal pullup resistor from pin 1 to pin 14 allows active output if pin 1 is left open.

See page 44 for mechanical specifications, test circuits, and output waveform.

All specifications subject to change without notice. Rev. 03/02/00

ENABLE/DISABLE FUNCTION**

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com

47
