GBU804-K - GBU807-K
Taiwan Semiconductor
CREAT BY ART

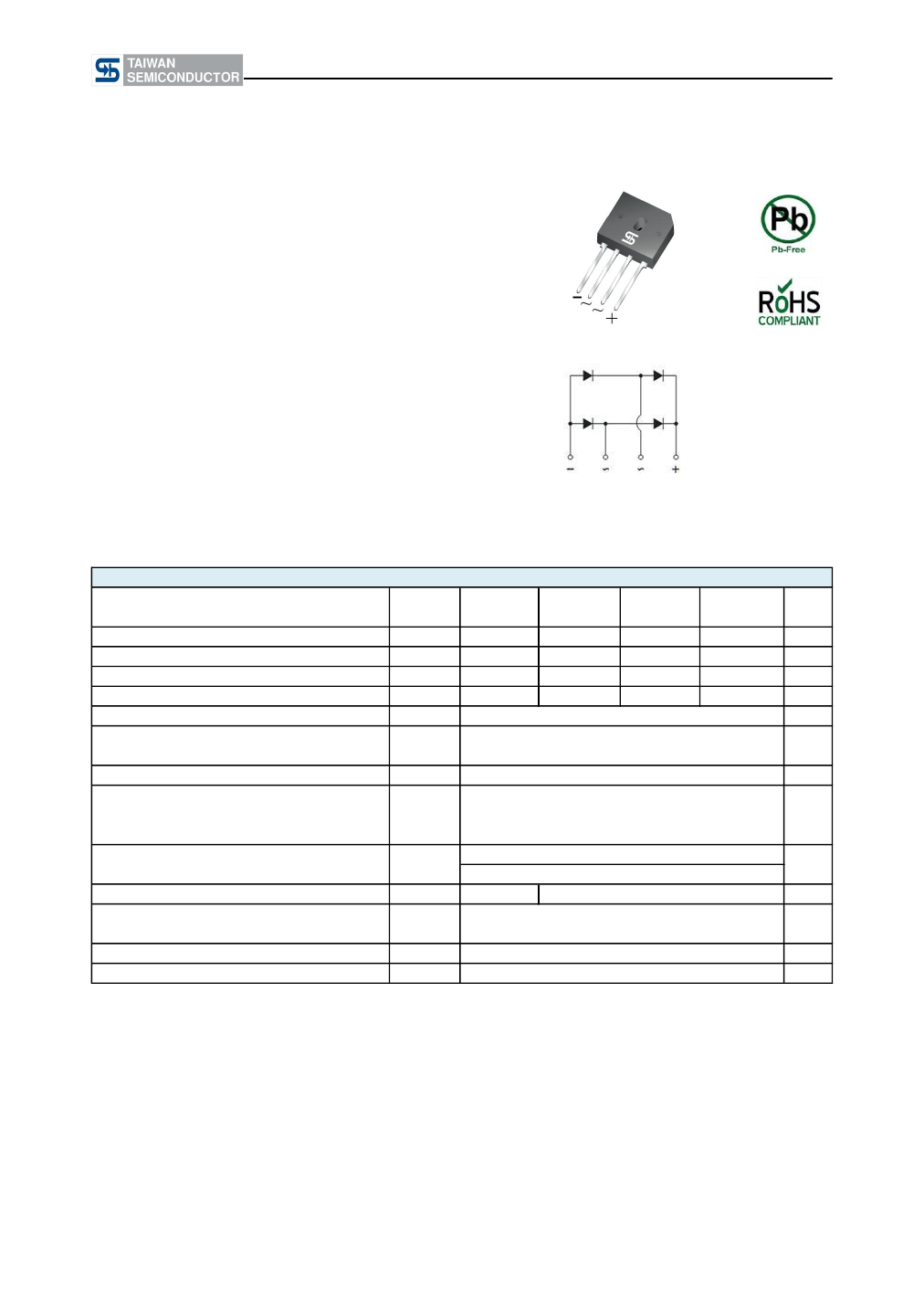

8A, 400V - 1000V Glass Passivated Single-Phase Bridge Rectifiers
FEATURES
- Ideal for printed circuit board
- High case dielectric strength of 1500 VRMS
- High surge current capability
- Typical I
R
less than 0.1μA
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
GBU
MECHANICAL DATA
Case:
GBU
Molding compound: UL flammability classification rating 94V-0
Terminal:
Matte tin plated leads, solderable per J-STD-002
Packing code with suffix "G" means green compound (halogen-free)
Polarity:
As marked
Mounting torque:
0.56 Nm (5 in-lbs.) max.
Weight:
4 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current,
8.3 ms single half sine-wave
Rating of fusing ( t<8.3ms)
Maximum Instantaneous Forward Voltage (Note 1)
I
F
= 4 A
I
F
= 8 A
Maximum reverse current @ rated V
R
T
J
=25°C
T
J
=125°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
SYMBOL GBU804-K GBU805-K GBU806-K GBU807-K
GBU804
400
280
400
GBU805
600
420
600
8
200
166
1.0
1.1
5
500
211
2
21
- 55 to +150
- 55 to +150
94
GBU806
800
560
800
GBU807
1000
700
1000
V
V
V
A
A
A
2
s
V
UNIT
I
R
C
J
R
θJC
R
θJA
T
J
T
STG
μA
pF
°C/W
°C
°C
Typical junction capacitance per leg (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1MHz and applied reverse bias of 4.0V
Version: D1606
GBU804-K - GBU807-K
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
GBU80X-K
(Note 1)
Note 2: " * " defines optional available
PACKING CODE
D2
PACKING CODE
SUFFIX
G
(*)
PACKAGE
PACKING
GBU
20 / Tube
Note 1: "x" defines voltage from 400V (GBU804-K) to 1000V (GBU807-K)
EXAMPLE
EXAMPLE
PART NO.
GBU806-K D2
GBU806-K
GBU806-K D2G
D2
G
Green compound
PART NO.
PACKING CODE
PACKING CODE
SUFFIX
DESCRIPTION
Non-Green compound

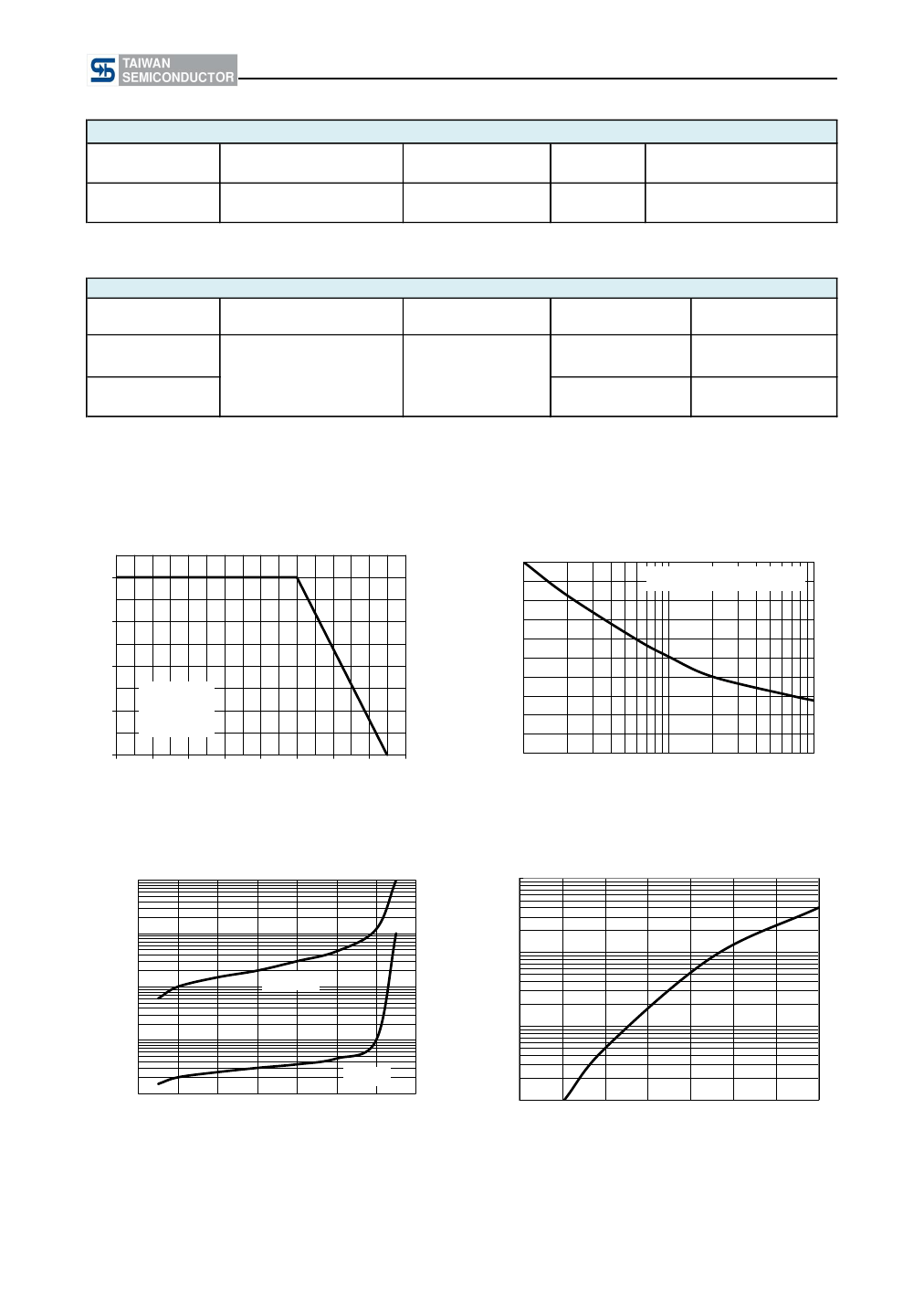

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM DERATING CURVE FOR
OUTPUT CURRENT
200
AVERAGE FORWARD CURRENT (A)
8
PEAK FORWARD SURGE CURRENT (A)
180
160
140
120
100
80
60
40
20
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms single half sine wave
FIG. 2 MAXIMUM FORWARD SURGE CURRENT
PER LEG
6
4
Resister or
inductive load
with heatsink
2
0
0
20
40
60
80
100
120
140
160
CASE TEMPERATURE (
°
C)
FIG. 3 TYPICAL REVERSE CHARACTERISTICS
PER LEG
1000
INSTANTANEOUS REVERSE CURRENT (μA)
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
PER LEG
Fig.5
10
100
10
T
J
=125
°
C
1
1
T
J
=25
°
C
0.1
0
20
40
60
80
100
120
140
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
INSTANTANEOUS FORWARD VOLTAGE (V)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version: D1606
GBU804-K - GBU807-K
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
1000
JUNCTION CAPACITANCE (pF)
A
GBU804-K
100
GBU805-K - GBU807-K
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)

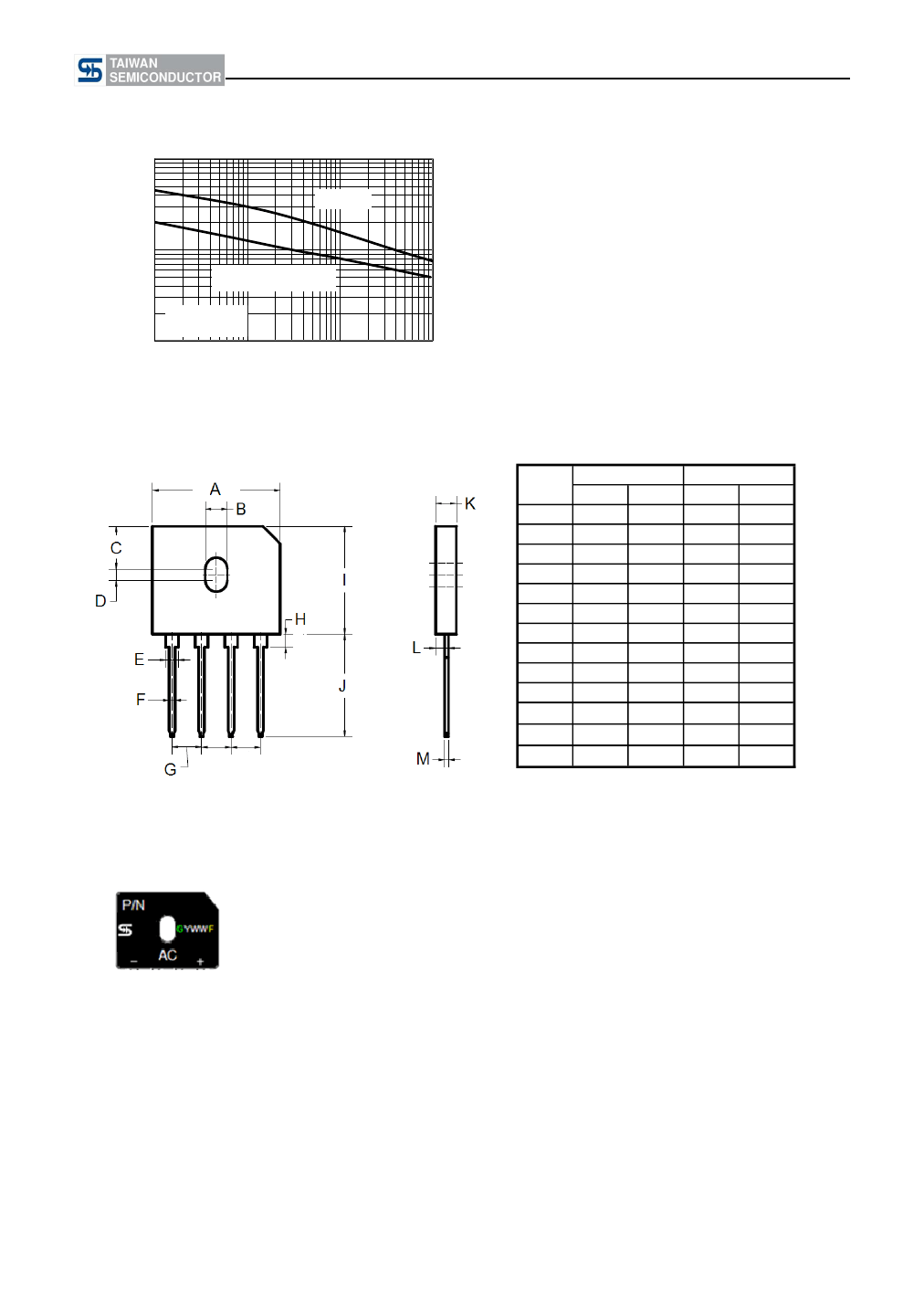

PACKAGE OUTLINE DIMENSIONS
GBU
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
Unit (mm)
Min
21.80
3.50
7.40
1.65
2.06
1.02
4.83
1.91
18.30
17.50
3.30
2.40
0.46
Max
22.30
4.10
7.90
2.16
2.54
1.27
5.33
2.54
18.80
18.00
3.56
2.66
0.56
Unit (inch)
Min
0.858
0.138
0.291
0.065
0.081
0.040
0.190
0.075
0.720
0.689
0.130
0.094
0.018
Max
0.878
0.161
0.311
0.085
0.100
0.050
0.210
0.100
0.740
0.709
0.140
0.105
0.022
MARKING DIAGRAM
P/N
YW
F
G
= Marking code
= Date Code
= Factory Code
= Green Compound
Version: D1606
GBU804-K - GBU807-K
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: D1606
