DG413DJ: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16, PLASTIC, MS-001BB, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size489KB，13 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound13parts with similar functions to DG413DJ

Download Datasheet Parametric Compare View All

DG413DJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG413DJ	-	-	View	Buy Now

DG413DJ Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16, PLASTIC, MS-001BB, DIP-16

DG413DJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	1 week
Other features	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.17 mm
Maximum negative supply voltage (Vsup)	-20 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO/NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12/+-15 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	145 ns
Maximum connection time	175 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

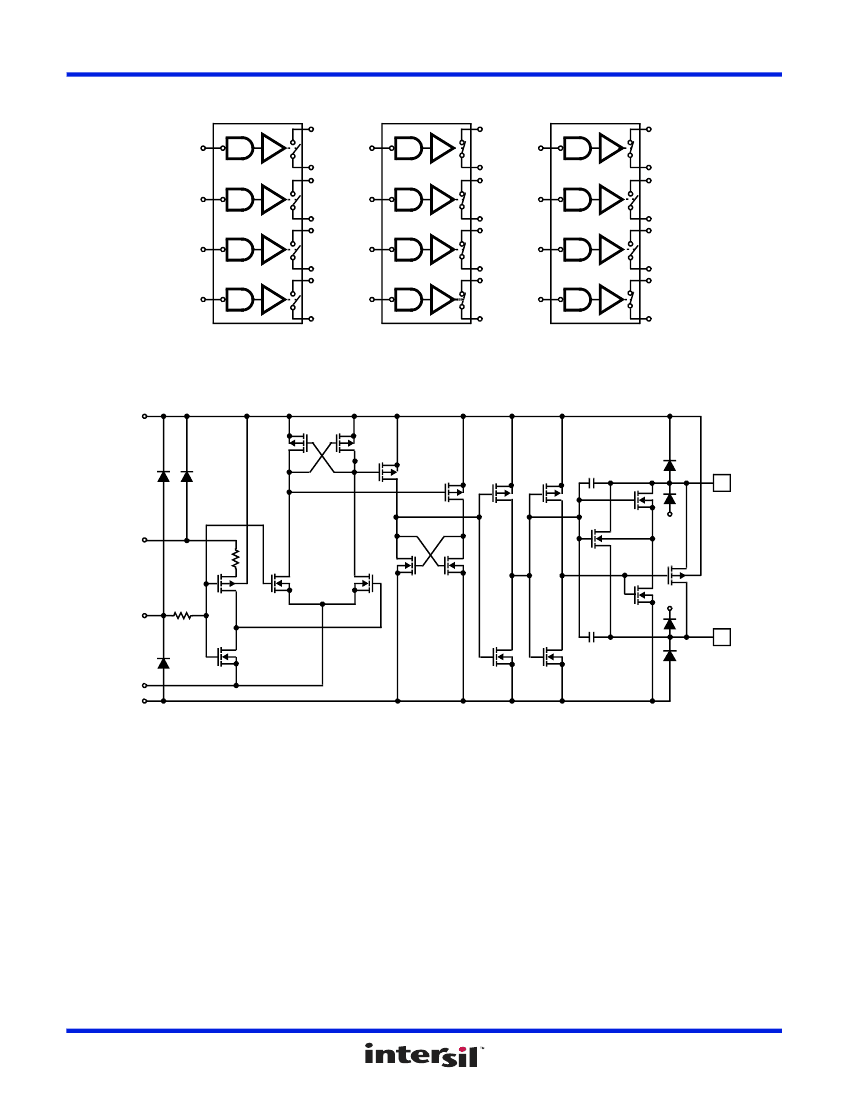

DATASHEET

DG411, DG412, DG413

Monolithic Quad SPST, CMOS Analog Switches

The DG411 series monolithic CMOS analog switches are

drop-in replacements for the popular DG211 and DG212

series devices. They include four independent single pole

throw (SPST) analog switches, and TTL and CMOS

compatible digital inputs.

These switches feature lower analog ON-resistance (<35)

and faster switch time (t

<175ns) compared to the DG211

or DG212. Charge injection has been reduced, simplifying

sample and hold applications.

The improvements in the DG411 series are made possible

by using a high voltage silicon-gate process. An epitaxial

layer prevents the latch-up associated with older CMOS

technologies. The 44V maximum voltage range permits

controlling 40V

P-P

signals. Power supplies may be

single-ended from +5V to 44V, or split from ±5V to ±20V.

The four switches are bilateral, equally matched for AC or

bidirectional signals. The ON-resistance variation with analog

signals is quite low over a ±15V analog input range. The

switches in the DG411 and DG412 are identical, differing only

in the polarity of the selection logic. Two of the switches in the

DG413 (#2 and #3) use the logic of the DG211 and DG411

(i.e., a logic “0” turns the switch ON) and the other two

switches use DG212 and DG412 positive logic. This permits

independent control of turn-on and turn-off times for SPDT

configurations, permitting “break-before-make” or “make-

before-break” operation with a minimum of external logic.

FN3282

Rev 13.00

June 20, 2007

Features

• ON-Resistance (Max). . . . . . . . . . . . . . . . . . . . . . . . . 35

• Low Power Consumption (P

) . . . . . . . . . . . . . . . . . . <35µW

• Fast Switching Action

- t

(Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175ns

- t

OFF

(Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145ns

• Low Charge Injection

• Upgrade from DG211, DG212

• TTL, CMOS Compatible

• Single or Split Supply Operation

• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

• Audio Switching

• Battery Operated Systems

• Data Acquisition

• Hi-Rel Systems

• Sample and Hold Circuits

• Communication Systems

• Automatic Test Equipment

FN3282 Rev 13.00

June 20, 2007

Page 1 of 13

DG413DJ Related Products

	DG413DJ	DG411DJ	3812	DG412DY	DG413DY	DG412DY-T	DG413DY-T	DG411DY-T
Description	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16, PLASTIC, MS-001BB, DIP-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16	Ultra-High Value Precision Resistors	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP	-	SOIC	-	SOIC	SOIC	SOIC
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	-	SOP, SOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25	SOIC-16	SOP, SOP16,.25
Contacts	16	16	-	16	-	16	16	16
Reach Compliance Code	not_compliant	not_compliant	-	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	-	-	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Analog Integrated Circuits - Other Types	SPST	SPST	-	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-PDIP-T16	R-PDIP-T16	-	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0
length	19.17 mm	-	-	9.9 mm	9.9 mm	9.9 mm	9.9 mm	9.9 mm
Maximum negative supply voltage (Vsup)	-20 V	-	-	-20 V	-20 V	-20 V	-20 V	-20 V
Negative supply voltage minimum (Vsup)	-5 V	-	-	-5 V	-5 V	-5 V	-5 V	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-	-15 V	-15 V	-15 V	-15 V	-15 V
normal position	NO/NC	NC	-	NO	NO/NC	NO	NO/NC	NC
Number of channels	1	1	-	1	1	1	1	1
Number of functions	4	4	-	4	4	4	4	4
Number of terminals	16	16	-	16	16	16	16	16
Nominal off-state isolation	68 dB	68 dB	-	68 dB	68 dB	68 dB	68 dB	68 dB
Maximum on-state resistance (Ron)	35 Ω	35 Ω	-	35 Ω	35 Ω	35 Ω	35 Ω	35 Ω
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	-	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	-	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	-	SOP16,.25	SOP16,.25	SOP16,.25	SOP16,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	240	240	240	240	240
power supply	5,12/+-15 V	5,12/+-15 V	-	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.33 mm	-	-	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	20 V	-	-	20 V	20 V	20 V	20 V	20 V
Minimum supply voltage (Vsup)	5 V	-	-	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	15 V	15 V	-	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	-	YES	YES	YES	YES	YES
Maximum disconnect time	145 ns	145 ns	-	145 ns	145 ns	145 ns	145 ns	145 ns
Maximum connection time	175 ns	175 ns	-	175 ns	175 ns	175 ns	175 ns	175 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	-	-	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Humidity sensitivity level	-	-	-	1	1	1	1	1
