DBCPHC3640AG1: DescriptionPIN HEADER DUAL BODY SINGLE ROW - 2.0MM; File Size88KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/

Download Datasheet Compare View All

DBCPHC3640AG1 Overview

PIN HEADER DUAL BODY SINGLE ROW - 2.0MM

Preview

Download Datasheet

View All

PIN HEADER

Industry compatible

Competitively priced

Gold plated contacts

No. of contacts 02 to 43

2.00mm pitch

DUAL BODY SINGLE ROW - 2.0MM

SECTION 8

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL94V-0

1 A DC

30M Ω Max at 6V DC 0.3A

1000M Ω Min at 500V DC

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

Operating Temperature:

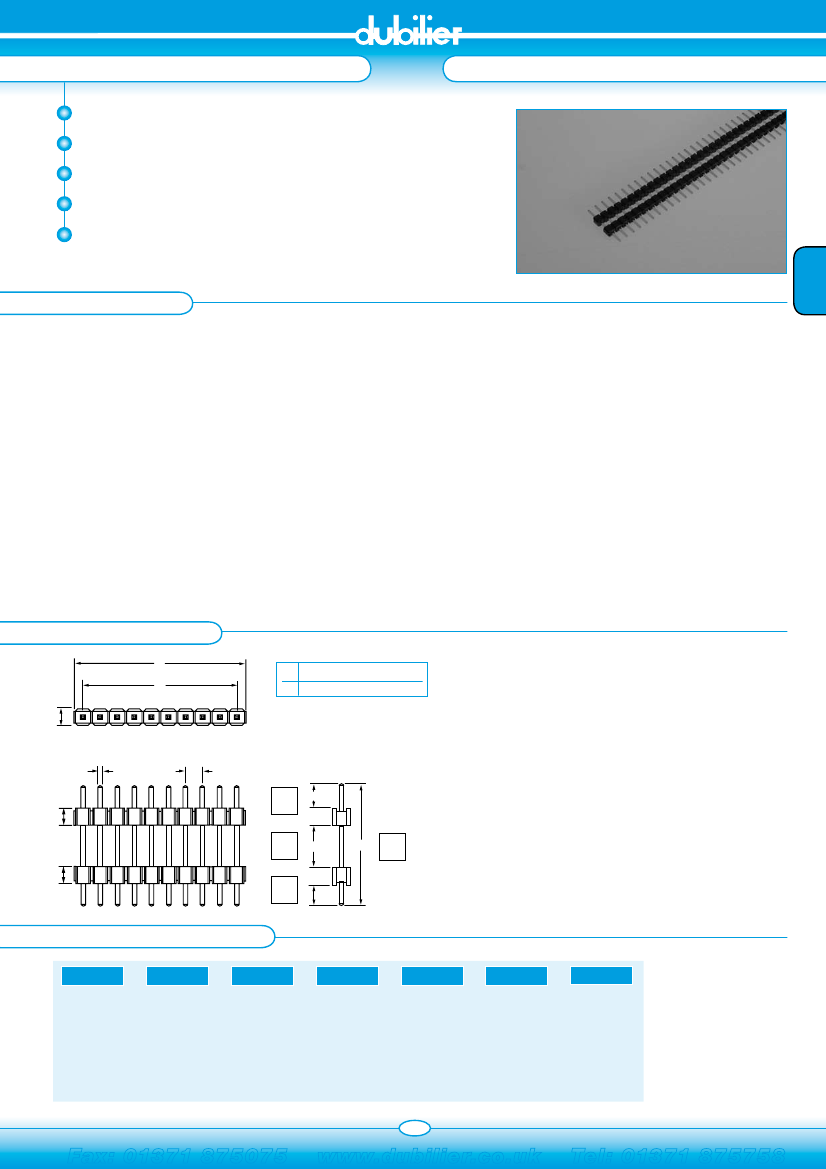

OUTLINE DRAWING

2.00 * Position No.

2.00 * (Position No.-1)

2.0

0.5

2.0

ORDERING INFORMATION

DBC

Dubilier

Connectors

Pin Header

Connector

C36

Series

No. of Contacts

02 = 2way

thro to

43 = 43way

Contact Material

A = Brass

Contact Plating

G = Gold Plating

Colour

1 = Black

185

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758

DBCPHC3640AG1 Related Products

	DBCPHC3640AG1	DBCPHC3602AG1	DBCPHC3603AG1	DBCPHC3607AG1	DBCPHC3632AG1	DBCPHC3610AG1
Description	PIN HEADER DUAL BODY SINGLE ROW - 2.0MM	PIN HEADER DUAL BODY SINGLE ROW - 2.0MM	PIN HEADER DUAL BODY SINGLE ROW - 2.0MM	PIN HEADER DUAL BODY SINGLE ROW - 2.0MM	PIN HEADER DUAL BODY SINGLE ROW - 2.0MM	PIN HEADER DUAL BODY SINGLE ROW - 2.0MM
Is it Rohs certified?	-	conform to	conform to	conform to	-	conform to
Maker	-	DUBILIER	DUBILIER	DUBILIER	-	DUBILIER
Reach Compliance Code	-	unknow	unknow	unknow	-	unknow
body width	-	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
body length	-	0.157 inch	0.236 inch	0.551 inch	-	0.787 inch
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Connector type	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	-	AU	AU	AU	-	AU
Contact completed and terminated	-	GOLD	GOLD	GOLD	-	GOLD
Contact point gender	-	MALE	MALE	MALE	-	MALE
Contact material	-	BRASS	BRASS	BRASS	-	BRASS
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	-	30 mΩ	30 mΩ	30 mΩ	-	30 mΩ
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
Dielectric withstand voltage	-	500VAC V	500VAC V	500VAC V	-	500VAC V
Insulation resistance	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω
Insulator color	-	BLACK	BLACK	BLACK	-	BLACK
insulator material	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	-	C36	C36	C36	-	C36
Plug contact pitch	-	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
Installation method	-	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	-	BOARD	BOARD	BOARD	-	BOARD
Number of connectors	-	ONE	ONE	ONE	-	ONE
PCB row number	-	1	1	1	-	1
Number of rows loaded	-	1	1	1	-	1
Maximum operating temperature	-	105 °C	105 °C	105 °C	-	105 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-	-40 °C
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Rated current (signal)	-	1 A	1 A	1 A	-	1 A
Guideline	-	UL	UL	UL	-	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal pitch	-	2.0066 mm	2.0066 mm	2.0066 mm	-	2.0066 mm
Termination type	-	SOLDER	SOLDER	SOLDER	-	SOLDER
Total number of contacts	-	2	3	7	-	10
