RS5T392S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RS5T392S

RS5T392S: DescriptionGeneral Purpose Inductor, 390uH, 1 Element, SMD; CategoryPassive components inductor; File Size208KB，1 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric View All

RS5T392S Overview

General Purpose Inductor, 390uH, 1 Element, SMD

RS5T392S Parametric

Parameter Name	Attribute value
Maker	Crydom
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal inductance(L)	390 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	120 °C
Minimum operating temperature	-20 °C
shield	NO
surface mount	YES

Preview

Download Datasheet

View All

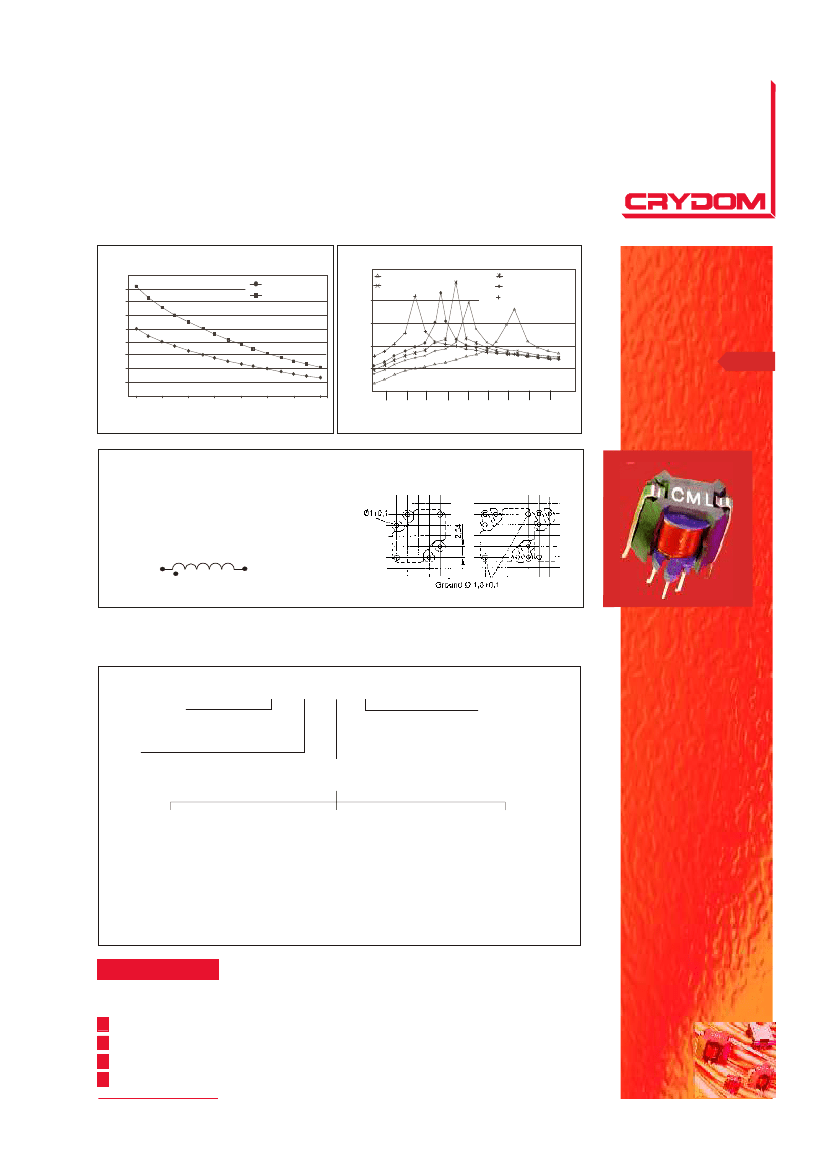

RM5 Inductors

Control over power

Single Inductor Current Capacity

900

800

700

600

500

400

300

200

100

1 dc. mA. Rated

1 dc. mA. Saturation

10000

Impedance (Z) Kilohms

1000

100

0.1

180

270

390

560

820

1200 1800

2700

0.2

0.5

0.85 1.3 1.68 2.2 3.0 3.4 4.2 5.0

0.3

0.7 1.0 1.4 2.0 2.6 3.3 3.8 4.6

Frequency, MHz

Single Inductor Frequency Response

Impedance for 180mH

Impedance for 470mH

Impedance for 680mH

Impedance for 1.0mH

Impedance for 2.7mH

DC Current mA.

Inductance,

Mechanical Data

Mass 5gm approx.

13.5 x 13.5 plan x 11mm height

Part Numbering System

Example

- RM

Style

Pinned Bobbin

Surface Mount

• Inductance Range

180mH - 2.7mH

5F 682 S

Form

- single

- common mode

- differential

• Fixed or Tuneable

up to 15%

• Temperature Range

-20 to 120°C

• Core Material Curie

Temperature >150°C

Size

5F -

Fixed

5T -

Tuneable.

Inductance Value

Extended Range

392 = 390

562 = 560

822 = 820

123 = 1.2 mH

Specials

182 = 180

H 153 = 1.5mH

222 = 220

H 183 = 1.8mH

272 = 270

H 223 = 2.2mH

273 = 2.7mH

332 = 330

Preferred values

472 = 470

682 = 680

103 = 1.0 mH

Example RM5F682S =

RM5 680mH fixed single inductor with pinned bobbin.

Other values & package styles available on request.

UNITED KINGDOM

CRYDOM

+44 (0) 1202 897969

+44 (0) 1202 891918

magnetics@crydom.com

www.crydom.co.uk

inducto
