SPECIFICATION CONTROL DRAWING
PART IDENTIFIER:
HR05XXX
(X)=TEST CODE: A=GROUP A; B=GROUP B; C=GROUP C
(XX)=DB VALUE (01-20DB)
DESCRIPTION:
CHIP ATTENUATOR WITH HIGH RELIABILITY TESTING.
NOTE:
SINGLE LOT AND DATE CODE AVAILABLE UPON REQUEST.
ASSEMBLY DWG:
N/A
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
FREQUENCY RANGE: DC-18 GHZ.
1.1.3
ATTENUATION VALUES AVAILABLE: 0-20 DB IN 1 DB INCREMENTS.
1.1.4
ATTENUATION ACCURACY: SEE TABLE.
1.1.5
ATTENUATION STABILITY: 0.0001 DB/DB/C°
ATTENUATION ACCURACY
DC - 4 GHZ
4 - 8 GHZ
8 - 12.4 GHZ
-0,+.3
-0,+.5
-0,+.5
±0.3
±0.5
±0.5
±0.4
±0.5
±0.5
±0.5
±0.5
±0.75
±0.75
+0.5,-3.0
+0.5,-3.5
±1.0
+0.5,-4.0
+1.0,-6.0
DB
0
1 -3
4-6
7 - 10
11 - 15
16 - 20
1.1.6
1.1.7
12.4 - 18 GHZ
-0,+.5
±0.5
±0.75
±1.0
---
---
VSWR: DC - 4 GHZ - 1.25 MAX
8 - 18 GHZ - 1.50 MAX
4 - 8 GHZ - 1.35 MAX
INPUT POWER: 100 MILLIWATTS CW.
1.1.7.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.
1.1.7.2 PEAK POWER, 1 WATT FOR 10US PULSE WIDTH @ 1% DUTY CYCLE.
1.2
MECHANICAL:
1.2.1

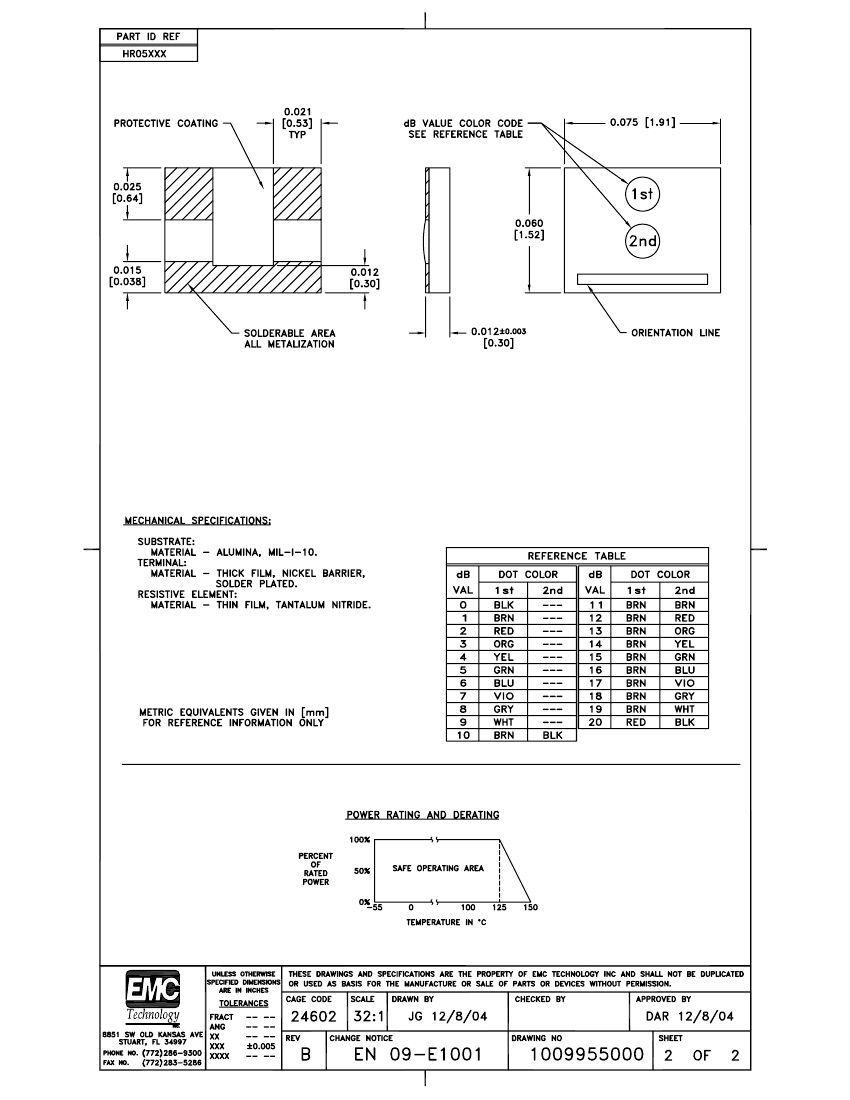

OUTLINE DWG: SEE SHEET 3.
1.2.2
WORKMANSHIP: PER MIL-PRF-55342.
ENVIRONMENTAL:
1.3.1
ALTITUDE:
1.3.1.1 NON-OPERATING: SEA LEVEL TO 50,000 FEET.
1.3.1.2 OPERATING: SEA LEVEL TO 50,000 FEET.
1.3.2
TEMPERATURE RANGE:
1.3.2.1 NON-OPERATING: -55° C TO +150° C.
1.3.2.2 OPERATING: -55°C TO +150°C.
1.3.3
VIBRATION: PER MIL-STD-202, METHOD 204, COND. D.
1.3.4
SHOCK: PER MIL-STD-202, METHOD 213, COND. I.
1.3.5
MOISTURE RESISTANCE: PER MIL-STD-202, METHOD 106 EXCEPT SUBCYCLE STEPS 7A AND
7B AND POLARIZATION AND LOAD ARE NOT APPLICABLE.
MARKED WITH COLOR DOT AND ORIENTATION LINE . LEGIBILITY AND PERMANENCY PER MIL-STD-130.
1.3
2.0
UNIT MARKING:
3.0
QUALITY ASSURANCE:
3.1
VERIFY 100% VISUAL PRE-CAP INSPECTION PERFORMED PER TP-8965.
3.2
PREFORM GROUP A, B AND/OR C TESTING AS INDICATED BY THE PART NUMBER PER TP-8965.
3.3
TEST DATA REQUIREMENTS:
3.3.1
TEST DATA REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.
3.3.2
DATA RETENTION - 24 MONTHS.
3.3.3
TEST SAMPLES REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.
PACKAGING:
STANDARD PACK PER 755W002. (SERIALIZED WAFFLE PACK)
4.0
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
CHANGE NOTICE
EN 09-E1001
DWG #
REV LVL
SHEET
1009955000
B
1
OF
3
