P0770.103NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> P0770.103NLT

P0770.103NLT: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 2618, ROHS COMPLIANT; CategoryPassive components inductor; File Size122KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

P0770.103NLT Overview

General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 2618, ROHS COMPLIANT

P0770.103NLT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	2618
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
uppercase and lowercase codes	2618
structure	Unshielded
core material	Ferrite
DC Resistance	0.16 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package height	2.92 mm
Package length	6.6 mm
Package form	SMT
Package width	4.45 mm
method of packing	TR
Maximum rated current	1.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED WITH PEAK RATED CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

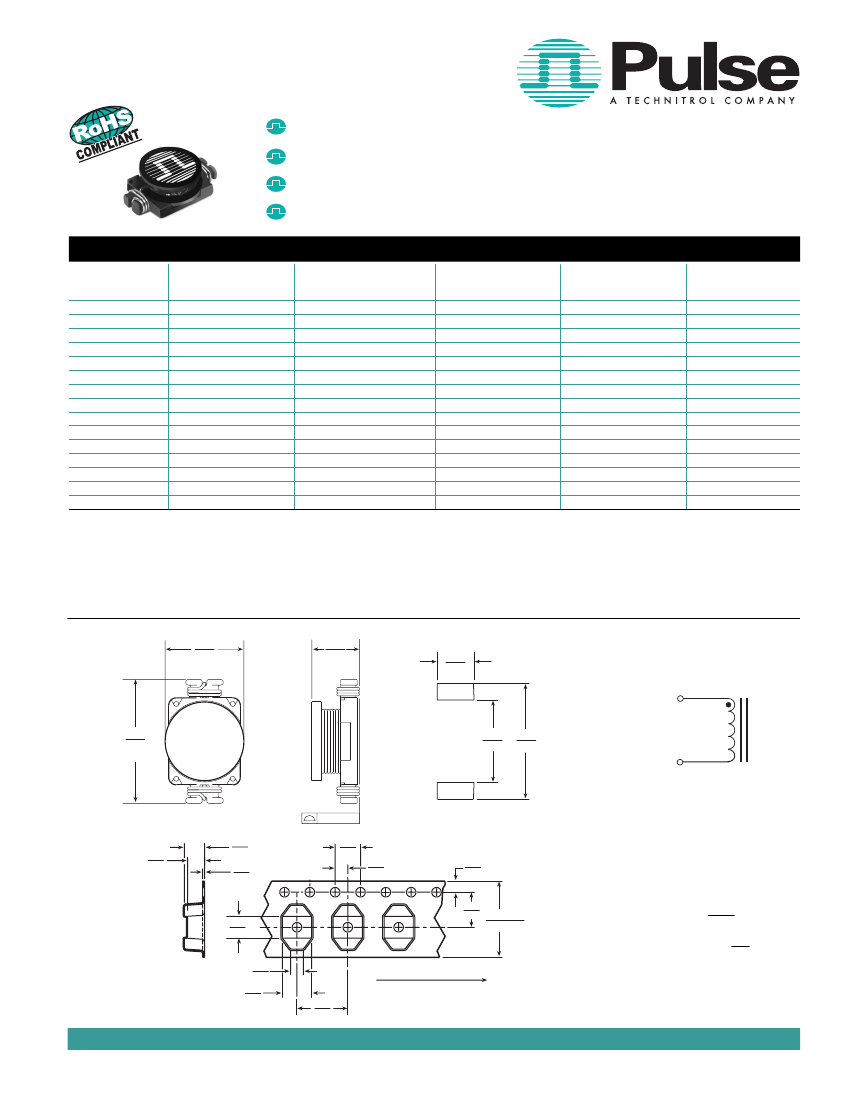

SMT POWER INDUCTORS

Unshielded Drum Core - P0770NL Series

Height:

2.9mm Max

Footprint:

6.6mm x 4.5mm Max

Current Rating:

up to 2.9A

Inductance Range:

1.0µH to 220µH

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

6,7

Number

P0770.102NL

P0770.152NL

P0770.222NL

P0770.332NL

P0770.472NL

P0770.682NL

P0770.103NL

P0770.153NL

P0770.223NL

P0770.333NL

P0770.473NL

P0770.683NL

P0770.104NL

P0770.154NL

P0770.224NL

Inductance

@ I

(µH ± 20%)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

Irated

(A)

2.90

2.60

2.30

2.00

1.50

1.20

1.10

0.90

0.70

0.58

0.50

0.40

0.30

0.25

0.20

DCR (MAX)

(mΩ)

130

160

230

370

510

640

860

1270

2000

3110

Saturation Current

(A) @

25°C

2.90

2.60

2.30

2.00

1.50

1.20

1.10

0.90

0.70

0.58

0.50

0.40

0.31

0.27

0.22

Heating Current

(A)

2.90

2.80

2.40

2.00

1.50

1.40

1.10

1.20

0.80

0.60

0.50

0.40

0.30

0.2

0.20

NOTES:

1. The temperature of the component (ambient plus temperature 5. The rated current is the lower of the saturation or heating current.

rise) must be within the specified operating temperature range. 6. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part no. (i.e. P0770.102NL

becomes P0770.102NLT). Pulse complies to industry standard tape and reel specification EIA481.

2. Inductance tested at 100kHz, 10 mV

RMS

7. The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not necessarily

3. Inductance drop = 10% typical at the Saturation Current

RoHS compliant, but are electrically and mechanically equivalent to NL versions. If a part number does

ΔT

= 15°C rise typical at the Heating Current

not have the "NL" suffix, but an RoHS compliant version is required, please contact Pulse for availability.

Mechanical

.175

4,45

MAX

.115

2,92

MAX

Schematic

SUGGESTED PAD LAYOUT

.140

3,56

.260

6,60

MAX

XXX

.004/0,10

.160

4,06

.270

6,86

.110

2,80

.125

3,18

.012

0,30

.157

4,00

.079

2,00

.069

1,75

.217

+.012

5,51 .472

.000

12,00

+0,30

0,00

Weight

. . . . . . . . 0.2 grams

Tape & Reel

. . . . . 2500/reel

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

.134

3,40

.079

2,00

.181

5,00

USER DIRECTION OF FEED

.315

8,00

TAPE & REEL LAYOUT

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

SPM2007 (11/07)
