P/N: R-11-075AX-P-SXX/XXX-X-XX

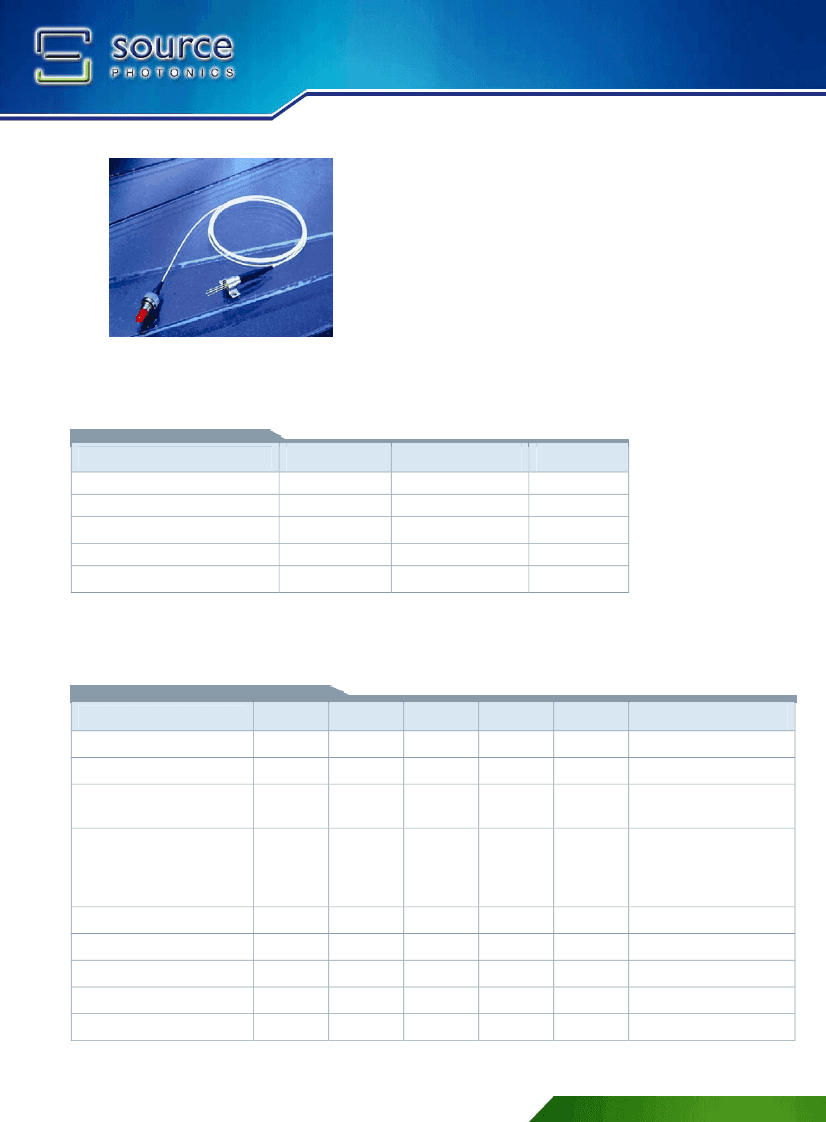

75um Analog InGaAs PIN Photodiode Modules-pigtailed
Features
InGaAs/InP PIN Photodiode
High responsivity at 1310m and 1550nm
Low dark current
Low intermodulation distortion
High responsivity
Hermetically sealed 3-pin metal case
Packaging
SM fiber pigtailed with optional FC/ST/SC connector
Application
Return path Analog CATV optical receivers to 550MHz
RoHS Compliant available
Absolute Maximum Ratings (Tc=25
°C
)
Parameter
Reverse Voltage
Forward Current
Reverse Current
Operating Temperature
Storage Temperature
Symbol
V
R
I
F
I
R
T
opr
T
stg
Value
20
2
1
-40 ~ 85
-40 ~ 85
Unit
V
mA
mA
℃
℃
(All optical data refer to coupled 9/125
μ
m SM fiber)
Optical and Electrical Characteristics (Tc=25°C)
Parameter
Operating Voltage
Detection Range
Responsivity
Distortion Product:
Composite Second Order
Composite Triple Beat
Dark Current
Capacitance
Rise / Fall Time
Bandwidth
Optical Return Loss
Note:
Symbol
V
op
Min.
-
1100
Typ.
-
1310
0.85
0.95
Max.
15
1650
-
-
Unit
V
nm
A/W
Notes
-
-
V
R
= 5V,
λ
= 1310nm
V
R
= 5V,
λ
= 1550nm
R
0.8
0.9
CSO
CTB
I
dark
C
t
T
r /
T
f
BW
ORL
-
-
-
-
-
2
40
≦-70
≦-80
-
0.4
-
-
-
-
-
0.8
0.5
0.5
-
-
dBc
Note 2
nA
pF
ns
GHz
dB
V
R
= 5V
V
R
= 5V
V
R
= 5V, 10%~90%
V
R
= 5V
λ
= 1310nm
1. Specifications subject to change without notice.
1
DS-5839 Rev 0.0 2009-10-21
P/N: R-11-075AX-P-SXX/XXX-X-XX
75um Analog InGaAs PIN Photodiode Modules-pigtailed
2. Test condition: 2 lasers at 1550nm with 40% OMI per channel. Total optical power is 0dBm. Distortion
products measured at 80MHz, 450MHz, 600MHz, 850MHz, and 1000MHz.
PD Pin Assignment
Pin Assignment
1~PD(-)
2~CASE
3~PD(+)

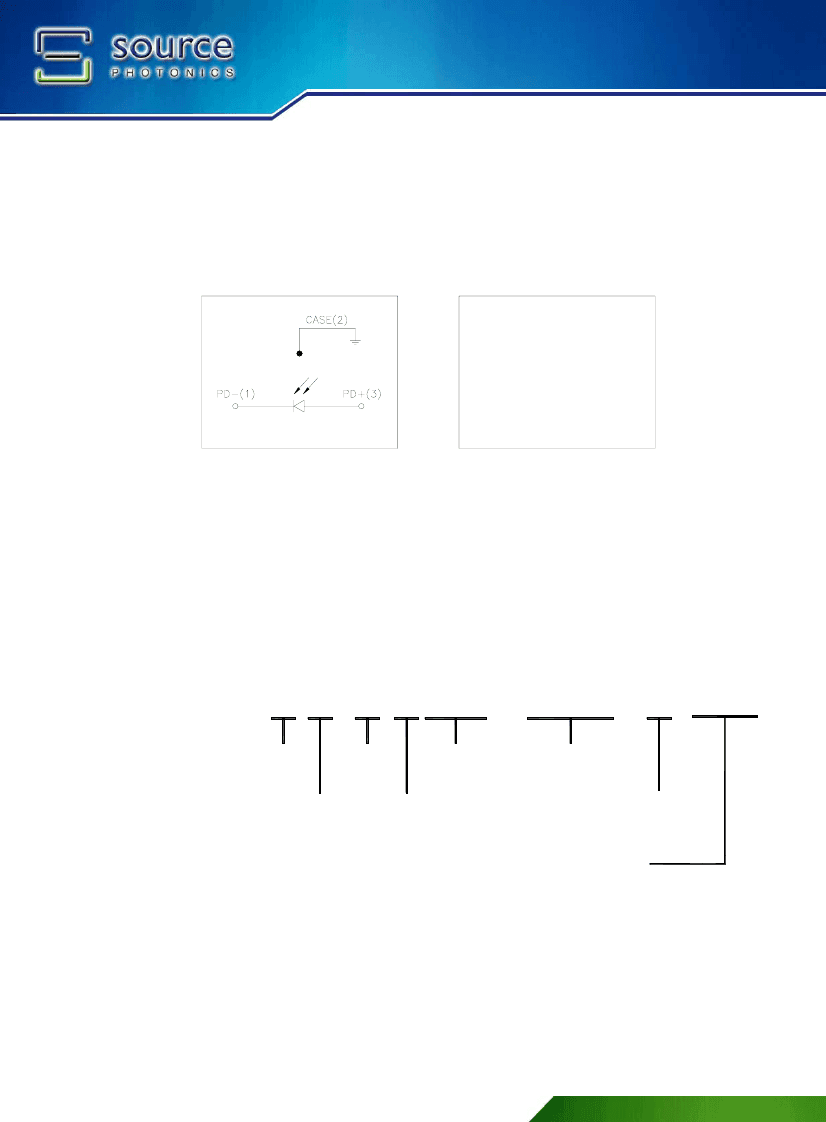

Functional Schematic
Ordering Information
R-11-075AX-P-SXX/XXX-X-XX
Analog
Package
P=Pigtail
FC/ST/SC/Blank
Connector
Blank=PC Fiber
APC=APC Fiber
Pin Aaaignment
Blank=A Type
B=B Type
Fiber Application
S= 9/125um
Flange type (Blank;O;V;K)
Blank/G5/GR
RoHS Compliant
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
2
DS-5839 Rev 0.0 2009-10-21
P/N: R-11-075AX-P-SXX/XXX-X-XX
75um Analog InGaAs PIN Photodiode Modules-pigtailed

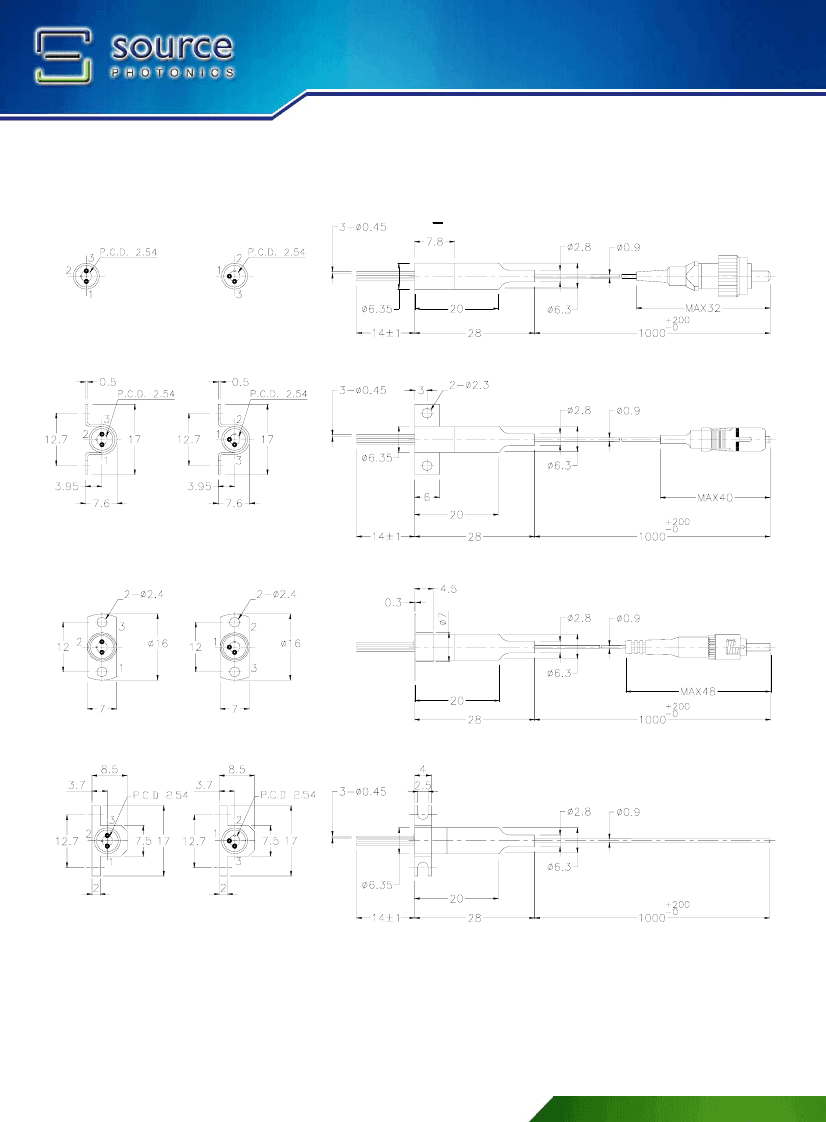

Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static
free environment is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or
indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Source Photonics’s sole and
absolute discretion. Source Photonics warrants performance of its products to current specifications only in
accordance with the company’s standard one-year warranty; however, specifications designated as
“preliminary”
are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said
products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular
purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for
further warranty information.
Source Photonics assumes no liability for applications assistance, customer product design, software performance,
or infringement of patents, services, or intellectual property described herein. No license, either express or implied,
is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no
representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual
property rights. Products described in this document are NOT intended for use in implantation or other life support
applications where malfunction may result in injury or death to persons. Source Photonics customers using or
selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source
Photonics for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN
“AS
IS” BASIS. Customer agrees
that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or
indirectly from any use of the information contained in this document. Customer must contact Source Photonics to
obtain the latest version of this publication to verify, before placing any order, that the information contained herein is
current.
©
Copyright Source Photonics, Inc. 2009
All rights reserved
4
DS-5839 Rev 0.0 2009-10-21
