CY7C376-83AC datasheet, PDF - EEWORLD Datasheet

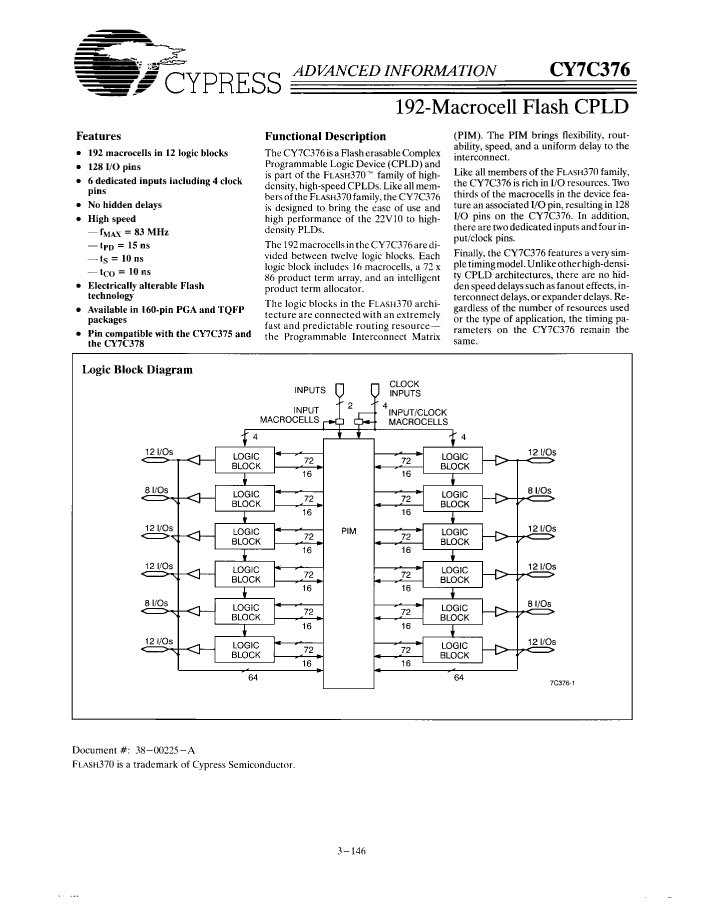

CY7C376-83AC: DescriptionFlash PLD, 15ns, CMOS, PQFP160, TQFP-160; CategoryProgrammable logic devices Programmable logic; File Size38KB，1 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C376-83AC Overview

Flash PLD, 15ns, CMOS, PQFP160, TQFP-160

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	160
Reach Compliance Code	unknown
Other features	LABS INTERCONNECTED BY PIA; 12 LABS; 192 MACROCELLS; 4 EXTERNAL CLOCKS
maximum clock frequency	83 MHz
JESD-30 code	S-PQFP-G160
JESD-609 code	e0
length	24 mm
Humidity sensitivity level	3
Dedicated input times	2
Number of I/O lines	128
Number of terminals	160
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Programmable logic type	FLASH PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24 mm

	CY7C376-83AC	CY7C376-83GC
Description	Flash PLD, 15ns, CMOS, PQFP160, TQFP-160	Flash PLD, 15ns, CMOS, CPGA160, CERAMIC, PGA-160
Maker	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	QFP	PGA
package instruction	LFQFP,	PGA,
Contacts	160	160
Reach Compliance Code	unknown	unknown
Other features	LABS INTERCONNECTED BY PIA; 12 LABS; 192 MACROCELLS; 4 EXTERNAL CLOCKS	LABS INTERCONNECTED BY PIA; 12 LABS; 192 MACROCELLS; 4 EXTERNAL CLOCKS
maximum clock frequency	83 MHz	83 MHz
JESD-30 code	S-PQFP-G160	S-CPGA-P160
JESD-609 code	e0	e0
length	24 mm	39.751 mm
Dedicated input times	2	2
Number of I/O lines	128	128
Number of terminals	160	160
Maximum operating temperature	70 °C	70 °C
organize	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	LFQFP	PGA
Package shape	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	GRID ARRAY
Programmable logic type	FLASH PLD	FLASH PLD
propagation delay	15 ns	15 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	5.207 mm
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	PIN/PEG
Terminal pitch	0.5 mm	2.54 mm
Terminal location	QUAD	PERPENDICULAR
width	24 mm	39.751 mm
