L17ED15S31 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> L17ED15S31

L17ED15S31: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

L17ED15S31 Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, ROHS COMPLIANT

L17ED15S31 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	GOLD (15) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	L17ED
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	WATERPROOF
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

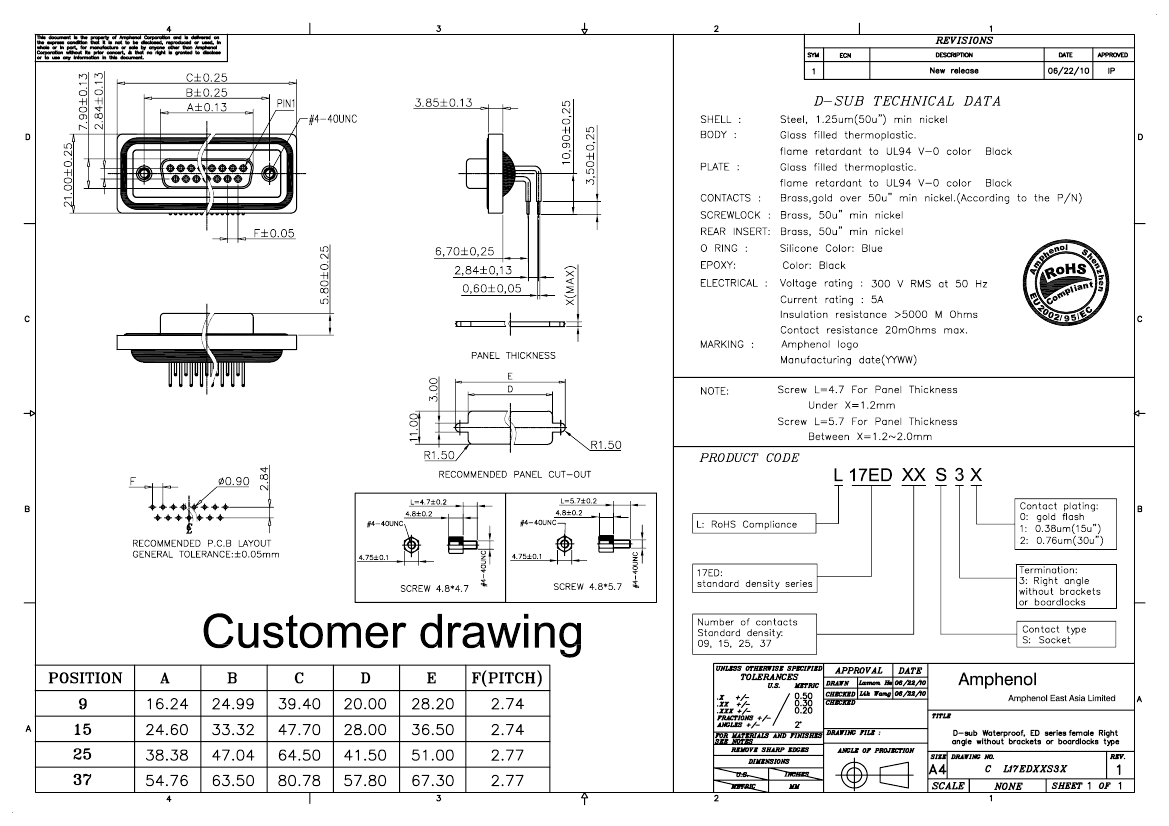

Preview

Download Datasheet

View All

L17ED15S31 Related Products

	L17ED15S31	L17ED09S30	L17ED09S31	L17ED09S32
Description	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	GOLD FLASH OVER TIN	GOLD (15)	GOLD (30) OVER TIN
Contact completed and terminated	GOLD (15) OVER NICKEL (50)	GOLD FLASH OVER TIN	GOLD (15)	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE POLYETHYLENE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE POLYETHYLENE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE POLYETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	L17ED	ED-EHD	ED	ED-EHD
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	CARBON STEEL	CARBON STEEL	CARBON STEEL
Housing size	2/A	1/E	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Contact material	PHOSPHOR BRONZE	-	NOT SPECIFIED	NOT SPECIFIED
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Base Number Matches	-	1	1	1
