MP7633JS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP7633JS

MP7633JS: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16; CategoryAnalog mixed-signal IC converter; File Size187KB，5 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

MP7633JS Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16

MP7633JS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
package instruction	SOP, SOP16,.4
Reach Compliance Code	unknown

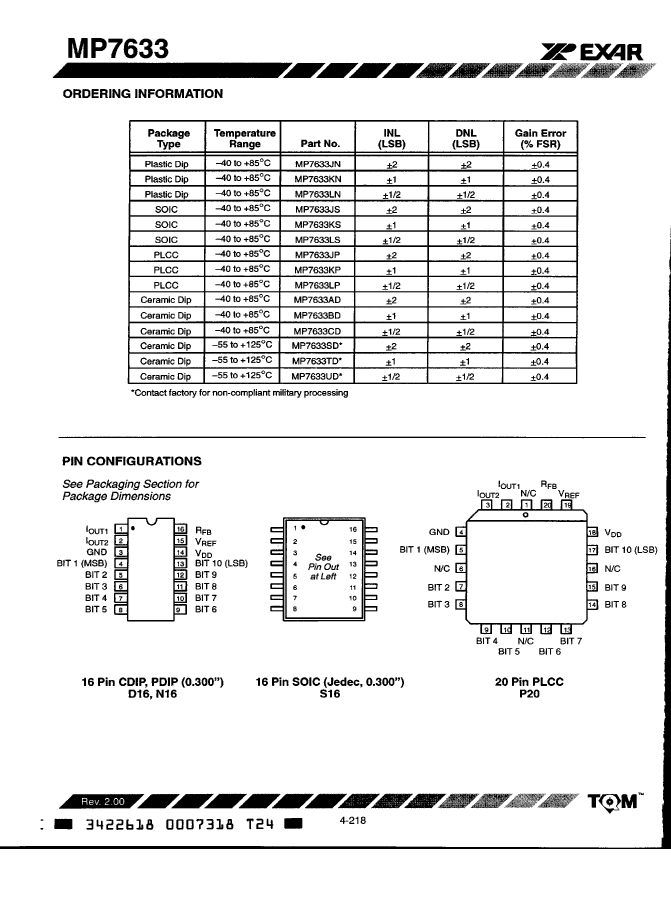

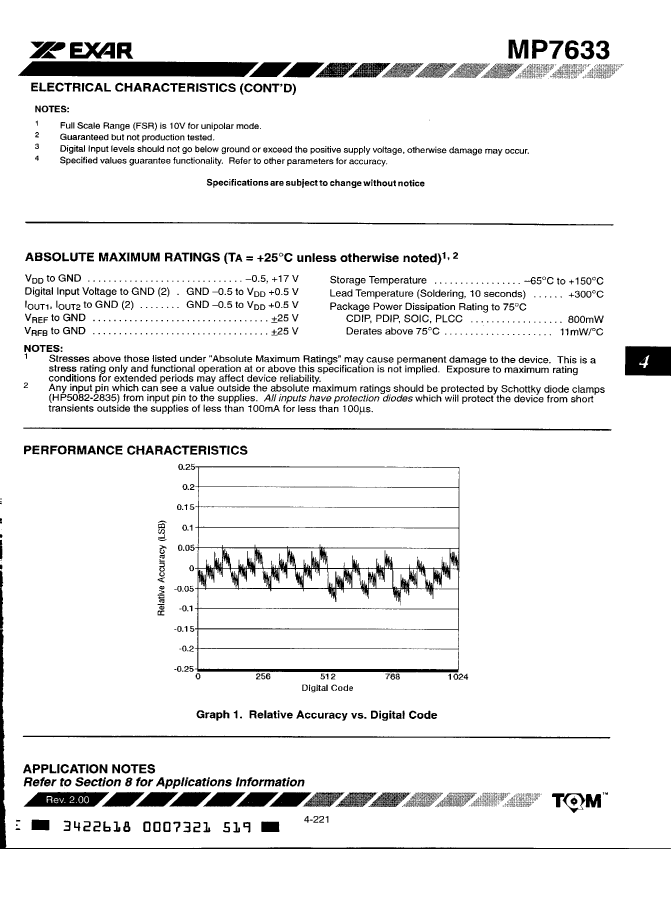

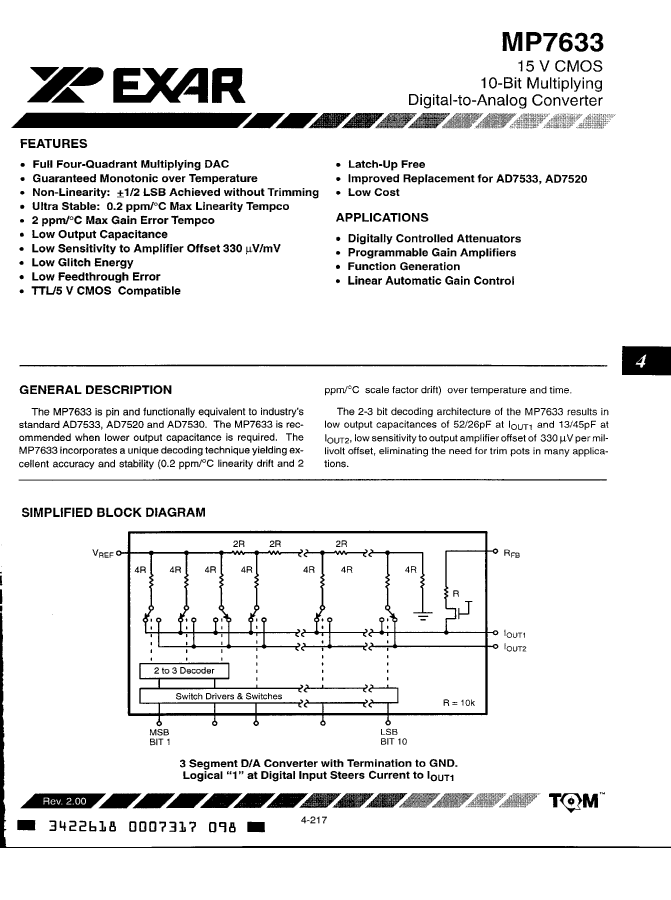

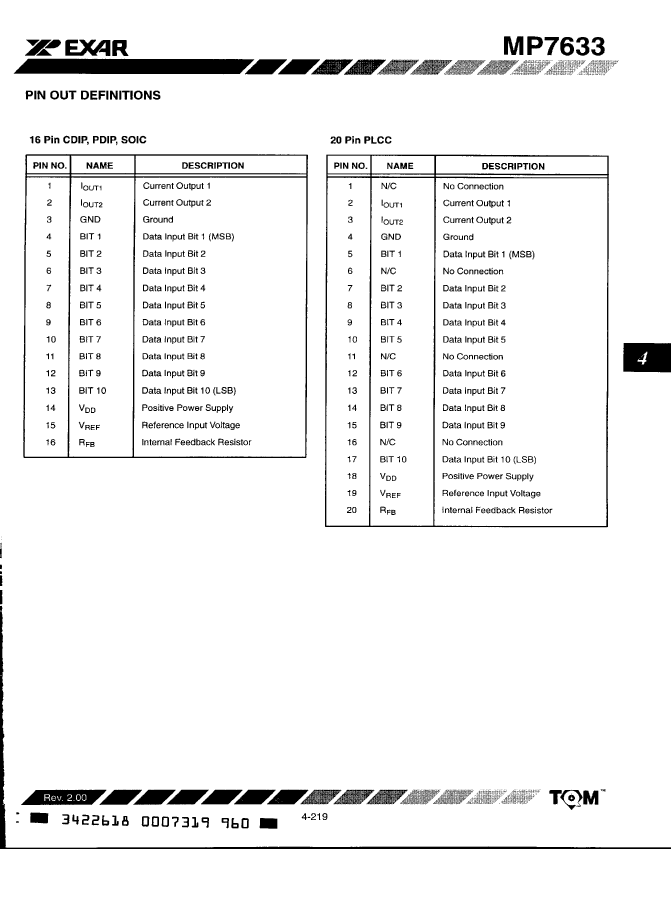

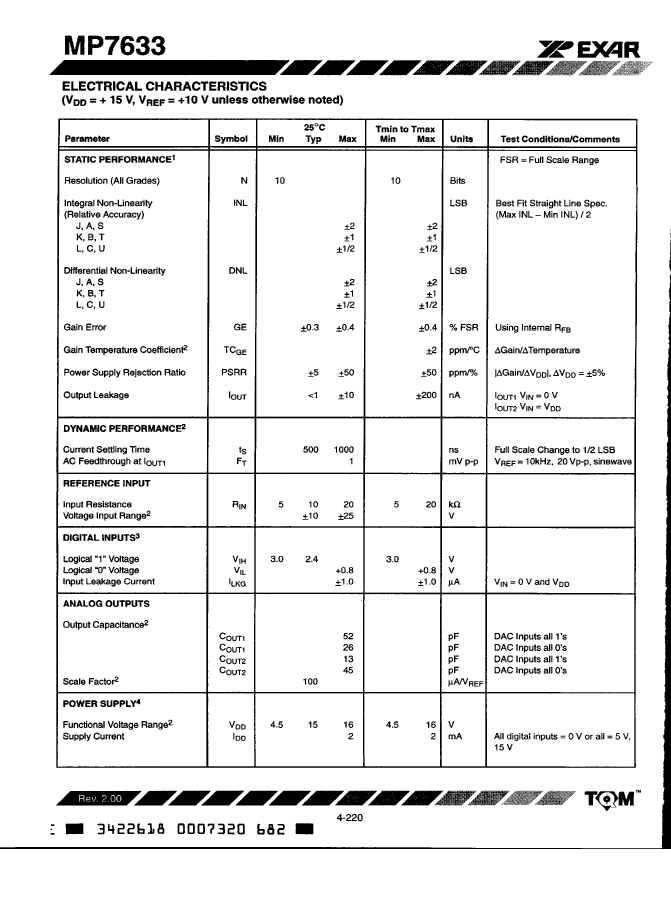

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MP7633JS Related Products

	MP7633JS	MP7633UD	MP7633LN	MP7633KN	MP7633LS
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, CDIP16	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDIP16, 0.300 INCH, PLASTIC, DIP-16	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDIP16, 0.300 INCH, PLASTIC, DIP-16	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16
package instruction	SOP, SOP16,.4	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Maker	Exar	-	Exar	Exar	Exar
Parts packaging code	-	DIP	DIP	DIP	SOIC
Contacts	-	16	16	16	16
Maximum analog output voltage	-	10 V	10 V	10 V	10 V
Converter type	-	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	-	BINARY	BINARY	BINARY	BINARY
Input format	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	-	R-GDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16
length	-	19.05 mm	20.13 mm	20.13 mm	10.3 mm
Maximum linear error (EL)	-	0.0488%	0.0488%	0.0977%	0.0488%
Number of digits	-	10	10	10	10
Number of functions	-	1	1	1	1
Number of terminals	-	16	16	16	16
Maximum operating temperature	-	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	-	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP	DIP	SOP
Encapsulate equivalent code	-	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.4
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	-	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	5.08 mm	5.33 mm	5.33 mm	2.65 mm
Maximum stabilization time	-	1 µs	1 µs	1 µs	1 µs
Nominal settling time (tstl)	-	0.5 µs	0.5 µs	0.5 µs	0.5 µs
Maximum slew rate	-	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage	-	15 V	15 V	15 V	15 V
surface mount	-	NO	NO	NO	YES
technology	-	CMOS	CMOS	CMOS	CMOS
Temperature level	-	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL
width	-	7.62 mm	7.62 mm	7.62 mm	7.5 mm
JESD-609 code	-	-	e0	e0	e0
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
