ISPLSI5512VA-110LB272

Description
EE PLD, 10ns, 512-Cell, CMOS, PBGA272, BGA-272
CategoryProgrammable logic devices    Programmable logic
File Size278KB,28 Pages
ManufacturerLattice
Websitehttp://www.latticesemi.com
Download Datasheet Parametric Compare View All

ISPLSI5512VA-110LB272 Overview

EE PLD, 10ns, 512-Cell, CMOS, PBGA272, BGA-272

ISPLSI5512VA-110LB272 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLattice
Parts packaging codeBGA
package instructionBGA-272
Contacts272
Reach Compliance Codeunknown
ECCN codeEAR99
Other features512 MACROCELLS
maximum clock frequency91 MHz
In-system programmableYES
JESD-30 codeS-PBGA-B272
JTAG BSTYES
length27 mm
Humidity sensitivity level3
Dedicated input times
Number of I/O lines192
Number of macro cells512
Number of terminals272
Maximum operating temperature70 °C
Minimum operating temperature
organize0 DEDICATED INPUTS, 192 I/O
Output functionMACROCELL
Package body materialPLASTIC/EPOXY
encapsulated codeBGA
Encapsulate equivalent codeBGA272,20X20,50
Package shapeSQUARE
Package formGRID ARRAY
power supply2.5/3.3,3.3 V
Programmable logic typeEE PLD
propagation delay10 ns
Certification statusNot Qualified
Maximum seat height2.8 mm
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formBALL
Terminal pitch1.27 mm
Terminal locationBOTTOM
width27 mm
ispLSI 5512VA
®
In-System Programmable
3.3V SuperWIDE™ High Density PLD
Features
• SuperWIDE HIGH-DENSITY IN-SYSTEM
PROGRAMMABLE LOGIC
— 3.3V Power Supply
— User Selectable 3.3V/2.5V I/O
— 24000 PLD Gates / 512 Macrocells
— Up to 288 I/O Pins
— 512 Registers
— High-Speed Global Interconnect
— SuperWIDE 32 Generic Logic Block (GLB) Size for
Optimum Performance
— SuperWIDE Input Gating (68 Inputs) for Fast
Counters, State Machines, Address Decoders, etc.
— PCB Efficient Ball Grid Array (BGA) Package Options
— Interfaces with Standard 5V TTL Devices
• HIGH PERFORMANCE E
2
CMOS
®
TECHNOLOGY
f
max
= 110 MHz Maximum Operating Frequency
t
pd
= 8.5 ns Propagation Delay
— Enhanced
t
su2
= 7 ns,
t
su3 (CLK0/1)
= 4.5ns,
t
su3 (CLK2/3)
= 3.5ns
— TTL/3.3V/2.5V Compatible Input Thresholds and
Output Levels
— Electrically Erasable and Reprogrammable
— Non-Volatile
— Programmable Speed/Power Logic Path Optimization
• IN-SYSTEM PROGRAMMABLE
— Increased Manufacturing Yields, Reduced Time-to-
Market, and Improved Product Quality
— Reprogram Soldered Devices for Faster Debugging
• 100% IEEE 1149.1 BOUNDARY SCAN TESTABLE AND
3.3V IN-SYSTEM PROGRAMMABLE
• ARCHITECTURE FEATURES
— Enhanced Pin-Locking Architecture with Single-
Level Global Routing Pool and SuperWIDE GLBs
— Wrap Around Product Term Sharing Array Supports
up to 35 Product Terms Per Macrocell
— Macrocells Support Concurrent Combinatorial and
Registered Functions
— Macrocell Registers Feature Multiple Control
Options Including Set, Reset and Clock Enable
— Four Dedicated Clock Input Pins Plus Macrocell
Product Term Clocks
— Slew and Skew Programmable I/O (SASPI/O)
Supports Programmable Bus Hold, Pull-up, Open
Drain and Slew and Skew Rate Options
— Six Global Output Enable Terms, Two Global OE
Pins and One Product Term OE per Macrocell

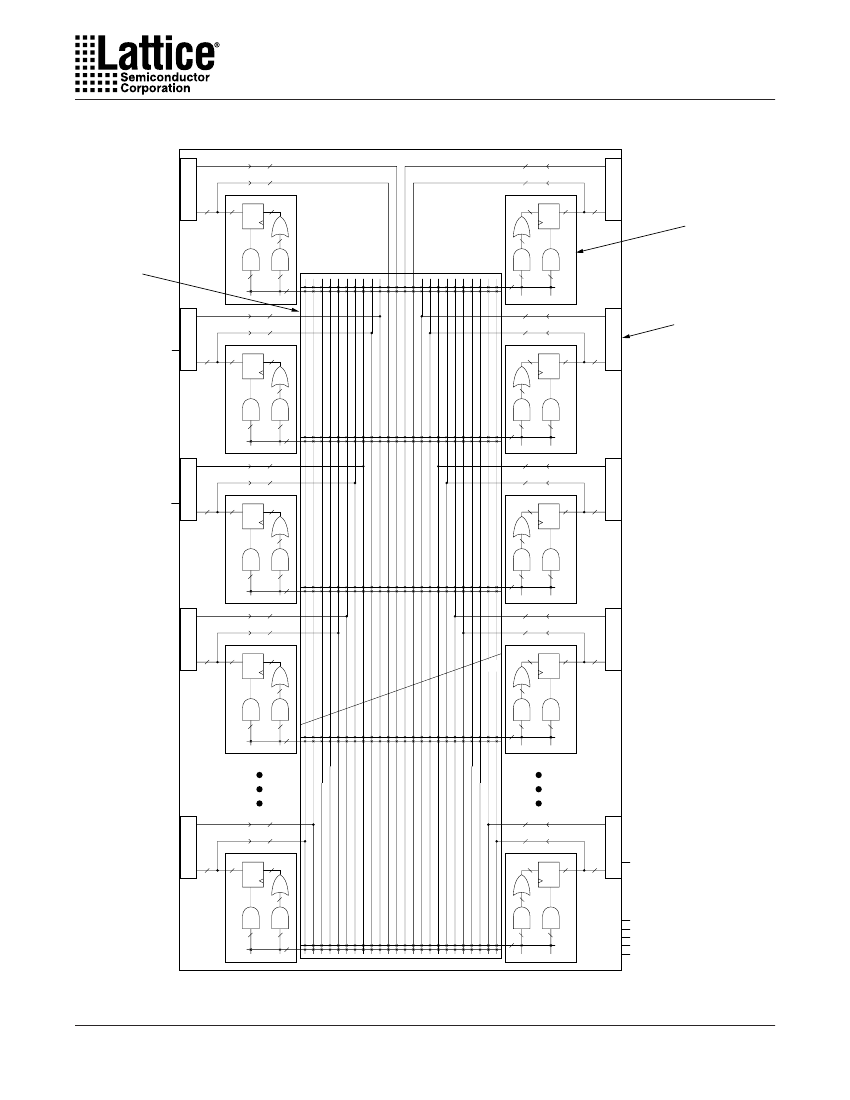

Functional Block Diagram
Input Bus
Generic
Logic Block
Input Bus
Generic
Logic Block
Input Bus
Generic
Logic Block
Input Bus
Generic
Logic Block
Boundary
Scan
Interface
Generic
Logic Block
Generic
Logic Block
Input Bus
Input Bus
Generic
Logic Block
Generic
Logic Block
Input Bus
Input Bus
Generic
Logic Block
Global Routing Pool
(GRP)
Generic
Logic Block
Input Bus
Input Bus
Generic
Logic Block
Generic
Logic Block
Input Bus
Input Bus
Generic
Logic Block
Generic
Logic Block
Generic
Logic Block
Generic
Logic Block
Input Bus
Input Bus
Input Bus
Input Bus
ispLSI 5000V Description
The ispLSI 5000V Family of In-System Programmable
High Density Logic Devices is based on Generic Logic
Blocks (GLBs) of 32 registered macrocells and a single
Global Routing Pool (GRP) structure interconnecting the
GLBs.
Outputs from the GLBs drive the Global Routing Pool
(GRP) between the GLBs. Switching resources are pro-
vided to allow signals in the Global Routing Pool to drive
any or all the GLBs in the device. This mechanism allows
fast, efficient connections across the entire device.

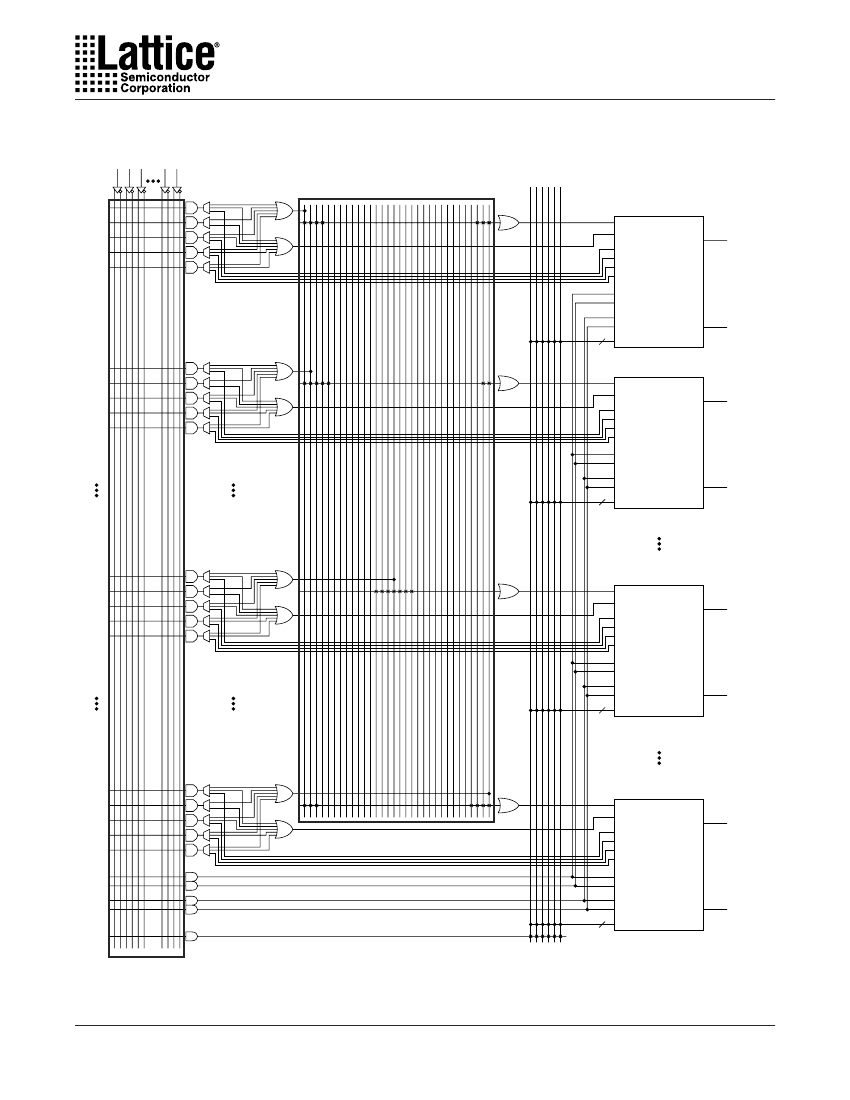

Each GLB contains 32 macrocells and a fully populated,
programmable AND-array with 160 logic product terms
and five extra control product terms. The GLB has 68
inputs from the Global Routing Pool which are available
in both true and complement form for every product term.
The 160 product terms are grouped in 32 sets of five and
sent into a Product Term Sharing Array (PTSA) which
allows sharing up to a maximum of 35 product terms for
a single function. Alternatively, the PTSA can be by-
passed for functions of five product terms or less. The
Copyright © 2002 Lattice Semiconductor Corp. All brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject
to change without notice.
LATTICE SEMICONDUCTOR CORP., 5555 Northeast Moore Ct., Hillsboro, Oregon 97124, U.S.A.
Tel. (503) 268-8000; 1-800-LATTICE; FAX (503) 268-8556; http://www.latticesemi.com
January 2002
5512va_08
1

ISPLSI5512VA-110LB272 Related Products

ISPLSI5512VA-110LB272 ISPLSI5512VA-70LB388I ISPLSI5512VA-110LQ208
Description EE PLD, 10ns, 512-Cell, CMOS, PBGA272, BGA-272 EE PLD, 19ns, 512-Cell, CMOS, PBGA388, BGA-388 EE PLD, 10ns, 512-Cell, CMOS, PQFP208, PLASTIC, QFP-208
Is it Rohs certified? incompatible incompatible incompatible
Maker Lattice Lattice Lattice
Parts packaging code BGA BGA QFP
package instruction BGA-272 BGA-388 PLASTIC, QFP-208
Contacts 272 388 208
Reach Compliance Code unknown compliant compliant
ECCN code EAR99 EAR99 EAR99
Other features 512 MACROCELLS 512 MACROCELLS 512 MACROCELLS
maximum clock frequency 91 MHz 45 MHz 91 MHz
In-system programmable YES YES YES
JESD-30 code S-PBGA-B272 S-PBGA-B388 S-PQFP-G208
JTAG BST YES YES YES
length 27 mm 35 mm 28 mm
Humidity sensitivity level 3 3 3
Number of I/O lines 192 288 144
Number of macro cells 512 512 512
Number of terminals 272 388 208
Maximum operating temperature 70 °C 85 °C 70 °C
organize 0 DEDICATED INPUTS, 192 I/O 0 DEDICATED INPUTS, 288 I/O 0 DEDICATED INPUTS, 144 I/O
Output function MACROCELL MACROCELL MACROCELL
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code BGA BGA HFQFP
Encapsulate equivalent code BGA272,20X20,50 BGA388,26X26,50 QFP208,1.2SQ,20
Package shape SQUARE SQUARE SQUARE
Package form GRID ARRAY GRID ARRAY FLATPACK, HEAT SINK/SLUG, FINE PITCH
power supply 2.5/3.3,3.3 V 2.5/3.3,3.3 V 2.5/3.3,3.3 V
Programmable logic type EE PLD EE PLD EE PLD
propagation delay 10 ns 19 ns 10 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 2.8 mm 3.25 mm 4.1 mm
Maximum supply voltage 3.6 V 3.6 V 3.6 V
Minimum supply voltage 3 V 3 V 3 V
Nominal supply voltage 3.3 V 3.3 V 3.3 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level COMMERCIAL INDUSTRIAL COMMERCIAL
Terminal form BALL BALL GULL WING
Terminal pitch 1.27 mm 1.27 mm 0.5 mm
Terminal location BOTTOM BOTTOM QUAD
width 27 mm 35 mm 28 mm
Is it lead-free? - Contains lead Contains lead
JESD-609 code - e0 e0
Peak Reflow Temperature (Celsius) - 225 225
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn85Pb15)
Maximum time at peak reflow temperature - 30 30
