299 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 299

299: DescriptionDIP10, IC SOCKET; CategoryThe connector; File Size406KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

299 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	299	-	-	View	Buy Now

299 Overview

DIP10, IC SOCKET

299 Parametric

Parameter Name	Attribute value
Number of contacts	10
Type of equipment used	DIP10
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Contact materials	NOT SPECIFIED
shell material	PLASTIC
Device slot type	IC SOCKET
Manufacturer Series	299
Contact surface matching	GOLD (30) OVER NICKEL (100)
Contact coated terminals	TIN (200)

Preview

Download Datasheet

View All

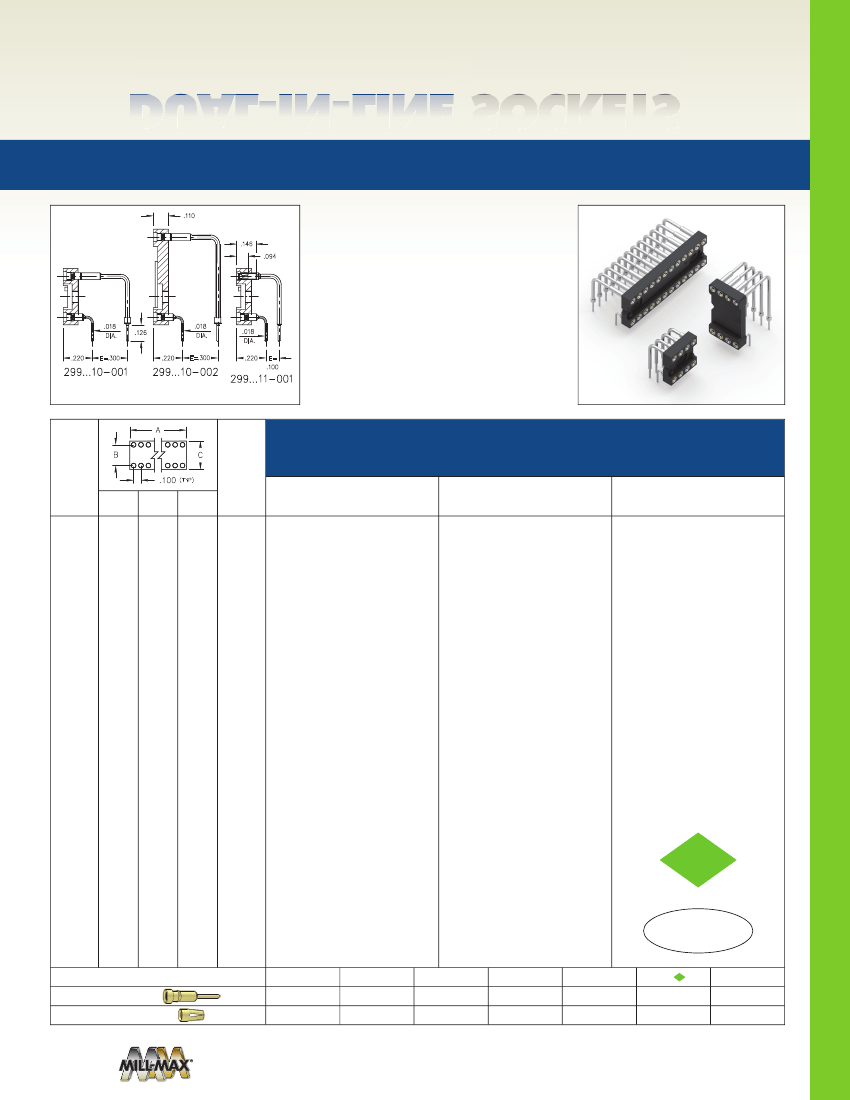

DUAL-IN-LINE

SOCKETS

SERIES 299 • RIGHT ANGLE MOUNT • CLOSED FRAME

.110

•

.146

.094

Ideal for mounting components, such as LED

displays, where the face must be parallel to the

PCB surface

Sockets have solder tail termination and are

available with either .300” (standard) or .100”

row spacing

Series 299 uses MM #1103/0903, #1103/1610 or

#1103/0904 pins. See pages 166 & 167 for details

Hi-Rel, 4- nger BeCu #30 contact is rated at

3 amps. See page 253 for details

Insulators are high temperature thermoplastic,

suitable for all soldering operations

For Electrical, Mechanical and Environmental

Data, see page 264 for details

•

.018

DIA.

.126

.018

DIA.

.018

DIA.

.220

.100

•

.220

E=.300

.220

E=.300

See page 131 for Insulator Details

Total number

of pins

.100

Quantity

per tube

ORDERING INFORMATION

E= .100

299-XX-306-11-001000

299-XX-308-11-001000

299-XX-310-11-001000

299-XX-312-11-001000

299-XX-314-11-001000

299-XX-316-11-001000

299-XX-318-11-001000

299-XX-320-11-001000

299-XX-324-11-001000

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.2

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

1.5

1.6

1.8

2.0

0.3

0.6

0.4

0.7

E = .300

299-XX-306-10-001000

299-XX-308-10-001000

299-XX-310-10-001000

299-XX-312-10-001000

299-XX-314-10-001000

299-XX-316-10-001000

299-XX-318-10-001000

299-XX-320-10-001000

299-XX-324-10-001000

299-XX-608-10-002000

299-XX-610-10-002000

299-XX-612-10-002000

299-XX-614-10-002000

299-XX-616-10-002000

299-XX-618-10-002000

299-XX-620-10-002000

299-XX-622-10-002000

299-XX-624-10-002000

299-XX-626-10-002000

299-XX-628-10-002000

299-XX-630-10-002000

299-XX-632-10-002000

299-XX-636-10-002000

299-XX-640-10-002000

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

Not available in tubes

SPECIFY PLATING CODE XX =

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb

µ”

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 129 | IC SOCKETS / TO SOCKETS
