CXP921F064AQ: DescriptionMicrocontroller, 16-Bit, FLASH, SPC950 CPU, 20.5MHz, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size534KB，34 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

CXP921F064AQ Overview

Microcontroller, 16-Bit, FLASH, SPC950 CPU, 20.5MHz, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100

CXP921F064AQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SONY
Parts packaging code	QFP
package instruction	QFP, QFP100,.7X.9
Contacts	100
Reach Compliance Code	unknown
Has ADC	YES
Other features	ALSO OPERATES AT 2.2V MIN SUPPLY
Address bus width
bit size	16
CPU series	SPC950
maximum clock frequency	20.5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G100
JESD-609 code	e6
length	20 mm
Number of I/O lines	80
Number of terminals	100
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.7X.9
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	3 V
Certification status	Not Qualified
RAM (bytes)	10240
rom(word)	131072
ROM programmability	FLASH
Maximum seat height	3.1 mm
speed	20.5 MHz
Maximum slew rate	26 mA
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

CXP921064A

CMOS 16-bit Single Chip Microcomputer

Description

The CXP921064A is a CMOS 16-bit microcomputer

integrating on a single chip an A/D converter, serial

interface, I

C bus interface, timer, real-time pulse

generator, clock prescaler, remote control receive

circuit, and as well as basic configurations like a 16-

bit CPU, ROM, RAM, and I/O port.

This LSI also provides the sleep/stop functions that

enable lower power consumption.

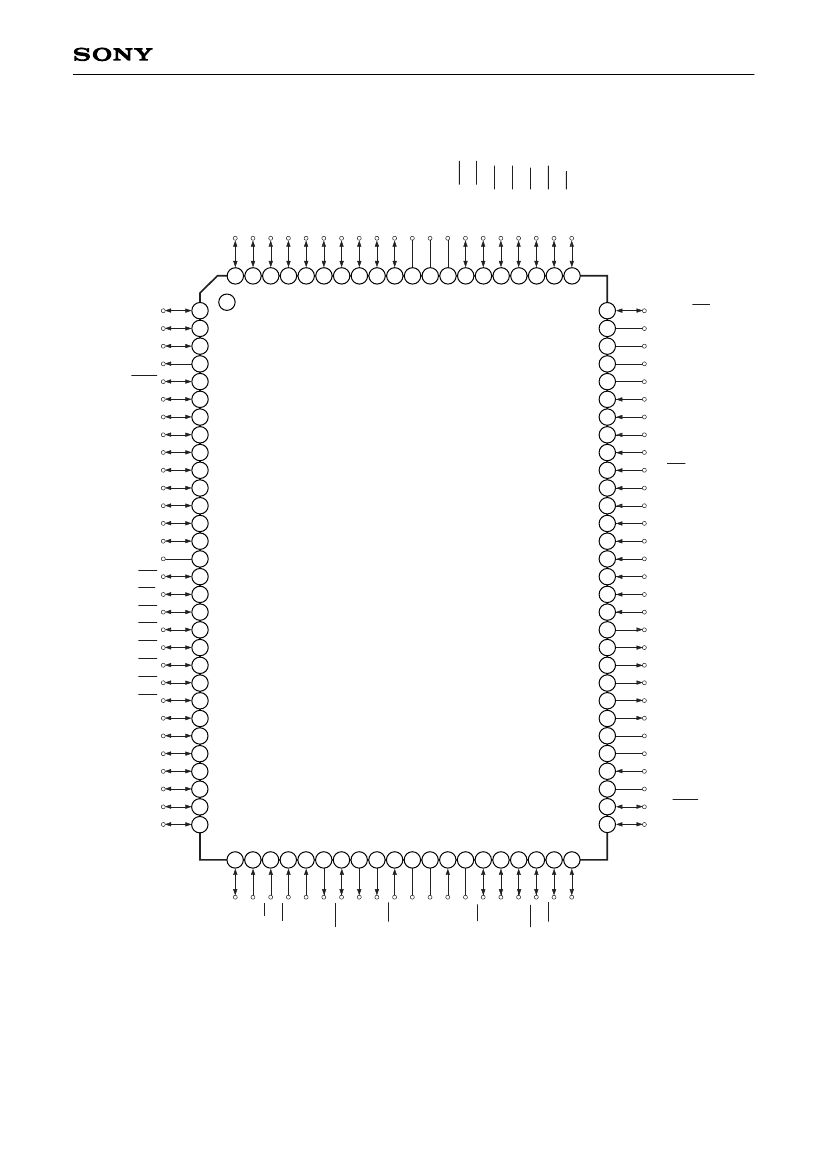

100 pin QFP (Plastic)

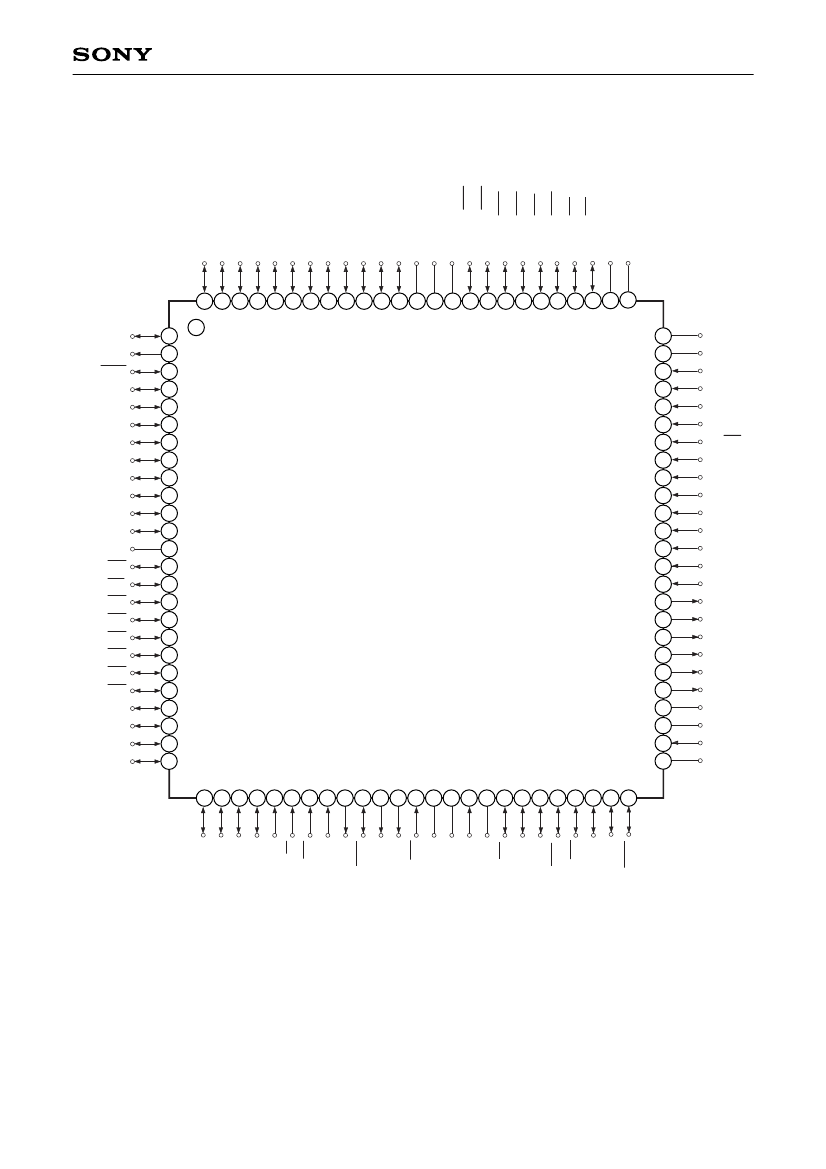

100 pin LQFP (Plastic)

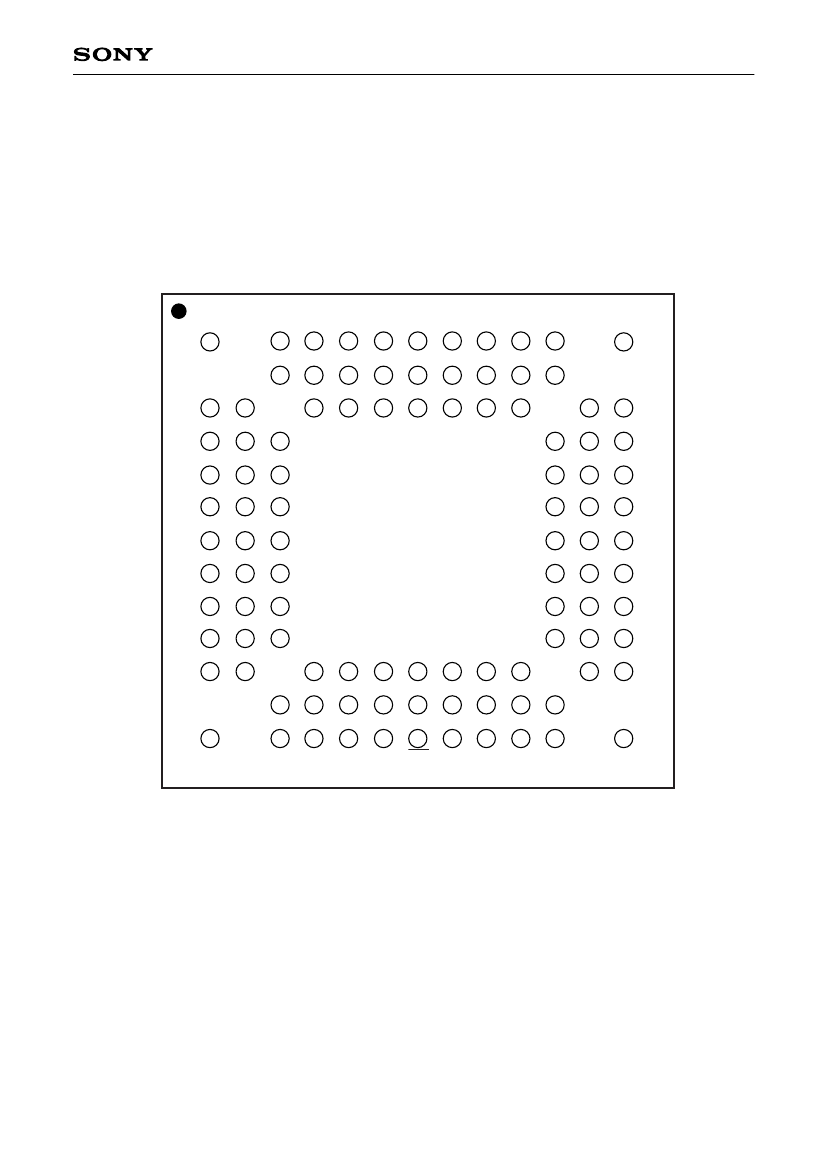

104 pin LFLGA (Plastic)

Features

•

An efficient instruction set as a controller

— Direct addressing, numerous abbreviated forms,

multiplication and division instructions

•

Instruction sets for C language and RTOS

— Highly quadratic instruction system, general-

purpose register of eigth 16-bit

16-bank

configuration

•

Minimum instruction cycle

100ns at 20MHz operation (2.7 to 3.3V)

61µs at 32kMHz operation (2.2 to 3.3V)

•

Incorporated ROM capacity 256K bytes

•

Incorporated RAM capacity 10K bytes

•

Peripheral functions

— A/D converter

8-bit 12 analog input, 2 channels successive approximation system,

automatic scanning function, (Conversion time: 3.4µs at 20MHz)

— Serial interface

128 -byte buffer RAM, 3 channels

8-stage FIFO, 1 channel (supports special mode master/slave)

— I

C bus interface

64-byte buffer RAM , 2 channels

(supports master/slave and automatic transfer mode)

— Timers

8-bit timer/counter, 2 channels (with timing output)

16-bit timer, 3 channels

— Real-time pulse generator

5-bit output, 1 channel (2-stage FIFO)

— Clock prescaler

— Remote control receive circuit 8-bit pulse measurement counter, 8-stage FIFO

•

Interruption

30 factors, 30 vectors, multi-interruption and priority selection possible

•

Standby mode

Sleep/stop

•

Package

100-pin plastic QFP/LQFP

104-pin plastic LFLGA

•

Piggy/evaluation chip

CXP921000A

•

FLASH EEPROM incorporated version CXP921F064A

Structure

Silicon gate CMOS IC

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by

any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the

operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

–1–

E99707D33

CXP921F064AQ Related Products

	CXP921F064AQ	CXP921064AGA	CXP921064AQ	CXP921064AR	CXP921F064AGA	CXP921F064AR
Description	Microcontroller, 16-Bit, FLASH, SPC950 CPU, 20.5MHz, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100	Microcontroller, 16-Bit, MROM, SPC950 CPU, 20.5MHz, CMOS, PBGA104, 12 X 12 MM, 0.80 MM PITCH, PLASTIC, LFLGA-104	Microcontroller, 16-Bit, MROM, SPC950 CPU, 20.5MHz, CMOS, PQFP100, 14 X 20 MM, PLASTIC, QFP-100	Microcontroller, 16-Bit, MROM, SPC950 CPU, 20.5MHz, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, PLASTIC, LQFP-100	Microcontroller, 16-Bit, FLASH, SPC950 CPU, 20.5MHz, CMOS, PBGA104, 12 X 12 MM, 0.80 MM PITCH, PLASTIC, LFLGA-104	Microcontroller, 16-Bit, FLASH, SPC950 CPU, 20.5MHz, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, PLASTIC, LQFP-100
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	QFP	LGA	QFP	QFP	LGA	QFP
package instruction	QFP, QFP100,.7X.9	12 X 12 MM, 0.80 MM PITCH, PLASTIC, LFLGA-104	QFP, QFP100,.7X.9	LFQFP, QFP100,.63SQ,20	LFBGA, LGA104,13X13,32	LFQFP, QFP100,.63SQ,20
Contacts	100	104	100	100	104	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES	YES
Other features	ALSO OPERATES AT 2.2V MIN SUPPLY	ALSO OPERATES AT 2.2V MIN SUPPLY	ALSO OPERATES AT 2.2V MIN SUPPLY	ALSO OPERATES AT 2.2V MIN SUPPLY	ALSO OPERATES AT 2.2V MIN SUPPLY	ALSO OPERATES AT 2.2V MIN SUPPLY
bit size	16	16	16	16	16	16
CPU series	SPC950	SPC950	SPC950	SPC950	SPC950	SPC950
maximum clock frequency	20.5 MHz	20.5 MHz	20.5 MHz	20.5 MHz	20.5 MHz	20.5 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PQFP-G100	S-PBGA-BU104	R-PQFP-G100	S-PQFP-G100	S-PBGA-BU104	S-PQFP-G100
JESD-609 code	e6	e4	e6	e6	e4	e6
length	20 mm	12 mm	20 mm	14 mm	12 mm	14 mm
Number of I/O lines	80	80	80	80	80	80
Number of terminals	100	104	100	100	104	100
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	LFBGA	QFP	LFQFP	LFBGA	LFQFP
Encapsulate equivalent code	QFP100,.7X.9	LGA104,13X13,32	QFP100,.7X.9	QFP100,.63SQ,20	LGA104,13X13,32	QFP100,.63SQ,20
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	GRID ARRAY, LOW PROFILE, FINE PITCH	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	3 V	2/3.3 V	3 V	3 V	3.3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	10240	10240	10240	10240	10240	10240
rom(word)	131072	262144	131072	131072	131072	131072
ROM programmability	FLASH	MROM	MROM	MROM	FLASH	FLASH
Maximum seat height	3.1 mm	1.4 mm	3.1 mm	1.7 mm	1.4 mm	1.7 mm
speed	20.5 MHz	20.5 MHz	20.5 MHz	20.5 MHz	20.5 MHz	20.5 MHz
Maximum slew rate	26 mA	20 mA	20 mA	20 mA	26 mA	26 mA
Maximum supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)	Gold (Au)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Gold (Au)	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING	BUTT	GULL WING	GULL WING	BUTT	GULL WING
Terminal pitch	0.65 mm	0.8 mm	0.65 mm	0.5 mm	0.8 mm	0.5 mm
Terminal location	QUAD	BOTTOM	QUAD	QUAD	BOTTOM	QUAD
Maximum time at peak reflow temperature	10	10	10	10	10	10
width	14 mm	12 mm	14 mm	14 mm	12 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	SONY	-	SONY	-	SONY	SONY
