DHA-RS36-R221C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DHA-RS36-R221C

DHA-RS36-R221C: DescriptionD Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug; CategoryThe connector The connector; File Size238KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

DHA-RS36-R221C Overview

D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug

DHA-RS36-R221C Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	STAMPED METAL SHEL
body width	0.37 inch
subject depth	0.453 inch
body length	1.713 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	DHA
Plug contact pitch	0.05 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.085 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

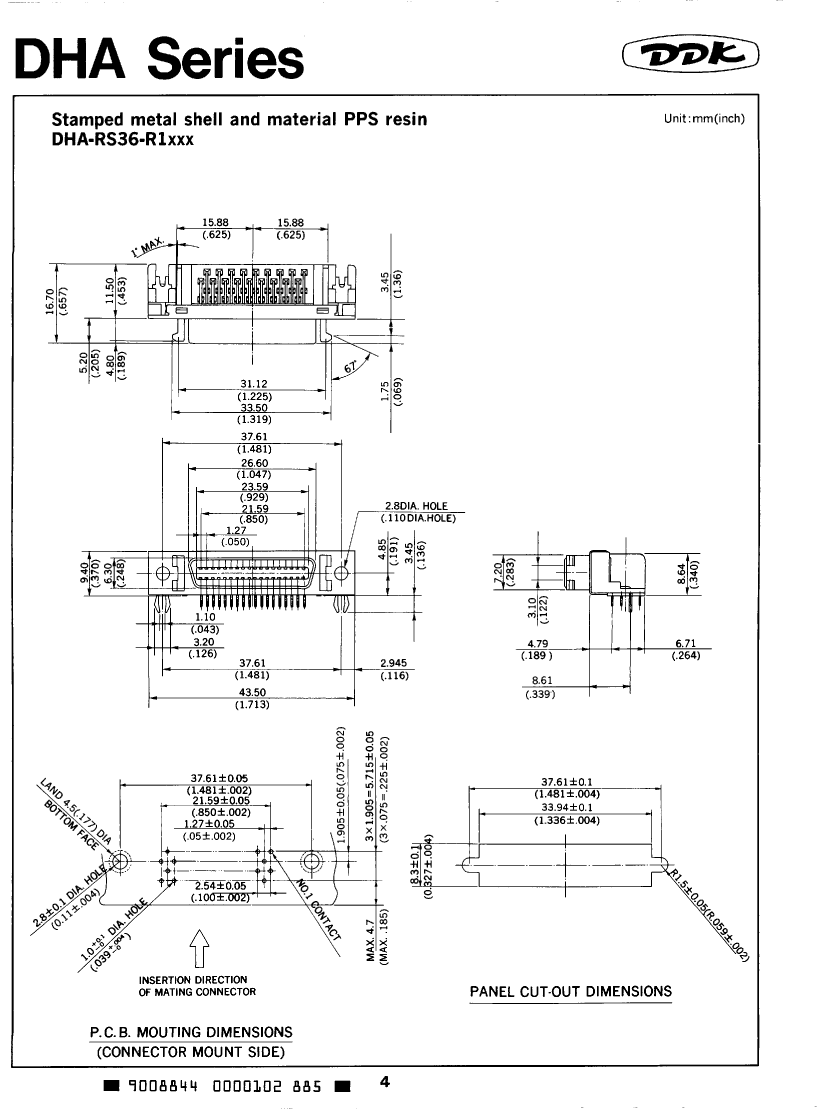

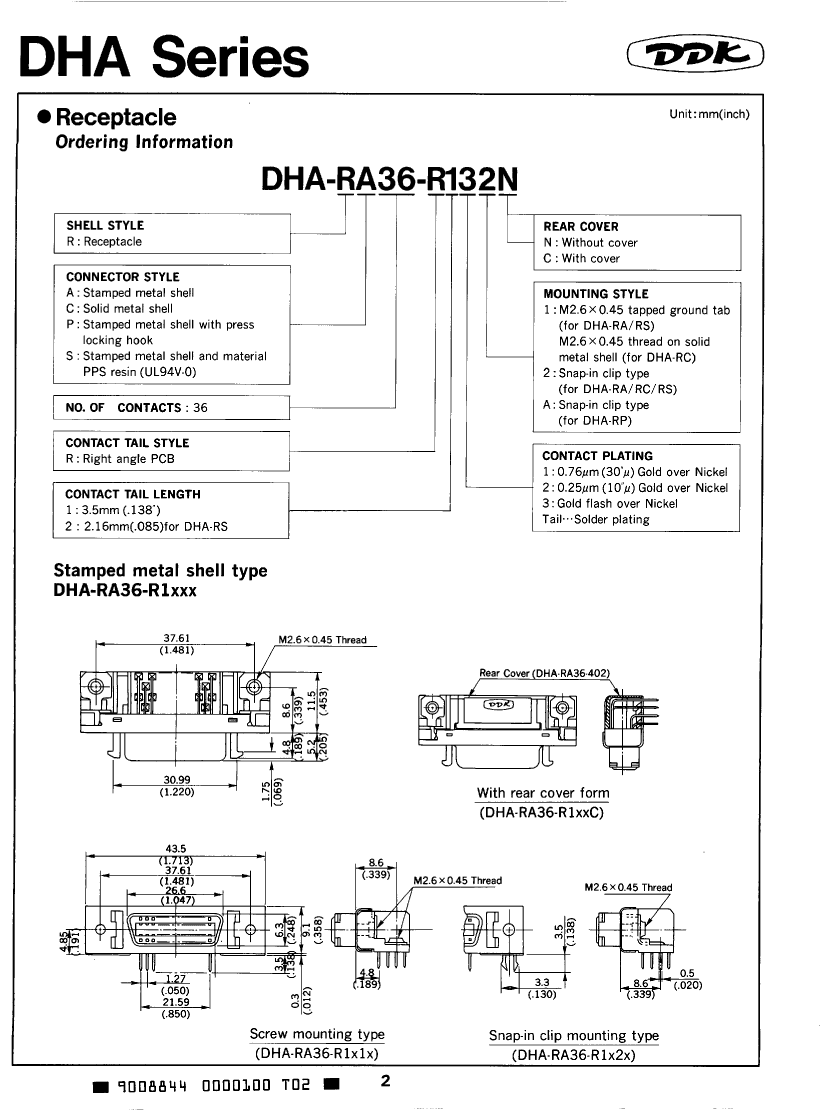

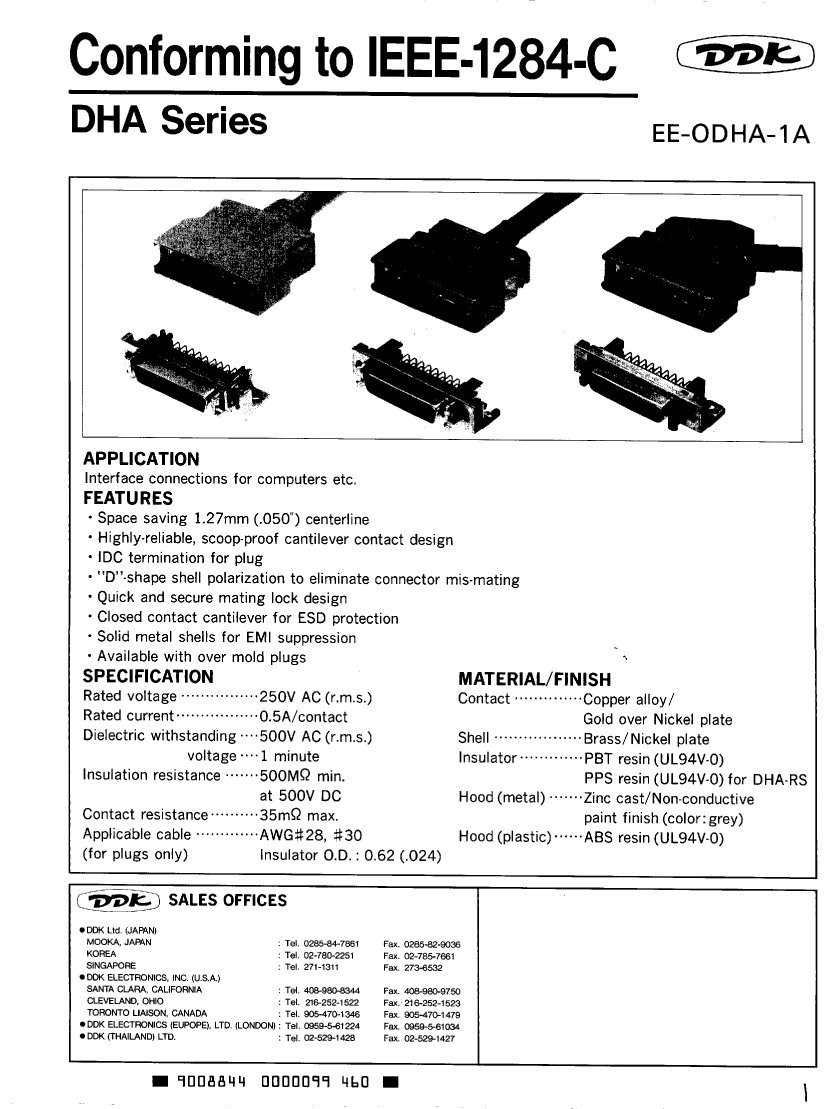

Preview

Download Datasheet

View All

DHA-RS36-R221C Related Products

	DHA-RS36-R221C	DHA-RS36-R232C	DHA-RS36-R222C	DHA-RS36-R211C	DHA-RS36-R231C
Description	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch, Plug
Maker	DDK	DDK	DDK	DDK	DDK
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
Other features	STAMPED METAL SHEL	STAMPED METAL SHEL	STAMPED METAL SHEL	STAMPED METAL SHEL	STAMPED METAL SHEL
body width	0.37 inch	0.37 inch	0.37 inch	0.37 inch	0.37 inch
subject depth	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	1.713 inch	1.713 inch	1.713 inch	1.713 inch	1.713 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	DHA	DHA	DHA	DHA	DHA
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	4	4	4	4	4
Number of rows loaded	2	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	10u inch	FLASH inch	10u inch	30u inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS
Terminal length	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	36	36	36	36	36
