COMPONENTS PRODUCT INFORMATION
NEW
LCD interface connector compatible with high-speed differential
transmission
FI-X Series
CONNECTOR
MB-0014-7
March 2001
Technologies for LCD displays have progressed from XGA and SXGA to UXGA. With this progress,
transmission speed is also increasing. In addition, the demand for thinner LCDs is increasing along with
the growth of the market for more compact notebook PCs. The FI-X Series is a slimline connector
compatible with high-speed differential transmission to meet such demands.

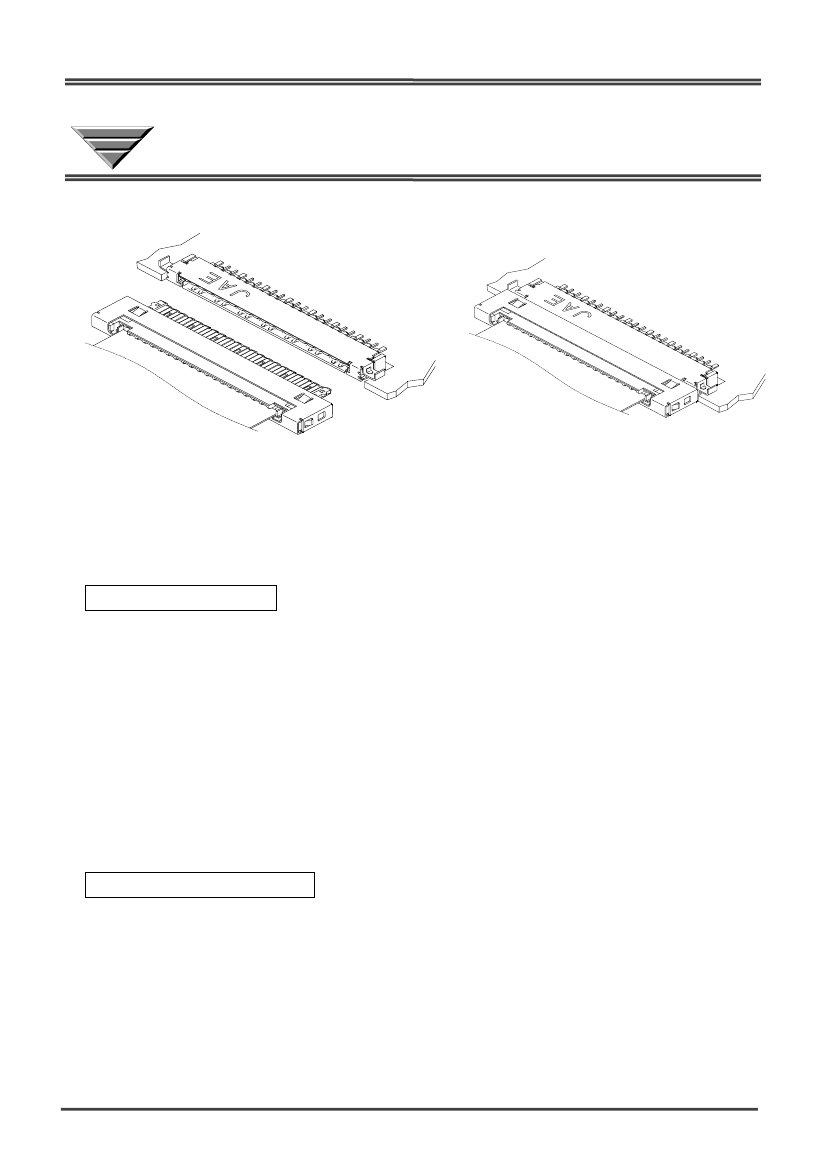

Features
■
Compatible with high-speed differential transmission and high-level impedance matching
(90 to 100Ω)
■
Drastically improved grounding which is directly related to EMI characteristics.
■
1.5mm connector height and 1mm height above the PCB thanks to bottom type structure.
■
1mm contact pitch with impedance matching.
■
Compatible with FPC and cable by common use of board header.
Enables stable grounding to the PCB thanks to FPC relay used in other FI Series connectors.
General Specifications
■
No. of contacts: 14, 20, 30 (all signal)
D7 (only for differential transmission)
■
Applicable FPC: t0.14
±0.03
■
Applicable cable: AWG #30 to #40
■
Operating temperature: -40°C to +80°C
■
Contact resistance: Less than 40mΩ
■
Rated current: 1A per pin for both AC and DC
■
Rated voltage: 200V per pin for both AC and DC
■
Insulation resistance: Greater than 100MΩ
■
Withstand voltage: AC500Vr.m.s. for 1 minute
■
Pitch: 1mm
1/12
MB-0014-7
Connector Combination
■No.
of contacts
D7
14
20
30
■Board
Mounting form
bottom type
bottom reverse type
top type
■Cable
Connection
FPC relay (reverse)
Crimp
Fine coaxial cable
Materials and Finishes
■
FI-XB**S (R)-HF**, FI-X**S-HF (Board connector)
■
FI-X**M (R) (Cable connector, FPC relay type)
Components
Materials and finishes
Components
Materials and finishes
Contact
Copper alloy:
Contact
Copper alloy:
Contact portion(connector mating part)/
Contact portion(connector mating part)/
Au plating over nickel,
Au plating over nickel,
FPC contact portion/
Terminal portion/
SnPb plating over nickel
SnPb plating over nickel
Insulator Thermal plasticity resin
Insulator Thermal plasticity resin (UL94V-0)
Shell
Copper alloy/Sn plating
Shell
Copper alloy/Sn plating
Slider
Thermal plasticity resin
■
FI-XC3-1-15000
■
FI-X**H（Cable, Crimp housing
Components
Materials and Finishes
Components
Materials and Finishes
Contact Copper alloy:
Housing Thermal plasticity resin
Contact portion(connector mating part)/
Shell
Copper alloy/ Sn plating
Au plating over nickel
(D7:Au plating over nickel on ground）
Cable crimping portion/ Sn plating
■
FI-X**C (Fine coaxial cable side)
Components
Materials and finishes
Contact
Copper alloy:
Contact portion(connector mating part)/ Au plating over nickel
Cable soldering portion/ SnPb plating over nickel
Insulator
Thermal plasticity resin
Shell, Ground Plate Stainless steel
2/12
differential 7pairs
all for signals 14 pos.
all for signals 20 pos.
all for signals 30 pos.
Part Number
FI-XB**S-HF10
FI-XB**SR-HF11
FI-X**S-HF
Part Number
FI-X**M (R)
FI-X**H
FI-X**C/FI-X**CH-7000
FPC t0.14
Applicable cable
±0.03
Discrete wire
AWG #30 to 36
Fine coaxial cable AWG #40
MB-0014-7

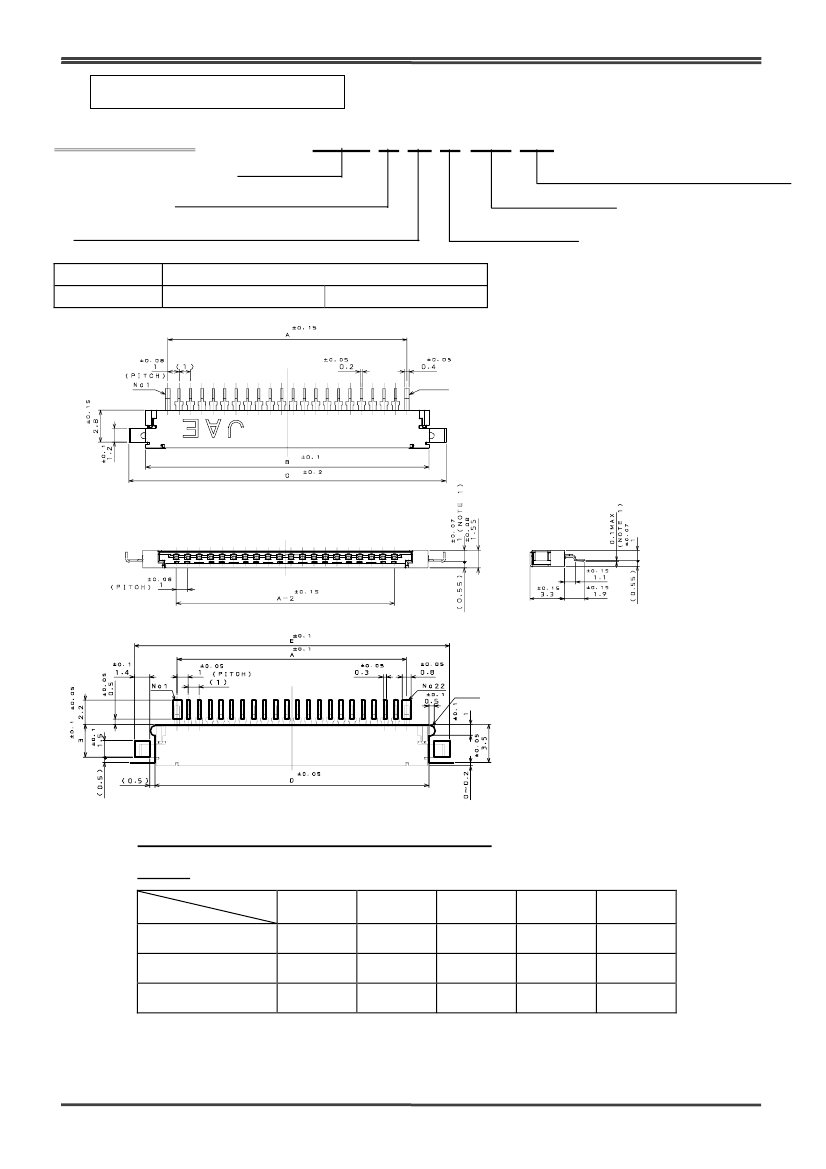

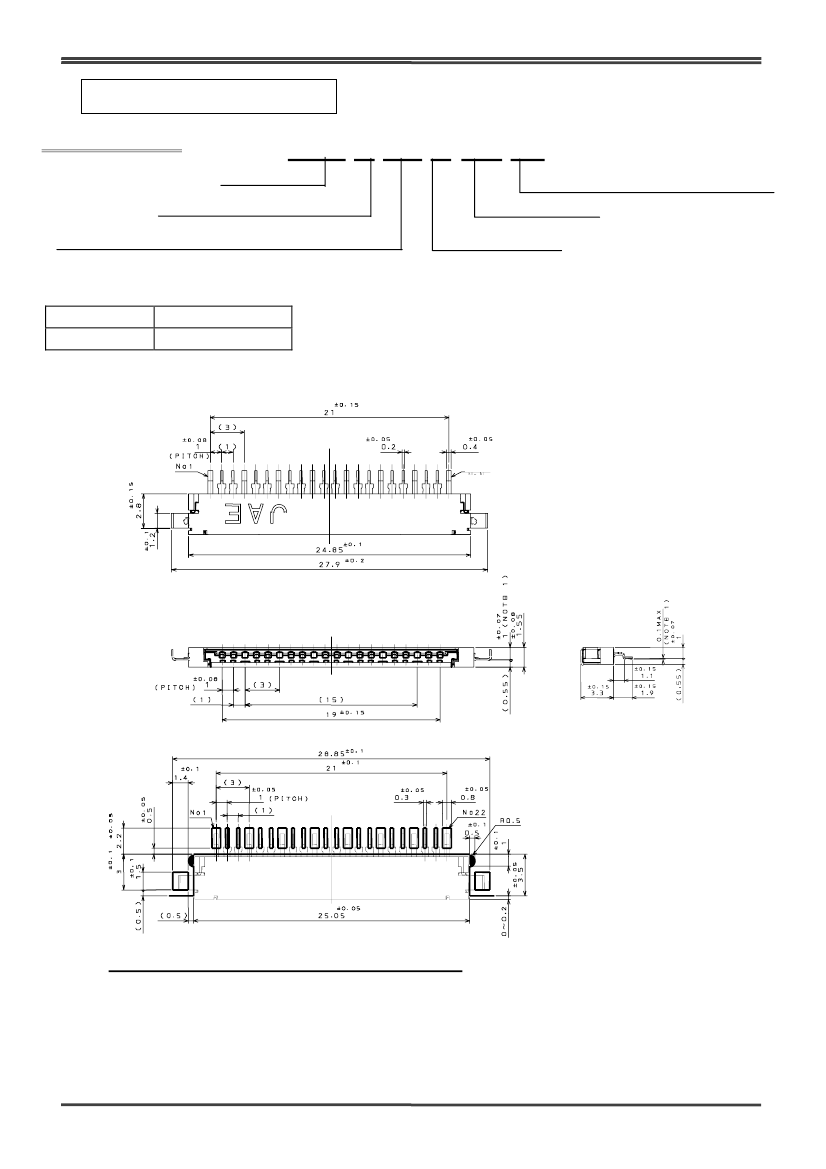

Dimensions and Shape
Ordering Information
FI-X B D7 S-HF 10
Series name
Mounting height 1mm (Board thickness t0.55)
Angled type
Socket connector
B: Bottom mounting type
No. of contacts:
D7 (Differential 7 pairs)
Part Number
Drawing No.
FI-XBD7S-HF10
SJ033459
No.22
Applicable Board Dimensions (for reference)
Unit : mm
Note1: An embossed tape reel contains 3000 pieces.
Please contact us for details of embossed tape specifications.
Note2: Contact with terminal numbers 1, 4, 7, 10, 13, 16, 19, 22 are only for ground.
3/12
MB-0014-7
Dimensions and Shape
Ordering Information
FI-X B ** S-HF 10
Series name
Mounting height 1mm (Board thickness t0.55)
Angled type
Socket connector
B: Bottom mounting type
No. of contacts: 14, 20, 30 (all for signals)
Part Number
Drawing No.
FI-XB**S-HF10
SJ033461 (14,20 pos.)
SJ034696 (30 pos.)
Unit :mm
No.N+2
No.N
No.N+2
Applicable Board Dimensions (for reference)
TABLE
DIMENSION
No. of
CONTACTS, N
A
15
21
31
B
18.85
24.85
34.85
C
21.9
27.9
37.9
D
19.05
25.05
35.05
E
22.85
28.85
38.85
14
20
30
Note1: An embossed tape reel contains 3000 pieces.
Please contact us for details of embossed tape specifications.
Note 2: Contact with terminal numbers 1, N+2 are only for ground.
4/12
MB-0014-7
Ordering Information
FI-X B ** S
Series name
R -HF 11
Mounting height 1mm
(Board thickness t0.55)
Angled type
Reverse type
B: Bottom mounting type
No. of contacts: 20, 30 (all for signals)
Socket connector
Part Number
Drawing No.
FI-XB20SR-HF11
SJ034891
Ａ±0.15
FI-XB30SR-HF11
SJ034892
Unit: mm
**
**
No.N+2
№N
Ｂ ±0.1
Ｃ±0.2
**
**
Ａ ±0.15
－2

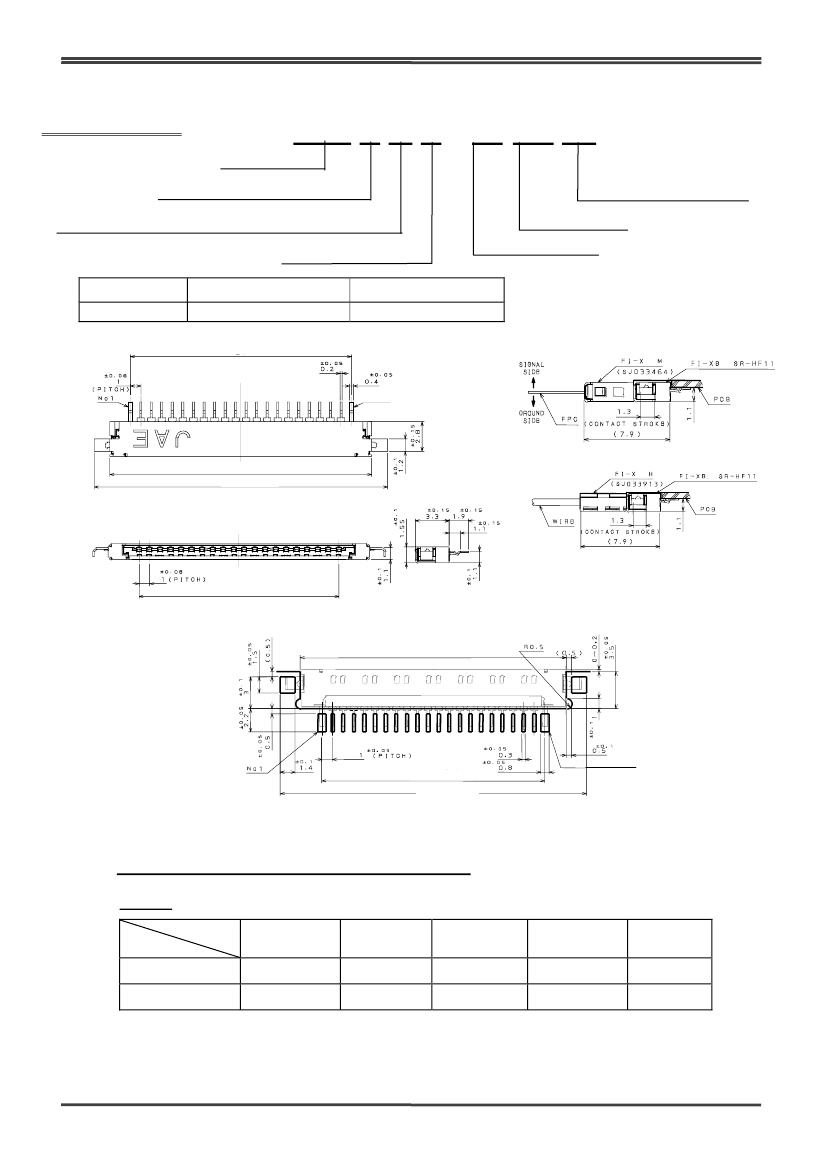

Diagram of connector when mated
? ?
0.05
? ?
0.1
? ?
0.1
No.N+2
Applicable Board Dimensions (for reference)
TABLE
DIMENSION
No. of
CONTACTS, N
A
21
31
B
24.85
34.85
C
27.90
37.85
D
25.05
35.05
E
28.85
38.85
20
30
Note1: An embossed tape reel contains 3000 pieces.
Please contact us for details of embossed tape specifications.
Note2: Contact with terminal numbers 1, N+2 are only for ground.
5/12
