4108-21-210-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4108-21-210-01

4108-21-210-01: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

4108-21-210-01 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

4108-21-210-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.1 inch
subject depth	0.039 inch
body length	0.392 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	4100
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9718 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

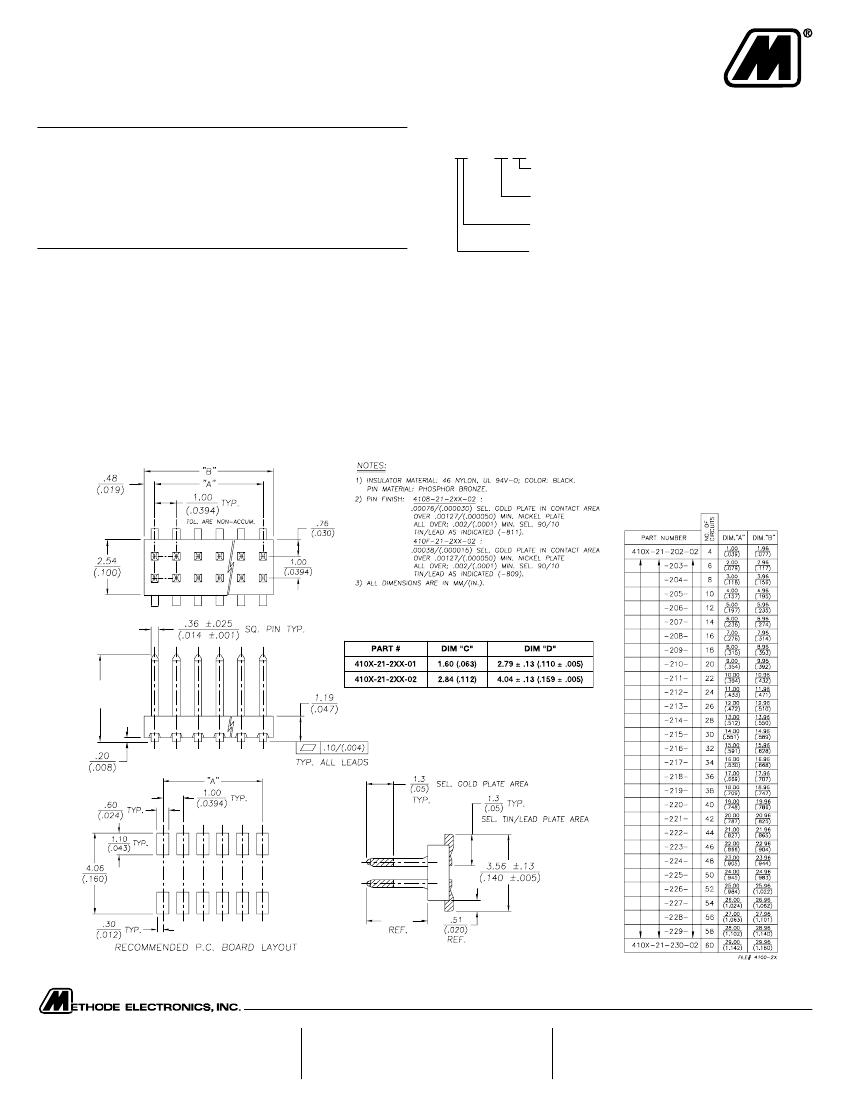

1mm (.0394") Center

Surface Mount Header

Mechanical

Pin Retention / Circuit:

1.0 lbs. min. / circuit

Durability:

20 cycles of mating and unmating

15 milliohms contact resistance max. increase

Electrical

Current Rating:

1.0 amp max. / contact

Voltage Rating:

250 VAC

Operating Temperature:

-55°C to +125°C

Contact Resistance:

20 mΩ max., initial

Insulation Resistance:

500 MΩ

Dielectric Withstanding Voltage:

500 volts RMS between

adjacent terminals

4100 SERIES

PART NUMBER LEGEND

410X-21-2XX-XX

PIN LENGTH

(SEE TABLE 2)

NUMBER OF POSITIONS

(SEE TABLE I)

PIN PLATING

(SEE NOTE 2)

INSULATOR MATERIAL

(SEE NOTE 1)

TABLE 1

TABLE 2

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
