K8500HBCBB551B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> K8500HBCBB551B

K8500HBCBB551B: DescriptionRocker Switch, SPST, Latched, Solder Terminal, Slotted Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size109KB，2 Pages; ManufacturerArcolectric; Environmental Compliance

Download Datasheet Parametric View All

K8500HBCBB551B Overview

Rocker Switch, SPST, Latched, Solder Terminal, Slotted Type Actuator, Panel Mount, ROHS COMPLIANT

K8500HBCBB551B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Arcolectric
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	SLOTTED TYPE
body width	15 mm
body height	16 mm
Body length or diameter	21 mm
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	250 V
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

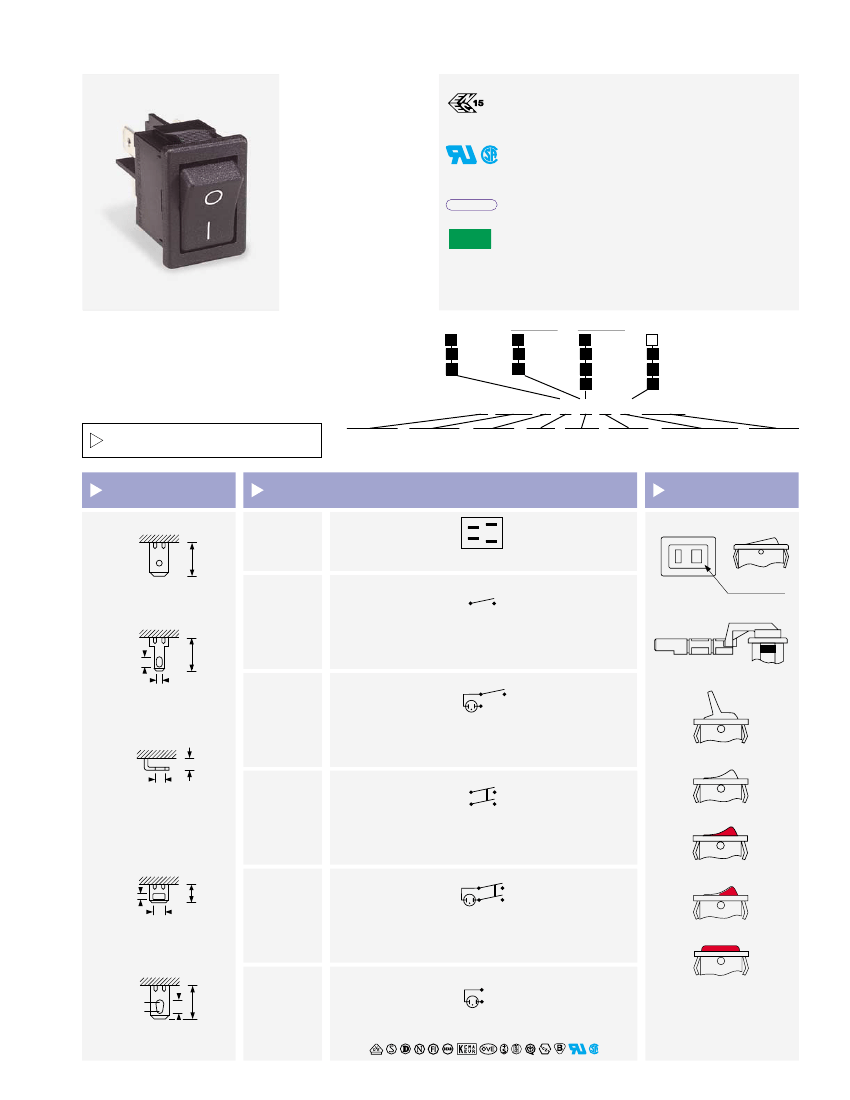

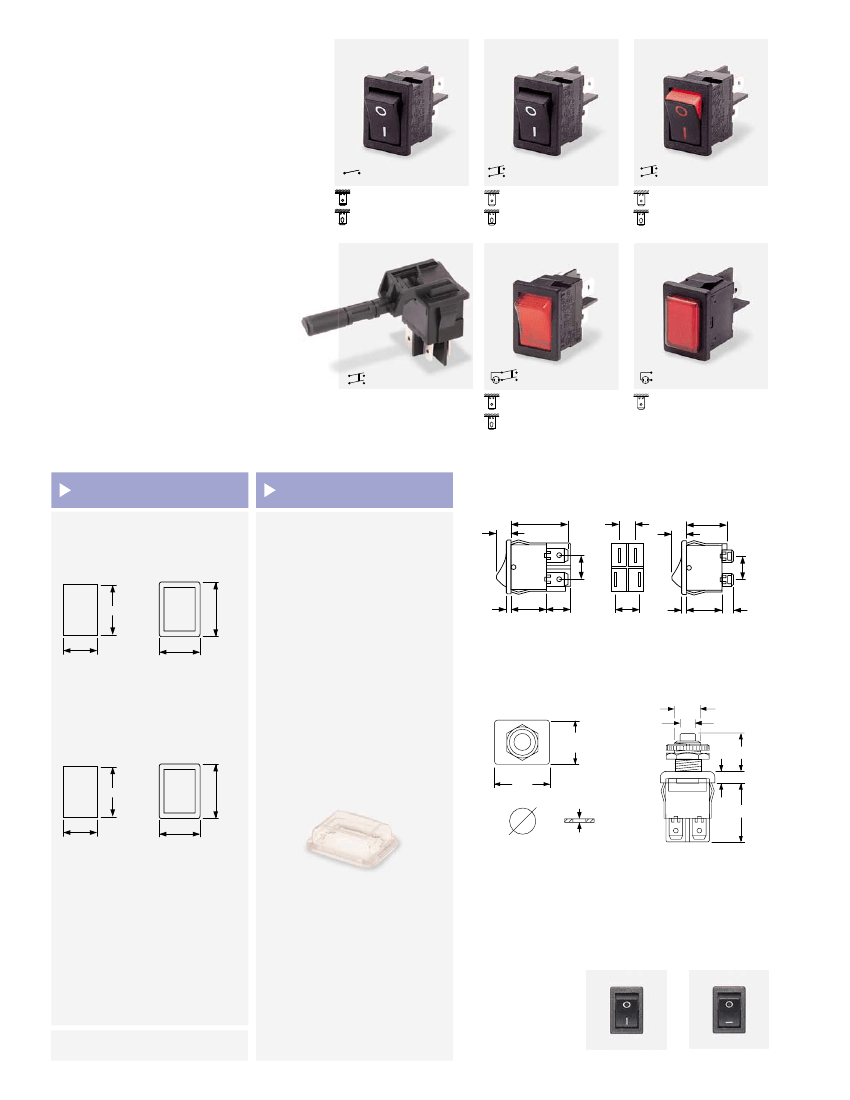

8500 Rocker Switches - Miniature

Miniature rocker switch

Ratings up to 15A,

250Vac

High in-rush tolerance

Single & double pole in

same body size

Illuminated & non-

illuminated

Matching indicators

Industry standard panel

cut-out

Rotary and push button

accessories

Bezel size: 21 x 15

BLACK

RED

WHITE

In house test

10A 250Vac Single & Double Pole

10(6)A 250Vac T125

(non lit types)

6(4)A 250Vac T125 5E4 (50,000 Operations)

(non lit types)

10(6)A 250Vac T100

(lit types)

UL CSA 15A Non Ind 250Vac, 14A Ind 250Vac, 10A 277Vac

UL CSA 250Vac 1/2hp, 125Vac 1/4hp

UL 105˚C, file E45221, CSA file LR10990

Inrush 85A to EN61058-1 & 10A 24Vdc

RoHS compliant

3mm contact gap.

Technical data on pages 4 & 5 (switches), 66 (indicators).

RoHS

NON-LIT

BLACK

RED

WHITE

LIT

AMBER

CLEAR

GREEN

RED

‘X’ ROCKER COLOR R,G,W,B

125V NEON

250V NEON

12V INCANDESCENT

H 8553 V B B R 2 551W

ORDER FORMAT

TERMINAL

8.5

TERMINAL

CODE

FUNCTION

CODE

FUNCTION

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LAMP VOLTAGE

OR “ON LIGHT”

ROCKER

LEGEND &

OPTIONS

Approvals &

ratings vary

with function

Slotted for custom adaptors

ON OFF Switches are ON when pressed over terminal 1

Slots for

snap-in buttons

4.8 x 0.8

Semi-rotary (not lit)

8500

8.5

2.6

1.5

ON - OFF

Single pole

(Uses terminals 1a & 2a)

Paddle lever (not lit)

8503

2.8 x 0.8

3.2

2.6

ON (lit) - OFF

Single pole

Curved (not lit)

2.8 x 0.8

Right angle version of K terminal

available on 8500 only

8550

ON - OFF

Double pole

Curved (lit)

Two colour (not lit)

1.5

3.1

4.5

8553

4.8 x 0.8

ON (lit) - OFF

Double pole

Softline lens

R1.0

R0.8

3.5 8.5

Push button operation

8580

Available with

H terminals only

Indicator

(8500 only)

See drawing opposite

Solder

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
