85042-6115: Description48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size176KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85042-6115 Overview

48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

85042-6115 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

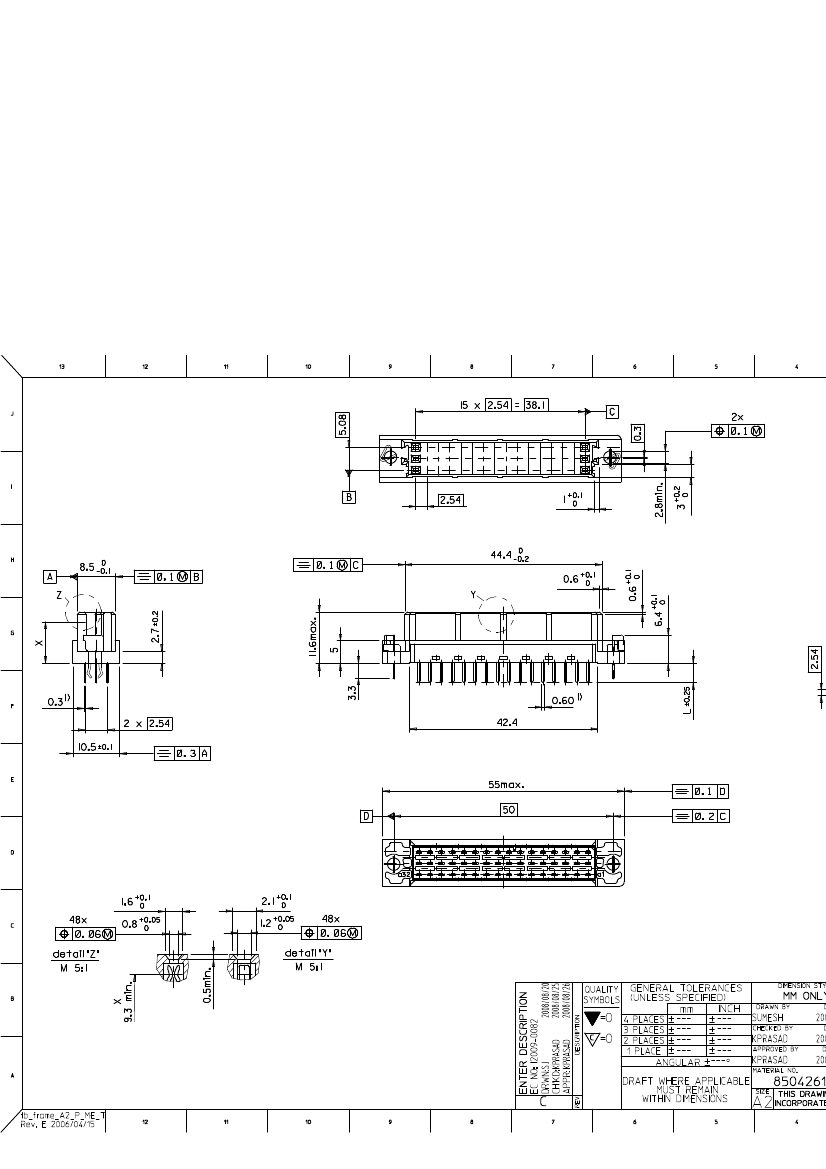

Drawing (PDF)

0850426115

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Receptacle, Style C/2, 48 Circuits

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19980

E29179

EU RoHS

Complia

Not Revi

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85042

Daughtercard

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

C/2

Email pro

For a mu

Complian

Please vi

non-prod

Search

85042S

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

48

Rows A, B, & C

50

No

94V-0

No

Yes

16

Open Pin Field

3

Vertical

0.177 In

4.50 mm

No

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

Yes

No

-55°C to +125°C

Mates

DIN 41

Electrical

Current - Maximum per Contact

Data Rate

Real Signals (per 25mm)

Shielded

Voltage - Maximum

1A

622.0 Mbps

29

No

250V AC (RMS)
