Datasheet> All Categories > Passive components> oscillator> 532L25DT19M4400

532L25DT19M4400: DescriptionClipped Sine Output Oscillator, 19.44MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components oscillator; File Size267KB，4 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

532L25DT19M4400 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	532L25DT19M4400	-	-	View	Buy Now

532L25DT19M4400 Overview

Clipped Sine Output Oscillator, 19.44MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4

532L25DT19M4400 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
JESD-609 code	e4
Manufacturer's serial number	532
Installation features	SURFACE MOUNT
Nominal operating frequency	19.44 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	5.0mm x 3.2mm x 1.6mm
Maximum supply voltage	3.47 V
Minimum supply voltage	3.14 V
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

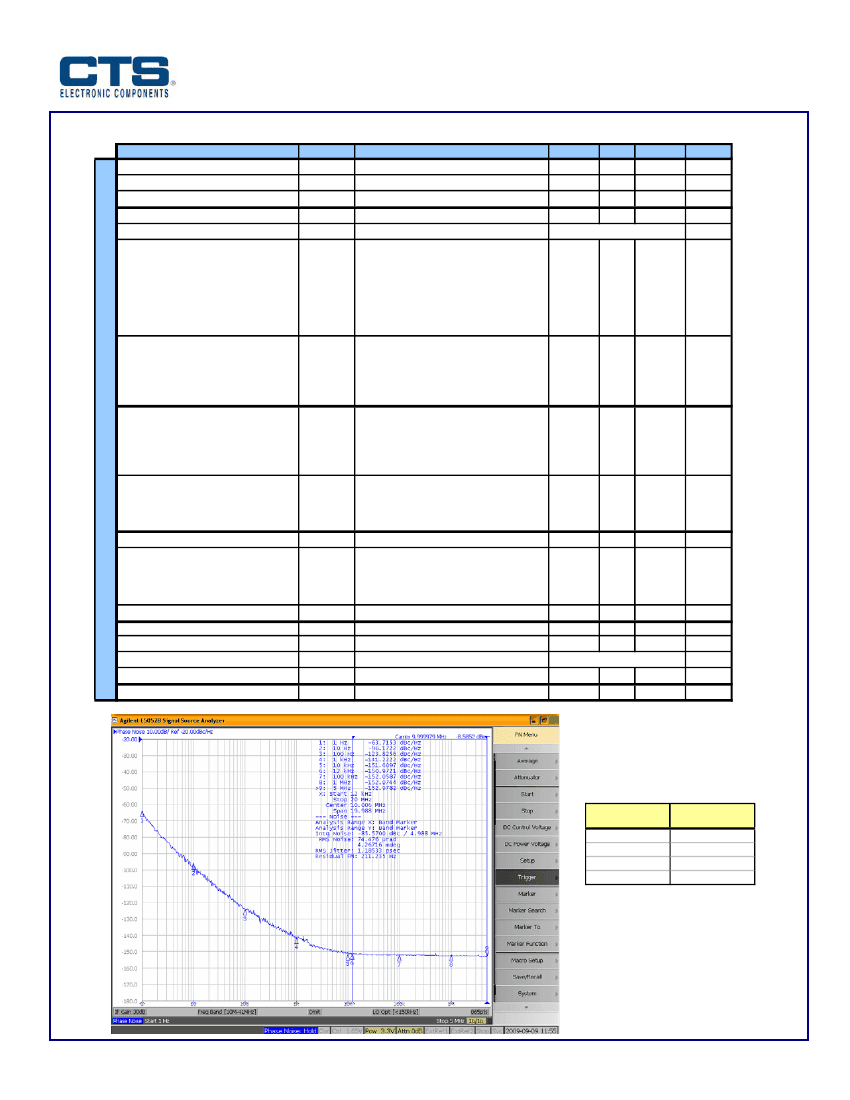

Preview

Download Datasheet

View All

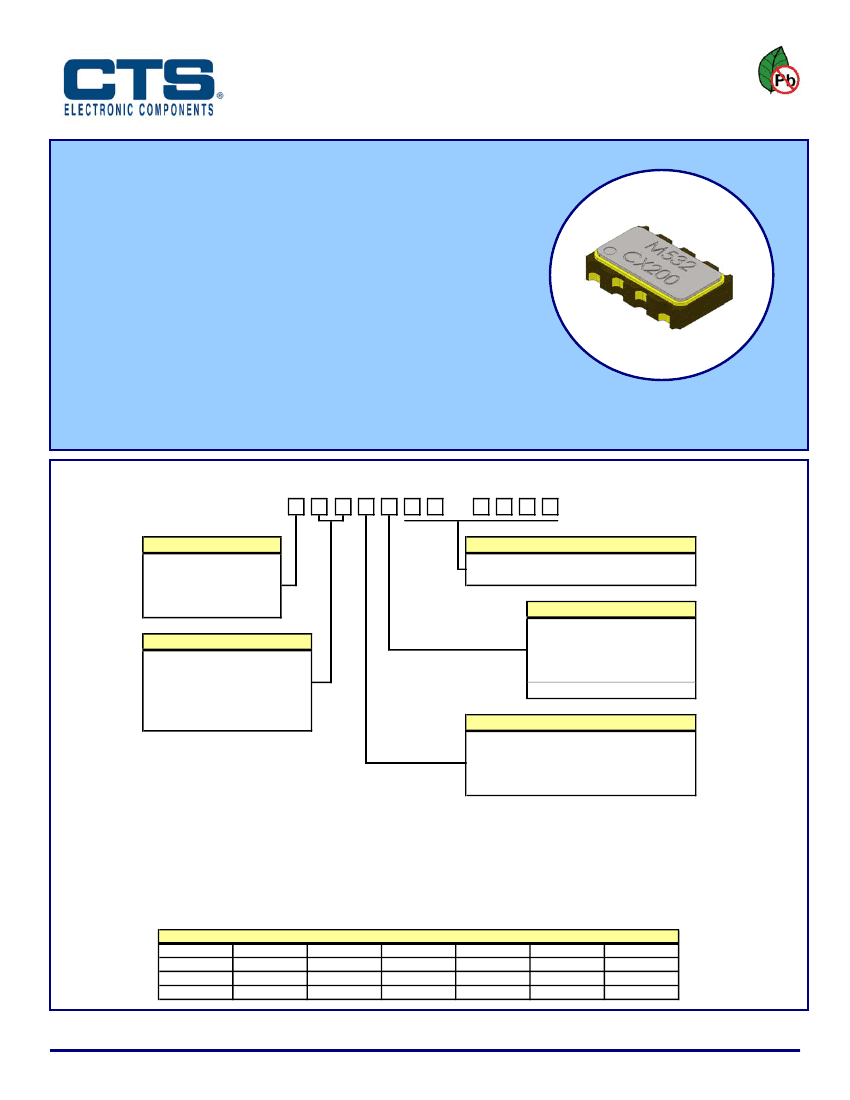

Model 532

Temperature Compensated Crystal Oscillator

FEATURES

•

Clipped Sine Wave Output

Optional Voltage Control for Frequency Tuning [VCTCXO]

5.0mmx3.2mm Surface Mount Package

Frequency Range 10 – 40 MHz

[Standard Frequencies List Shown Below]

Fundamental Crystal Design

Frequency Stability, several options to choose from ±0.5ppm ~ ±2.5ppm

Operating Voltage, +2.8Vdc ~ +5.0Vdc

Operating Temperature to -40°C to +85°C

Tape & Reel Packaging, EIA-418

RoHS/Green Compliant (6/6)

APPLICATIONS

The Model 532 Temperature Compensated Crystal Oscillator (TCXO) is a quartz

based, clipped sine wave output, digital temperature compensated oscillator with optional

frequency tuning, in a hermetically sealed ceramic package. M532 is suitable for wireless communications,

broadband access, WLAN/WiMax/WIFI, portable equipment, test and measurement and mobile phone applications.

ORDERING INFORMATION

532

SUPPLY VOLTAGE

T = +2.8Vdc

R = +3.0Vdc

L = +3.3Vdc

S = +5.0Vdc

FREQUENCY IN MHz

M - indicates MHz and decimal point.

[See table below for standard frequencies available.]

FREQUENCY TUNING [AFC]

A = ± 5 ppm

C = ± 10 ppm

S = ± 7ppm - ± 16ppm

T = TCXO [no AFC]

CON

: 1.5Vdc ± 1.0Vdc}

OPERATING TEMPERATURE RANGE

H = -10°C to +60°C

C = -20°C to +70°C

D = -30°C to +85°C [std]

I = -40°C to +85°C

FREQUENCY STABILITY *

0.5

1.0

1.5

2.0

2.5

ppm

ppm [std]

* Frequency vs. Temperature Only

1] Limited availability. Please consult factory.

2] Only available with temperature range codes "H" and "C".

3] Frequency is recorded with two leading digits before the ‘M’ and 4 significant digits after the ‘M’ (including zeros).

[Ex. XXMXXXX (10M0000), XXMXXXX (16M3840)]

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

M532 Standard Frequencies

10.000 MHz

12.000 MHz

12.288 MHz

12.800 MHz

13.000 MHz

14.400 MHz

14.7456 MHz

16.000 MHz

16.3676 MHz

16.367667 MHz

16.368 MHz

16.369 MHz

16.384 MHz

16.800 MHz

19.200 MHz

19.440 MHz

19.680 MHz

20.000 MHz

24.000 MHz

24.5535 MHz

25.000 MHz

26.000 MHz

27.000 MHz

30.000 MHz

36.000 MHz

40.000 MHz

Document No. 008-0324-0

Page 1 - 4

Rev. E

www.ctscorp.com
