ECS-300-S-3XCEN-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-300-S-3XCEN-TR

Preview

ECS-300-S-3XCEN-TR: DescriptionSeries - Fundamental Quartz Crystal, 30MHz Nom, ROHS COMPLIANT, MINIATURE, RESITANCE WELDED, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size596KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-300-S-3XCEN-TR Overview

Series - Fundamental Quartz Crystal, 30MHz Nom, ROHS COMPLIANT, MINIATURE, RESITANCE WELDED, SMD, 2 PIN

ECS-300-S-3XCEN-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, MINIATURE, RESITANCE WELDED, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	10 ppm
JESD-609 code	e2
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB4.1XH2.3 (mm)/L0.276XB0.161XH0.091 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)

Preview

Download Datasheet

View All

Cost effective

Low profile

Pb Free/RoHS Compliant

CSM-3X

Quartz Crystal

The CSM-3X is the miniature low profile resistance weld type

SMD quartz crystal. Reduces footprint of CSM-7X (HC-49USX

SMD) by 50%.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

ref @+25

°C

Shunt Capacitance

Load Capacitance (CL)

Drive Level

Operating Temperature

Storage Temperature

Aging (First Year)

CONDITIONS

fo

CSM-3X

MIN

12.000

TYP

MAX

40.000

± 30

± 50

7

Series

100

+70

+85

±5

UNITS

MHz

ppm

pF

µW

°C

ppm

at +25°C

Standard -10 to +70°C

C

o

Specify in P/N

Standard

@ +25°C ±3°C

10

-10

-40

20

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

12.000 ~ 15.999

Fundamental

60

30.000 ~ 40.000

Fundamental

40

16.000 ~ 29.999

Fundamental

50

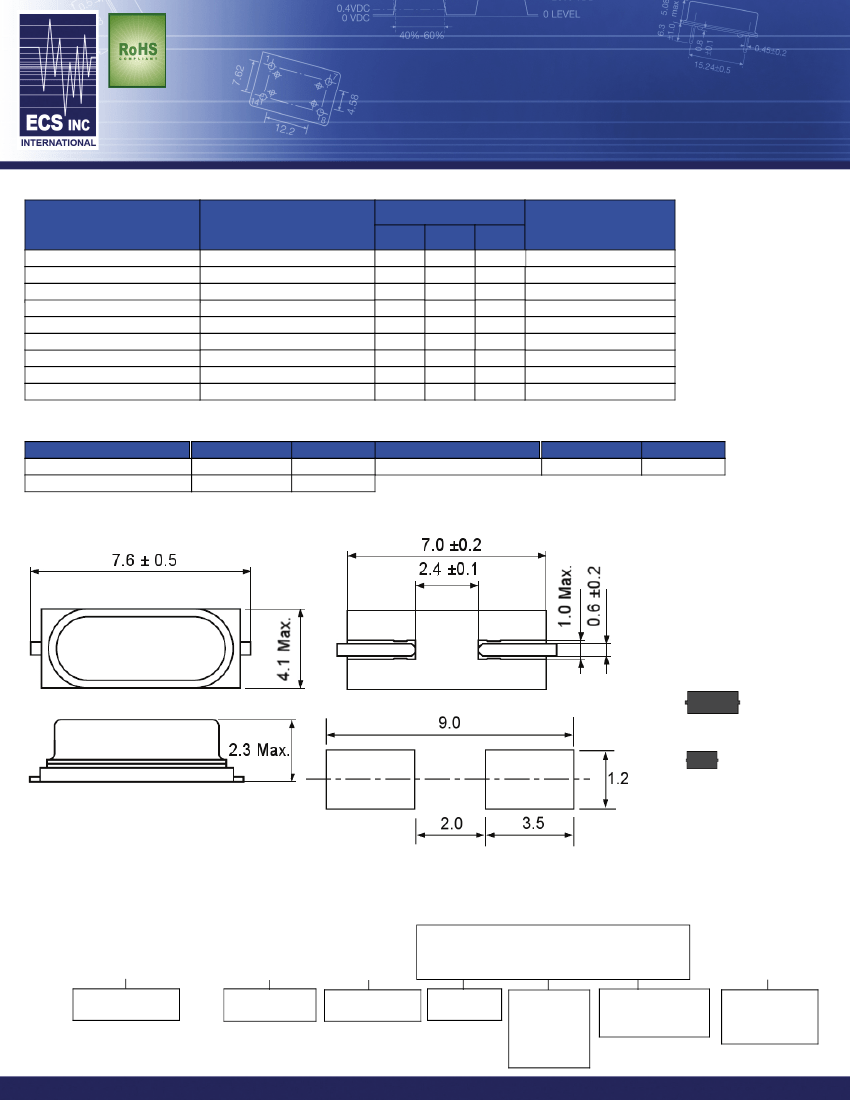

PACKAGE DIMENSIONS (mm)

Actual Size

CSM-7X

CSM-3X

Figure 2) Size Comparison

Figure 1) Top, Side, Bottom and Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-3X-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

3X = CSM-3X

Tolerance

A= ±25 ppm

C= ±10 ppm

Custom Options

Stability

D= ±100 ppm

E= ±50 ppm

G= ±30 ppm

H= ±25 ppm

*K= ±10 ppm

Temp Range

L= -10 ~ +70°C

M= -20 ~ +70°C

N= -40 ~ +85°C

-

Packaging

-TR

Tape & Reel

3K/Reel

* Consult ECS for available temp range options

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
