Part Number:
Status:
Overview:
Description:
0471511112
Active
high_definition_multimedia_interface_hdmi
0.50mm (.020") Pitch HDMI* Receptacle, Right Angle, 0.76µm (30µ") Gold (Au) Plating,
Front Solder Tab Length 1.45mm (.057"), Shell Nickel (Ni) Plated, with Flange and
Back Cover, Natural Housing, Tray Packaging, Lead Free
Documents:
3D Model

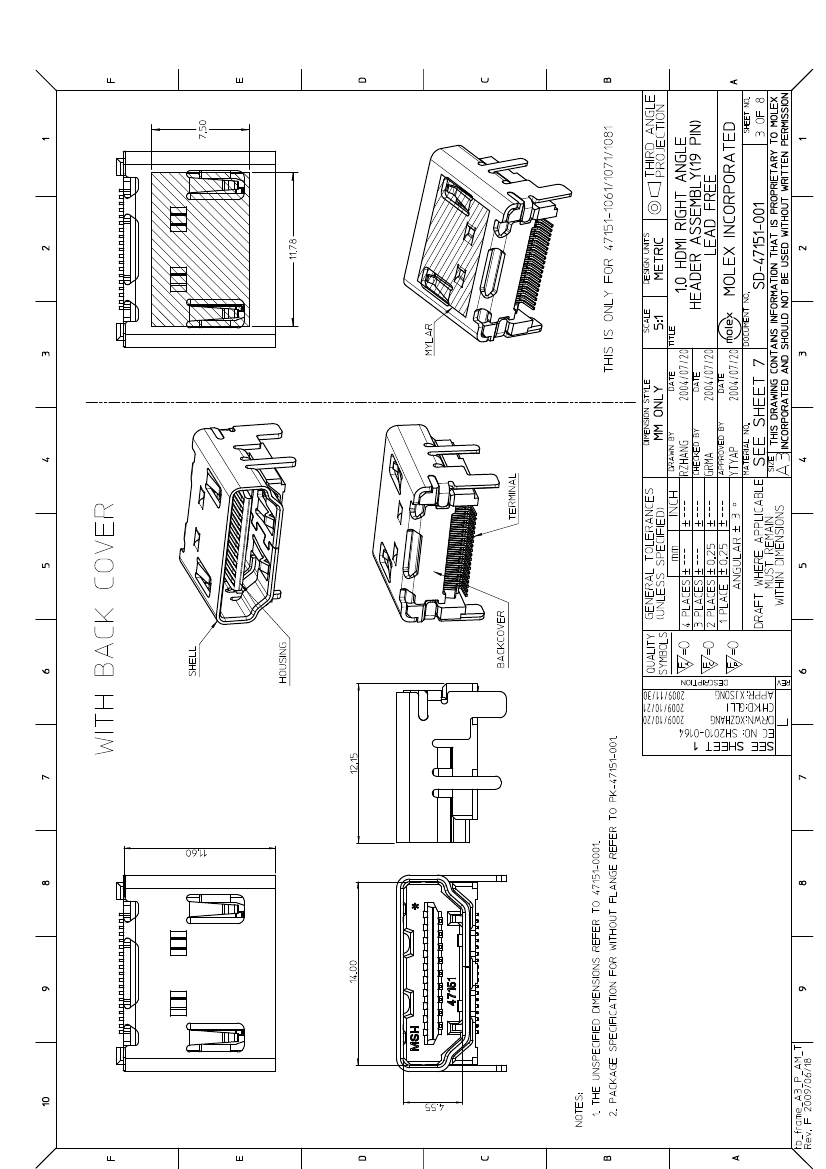

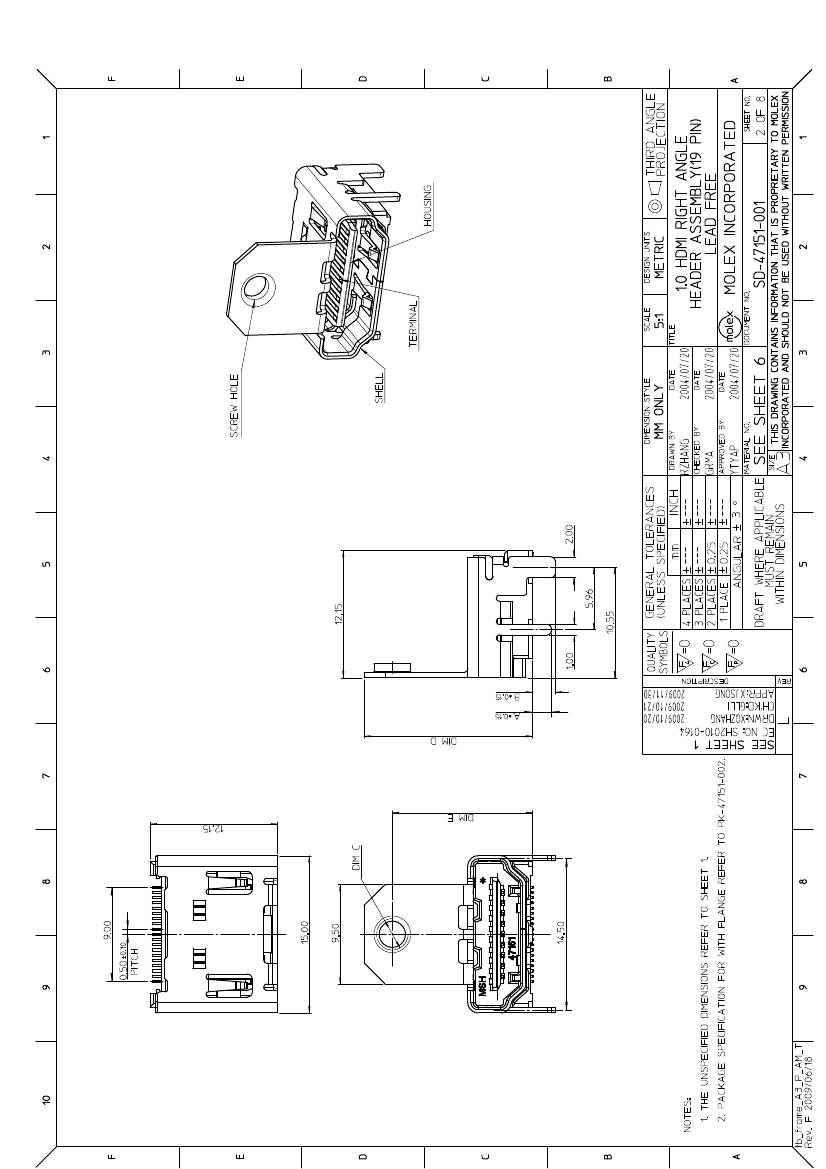

Drawing (PDF)
Product Specification PS-47152-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
I/O Connectors
47151
Wire-to-Board
Receptacle
high_definition_multimedia_interface_hdmi
HDMI
N/A
Physical
Boot Color
Circuits (Loaded)
Color - Resin
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
19
Natural
Male
Yes
Yes
Copper Alloy
Gold
Tin-Bismuth
2
Right Angle
No
Yes
Tray
With Flange
0.020 In
0.50 mm
0.020 In
0.50 mm
30
0.76
40
1
Yes
Yes
1
-20°C to +85°C
Surface Mount
No
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
47151S
Mates
88768
Adapte
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
.5A
Yes
40V DC
Material Info
Reference - Drawing Numbers
Packaging Specification
PK-47151-002
Product Specification
PS-47152-001
Sales Drawing
SD-47151-001
