BYW95A - BYW96E

PRV : 200 - 1000 Volts

Io : 3.0 Amperes

FEATURES :

High current capability

High surge current capability

High reliability

Low reverse current

Low forward voltage drop

Fast switching for high efficiency

AVALANCHE FAST SOFT-RECOVERY

RECTIFIER DIODES

DO-201AD

0.21 (5.33)

0.19 (4.82)

1.00 (25.4)

MIN.

0.375 (9.52)

0.285 (7.24)

* Pb / RoHS Free

MECHANICAL DATA :

* Case : DO-201AD Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

Method 208 guaranteed

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 1.16 grams

0.052 (1.32)

0.048 (1.22)

1.00 (25.4)

MIN.

Dimensions in inches and ( millimeters )

Rating at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

RATING

Maximum Repetitive Peak Reverse Voltage

Maximum Continuous Reverse Voltage

Min. Reverse Avalanche Breakdown Voltage @ I

= 0.1 mA

Maximum Average Forward Current T

= 60

°C

(Note 1)

Maximum Non-Repetitive Peak Forward Surge Current

Maximum Repetitive Peak Forward Current

Maximum Forward Voltage at I

= 5.0 Amps.

Maximum Reverse Current at Reverse Voltage

Maximum Reverse Current at Reverse Voltage Tj = 165

°C

Maximum Reverse Recovery Time (Note 2)

Thermal Resistance - Junction to Ambient

Junction Temperature Range

Storage Temperature Range

Notes :

(1) Lead Length 10 mm.

(2) Measured with I

= 0.5A, I

= 1.0A, Irr = 0.25A

SYMBOL

RRM

(BR)R-min

F(AV)

FSM

FRM

R(H)

Trr

STG

BYW

95A

200

300

BYW

95B

400

500

BYW

95C

600

700

3.0

1.5

5.0

150

BYW

96D

800

900

BYW

96E

1000

1100

UNIT

µA

250

- 65 to + 175

300

K/W

°C

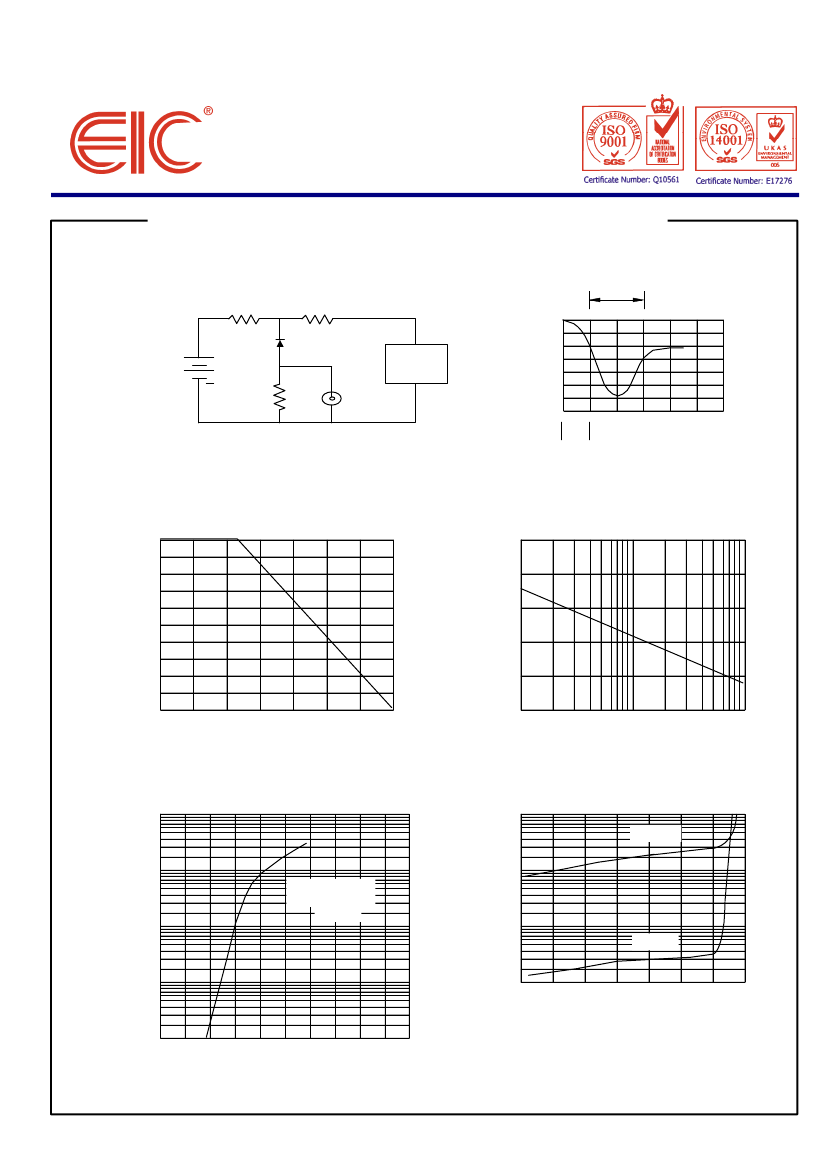

Page 1 of 2

Rev. 02 : March 24, 2005

BYW95A_05 Related Products

	BYW95A_05	BYW95C	BYW95A	BYW95B	BYW96D	BYW96E
Description	Sound/Security Multiconductor Cable; Number of Conductors:2; Conductor Size AWG:18; No. Strands x Strand Size:7 x 26; Jacket Material:Polyvinylchloride (PVC); Leaded Process Compatible:Yes; Capacitance:30pF/ft RoHS Compliant: Yes	Sound/Security Multiconductor Cable; Number of Conductors:2; Conductor Size AWG:18; No. Strands x Strand Size:7 x 26; Jacket Material:Polyvinylchloride (PVC); Leaded Process Compatible:Yes; Capacitance:30pF/ft RoHS Compliant: Yes	Sound/Security Multiconductor Cable; Number of Conductors:2; Conductor Size AWG:18; No. Strands x Strand Size:7 x 26; Jacket Material:Polyvinylchloride (PVC); Leaded Process Compatible:Yes; Capacitance:30pF/ft RoHS Compliant: Yes	Multiconductor Cable; Number of Conductors:2; Conductor Size AWG:18; No. Strands x Strand Size:7 x 26; Jacket Material:Polyvinylchloride (PVC); Leaded Process Compatible:Yes; Capacitance:30pF/ft; Conductor Material:Copper RoHS Compliant: Yes	Multiconductor Cable; Number of Conductors:2; Conductor Size AWG:18; No. Strands x Strand Size:7 x 26; Jacket Material:Polyvinylchloride (PVC); Leaded Process Compatible:Yes; Capacitance:30pF/ft; Conductor Material:Copper RoHS Compliant: Yes	RECTIFIER DIODE
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to
Maker	-	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]
Parts packaging code	-	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
package instruction	-	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	-	2	2	2	2	2
Reach Compliance Code	-	compliant	compliant	compliant	compli	compli
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	-	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	-	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	-	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
JEDEC-95 code	-	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	-	70 A	70 A	70 A	70 A	70 A
Number of components	-	1	1	1	1	1
Phase	-	1	1	1	1	1
Number of terminals	-	2	2	2	2	2
Maximum operating temperature	-	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	-	3 A	3 A	3 A	3 A	3 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	-	600 V	200 V	400 V	800 V	1000 V
Maximum reverse current	-	5 µA	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	-	0.25 µs	0.25 µs	0.25 µs	0.3 µs	0.3 µs
surface mount	-	NO	NO	NO	NO	NO
technology	-	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	-	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	-	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
