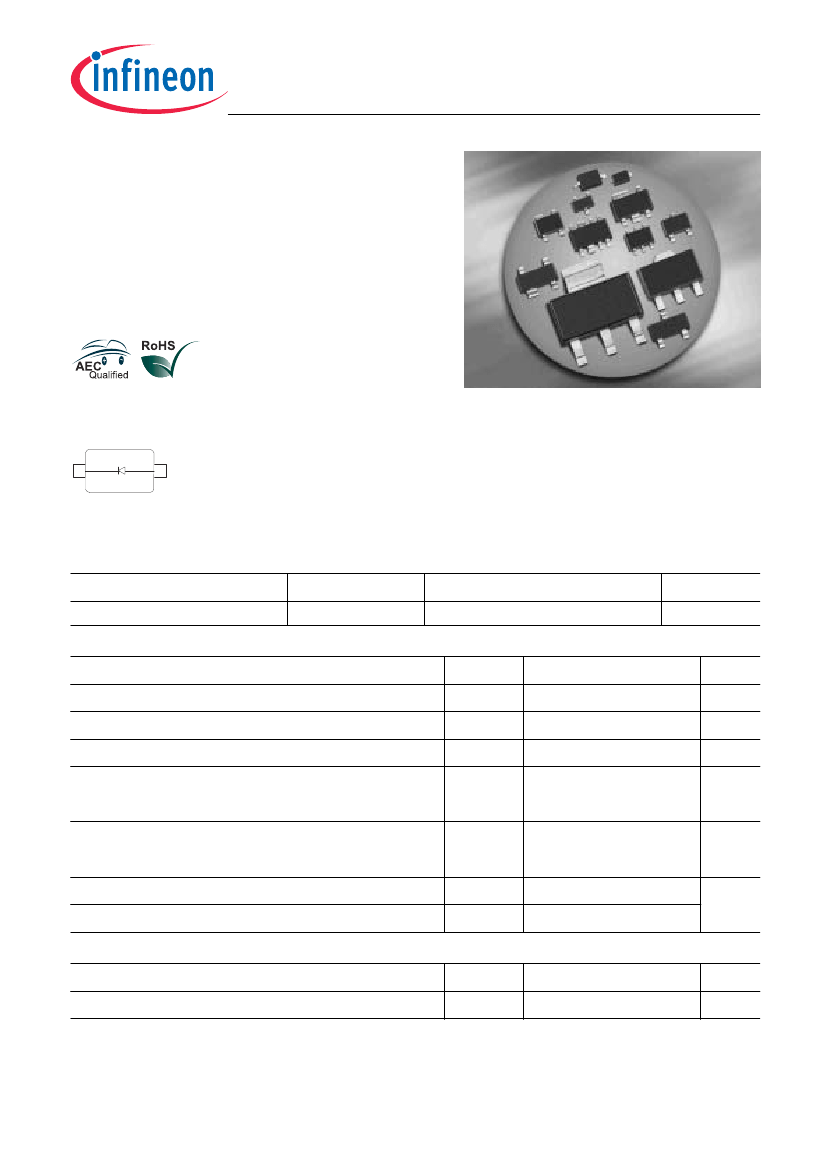

BAT165...
Medium Power AF Schottky Diode
•
Forward current: 750 mA
Reverse voltage: 40 V
•
For low-loss, fast-recovery, meter protection,
bias isolation and clamping applications
•
Pb-free (RoHS compliant) package
1)
•
Qualified according AEC Q101
BAT165
ESD
(Electrostatic
discharge)
sensitive device, observe handling precaution!
Type
BAT165
Parameter
Diode reverse voltage
2)
Forward current
2)
Package
SOD323
Configuration
single
Symbol
V
R
I
F
Value
40
750
500
2.5
600
150
-65 ... 150
Marking
C/White
Unit
V
mA
mA
A
mW
°C
Maximum Ratings
at
T
A
= 25°C, unless otherwise specified
Average rectified forward current (50/60Hz, sinus)
I
FAV
Non-repetitive peak surge forward current
I
FSM
(t
≤
10ms)
Total power dissipation
T
S
≤
93°C
Junction temperature
Storage temperature
Thermal Resistance
Parameter
Junction - soldering point
3)
1
Pb-containing
2
For
3
For
P
tot
T
j
T
stg
Symbol
R
thJS
Value
≤
95
Unit
K/W
package may be available upon special request
T
A
> 25°C the derating of
V
R
and
I
F
has to be considered. Please refer to the atteched curves.
calculation of
R
thJA
please refer to Application Note Thermal Resistance
1
2007-04-19
BAT165...

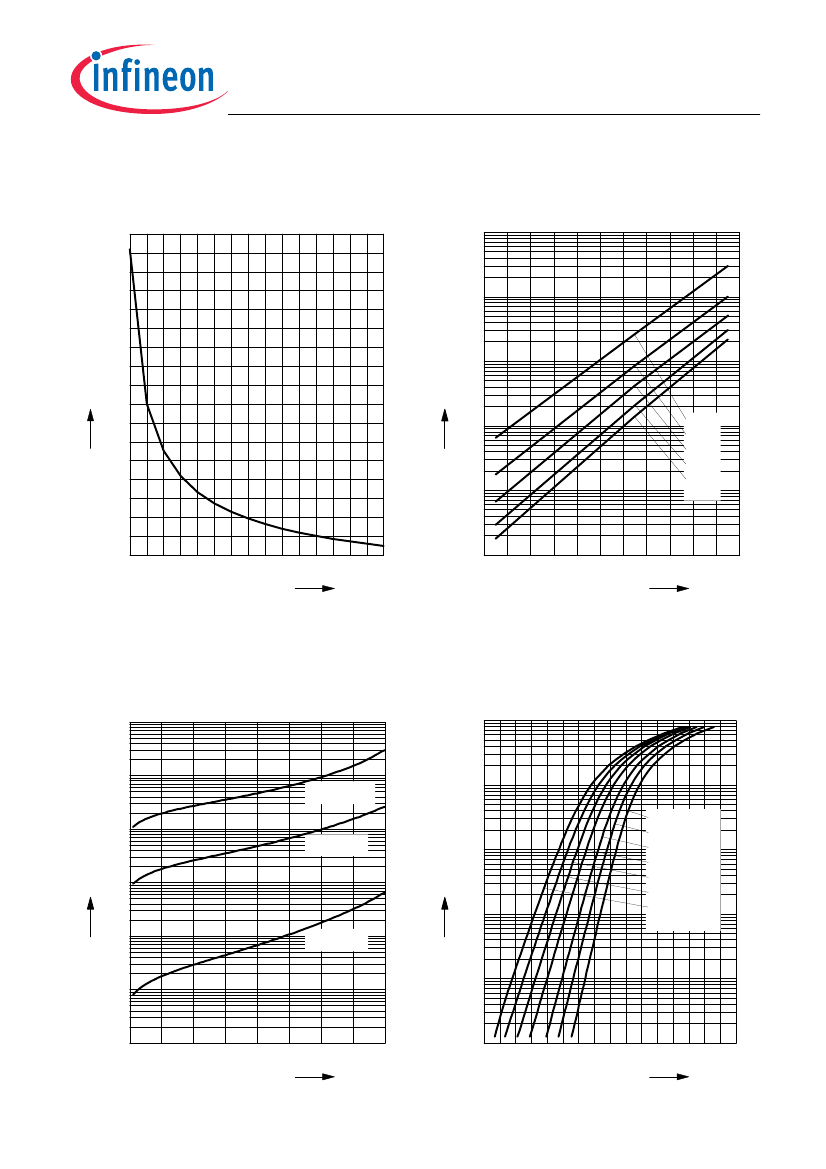

Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Parameter
Symbol
Values
min.
typ. max.
DC Characteristics
Reverse current
1)
I
R
V
R
= 30 V
V
R
= 40 V
V
R
= 40 V,
T
A
= 65 °C
Forward voltage
I
F
= 10 mA
I
F
= 100 mA
I
F
= 250 mA
I
F
= 750 mA
V
F
0.23
0.32
0.35
0.44
0.315
0.39
0.44
0.58
0.4
0.47
0.54
0.74
-
-
-
-
-
-
12
50
900
V
Unit
µA
AC Characteristics
Diode capacitance
V
R
= 10 V,
f
= 1 MHz
1
Pulsed
C
T
-
8.4
12
pF
test:
t
p
= 300 µs;
D
= 0.01
2
2007-04-19
BAT165...

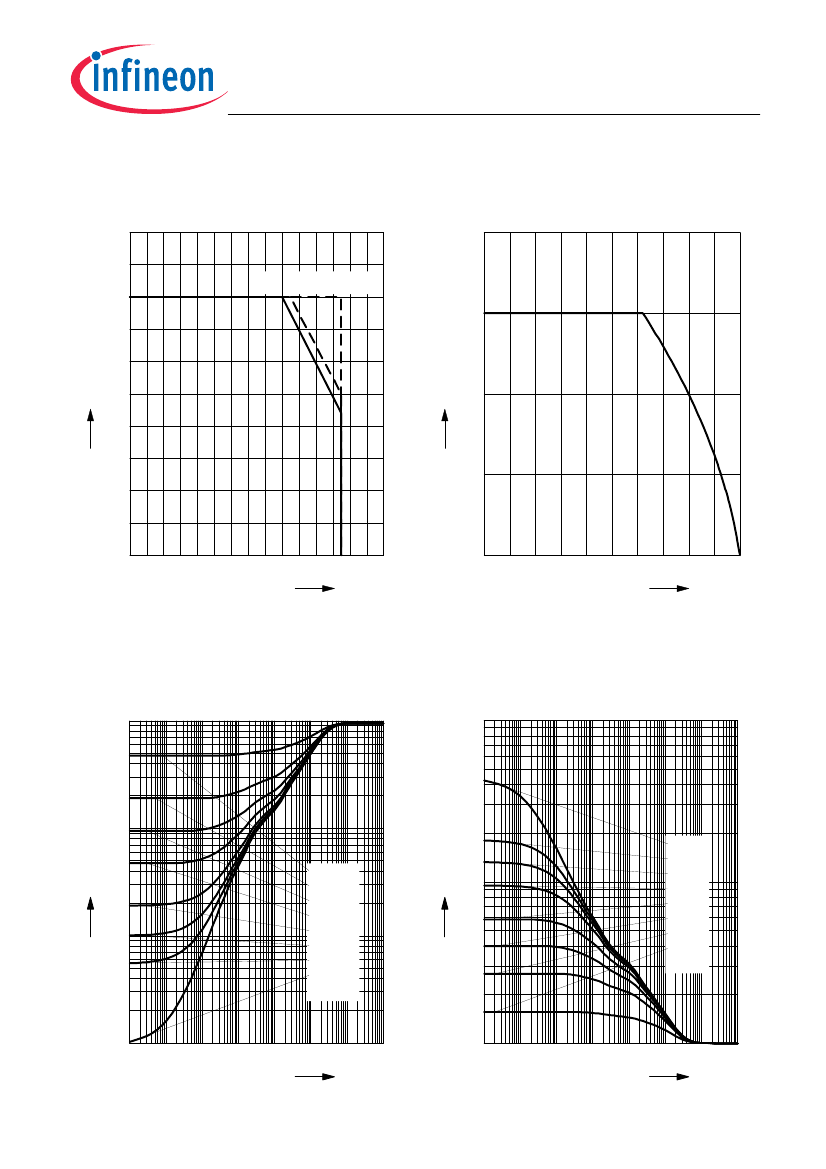

Permissible Reverse voltage
V
R
=
ƒ
(T
A
)
t
p
= Parameter, Duty cycle < 0.01
Device mounted on PCB with
R
th = 160 k/W
50
V
DC
100ms
300µs
mA
Forward current
I
F
=
ƒ
(T
S
)
1000
40
V
Rmax
35
30
25
20
15
250
10
5
0
0
0
0
I
F
500
120
°C
20
40
60
80
100
150
15
30
45
60
75
90 105 120
°C
150
T
A
T
S
Permissible Puls Load
R
thJS
=
ƒ
(t
p
)
Permissible Pulse Load
I
Fmax
/
I
FDC
=
ƒ
(t
p
)
10
2
10
2
10
1
I
Fmax
/I
FDC
-
R
thJS
10
0
D = 0.5
0.2
0.1
0.05
0.02
0.01
0.005
0
10
1
D=0
0.005
0.01
0.02
0.05
0.1
0.2
0.5
10
-1 -7
10
10
-6
10
-5
10
-4
10
-3
10
-2
s
10
0
10
0 -7
10
10
-6
10
-5
10
-4
10
-3
10
-2
s
10
0
t
p
t
p
4
2007-04-19
