IL-312-A80S-VF-A1-E3500 datasheet, PDF

Datasheet> All Categories > The connector> The connector> IL-312-A80S-VF-A1-E3500

IL-312-A80S-VF-A1-E3500: DescriptionBoard Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,; CategoryThe connector The connector; File Size165KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-312-A80S-VF-A1-E3500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IL-312-A80S-VF-A1-E3500	-	-	View	Buy Now

IL-312-A80S-VF-A1-E3500 Overview

Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,

IL-312-A80S-VF-A1-E3500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH EMBOSSED TAPE
body width	0.167 inch
subject depth	0.085 inch
body length	0.856 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.445 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

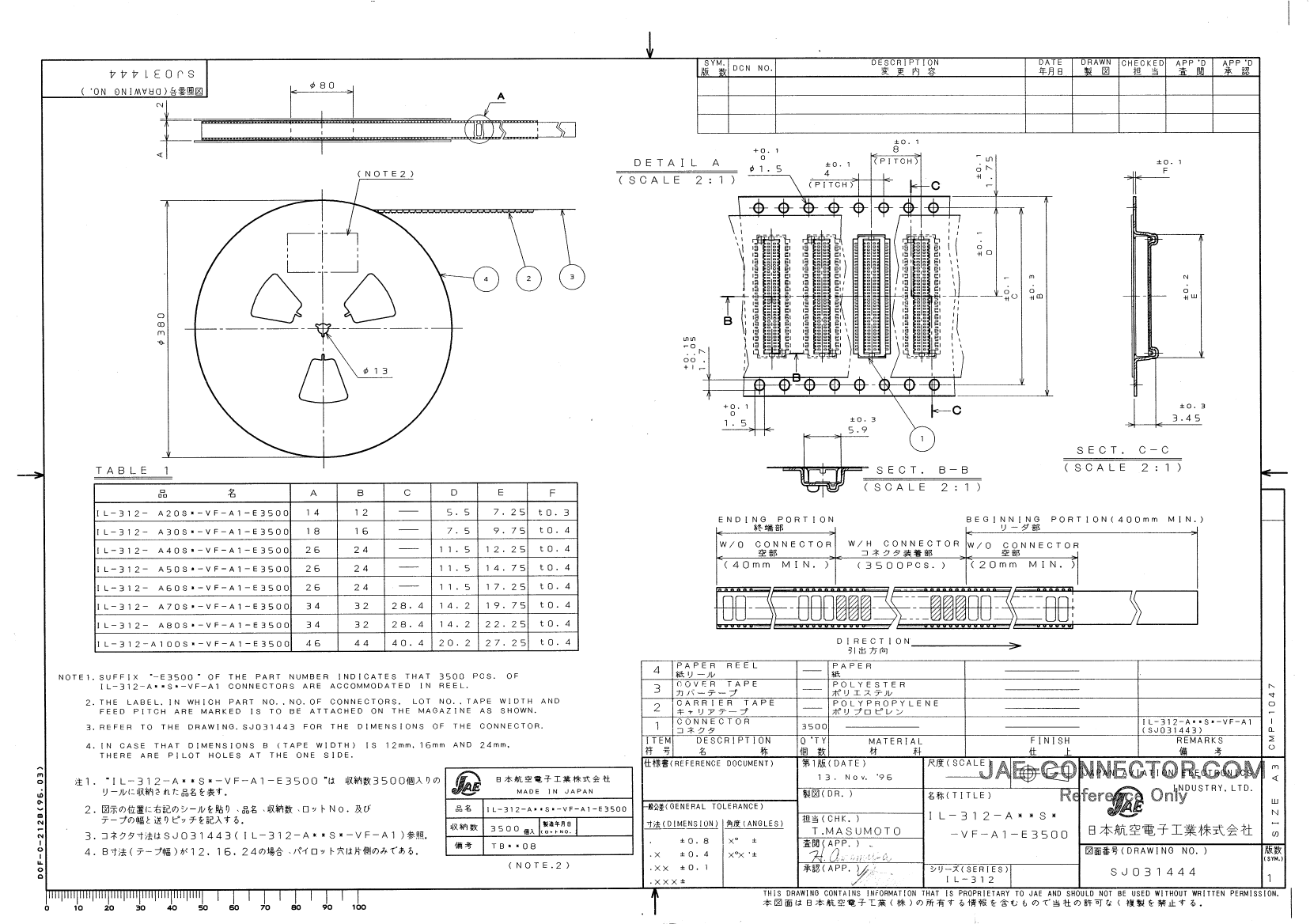

Preview

Download Datasheet

View All

IL-312-A80S-VF-A1-E3500 Related Products

	IL-312-A80S-VF-A1-E3500	IL-312-A100S-VF-A1-E3500	IL-312-A70S-VF-A1-E3500	IL-312-A20S-VF-A1-E3500	IL-312-A40S-VF-A1-E3500	IL-312-A50S-VF-A1-E3500	IL-312-A60S-VF-A1-E3500
Description	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,	Board Stacking Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,	Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug	Board Stacking Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug	Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH EMBOSSED TAPE	WITH EMBOSSED TAPE	WITH EMBOSSED TAPE	WITH EMBOSSED TAPE	WITH EMBOSSED TAPE	WITH EMBOSSED TAPE	WITH EMBOSSED TAPE
body width	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch
subject depth	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
body length	0.856 inch	1.053 inch	0.758 inch	0.266 inch	0.463 inch	0.561 inch	0.659 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.445 mm	4.445 mm	4.445 mm	4.445 mm	4.445 mm	4.445 mm	4.445 mm
Plating thickness	4u inch	4u inch	4u inch	4u inch	4u inch	4u inch	4u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	100	70	20	40	50	60
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	EAR99
Base Number Matches	-	1	1	1	1	1	1
