51441-0941 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51441-0941

51441-0941: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator; CategoryThe connector The connector; File Size248KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

51441-0941 Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator

51441-0941 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	ELV & ROHS COMPLAINT, T/R PKG
Board mount options	FITTING NAIL
body width	0.043 inch
subject depth	0.126 inch
body length	0.268 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

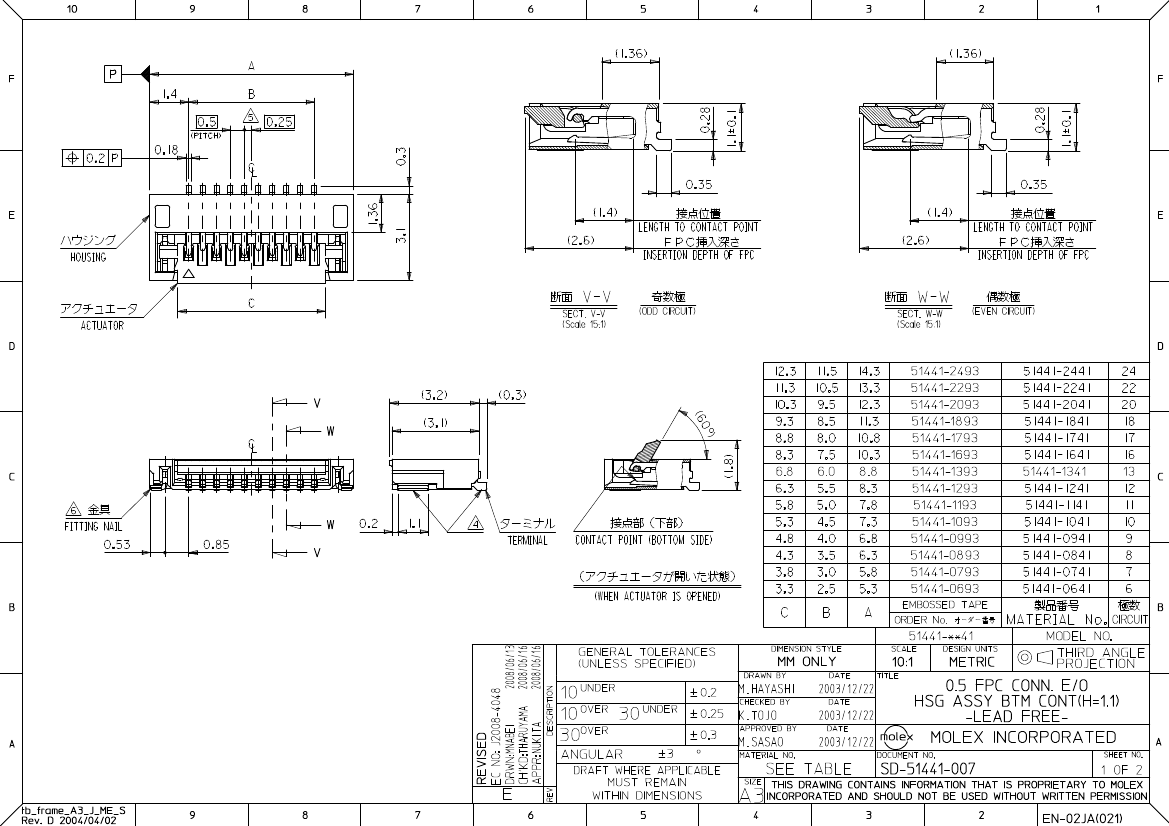

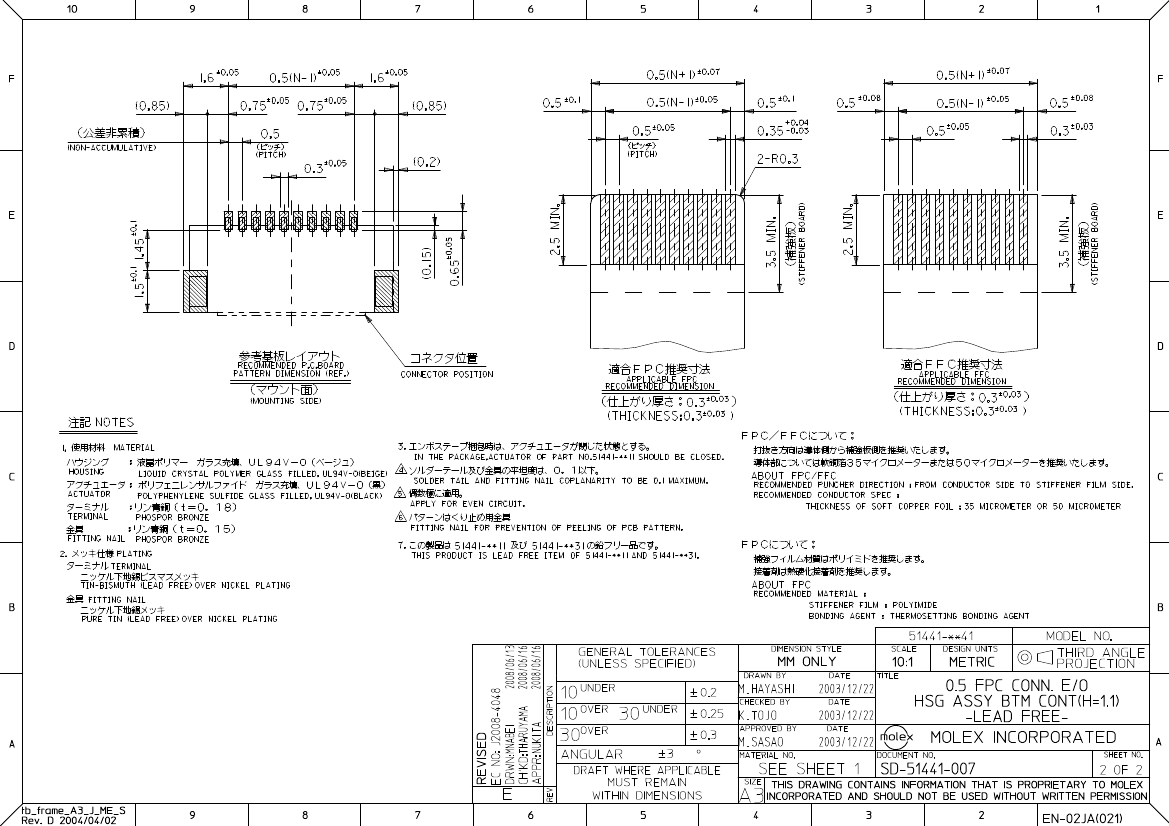

Preview

Download Datasheet

View All

51441-0941 Related Products

	51441-0941	51441-1393	51441-1141	51441-2441
Description	Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator	Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator,	Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator
Reach Compliance Code	unknown	compliant	unknown	unknown
Other features	ELV & ROHS COMPLAINT, T/R PKG	ELV & ROHS COMPLAINT, T/R PKG	ELV & ROHS COMPLAINT, T/R PKG	ELV & ROHS COMPLAINT, T/R PKG
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.043 inch	0.043 inch	0.043 inch	0.043 inch
subject depth	0.126 inch	0.126 inch	0.126 inch	0.126 inch
body length	0.268 inch	0.346 inch	0.307 inch	0.563 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI	NOT SPECIFIED	SN-BI ON NI	SN-BI ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	13	11	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N
Maker	Molex	-	Molex	Molex
