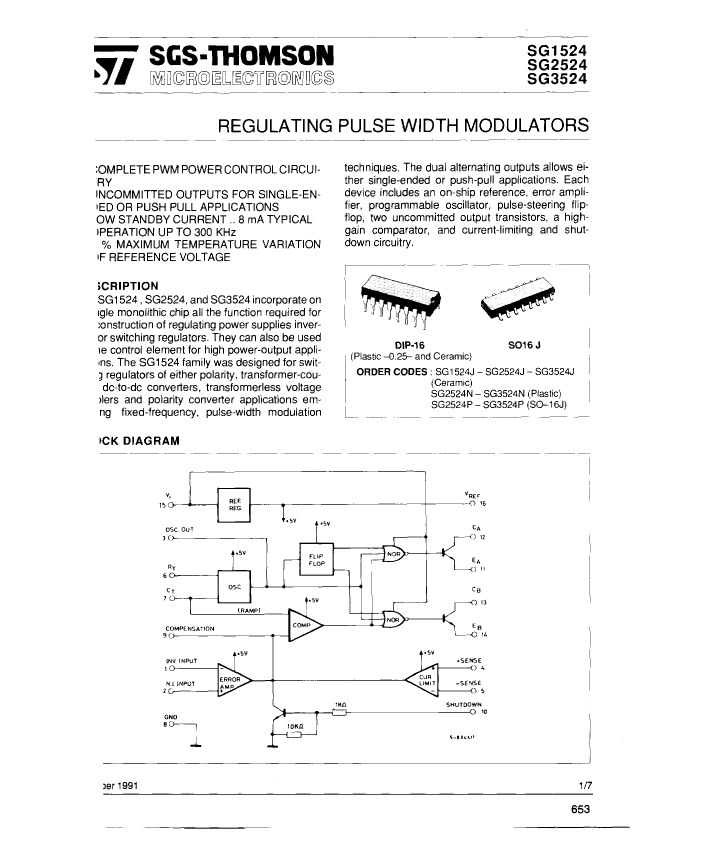

0.1A SWITCHING CONTROLLER, 300kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16

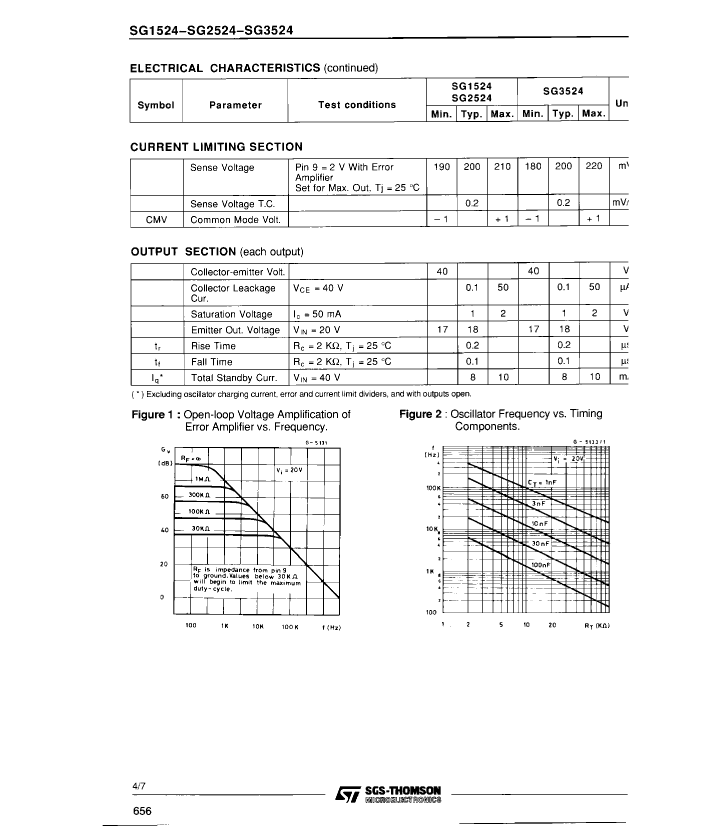

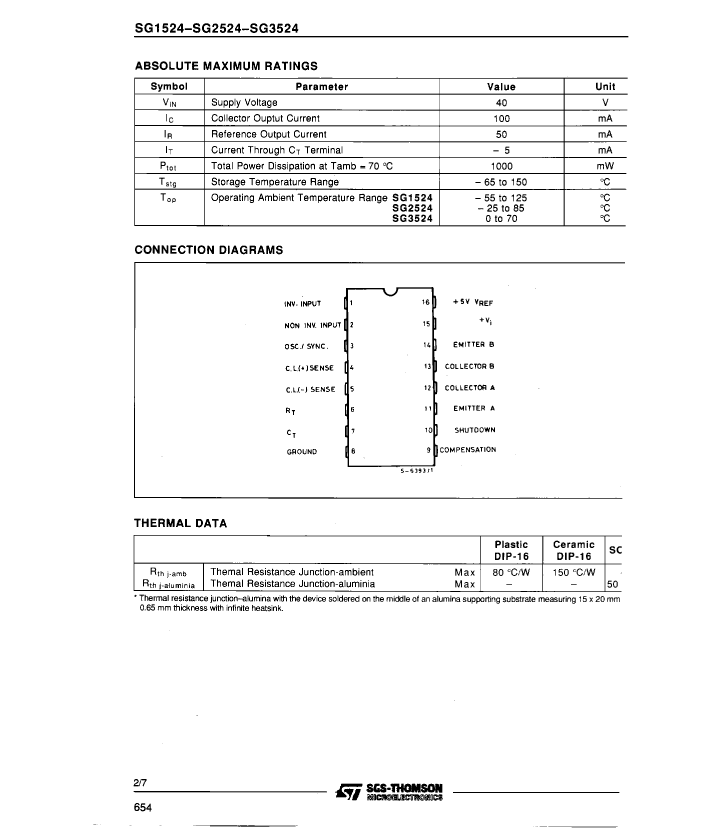

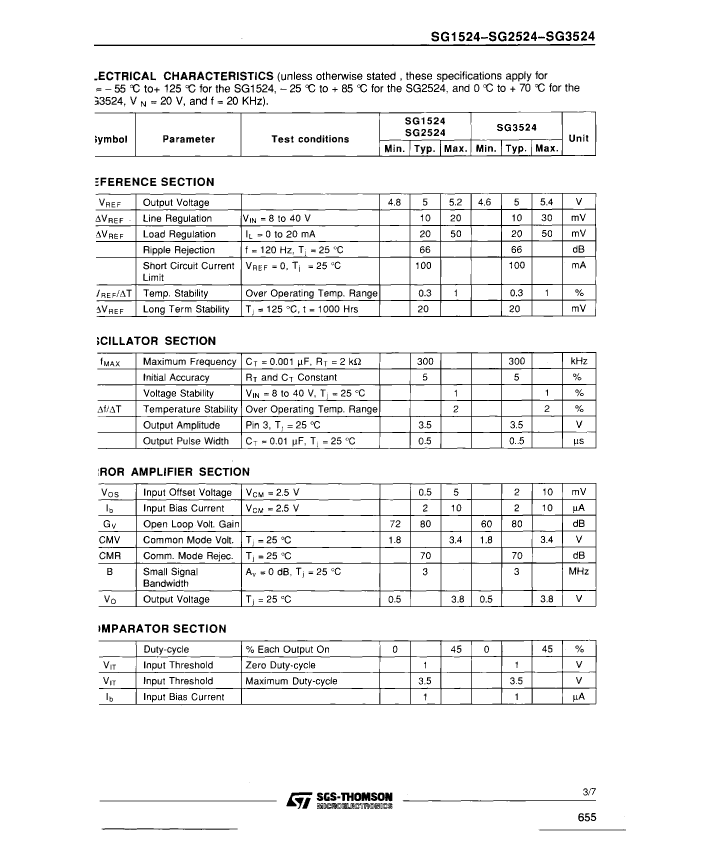

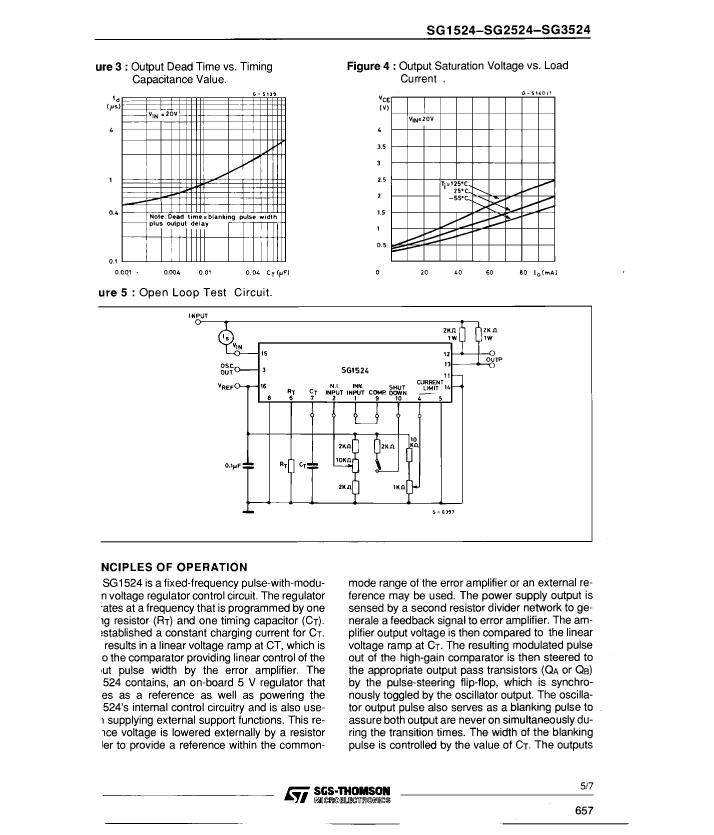

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | STMicroelectronics |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING CONTROLLER |
| control mode | VOLTAGE-MODE |
| Control Technology | PULSE WIDTH MODULATION |
| Maximum input voltage | 40 V |
| Minimum input voltage | 8 V |
| Nominal input voltage | 20 V |
| JESD-30 code | R-CDIP-T16 |
| JESD-609 code | e0 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 0.1 A |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| surface mount | NO |
| Switch configuration | PUSH-PULL |
| Maximum switching frequency | 300 kHz |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SG1524J | SG3524J | SG2524J | |
|---|---|---|---|
| Description | 0.1A SWITCHING CONTROLLER, 300kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16 | 0.1A SWITCHING CONTROLLER, 300kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16 | 0.1A SWITCHING CONTROLLER, 300kHz SWITCHING FREQ-MAX, CDIP16, CERAMIC, DIP-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Contacts | 16 | 16 | 16 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER |
| control mode | VOLTAGE-MODE | VOLTAGE-MODE | VOLTAGE-MODE |
| Control Technology | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION |
| Maximum input voltage | 40 V | 40 V | 40 V |
| Minimum input voltage | 8 V | 8 V | 8 V |
| Nominal input voltage | 20 V | 20 V | 20 V |
| JESD-30 code | R-CDIP-T16 | R-CDIP-T16 | R-CDIP-T16 |
| JESD-609 code | e0 | e0 | e0 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 70 °C | 85 °C |
| Minimum operating temperature | -55 °C | - | -25 °C |
| Maximum output current | 0.1 A | 0.1 A | 0.1 A |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO |
| Switch configuration | PUSH-PULL | PUSH-PULL | PUSH-PULL |
| Maximum switching frequency | 300 kHz | 300 kHz | 300 kHz |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | COMMERCIAL | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | STMicroelectronics | - | STMicroelectronics |
| Part Number | Manufacturer | Description |
|---|---|---|
| SG3524BN | Microchip(微芯科技) | Switching Controller, Voltage-mode, 0.2A, 600kHz Switching Freq-Max, BIPolar, PDIP16 |
| UC1524AJ | Texas Instruments(德州仪器) | Advanced Regulating Pulse Width Modulators 16-CDIP -55 to 125 |
| CA2524E | Rochester Electronics | 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, PDIP16, PACKAGE-16 |
| SG2524N | Texas Instruments(德州仪器) | Regulating Pulse-Width Modulator 16-PDIP -25 to 85 |
| SG1524BJ | Microchip(微芯科技) | Switching Controller, Voltage-mode, 0.2A, 600kHz Switching Freq-Max, BIPolar, CDIP16 |
| LM3524DN | National Semiconductor（TI ） | Regulating Pulse Width Modulator |
| SG1524J | Linfinity Microelectronics | Switching Controller, Voltage-mode, 0.1A, 300kHz Switching Freq-Max, BIPolar, CDIP16, CERAMIC, DIP-16 |
| UC2524J | Texas Instruments(德州仪器) | Advanced Regulating Pulse Width Modulators 16-CDIP -25 to 85 |
| SG3524BJ | Microsemi | regulating pulse width modulator |
| CA3524E | Thomson Consumer Electronics | Switching Regulator/Controller |
| SG1524J/883 | Linear ( ADI ) | IC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, HERMETIC SEALED, CERDIP-16, Switching Regulator or Controller |
| LM2524DN | Texas Instruments(德州仪器) | Switching Voltage Regulators |
| UC2524N | Texas Instruments(德州仪器) | Switching Controllers Advanced Regulating |
| SG1524J#PBF | Linear ( ADI ) | IC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, LEAD FREE, CERAMIC, DIP-16, Switching Regulator or Controller |
| UC2524AN | ST(意法半导体) | 0.00002A DUAL SWITCHING CONTROLLER, PDIP16, PLASTIC, DIP-16 |
| SG3524F | NXP(恩智浦) | IC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, CERDIP-16, Switching Regulator or Controller |
