HMM03-A05P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HMM03-A05P

HMM03-A05P: DescriptionD Microminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size304KB，3 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

HMM03-A05P Overview

D Microminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug

HMM03-A05P Parametric

Parameter Name	Attribute value
Maker	HiRel Connectors Inc
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-83513
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	HMM03
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	A
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

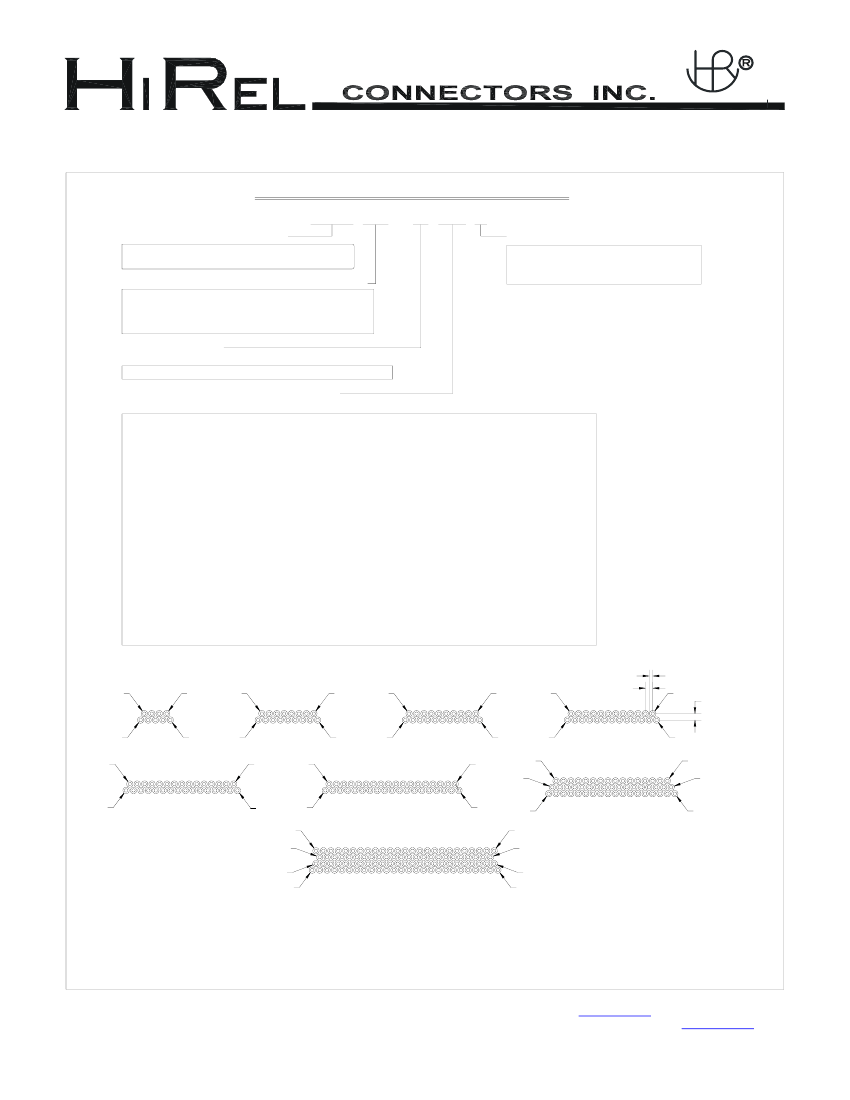

MICROMINIATURE – MIL-DTL-83513 Metal Connectors

HMM01 THRU 04

–

PRE-WIRED AND SOLDER CUP TERMINATIONS

HIRELCO PART NUMBER CODE

HMM 0* - * ** *

HIRELCO CONNECTOR SERIES

HMM - MILITARY MICRO D-SUBMINIATURE

(DESIGNS PER M83513 SPECIFICATION)

CONNECTOR TYPE, GENDER, & TERMINATION

01 - METAL SHELL PLUG, SOLDER CUP <1>

02 - METAL SHELL RECEPTACLE, SOLDER CUP <1>

03 - METAL SHELL PLUG, PRE-WIRED

04 - METAL SHELL RECEPTACLE, PRE-WIRED

CONNECTOR SIZE

(NUMBER OF CONTACTS)

A=9, B=15, C=21, D=25, E=31, F=37, G=51 & H=100

WIRE LENGTH, TYPE, COLOR OR FINISH

(OMIT FOR HMM01 AND HMM02)

01- 18.00 INCHES LONG PER M22759/11-26-9

02- 36.00 INCHES LONG PER M22759/11-26-9

03- 18.00 INCHES LONG PER M22759/11-26,

FIRST 10 COLORS BLK THRU WHT REPEATS

04- 36.00 INCHES LONG PER M22759/11-26,

FIRST 10 COLORS BLK THRU WHT REPEATS

05- 0.50 INCHES LONG, #25 AWG, SOLID PER

A-A-59551, TYPE S, GOLD PLATED,

10 MICRO INCHES THK

06- 1.00 INCHES LONG, #25 AWG, SOLID PER

A-A-59551, TYPE S, GOLD PLATED,

10 MICRO INCHES THK

07- 0.50 INCHES LONG, #25 AWG, SOLID PER

A-A-59551, TYPE S, TIN PLATED

100 MICRO INCHES THK

08- 1.00 INCHES LONG, #25 AWG, SOLID PER

A-A-59551, TYPE S, TIN PLATED

100 MICRO INCHES THK

09- 18.00 INCHES LONG PER M22759/33-26-9

10- 36.00 INCHES LONG PER M22759/33-26-9

11- 18.00 INCHES LONG PER M22759/33-26

FIRST 10 COLORS BLK THRU WHT REPEATS

12- 36.00 INCHES LONG PER M22759/33-26

FIRST 10 COLORS BLK THRU WHT REPEATS

13- 72.00 INCHES LONG PER M22759/11-26-9

14- 72.00 INCHES LONG PER M22759/11-26

FIRST 10 COLORS BLK THRU WHT REPEATS

15- 72.00 INCHES LONG PER M22759/33-26-9

16- 72.00 INCHES LONG PER M22759/33-26

FIRST 10 COLORS BLK THRU WHT REPEATS

SHELL FINISH (& MATERIAL)

C - CADMIUM (ALUMINUM)

N - ELECTROLESS NICKEL (ALUMINUM)

P - PASSIVATED (STAINLESS STEEL)

<1> - CONNECTOR TYPE UNAVAILABLE AT TIME OF PRINTING. CONTACT FACTORY FOR LATEST PRODUCT AVAILABILITY.

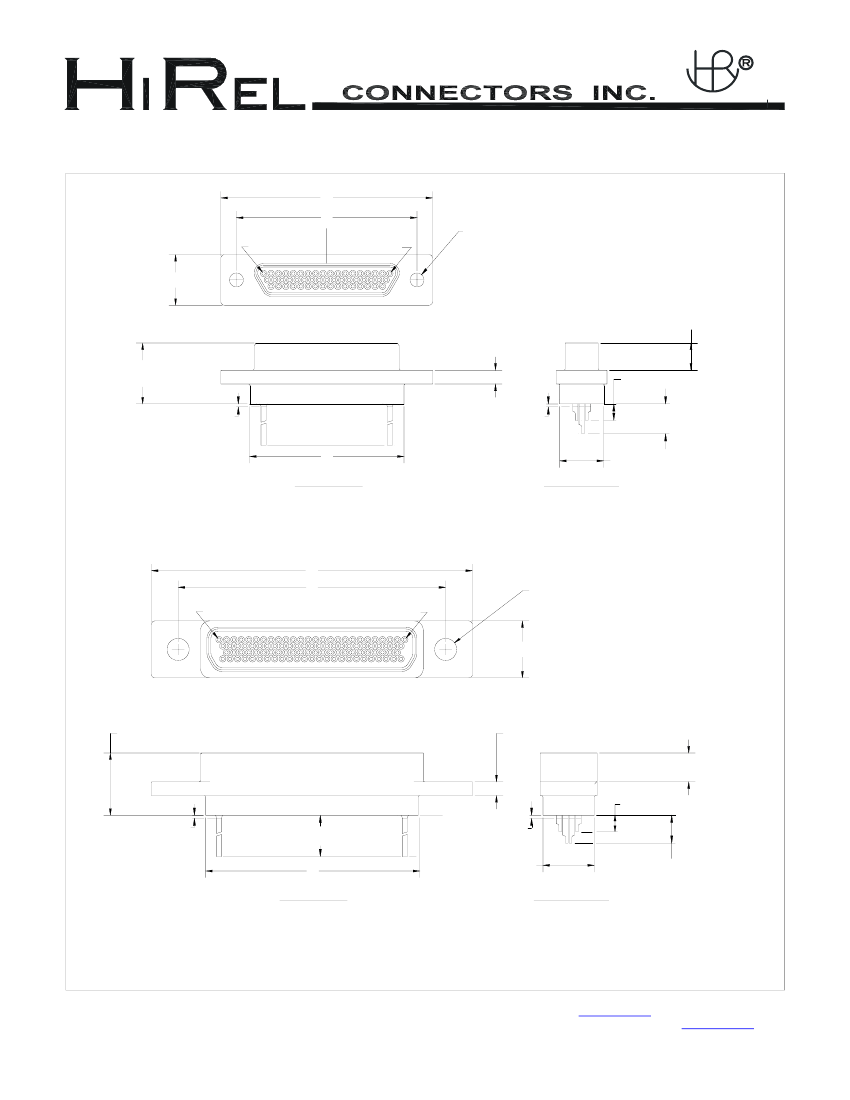

.050 TYP

(ALL SIZES)

.025 TYP

(ALL SIZES)

.043 TYP

(ALL SIZES)

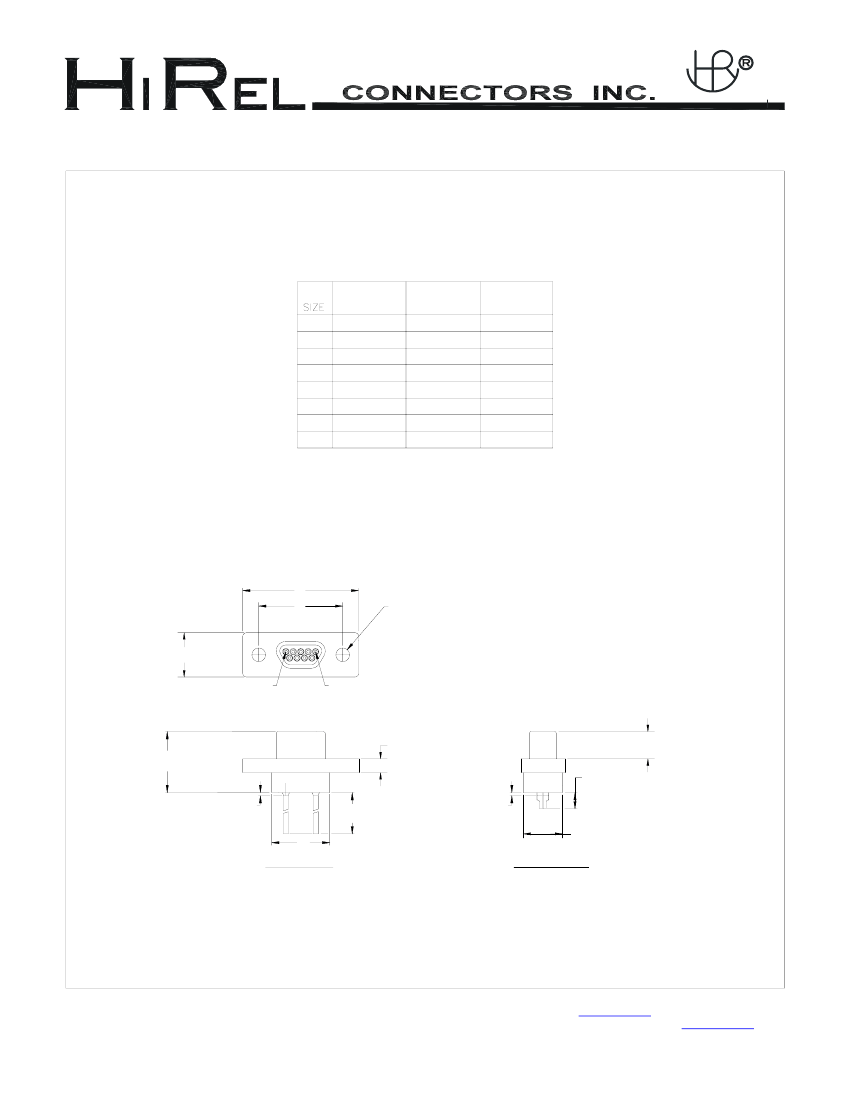

9 CONTACTS

15 CONTACTS

21 CONTACTS

25 CONTACTS

31 CONTACTS

100

37 CONTACTS

51 CONTACTS

100 CONTACTS

(FACE VIEW OF PIN INSERT SHOWN, REVERSE ORDER FOR SOCKET SIDE)

SEE HMM05 IN THE HARDWARE AND ACCESSORIES SECTION FOR M83513/05 CONNECTOR HARDWARE INFORMATION

SEE THE FIRST PAGE OF THIS SECTION FOR PERFORMANCE, MATERIAL, AND PLATING INFORMATION

CONTACT ARRANGEMENTS

United States

– 760 W. Wharton Drive, Claremont CA. 91711

▪

Ph: 909-626-1820

▪

FAX: 909-399-0626

▪

Web:

www.HIRELCO.com

Europe

–

5 Rue Des Longues Raies, Z.I. Des Garennes, 78440; Gargenville, France

▪

Ph: 33(0) 1-309-38999 or U.K. 44(0)1-980-843887

▪

FAX 33(0) 1-309-38913

▪

Web:

www.HIRELCO.com
