EURO
QUARTZ
14 pin DIL package compatible
Frequency range: 9.6MHz to 26.0MHz
Supply voltage 3.0 or 5.0 Volts
Customized specifications available
EM38S Series TCXO
Clipped Sinewave 14 pin DIL compatible

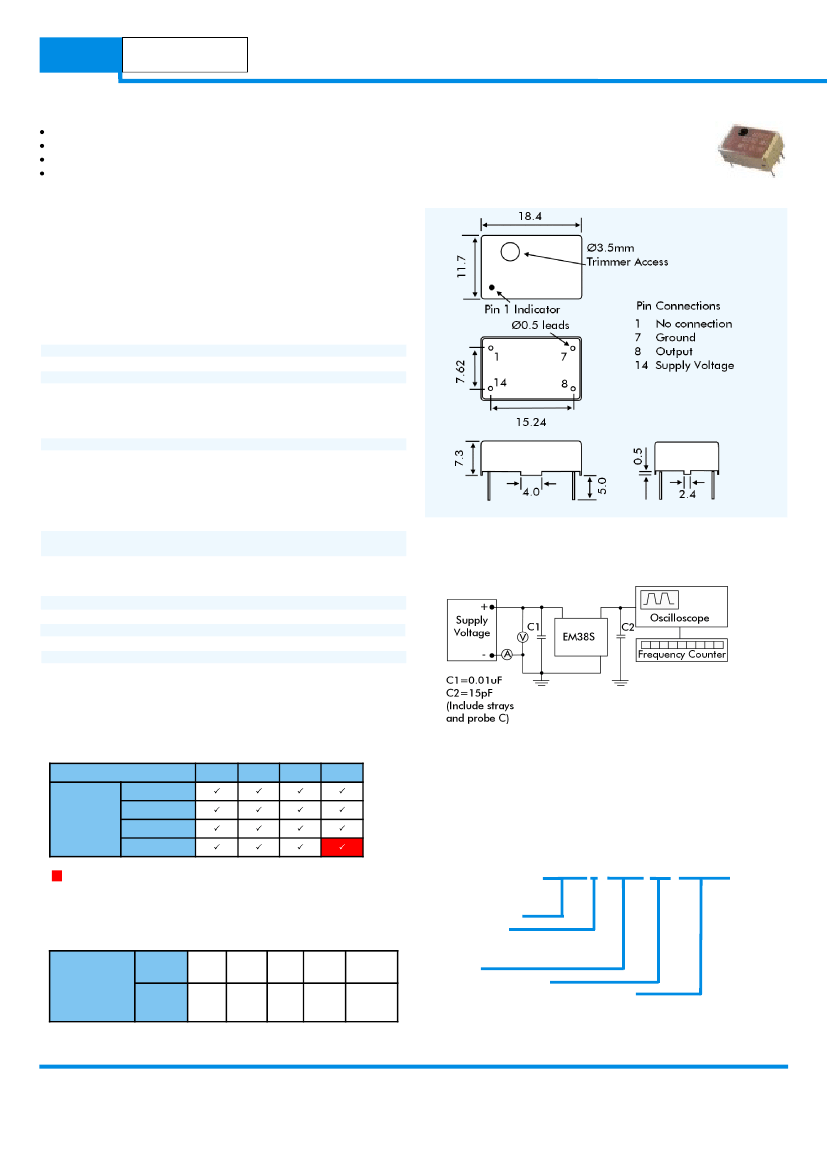

EM38S - OUTLINES AND DIMENSIONS
DESCRIPTION
EM38S series TCXOs are packaged in the industry-standard 14 pin
Dual-in-Line package. With Clipped Sinewave output, tolerances are
available from ±1.0ppm over 0° to 50°C to ±1ppm over -30° to
+70°C. Supply voltage 3.0 or 5.0 Volts.
SPECIFICATION
Product Series Code:
Frequency Range:
Output Waveform:
Standard Frequencies:
EM38S
9.6MHz to 26.0MHz
Clipped Sinewave
9.6, 10.0, 12.80, 13.0, 14.40,
15.36, 16.384, 19.200,
19.44 and 19.68MHz.
(Partial
list)
See table
See table
±1.0 ppm max. first year
±0.3 ppm max. ±5% change
±0.3 ppm max. ±10% change
±1ppm max. for one reflow
(Measured after 24 hours)
+3.0 VDC (Code ‘3’)
+5.0 VDC (Code ‘5’)
EM38S - TEST CIRCUIT
0.8V peak-peak
1.0V peak-peak
10ms max.
see table
10kOhm//15pF
See table
-50° to +100°C
Operating Temperature Range:
Frequency Stability:
vs. Ageing:
vs. Voltage Change:
vs. Load Change:
vs. Reflow:
Supply Voltage:
Output Voltage Levels
3.0 Volt supply:
5.0 Volt supply:
Start-up Time:
Current Consumption:
Output Load:
SSB Phase Noise:
Storage Temperature:
FREQUENCY STABILITY
Frequency Stability (ppm)
0 ~ +50
Operating
Temperature
Range (°C)
-10 ~ +60
-20 ~ +70
-30 ~ +75
±1.0
±1.5
±2.0
±2.5
EM38S - PART NUMBERING PROCEDURE
Example:
= standard specification
EM38S3-19.44-2.5/-30+75
PHASE NOISE (Example: EM38S at 10.0MHz)
Offset
(Hz)
SSB Phase Noise
at 25°C
EM38S
10MHz
(dBc/Hz)
10
100
1k
10k
100k
-72
-110
-125
-132
-125
Series Description
Supply Voltage
3 = 3.0 VDC
5 = 5.0 VDC
Frequency
Stability over OTR (ppm)
Operating Temperature Range (OTR) (°C)
