PCSV80-101M-RC: Description1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size70KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCSV80-101M-RC Overview

1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD

PCSV80-101M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	3232
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	3232
DC Resistance	0.34 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

RoHS

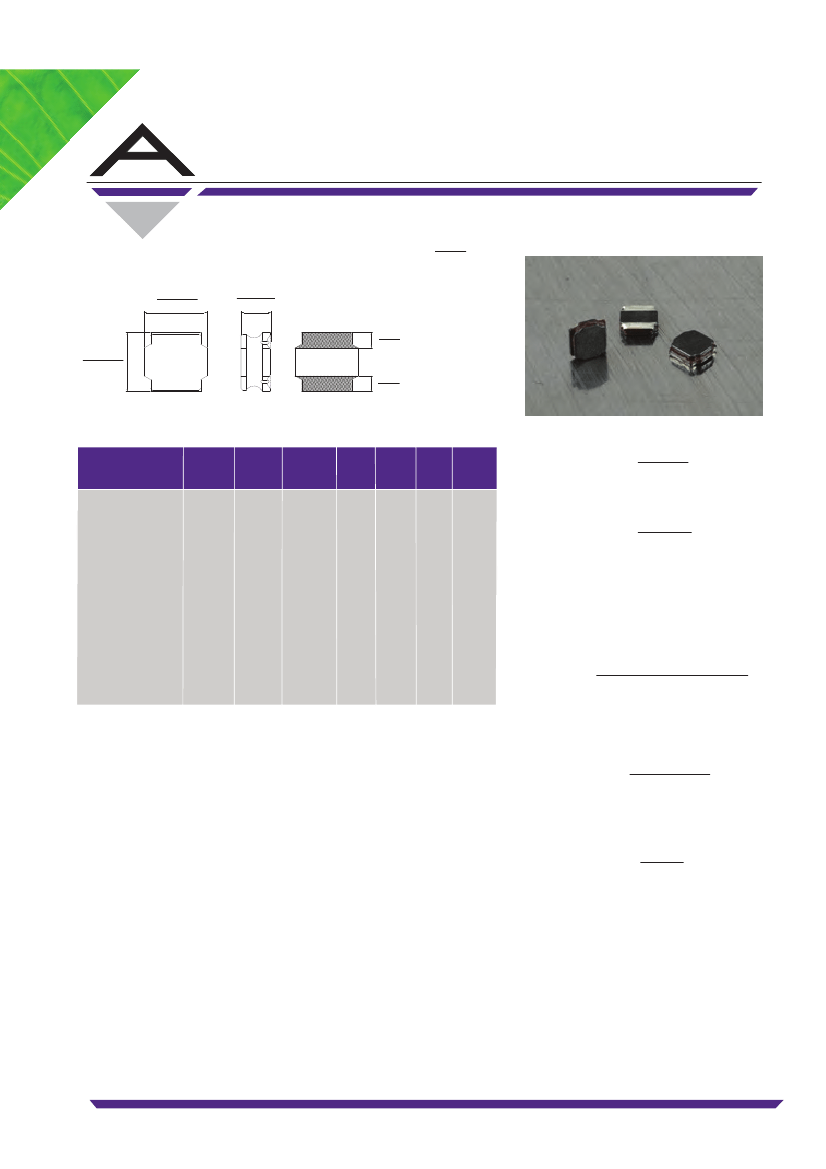

SMD SHIELDED POWER CHIP INDUCTOR

PCSV80

Dimensions:

Inches

(mm)

.315±.008

(8.0±0.2)

.177 Max

(4.2 Max)

.083

(2.1)

XXX

.315±.008

(8.0±0.2)

.083

(2.1)

Allied

Part

Number

Inductance Tolerance

(

µh)

(%)

Test

Freq.

KHz, 1V

RDC

(Ω)

±30%

Isat

(mA)

Typ.

Irms

(mA)

Typ.

Features

Marking

• Magnetically Shielded Construction

• Low Profile

Electrical

Inductance Range:

0.9µh ~ 100µh (other

values being added)

Tolerance:

Available in 20% & 30%

Operating Temp:

-25ºC ~ +105ºC

Isat:

Current at which the Inductance will drop

by no more then 30% of its initial value.

Irms:

Based on a temp rise of

∆

T = 40ºC

typical.

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for 10 sec

PCSV80-R90M-RC

PCSV80-1R4M-RC

PCSV80-2R0M-RC

PCSV80-3R3M-RC

PCSV80-4R7M-RC

PCSV80-6R8M-RC

PCSV80-100M-RC

PCSV80-150M-RC

PCSV80-220M-RC

PCSV80-330M-RC

PCSV80-470M-RC

PCSV80-680M-RC

PCSV80-101M-RC

0.9

1.4

2.0

3.3

4.7

6.8

10

15

22

33

47

68

100

20

100

7

9

11

15

18

25

38

50

80

110

160

240

340

13.8

10.8

9.6

7.5

6

5.4

4.3

3.6

2.8

2.3

1.9

1.7

1.4

8.05

7.80

7.40

6

5.5

5.1

3.8

3.2

2.6

2

1.75

1.45

1.1

R90

1R4

2R0

3R3

4R7

6R8

100

150

220

330

470

680

101

All specifications subject to change without notice.

Test Equipment

(L):

HP4284A

(RDC):

Chroma MilliOhm Meter Mode 16502

Current:

HP4284A + HP42841A

Physical

Packaging:

1K per Tape and reel

Marking:

EIA Inductance Code

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

10/08/10

15

www.alliedcomponents.com
