D3SB20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D3SB20

D3SB20: Description2.3 A, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size485KB，3 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D3SB20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D3SB20	-	-	View	Buy Now

D3SB20 Overview

2.3 A, SILICON, BRIDGE RECTIFIER DIODE

D3SB20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SECOS
Reach Compliance Code	compliant
Minimum breakdown voltage	200 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	2.3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Reverse test voltage	200 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

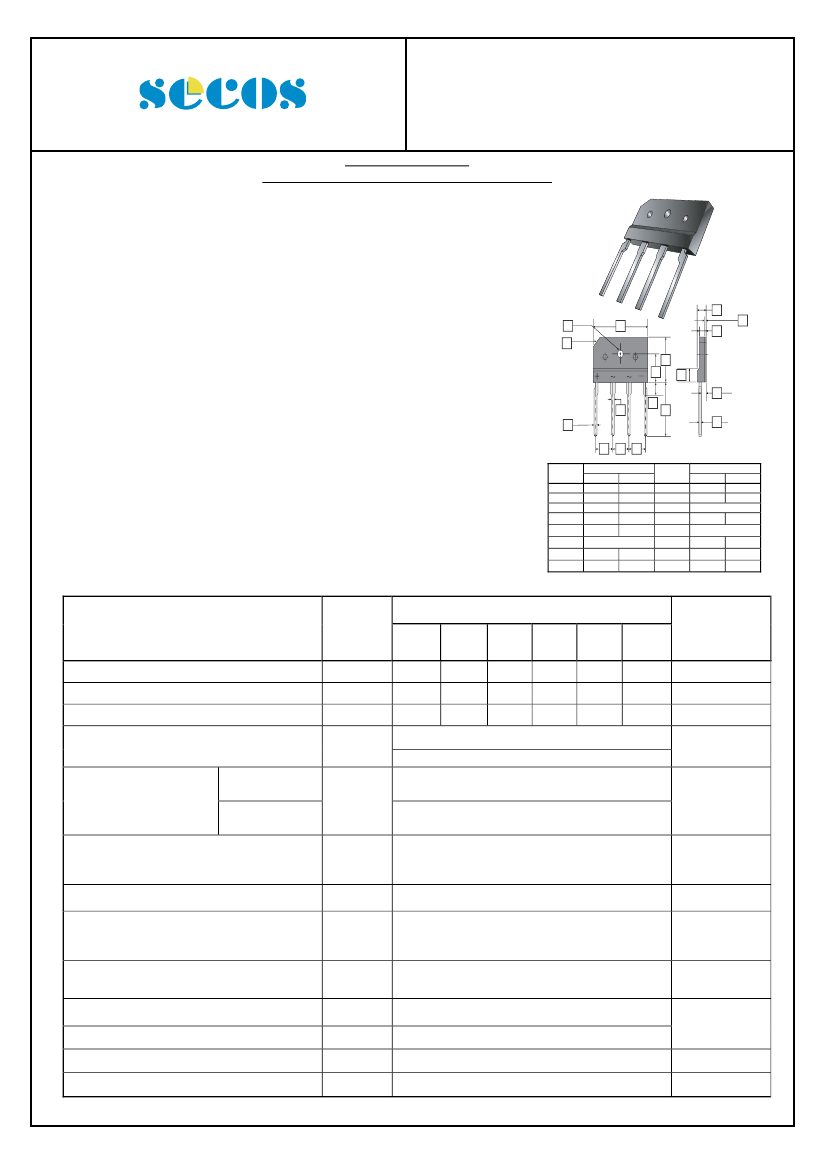

D3SB10 ~ D3SB100

Elektronische Bauelemente

100 V ~ 1000 V

4.0 Amp High Current Glass Passivated

Molding Single-Phase Bridge Rectifier

RoHS Compliant Product

A suffix of “-C” specifies halogen-free and RoHS Compliant

D3-4SB

FEATURES



Plastic Package has Underwriters

Laboratory Flammability Classification 94V-0

High current capacity with small package

Glass passivated chip junctions

Superior thermal conductivity

High IFSM

L L L

REF.

Millimeter

Min.

Max.

24.7

25.3

14.7

15.3

4.58

4.62

17.0

18.0

0.50

0.90

4.50 REF.

3.50

3.90

9.3

9.7

REF.

Millimeter

Min.

Max.

2.50

2.90

7.30

7.70

3 X 45°

0.90

1.10

1.50 REF.

3.00

3.40

0.8

1.2

3.0

4.0

MAXIMUM RATINGS (T

=25℃ unless otherwise noted)

PART NUMBERS

PARAMETERS

Maximum repetitive voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum DC reverse current at @T

=25°C

rated DC blocking voltage

=125°C

With heatsink

Maximun average forward T

=100°C

rectified output current at Without heatsink

=40°C

Peak Forward Surge Current 8.3ms single half

sine-wave superimposed on rated load

Rating of fusing (t < 8.3ms)

Maximum Instantaneous

Forward Voltage @ 2.0A

Dielectric strength terminals to case, AC 1

minute Current 1mA

Maximum thermal on P.C.B without heat-sink

Resistance per leg on AI plate heat-sink

Operating and Storage Temperature Range

Mounting torque

http://www.SeCoSGmbH.com/

SYMBOL

RRM

RMS

D3SB

100

D3SB

200

140

200

D3SB D3SB

400

600

280

400

500

4.0

420

600

D3SB

800

560

800

D3SB

100

1000

700

1000

UNITS



2.3

FSM

l2t

Vdia

θJA

θJC

, T

STG

Tor

150

1.1

2.5

4.2

150 , -55 ~ 150

Rating Torque：0.8

A2sec

°C / W

°C

N.m

Any changes of specification will not be informed individually.

05-Aug-2010 Rev. A

Page 1 of 2

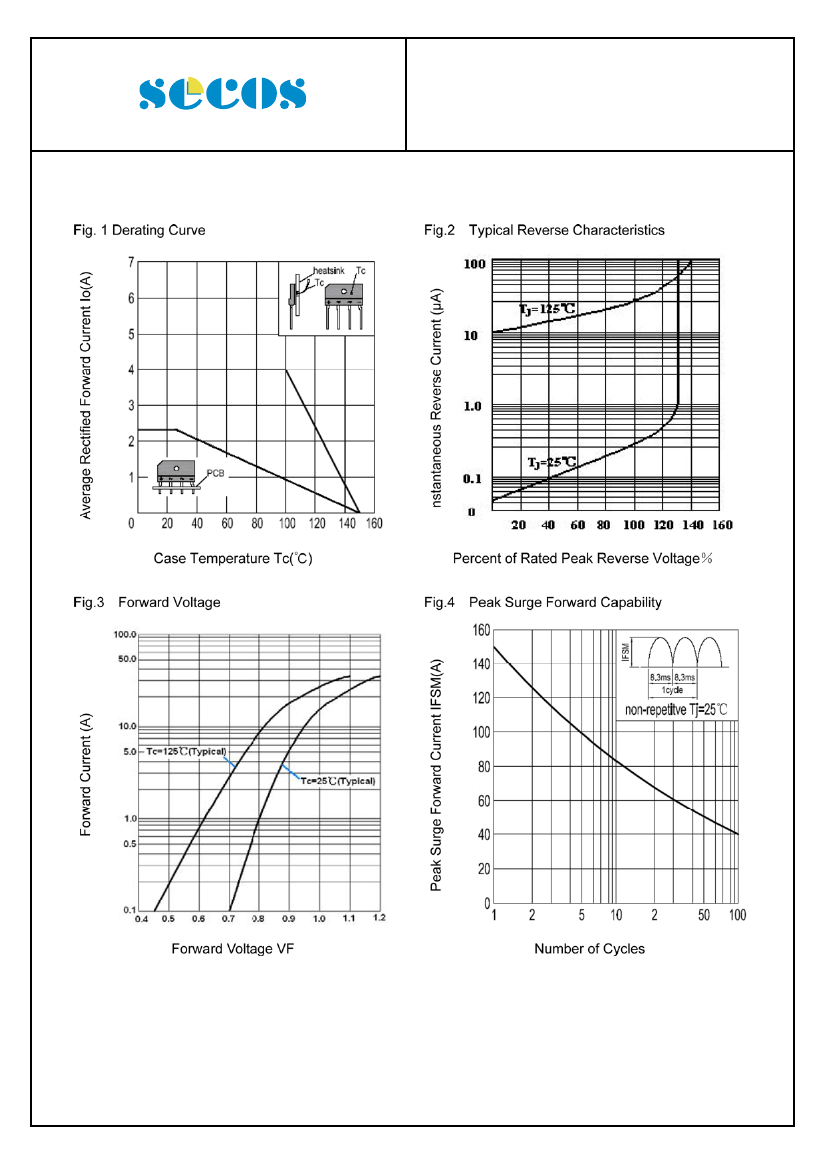

D3SB20 Related Products

	D3SB20	D3SB10	D3SB60	D3SB40	D3SB80	D3SB100
Description	2.3 A, SILICON, BRIDGE RECTIFIER DIODE	2.3 A, SILICON, BRIDGE RECTIFIER DIODE	2.3 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	2.3 A, SILICON, BRIDGE RECTIFIER DIODE	2.3 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE	2.3 A, SILICON, BRIDGE RECTIFIER DIODE
Reach Compliance Code	compliant	compliant	compli	compli	compli	compliant
Is it Rohs certified?	conform to	conform to	conform to	-	-	conform to
Maker	SECOS	SECOS	SECOS	-	-	SECOS
Minimum breakdown voltage	200 V	100 V	600 V	-	-	1000 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	-	-	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	-	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	-	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	-	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	-	-	1.1 V
JESD-30 code	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	-	-	R-PSFM-T4
Maximum non-repetitive peak forward current	150 A	150 A	150 A	-	-	150 A
Number of components	4	4	4	-	-	4
Phase	1	1	1	-	-	1
Number of terminals	4	4	4	-	-	4
Maximum operating temperature	150 °C	150 °C	150 °C	-	-	150 °C
Maximum output current	2.3 A	2.3 A	2.3 A	-	-	2.3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	-	FLANGE MOUNT
Maximum repetitive peak reverse voltage	200 V	100 V	600 V	-	-	1000 V
Maximum reverse current	10 µA	10 µA	10 µA	-	-	10 µA
Reverse test voltage	200 V	100 V	600 V	-	-	1000 V
surface mount	NO	NO	NO	-	-	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	-	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	-	-	SINGLE
Base Number Matches	1	-	-	1	1	1
