DSX321S-FREQ-CL1 datasheet, PDF

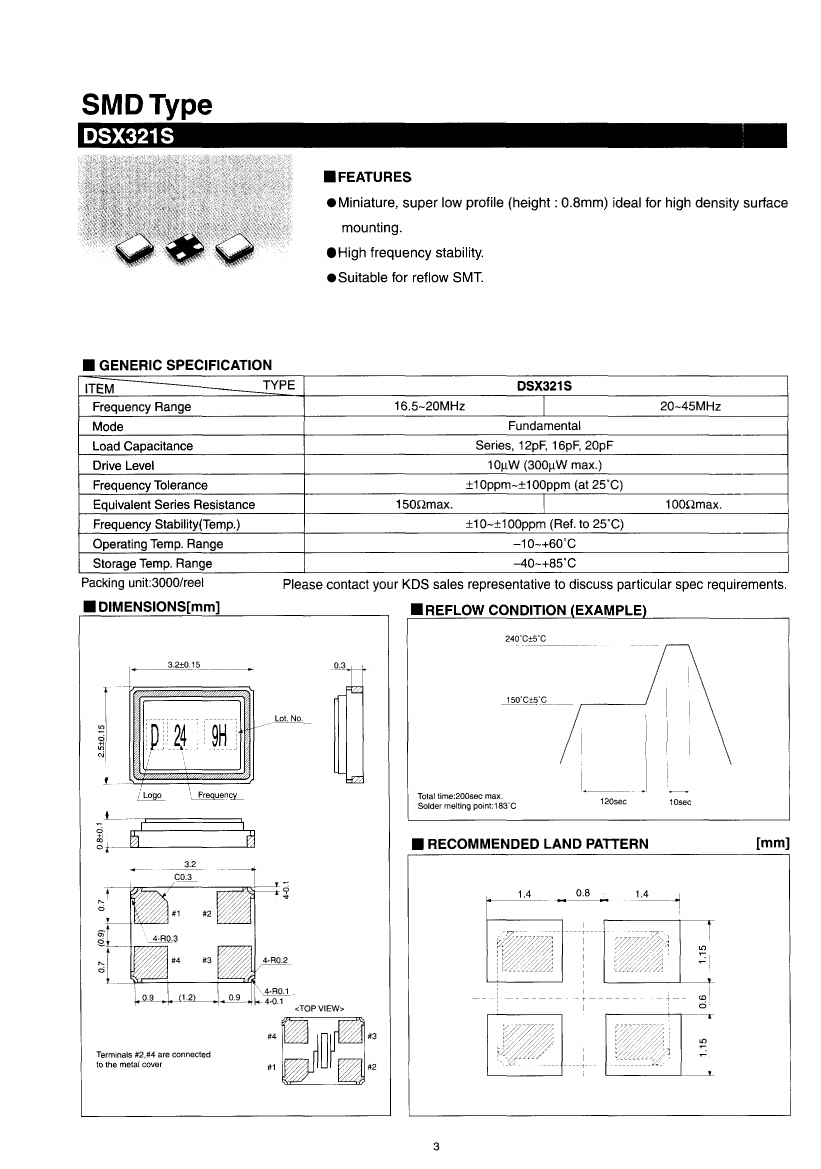

DSX321S-FREQ-CL1: DescriptionParallel - Fundamental Quartz Crystal, 16.5MHz Min, 45MHz Max; CategoryPassive components Crystal/resonator; File Size103KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/

Download Datasheet Parametric Compare View All

DSX321S-FREQ-CL1 Overview

Parallel - Fundamental Quartz Crystal, 16.5MHz Min, 45MHz Max

Parameter Name	Attribute value
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	100 ppm
load capacitance	12 pF
Manufacturer's serial number	DSX321S
Installation features	SURFACE MOUNT
Maximum operating frequency	45 MHz
Minimum operating frequency	16.5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L3.2XB2.5XH0.8 (mm)
surface mount	YES

	DSX321S-FREQ-CL1	DSX321S-FREQ-CL3	DSX321S-FREQ1-SR	DSX321S-FREQ2-SR	DSX321S-FREQ-CL2
Description	Parallel - Fundamental Quartz Crystal, 16.5MHz Min, 45MHz Max	Parallel - Fundamental Quartz Crystal, 16.5MHz Min, 45MHz Max	Series - Fundamental Quartz Crystal, 16.5MHz Min, 20MHz Max	Series - Fundamental Quartz Crystal, 20MHz Min, 45MHz Max	Parallel - Fundamental Quartz Crystal, 16.5MHz Min, 45MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.01%	0.01%	0.01%	0.01%	0.01%
frequency tolerance	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm
Manufacturer's serial number	DSX321S	DSX321S	DSX321S	DSX321S	DSX321S
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	45 MHz	45 MHz	20 MHz	45 MHz	45 MHz
Minimum operating frequency	16.5 MHz	16.5 MHz	16.5 MHz	20 MHz	16.5 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L3.2XB2.5XH0.8 (mm)	L3.2XB2.5XH0.8 (mm)	L3.2XB2.5XH0.8 (mm)	L3.2XB2.5XH0.8 (mm)	L3.2XB2.5XH0.8 (mm)
surface mount	YES	YES	YES	YES	YES
load capacitance	12 pF	20 pF	-	-	16 pF
Base Number Matches	-	1	1	1	-
