MHR63FGJFREQ1 datasheet, PDF - EEWORLD Datasheet

MHR63FGJFREQ1: DescriptionHCMOS Output Clock Oscillator, 50.001MHz Min, 67MHz Max, J LEADED PACKAGE-4; CategoryPassive components oscillator; File Size55KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MHR63FGJFREQ1 Overview

HCMOS Output Clock Oscillator, 50.001MHz Min, 67MHz Max, J LEADED PACKAGE-4

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	MHR
Installation features	SURFACE MOUNT
Maximum operating frequency	67 MHz
Minimum operating frequency	50.001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	5 TTL, 30 pF
physical size	14.0mm x 9.8mm x 4.7mm
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Silver (Ag)

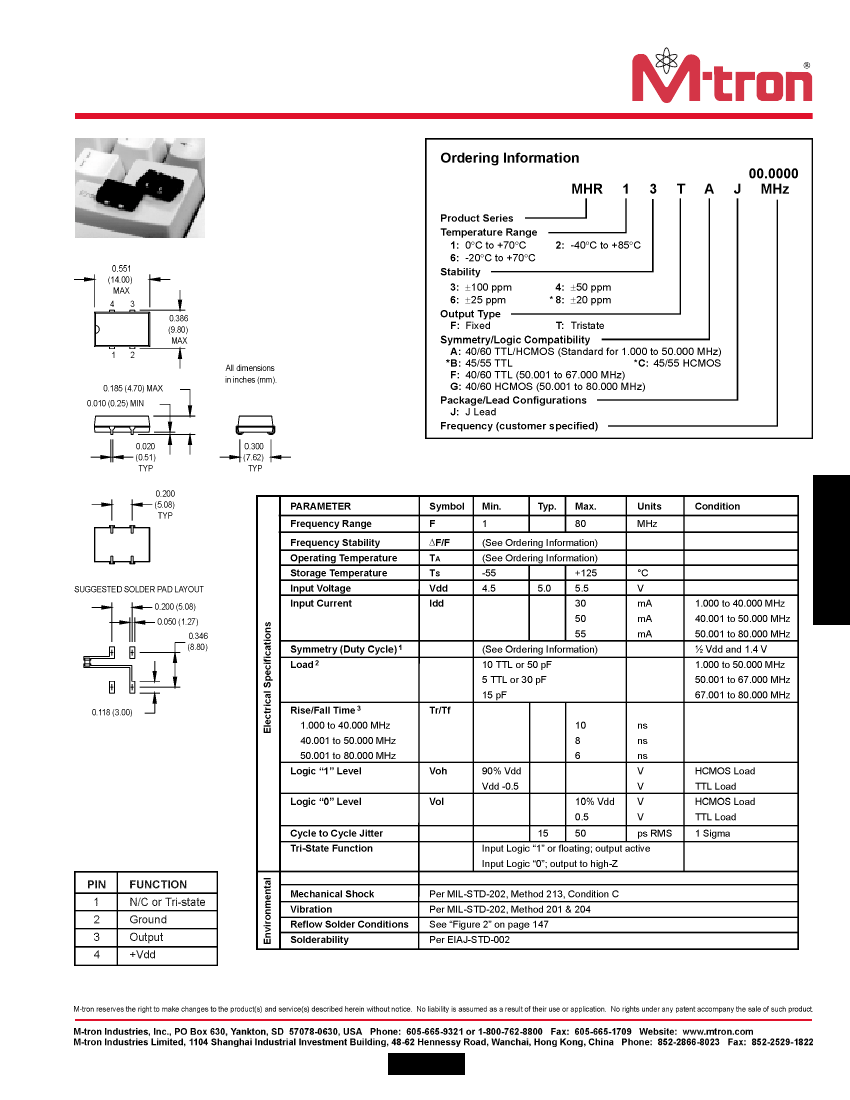

MHR Series

9x14 mm, 5.0 Volt, HCMOS/TTL, Clock Oscillators

* Consult factory regarding availability of “B” and “C” symmetry codes, and “8” stability code.

NOTE:

A capacitor of value 0.01

µF

or greater between Vdd and

Ground is recommended.

Pin Connections

1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

2. TTL load - See load circuit diagram #1 on page 148. HCMOS load - See load circuit diagram #2 on page 148.

2. Rise/fall times are measured between 0.5 V and 2.4 V for TTL load, and between 10% and 90% Vdd for HCMOS load.

109
