UT1553BBCRTMW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UT1553BBCRTMW

UT1553BBCRTMW: DescriptionSerial IO/Communication Controller, CMOS, CQFP84,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，51 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric Compare View All

UT1553BBCRTMW Overview

Serial IO/Communication Controller, CMOS, CQFP84,

UT1553BBCRTMW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Aeroflex
package instruction	QFF, QFL84,1.2SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQFP-F84
JESD-609 code	e0
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QFF
Encapsulate equivalent code	QFL84,1.2SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	50 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD

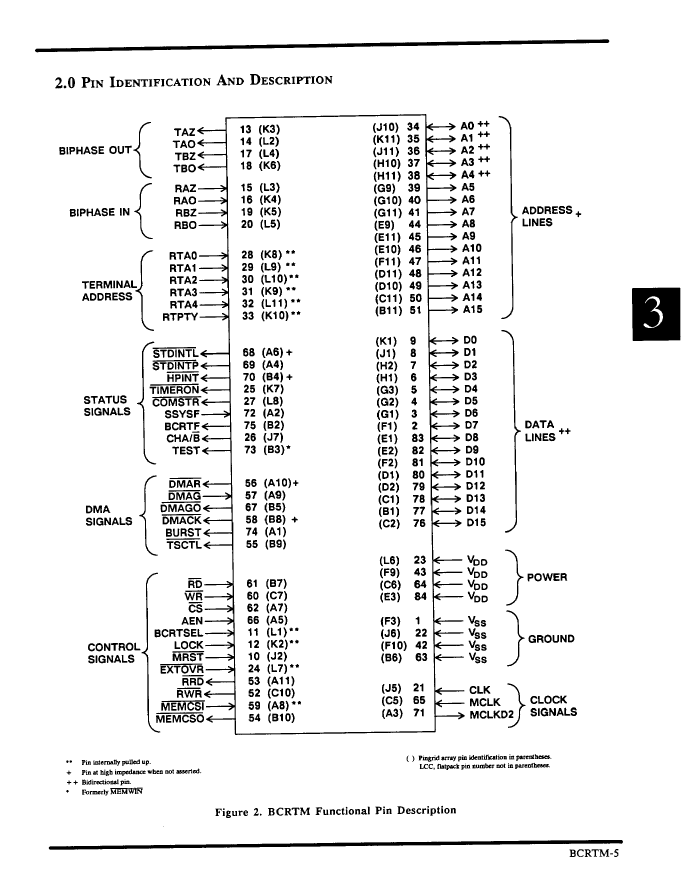

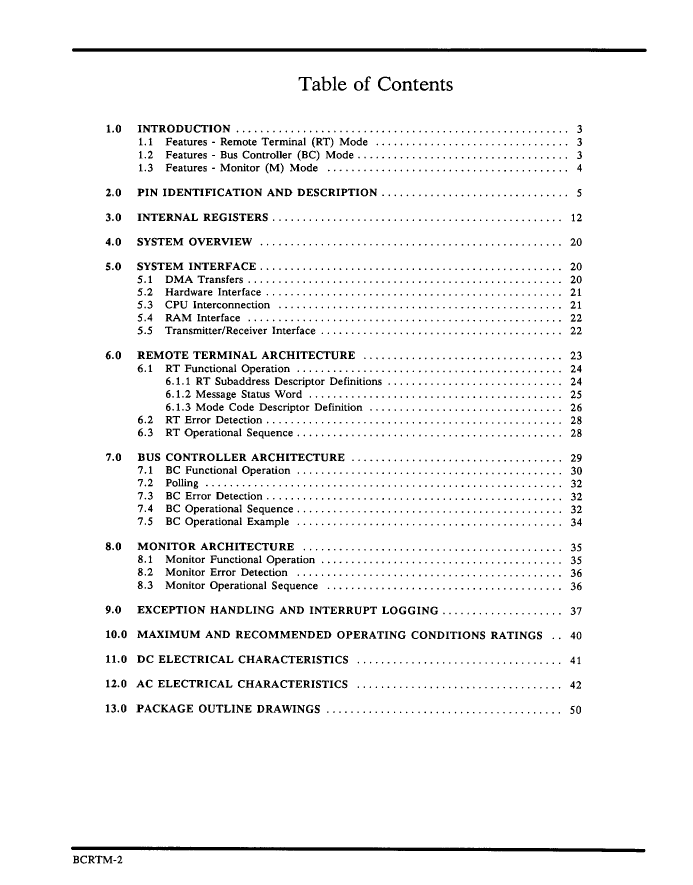

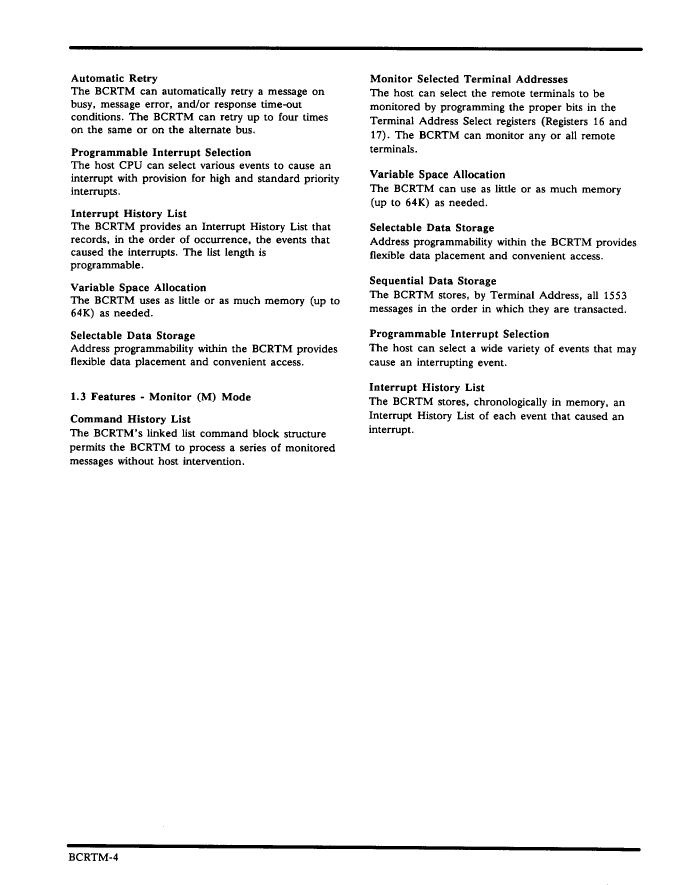

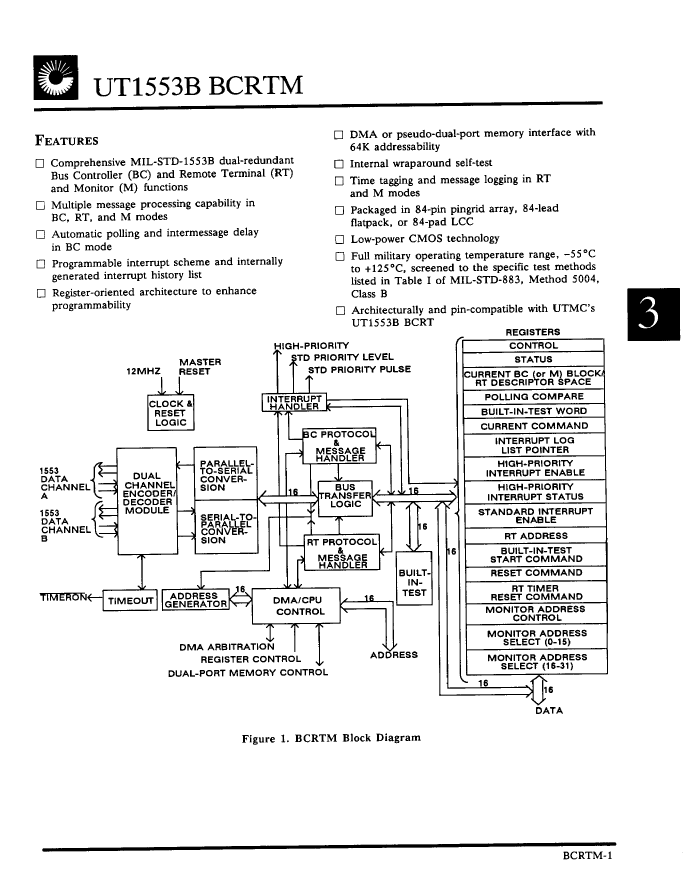

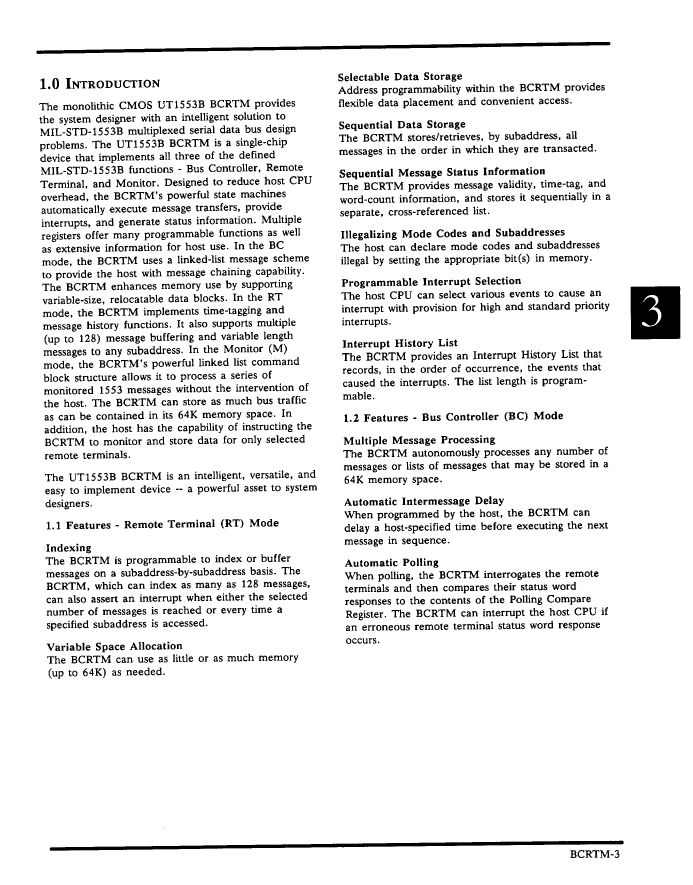

UT1553BBCRTMW Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UT1553BBCRTMW Related Products

	UT1553BBCRTMW	UT1553BBCRTMA	UT1553BBCRTMG	UT1553BCRTMA	UT1553BCRTMG	UT1553BCRTMW
Description	Serial IO/Communication Controller, CMOS, CQFP84,	Serial IO/Communication Controller, CMOS, CQCC84,	Serial IO/Communication Controller, CMOS, CPGA84,	Serial IO/Communication Controller, CMOS, CQCC84,	Serial IO/Communication Controller, CMOS, CPGA84,	Serial IO/Communication Controller, CMOS, CQFP84,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex
package instruction	QFF, QFL84,1.2SQ	QCCN, LCC84,1.2SQ	PGA, PGA84M,11X11	QCCJ, LDCC84,1.2SQ	PGA, PGA84M,11X11	QFF, QFL84,1.2SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-XQFP-F84	S-XQCC-N84	S-XPGA-P84	S-XQCC-J84	S-XPGA-P84	S-XQFP-F84
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	84	84	84	84	84	84
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QFF	QCCN	PGA	QCCJ	PGA	QFF
Encapsulate equivalent code	QFL84,1.2SQ	LCC84,1.2SQ	PGA84M,11X11	LDCC84,1.2SQ	PGA84M,11X11	QFL84,1.2SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	GRID ARRAY	CHIP CARRIER	GRID ARRAY	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum slew rate	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	PIN/PEG	J BEND	PIN/PEG	FLAT
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	PERPENDICULAR	QUAD	PERPENDICULAR	QUAD
