HGT1S1N120CNDS datasheet, PDF - EEWORLD Datasheet

HGT1S1N120CNDS: DescriptionInsulated Gate Bipolar Transistor, 1A I(C), 1200V V(BR)CES, N-Channel, TO-263AB; CategoryDiscrete semiconductor The transistor; File Size400KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

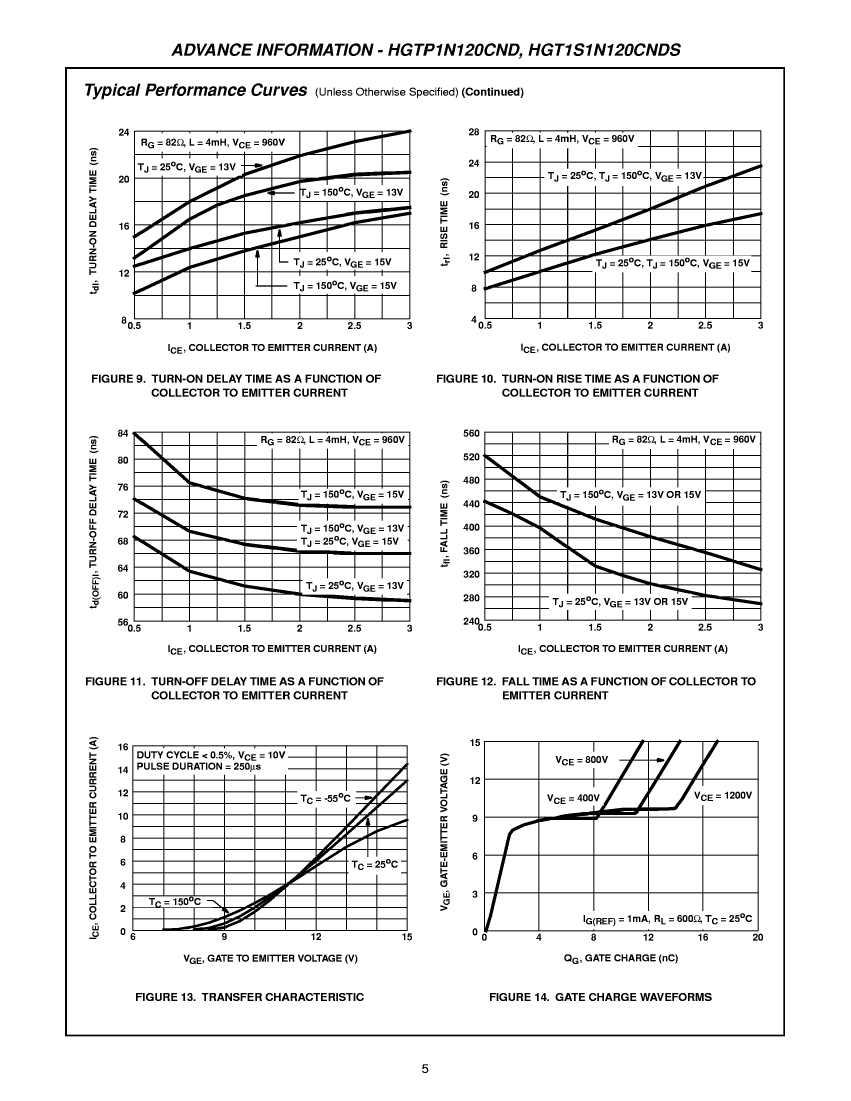

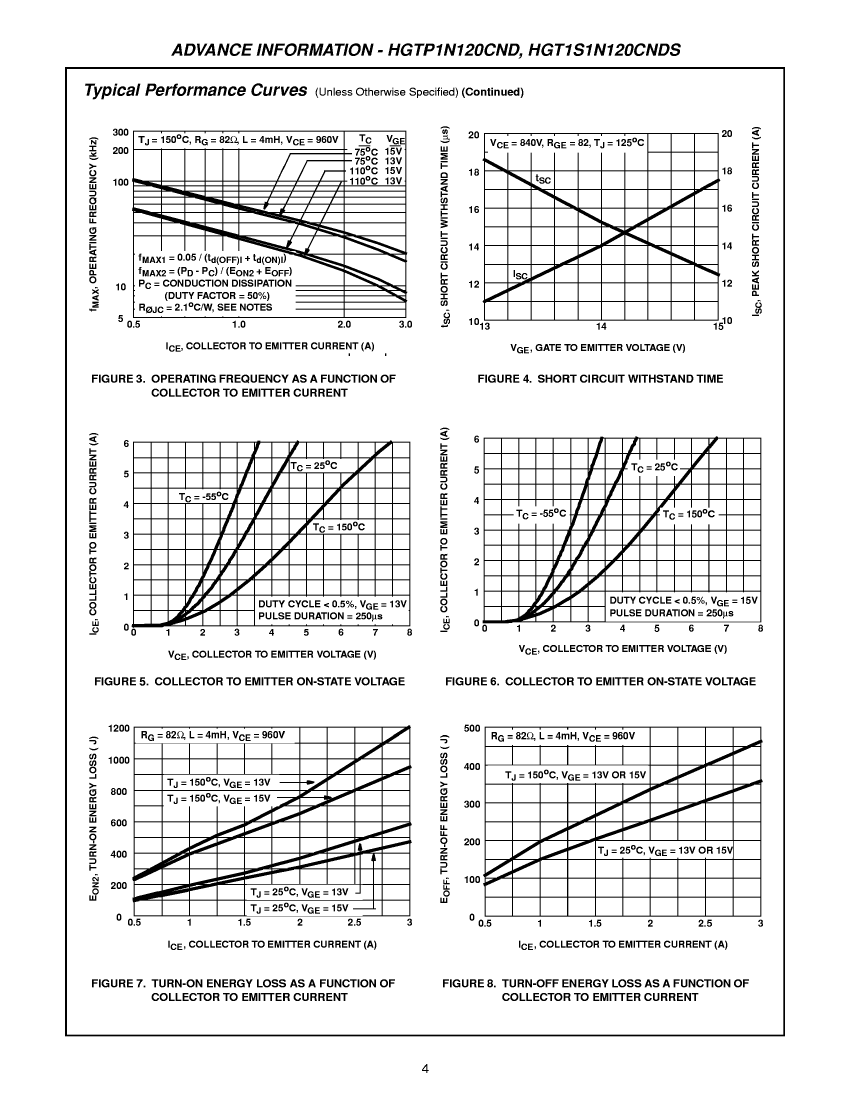

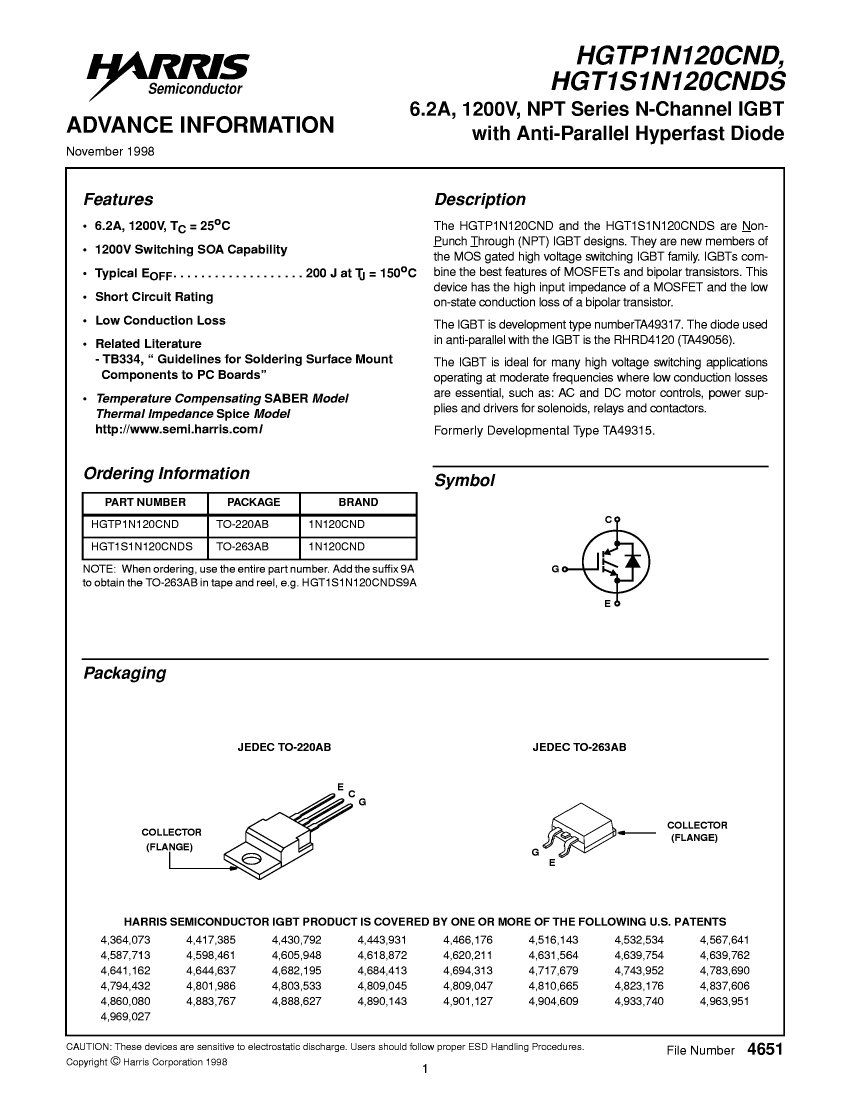

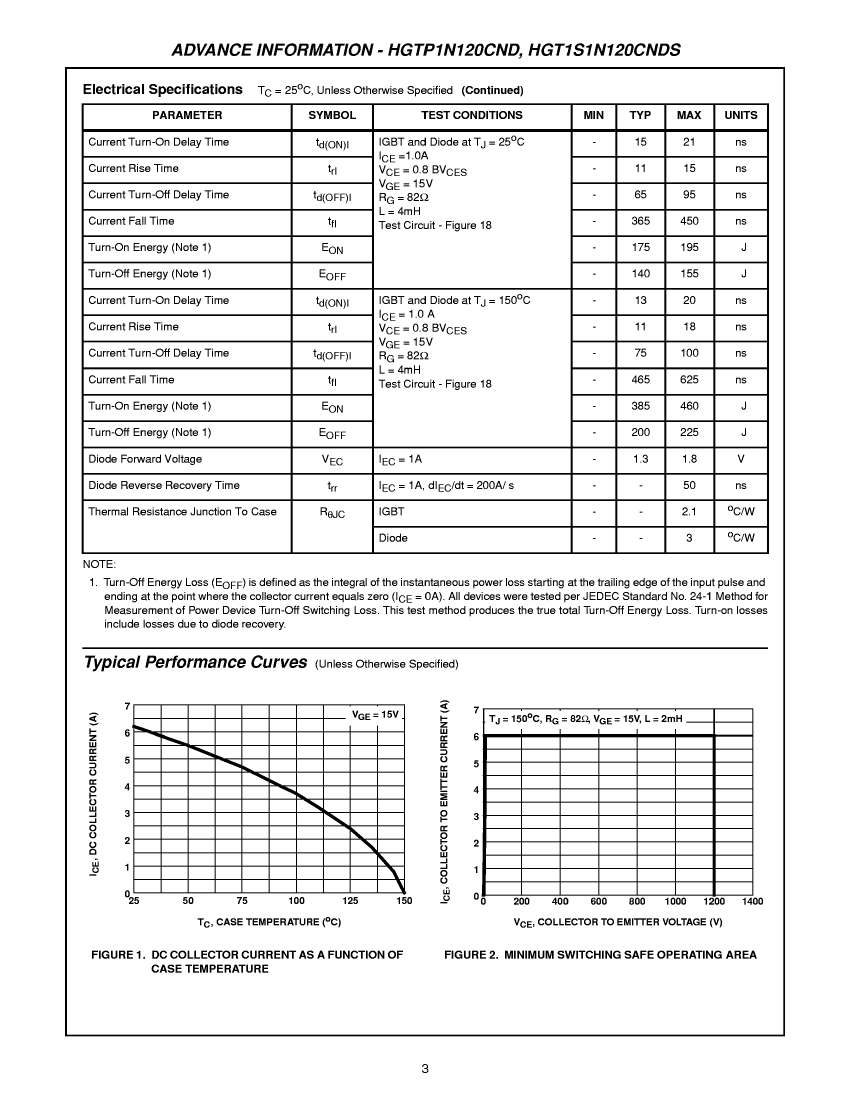

HGT1S1N120CNDS Overview

Insulated Gate Bipolar Transistor, 1A I(C), 1200V V(BR)CES, N-Channel, TO-263AB

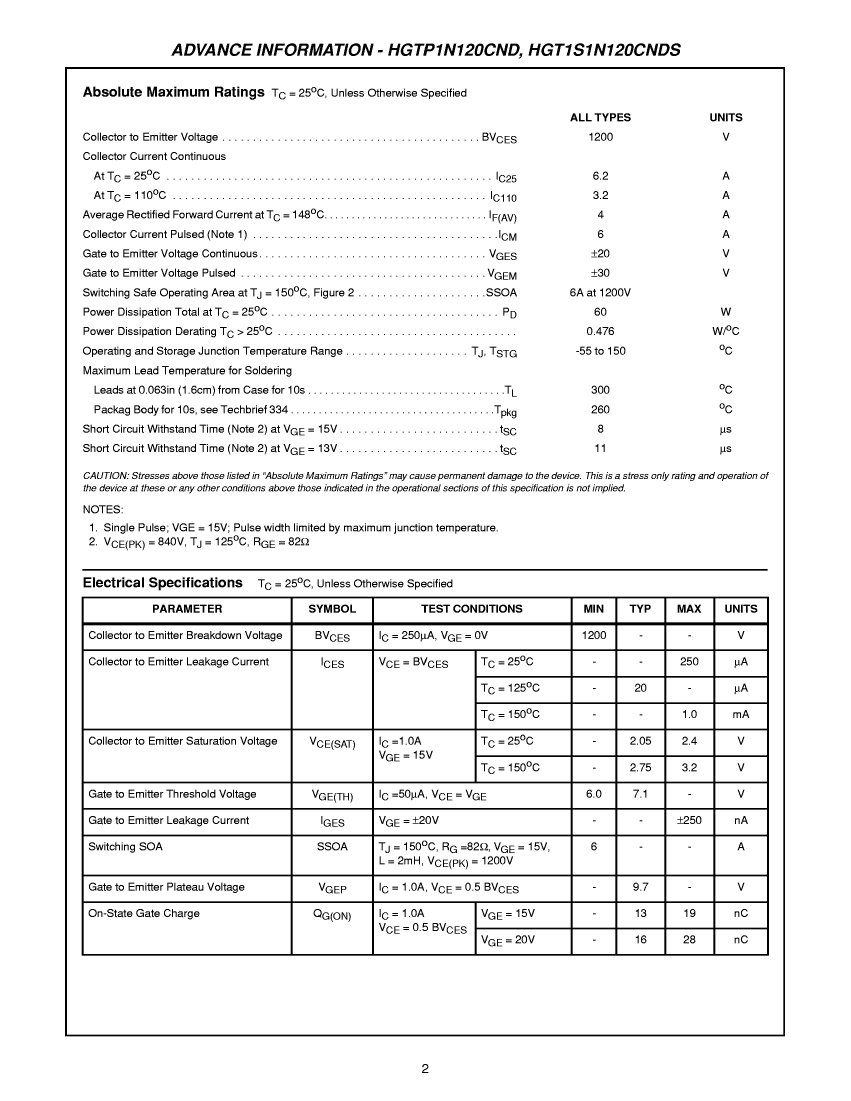

Parameter Name	Attribute value
Maker	Harris
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW CONDUCTION LOSS
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	1200 V
Configuration	SINGLE WITH BUILT-IN DIODE
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	POWER CONTROL
Transistor component materials	SILICON

	HGT1S1N120CNDS	HGTP1N120CND	HGT1S1N120CNDS9A
Description	Insulated Gate Bipolar Transistor, 1A I(C), 1200V V(BR)CES, N-Channel, TO-263AB	Insulated Gate Bipolar Transistor, 1A I(C), 1200V V(BR)CES, N-Channel, TO-220AB	Insulated Gate Bipolar Transistor, 6.2A I(C), 1200V V(BR)CES, N-Channel, TO-263AB
package instruction	SMALL OUTLINE, R-PSSO-G2	FLANGE MOUNT, R-PSFM-T3	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown
Other features	LOW CONDUCTION LOSS	LOW CONDUCTION LOSS	LOW CONDUCTION LOSS, HYPER FAST RECOVERY
Maximum collector current (IC)	1 A	1 A	6.2 A
Collector-emitter maximum voltage	1200 V	1200 V	1200 V
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
JEDEC-95 code	TO-263AB	TO-220AB	TO-263AB
JESD-30 code	R-PSSO-G2	R-PSFM-T3	R-PSSO-G2
Number of components	1	1	1
Number of terminals	2	3	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	POWER CONTROL	POWER CONTROL	MOTOR CONTROL
Transistor component materials	SILICON	SILICON	SILICON
Maker	Harris	-	Harris
ECCN code	EAR99	EAR99	-
