D Subminiature Connector, 37 Contact(s), Male, Solder Terminal,

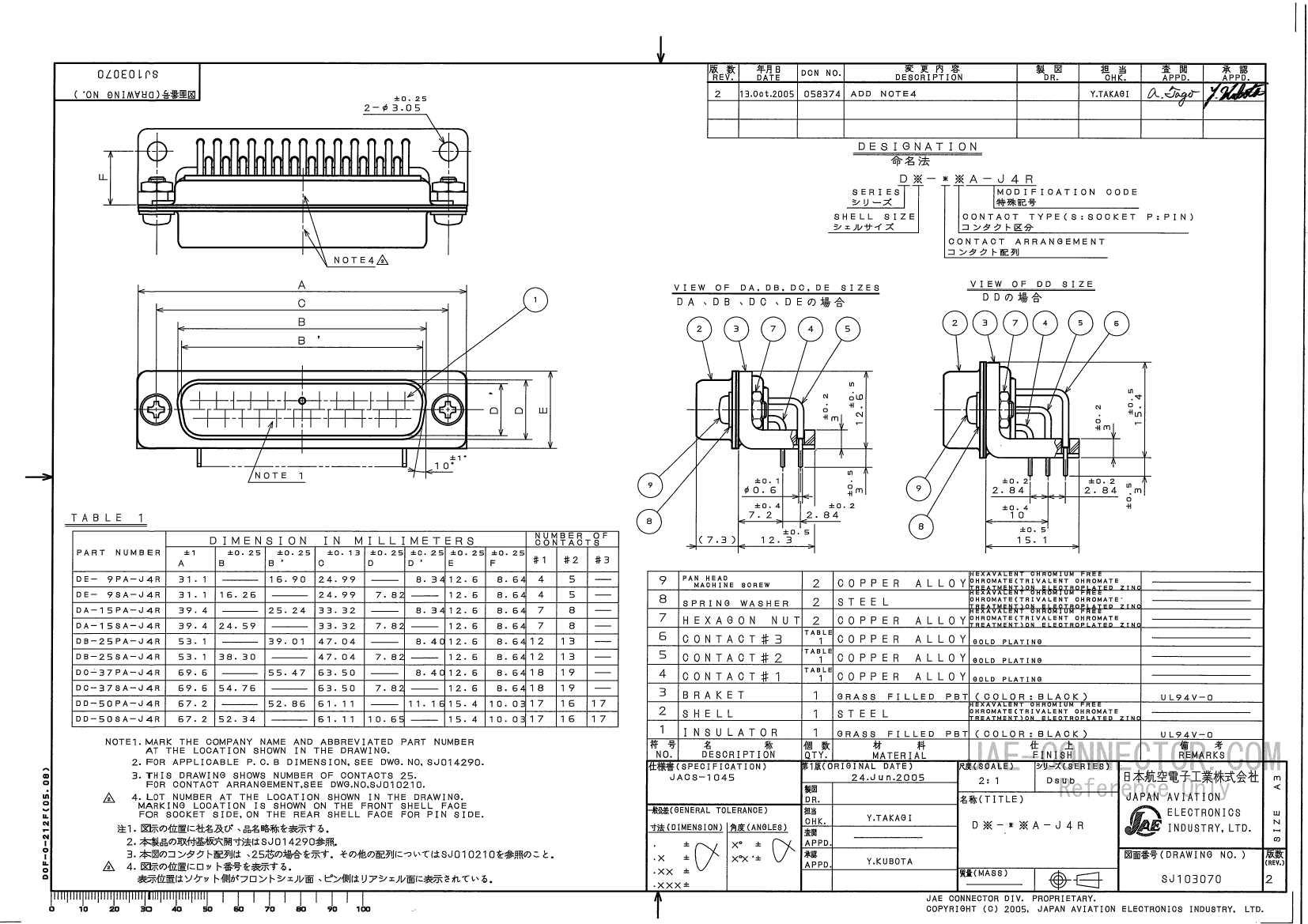

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Japan Aviation Electronics Industry Limited |
| Reach Compliance Code | unknown |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation type | BOARD |
| Options | GENERAL PURPOSE |
| Shell surface | CHROMATE |
| Shell material | STEEL |
| Housing size | 4/C |
| Termination type | SOLDER |
| Total number of contacts | 37 |
| UL Flammability Code | 94V-0 |
| DC-37PA-J4R | DB-25SA-J4R | DD-50PA-J4R | DD-50SA-J4R | DE-9PA-J4R | DE-9SA-J4R | DA-15PA-J4R | DA-15SA-J4R | DB-25PA-J4R | DC-37SA-J4R | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, | D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Locking, | D Subminiature Connector, 50 Contact(s), Male, Solder Terminal, Locking, | D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Locking, | D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Locking, | D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Locking, | D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, | D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Locking, | D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, Locking, | D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | FEMALE | MALE | FEMALE | MALE | FEMALE | MALE | FEMALE | MALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell surface | CHROMATE | CHROMATE | CHROMATE | CHROMATE | CHROMATE | CHROMATE | CHROMATE | CHROMATE | CHROMATE | CHROMATE |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL |
| Housing size | 4/C | 3/B | 5/D | 5/D | 1/E | 1/E | 2/A | 2/A | 3/B | 4/C |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 37 | 25 | 50 | 50 | 9 | 9 | 15 | 15 | 25 | 37 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| body width | - | 0.496 inch | 0.606 inch | 0.606 inch | 0.496 inch | 0.496 inch | - | 0.496 inch | 0.496 inch | - |
| subject depth | - | 0.484 inch | 0.594 inch | 0.594 inch | 0.484 inch | 0.484 inch | - | 0.484 inch | 0.484 inch | - |
| body length | - | 2.091 inch | 2.646 inch | 2.646 inch | 1.224 inch | 1.224 inch | - | 1.551 inch | 2.091 inch | - |
| contact mode | - | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | - | STAGGERED | STAGGERED | - |
| Contact resistance | - | 4 mΩ | 4 mΩ | 4 mΩ | 4 mΩ | 4 mΩ | - | 4 mΩ | 4 mΩ | - |
| Contact style | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT | - |
| Dielectric withstand voltage | - | 1750VAC V | 1750VAC V | 1750VAC V | 1750VAC V | 1750VAC V | - | 1750VAC V | 1750VAC V | - |
| Insulation resistance | - | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - | 5000000000 Ω | 5000000000 Ω | - |
| Insulator color | - | BLACK | BLACK | BLACK | BLACK | BLACK | - | BLACK | BLACK | - |
| Installation option 1 | - | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | - | LOCKING | LOCKING | - |
| Installation method | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE | - |
| Number of rows loaded | - | 2 | 3 | 3 | 2 | 2 | - | 2 | 2 | - |
| Maximum operating temperature | - | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | - | 105 °C | 105 °C | - |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | - | -55 °C | -55 °C | - |
| PCB contact row spacing | - | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | - | 2.8448 mm | 2.8448 mm | - |
| Rated current (signal) | - | 5 A | 5 A | 5 A | 5 A | 5 A | - | 5 A | 5 A | - |
| Guideline | - | UL | UL | UL | UL | UL | - | UL | UL | - |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | - |
| Terminal length | - | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | - | 0.118 inch | 0.118 inch | - |
