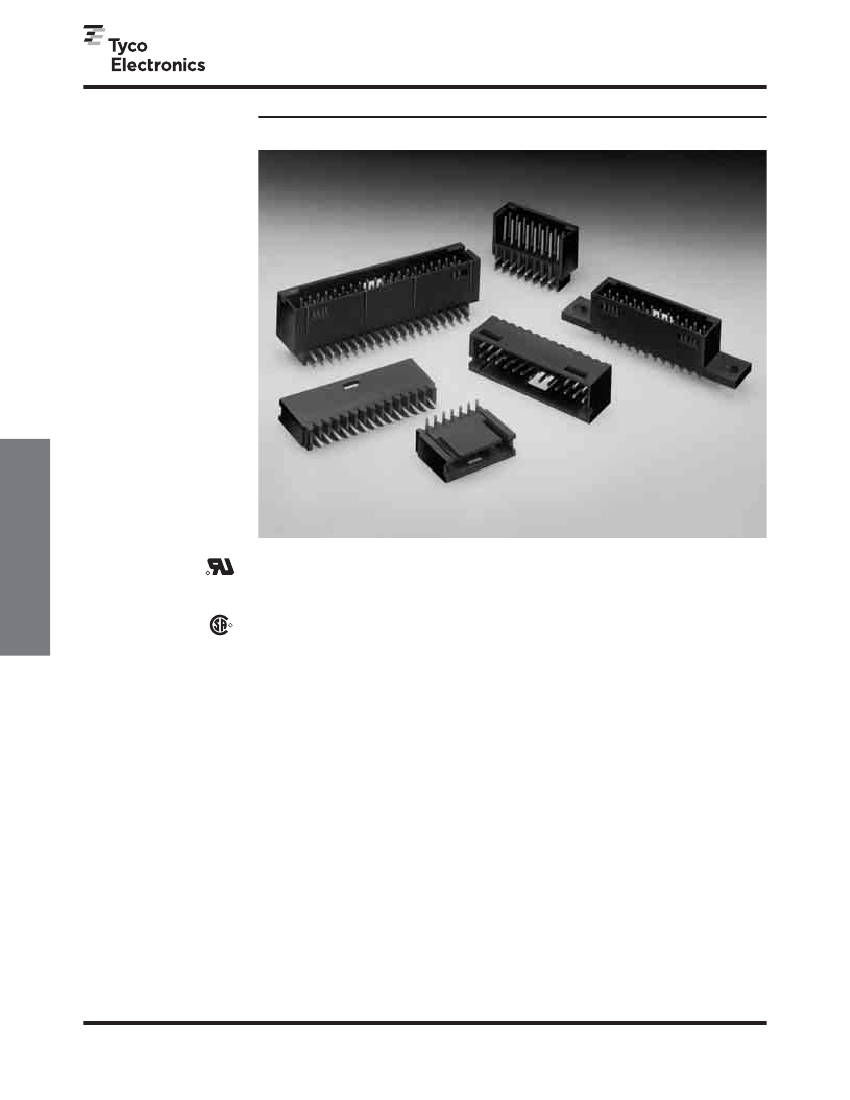

AMPMODU Interconnection System
Standard Profile Headers—Shrouded
PageHead_12_HelvCdBd
(Continued)
Product Facts
■
Available in several styles—
right-angle with three- and
four-sided pin protection,
and straight post with pin
protection and mounting ears
Post retention feature
available
Can be used for feed-to and
feed-thru applications
Housings are black
thermoplastic, flame
retardant 94V-0 rated
Contacts are copper alloy
Available in gold duplex,
gold over nickel and tin over
nickel platings
Headers with .066 [1.68]
and .150 [3.81] end dimen-
sions are available in select
sizes up to 60 positions
Can be select loaded,
consult Tyco Electronics
Recognized under the
Component Program of
Underwriters
Laboratories Inc.
File No. E28476
R
■
■
■
■
■
■
Standard Profile Headers,
Shrouded
■
■
■
5
Certified by Canadian
Standards
Association,
File No. LR 7189
Performance
Characteristics
Electrical
R
Insulation Resistance
— 5,000
megohms minimum initial
Dielectric Withstanding Voltage
—
750 RMS at sea level
Environmental
Operating Temperature
—
-65°C to +105°C (black thermoplastic
housings)
Current
— 3 amperes maximum
per contact
114
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMPMODU Interconnection System
Standard Profile Headers—Shrouded, Single-Row,
PageHead_12_HelvCdBd
(Continued)
.100 [2.54] Centerline
.025 [0.64] Square
Straight Post (with Standoffs)
.549
[13.94]
A
.200
Ref.
[5.08]
(Contact Area)
.219
[5.56]
Material and Finish
Housing
— Black thermoplastic,
94V-0 rated
Posts
— Phosphor bronze, plated as
follows:
Plating A
— Duplex plated .000030
[0.00076] gold on contact area,
.000100-.000200 [0.00254-0.00508] tin
on solder area, with entire post under-
plated .000050 [0.00127] nickel
Plating B
— Duplex plated .000015
[0.00038] gold on contact area,
.000100-.000200 [0.00254-0.00508] tin
on solder area, with entire post under-
plated .000050 [0.00127] nickel
Plating C
— .000100-.000200
[0.00254-0.00508] tin over .000050
[0.00127] nickel on entire post
.134
[3.40]
.110
[2.79]
Typ.
C
.100
Typ.
[2.54]
.214
[5.44]
.013
[0.33]
(Standoffs)
.070
[1.78]
Typ.
B
C
.100*
[2.54]
Typ.
.040
[1.02]
Typ.
.240
[6.10]
.330
[8.38]
.130
[3.30]
Standard Profile Headers,
Shrouded
.035±.003
Dia. Typ.
[0.89±0.08]
Related Product Data
Mateable Connectors
—
AMPMODU Wire-Applied
Receptacles
— page 215
AMPMODU MTE Receptacles
—
pages 228, 229, 234
Recommended PC Board Hole Layout
(for .055 [1.40] min. thick PC board)
*±.003 [±0.08] tolerances not to accumulate
within one connector pattern.
5
Post Plating/Part Nos.
Plating A
Plating B
Plating C
5-103414-1
8-102202-4
5-103080-1
5-103414-2
5-102202-1
5-103080-2
5-103414-3
5-102202-2
5-103080-3
5-103414-4
5-102202-3
5-103080-4
5-103414-5
5-102202-4
5-103080-5
5-103414-6
5-102202-5
5-103080-6
5-103414-7
5-102202-6
5-103080-7
5-103414-8
5-102202-7
5-103080-8
5-103414-9
5-102202-8
5-103080-9
6-103414-0
5-102202-9
6-103080-0
6-103414-1
6-102202-0
6-103080-1
6-103414-2
6-102202-1
6-103080-2
6-103414-3
6-102202-2
6-103080-3
6-103414-4
6-102202-3
6-103080-4
6-103414-5
6-102202-4
6-103080-5
6-103414-6
6-102202-5
6-103080-6
6-103414-7
6-102202-6
6-103080-7
6-103414-8
6-102202-7
6-103080-8
6-103414-9
6-102202-8
6-103080-9
7-103414-0
6-102202-9
7-103080-0
7-103414-1
7-102202-0
7-103080-1
7-103414-2
7-102202-1
7-103080-2
7-103414-3
7-102202-2
7-103080-3
No. of
Pos.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Technical Documents
— page 276
See mating connector for applicable
product and application specifications.
A
.420
[10.67]
.520
[13.21]
.620
[15.75]
.720
[18.29]
.820
[20.83]
.920
[23.37]
1.020
[25.91]
1.120
[28.45]
1.220
[30.99]
1.320
[33.53]
1.420
[36.07]
1.520
[38.61]
1.620
[41.15]
1.720
[43.69]
1.820
[46.23]
1.920
[48.77]
2.020
[51.31]
2.120
[53.85]
2.220
[56.39]
2.320
[58.93]
2.420
[61.47]
2.520
[64.01]
2.620
[66.55]
Dimensions
B
.340
[8.64]
.440
[11.18]
.540
[13.72]
.640
[16.26]
.740
[18.80]
.840
[21.34]
.940
[23.88]
1.040
[26.42]
1.140
[28.96]
1.240
[31.50]
1.340
[34.04]
1.440
[36.58]
1.540
[39.12]
1.640
[41.66]
1.740
[44.20]
1.840
[46.74]
1.940
[49.28]
2.040
[51.82]
2.140
[54.36]
2.240
[56.90]
2.340
[59.44]
2.440
[61.98]
2.540
[64.52]
C
.200
[5.08]
.300
[7.62]
.400
[10.16]
.500
[12.70]
.600
[15.24]
.700
[17.78]
.800
[20.32]
.900
[22.86]
1.000
[25.40]
1.100
[27.94]
1.200
[30.48]
1.300
[33.02]
1.400
[35.56]
1.500
[38.10]
1.600
[40.64]
1.700
[43.18]
1.800
[45.72]
1.900
[48.26]
2.000
[50.80]
2.100
[53.34]
2.200
[55.88]
2.300
[58.42]
2.400
[60.96]
Note:
All part numbers are RoHS compliant.
115
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
