50 Ohm 2.92mm Isolator Operating From 26.5 GHz
to 40 GHz And 5 Watts With 14 dB Isolation
TECHNICAL DATA SHEET
Configuration
Connector 1
Connector 2
Frequency Range, GHz
Design
2.92mm Female
SMA Female
26.5 to 40
Isolator
PE8320
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Insertion Loss, dB
Forward Power, Watts
Maximum Input VSWR
Minimum Isolation, dB
Peak Power, Watts
26.5 to 40
50
1
5
1.5:1
14
30
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width, in [mm]
Height, in [mm]
.
-20 to +65
1.25 [31.75]
0.85 [21.59]
0.5 [12.7]
0.056 [25.4]
Weight, lbs [g]
Connector 1
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Connector 2
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Beryllium Copper, Gold
Passivated Stainless Steel
Passivated Stainless Steel
Beryllium Copper, Gold
Passivated Stainless Steel
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2.92mm Isolator Operating From 26.5 GHz to 40 GHz And 5 Watts With 14 dB Isola-
tion PE8320
PE8320 REV 1.0
1
50 Ohm 2.92mm Isolator Operating From 26.5 GHz
to 40 GHz And 5 Watts With 14 dB Isolation
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE8320
50 Ohm 2.92mm Isolator Operating From 26.5 GHz to 40 GHz And 5 Watts With 14 dB Isolation from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2.92mm Isolator Operating From 26.5 GHz to 40 GHz And 5 Watts With 14 dB Isolation
PE8320
URL:
http://www.pasternack.com/50-ohm-2.92mm-isolator-26.5-40-ghz-5-watts-14-db-pe8320-p.aspx
PE8320 REV 1.0
2
PE8320

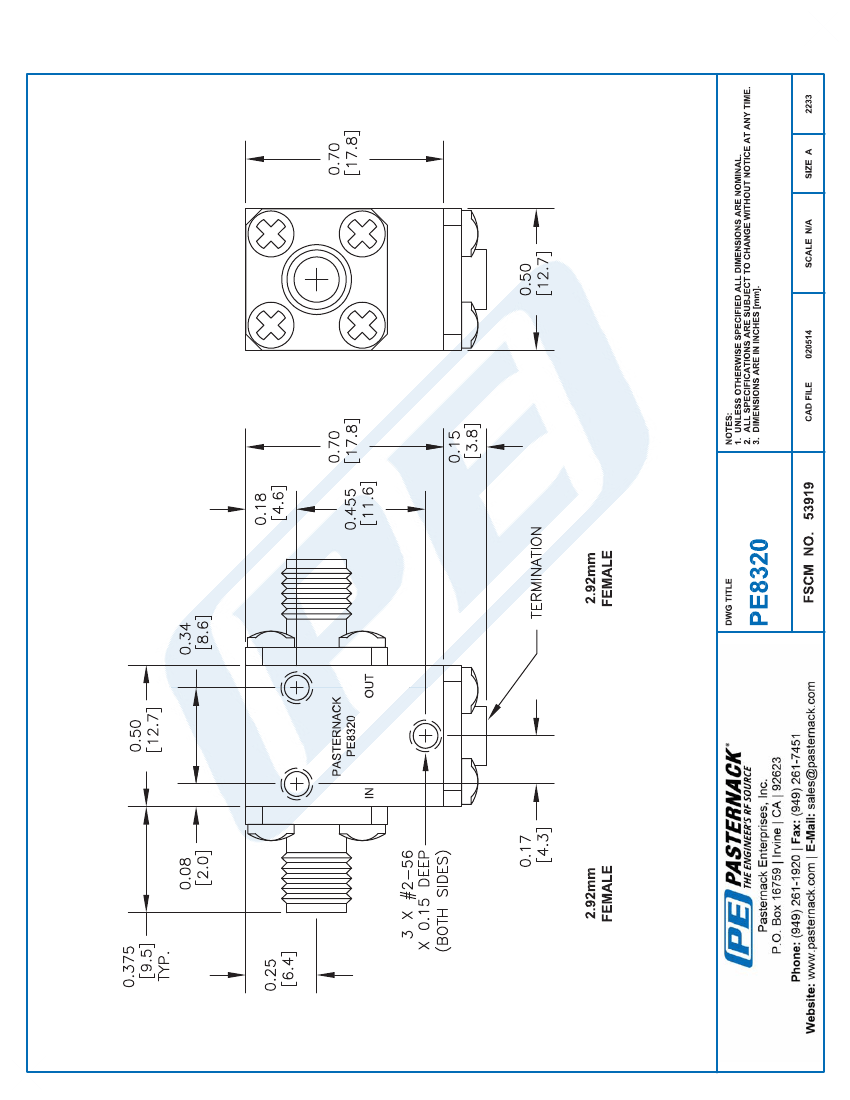

CAD Drawing
50 Ohm 2.92mm Isolator Operating From 26.5 GHz to
40 GHz And 5 Watts With 14 dB Isolation
© 2014 Pasternack Enterprises All Rights Reserved
PE8320 REV 1.0
3
