NSPE-Y331M25V10X12.8NBYF

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 330uF, 4341
CategoryPassive components    capacitor
File Size113KB，3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Related ProductsFound2parts with similar functions to NSPE-Y331M25V10X12.8NBYF
Download Datasheet Parametric Compare View All

NSPE-Y331M25V10X12.8NBYF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 330uF, 4341

NSPE-Y331M25V10X12.8NBYF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction, 4341
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time18 weeks 4 days
capacitance330 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM
ESR16 mΩ
high12.8 mm
length11 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature135 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)25 V
ripple current1390 mA
size code4341
width10.3 mm
Base Number Matches1

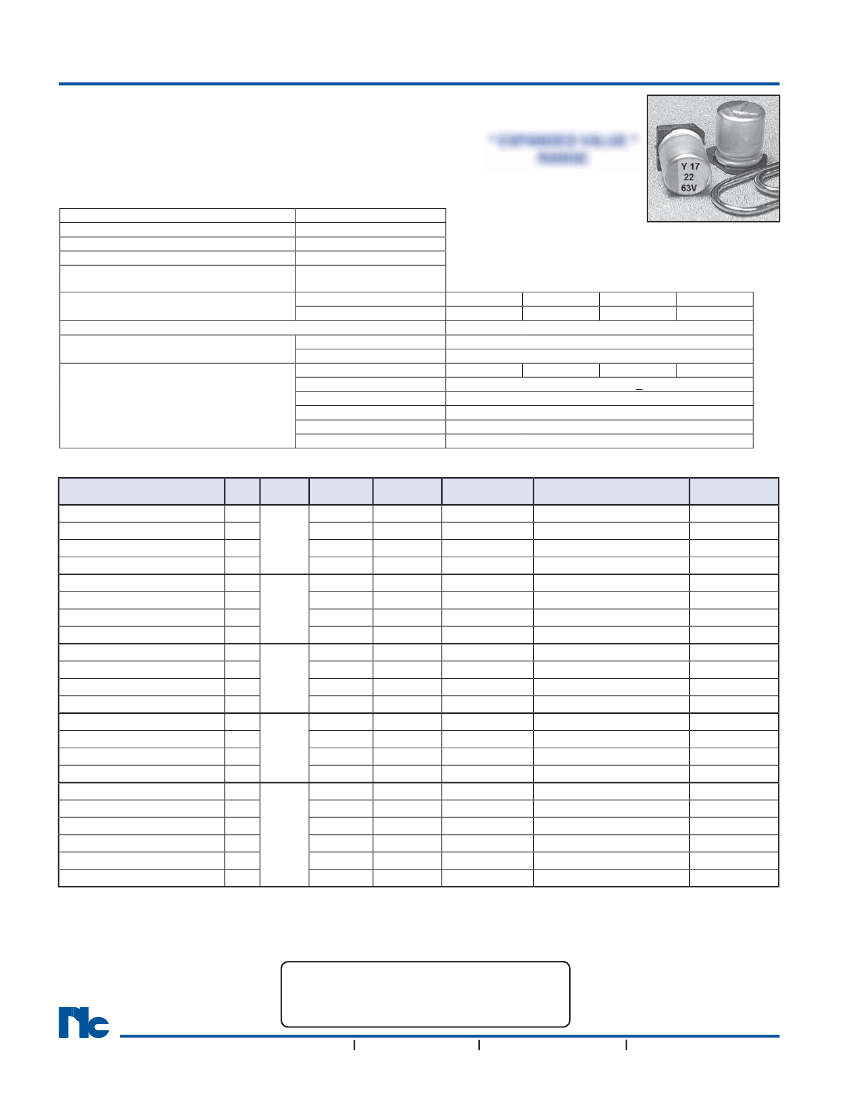

Preview

Download Datasheet
Hybrid Aluminum Electrolytic Capacitors
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
•
HIGH TEMPERATURE RANGE (+135°C)
* EXPANDED VALUE *
•
LOW ESR AND HIGH RIPPLE CURRENT
RANGE
• 6.3x8 ~ 10x12.8mm CASE SIZES
•
REFLOW SOLDERING RATED TO +260°C (ALL SIZES)
CHARACTERISTICS
25 ~ 63Vdc
10 ~ 330μF
-55 ~ +135°C
±20% (M)
Less than 0.05CV or 100μA
whichever is greater
W.V. (Vdc)
Working and Surge Voltage Ratings
S.V. (Vdc)
Tan
δ
@ 120Hz/20°C
Z -55°C/Z +20°C
Impedance Ratio
Z +135°C/Z +20°C
W.V. (Vdc)
Test Duration
Capacitance Change
Load Life Test @ 135°C
and Rated Voltage
Tan
δ
and ESR
Leakage Current
ESR
Rated Voltage Range
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
NSPE-Y Series
25
32
35
44
0.16
1 ~ 2.5
0.6 ~ 1.0
50
63
63
79
25
35
50
63
φd
= 6.3mm 1000 Hrs. ±12 Hrs.,
φd
> 2000 Hrs. ±12 Hrs.
Within ±30% of initial measured value
Less than 200% of specified max. value
Less than specified max. value
Less than 200% of specified max. value
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
PART NUMBER
NSPE-Y680M25V6.3X8NBF
NSPE-Y151M25V8X10.8NBF
NSPE-Y271M25V10X10.8NBF
NSPE-Y331M25V10X12.8NBF
NSPE-Y470M35V6.3X8NBF
NSPE-Y101M35V8X10.8NBF
NSPE-Y151M35V10X10.8NBF
NSPE-Y221M35V10X12.8NBF
NSPE-Y270M40V6.3X8NBF
NSPE-Y560M40V8X10.8NBF
NSPE-Y101M40V10X10.8NBF
NSPE-Y121M40V10X12.8NBF
NSPE-Y150M50V6.3X8NBF
NSPE-Y330M50V8X10.8NBF
NSPE-Y560M50V10X10.8NBF
NSPE-Y820M50V10X12.8NBF
NSPE-Y100M63V6.3X8NBF
NSPE-Y220M63V8X10.8NBF
NSPE-Y330M63V8X10.8NBF
NSPE-Y330M63V10X10.8NBF
NSPE-Y470M63V10X10.8NBF
Cap. Working Case Size Max. Tan
δ
Max. ESR (mΩ) Max. Ripple Current (mA rms)
Load Life
(μF) Voltage (D X L) mm 120Hz/20°C AT 100KHz/20°C
AT 100KHz/135°C
Hours (+135°C)
68
6.3X8
0.16
45
780
1000
150
270
330
47
100
150
220
27
56
100
120
15
33
56
82
10
22
33
33
47
63
50
40
35
25
8X10.8
10X10.8
10X12.8
6.3X8
8X10.8
10X10.8
10X12.8
6.3X8
8X10.8
10X10.8
10X12.8
6.3X8
8X10.8
10X10.8
10X12.8
6.3X8
8X10.8
8X10.8
10X10.8
10X10.8
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
27
22
16
60
30
23
17
70
32
24
18
80
35
25
19
100
40
40
30
30
22
1060
1220
1390
730
1010
1180
1360
700
980
1150
1320
670
940
1110
1270
590
870
870
1010
1010
1150
2000
2000
2000
1000
2000
2000
2000
1000
2000
2000
2000
1000
2000
2000
2000
1000
2000
2000
2000
2000
2000
NSPE-Y560M63V10X12.8NBF
56
10X12.8
For Automotive Applications See Part Numbering System
®
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
44
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
